P40-G12-G38-OT-QTW1 Monoblock Valve | Installation & Maintenance Guide

Steuermethode:Manuell

Steuerkolben:2 Spulen

Nennfluss:40 l/min (10,5 US gal/min)

Maximaldruck:250 bar (3600 psi)

Einlassanschluss:G1/2

Auslassanschluss:G1/2

Anschlussgröße:G3/8

Hersteller:BXHS

Produkttyp:Monoblock-Wegeventil

Produktserie:P40-Serie Monoblock-Wegeventil

Verpackungsgröße:23*18*13

Bruttogewicht:6.00 kg

Verfügbarkeit: Auf Lager

1046 Personen sehen sich dieses Produkt an

P40-G12-G38-OT-QTW1 Monoblock Valve | Installation & Maintenance Guide

P40-G12-G38-OT-QTW1 Monoblock Valve | Installation & Maintenance Guide

P40-G12-G38-OT-QTW1 Monoblock Valve | Installation & Maintenance Guide drawing image

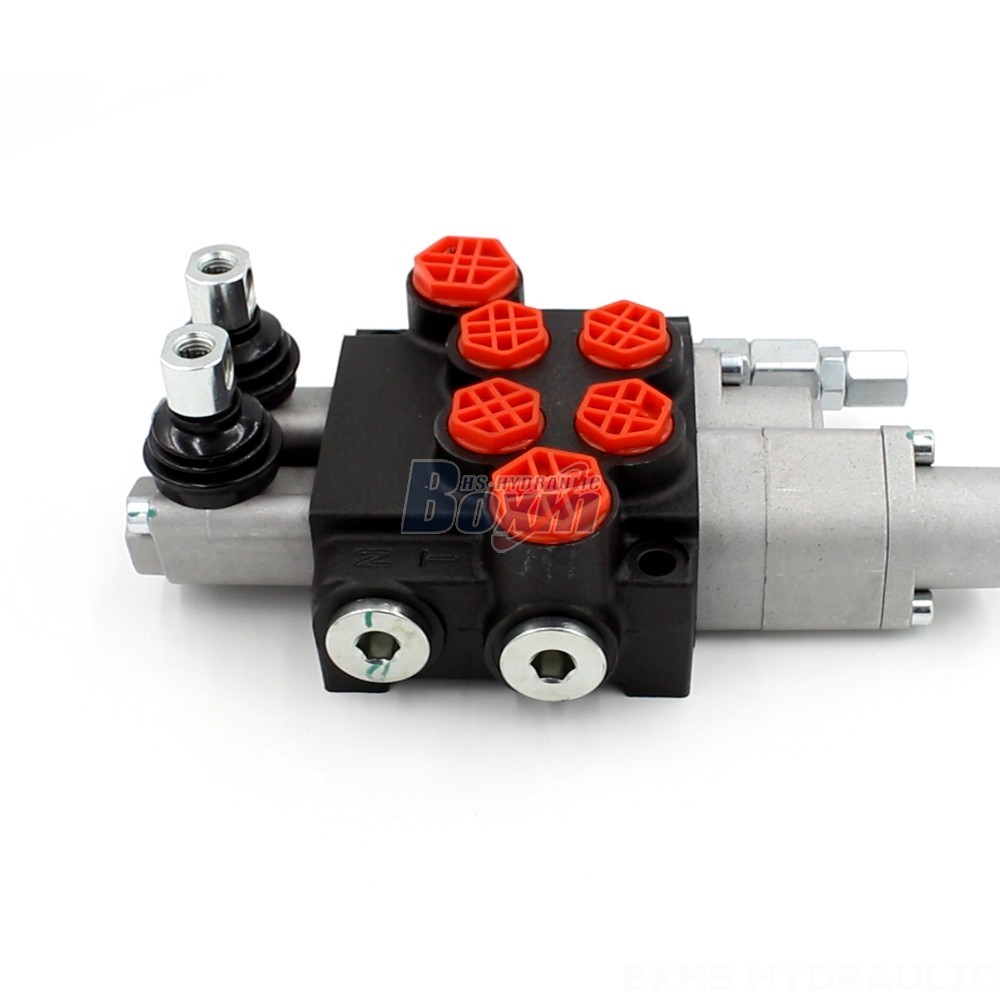

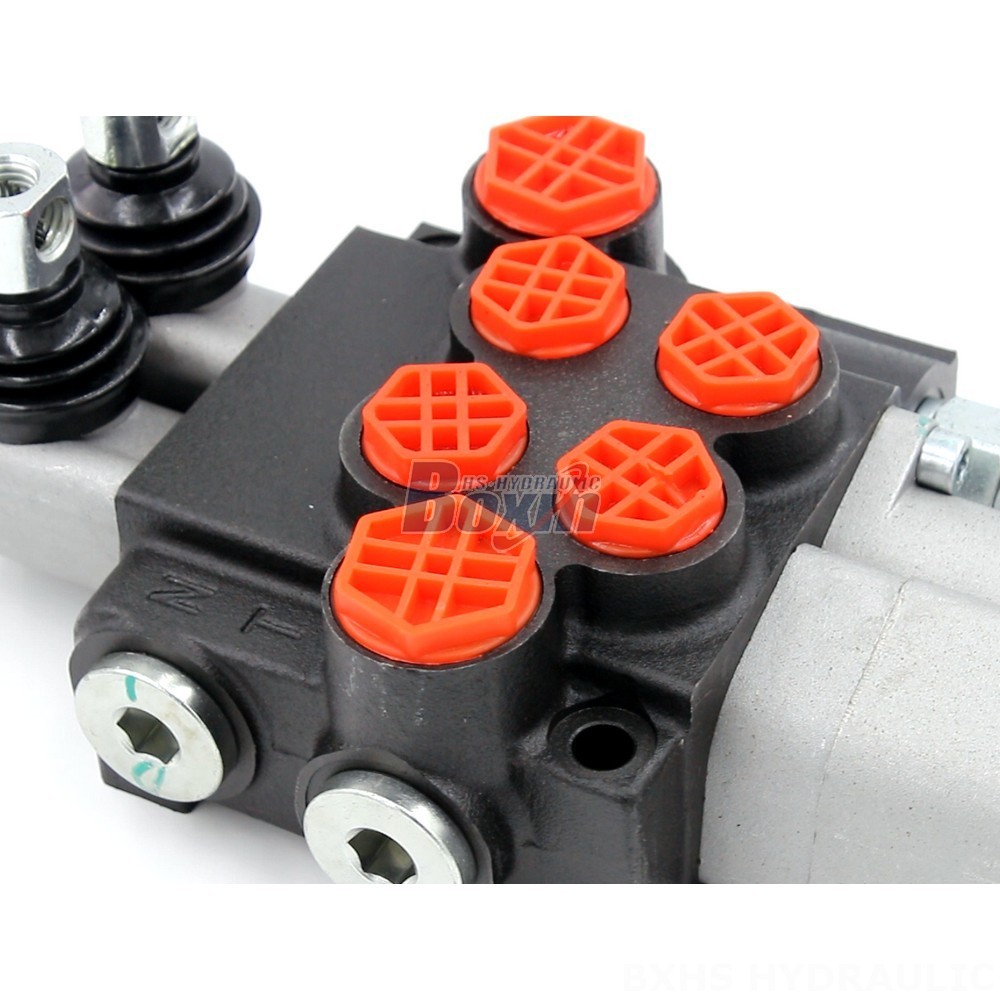

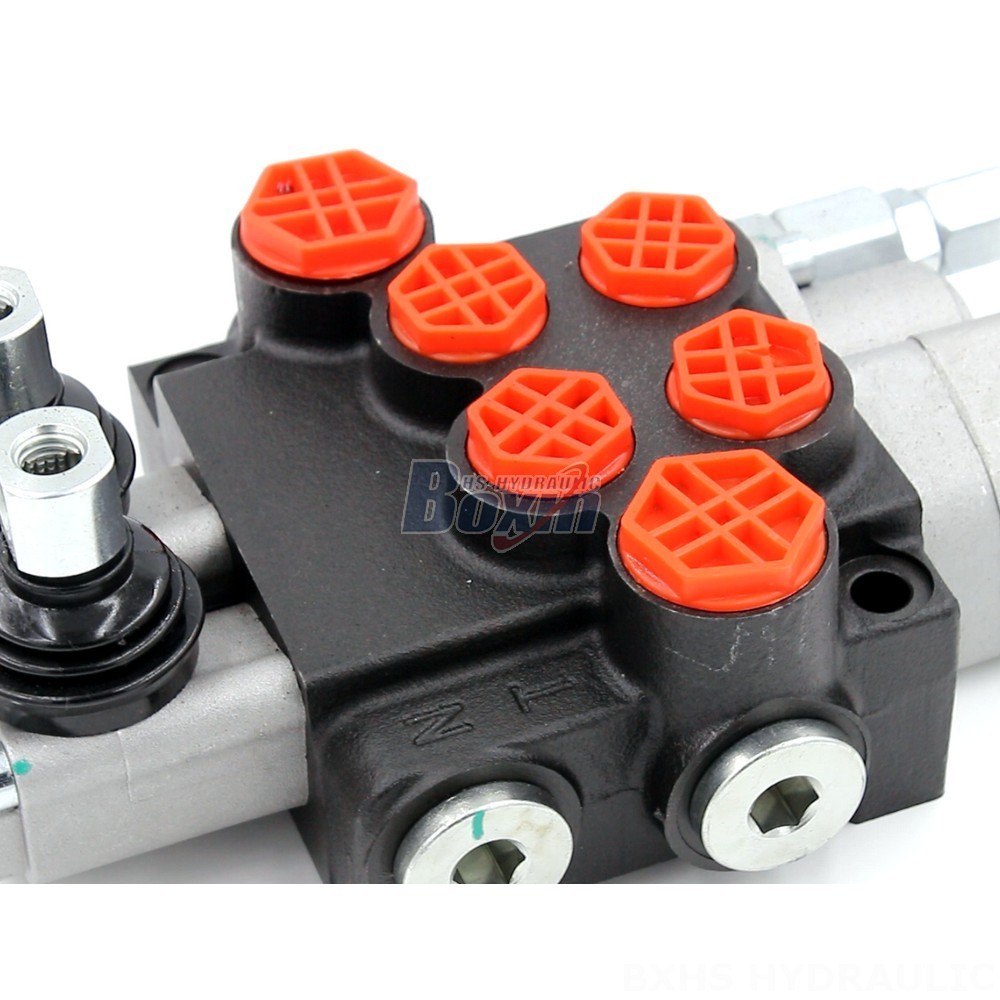

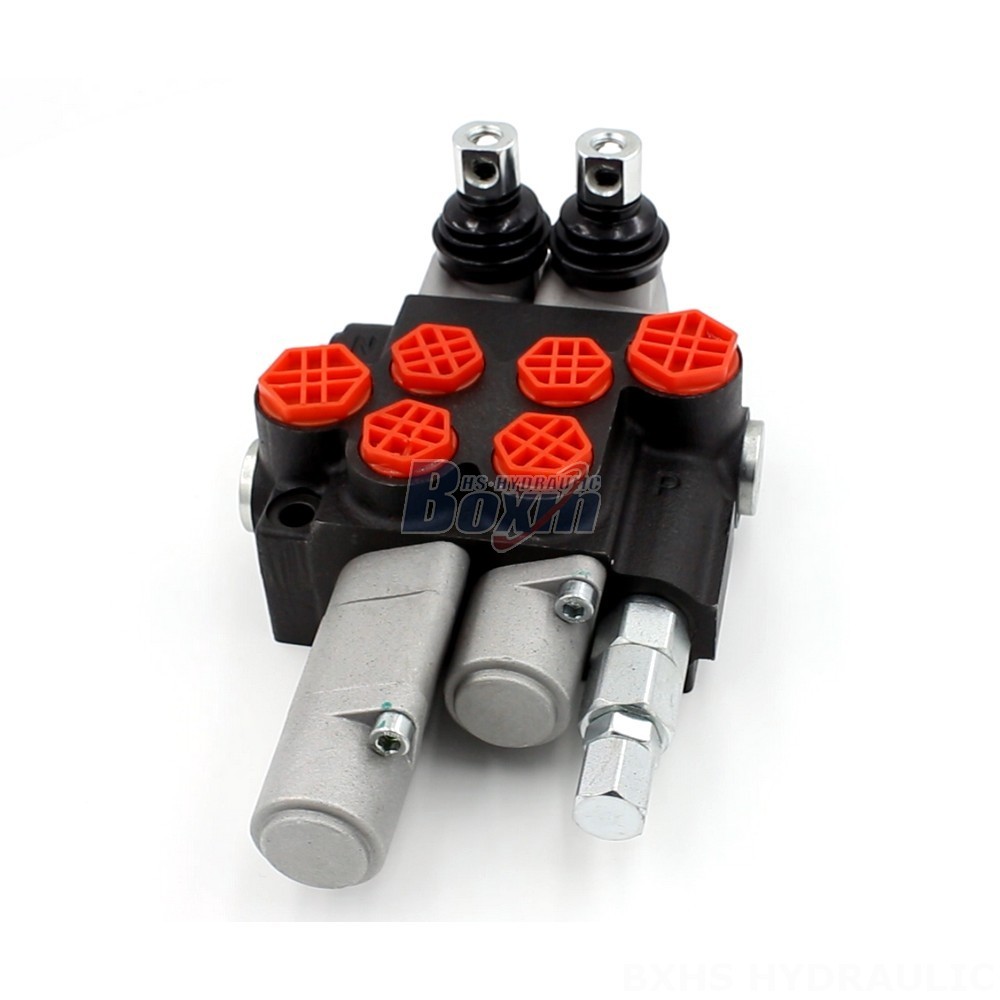

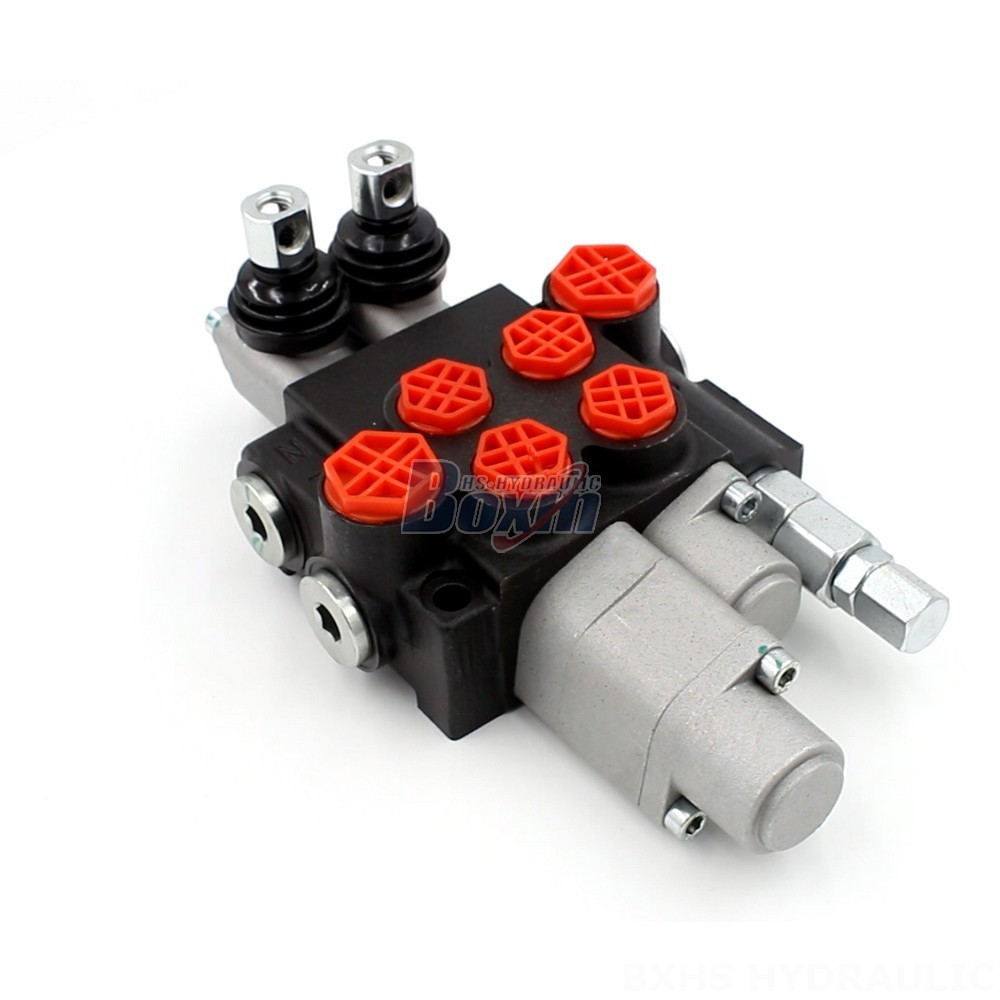

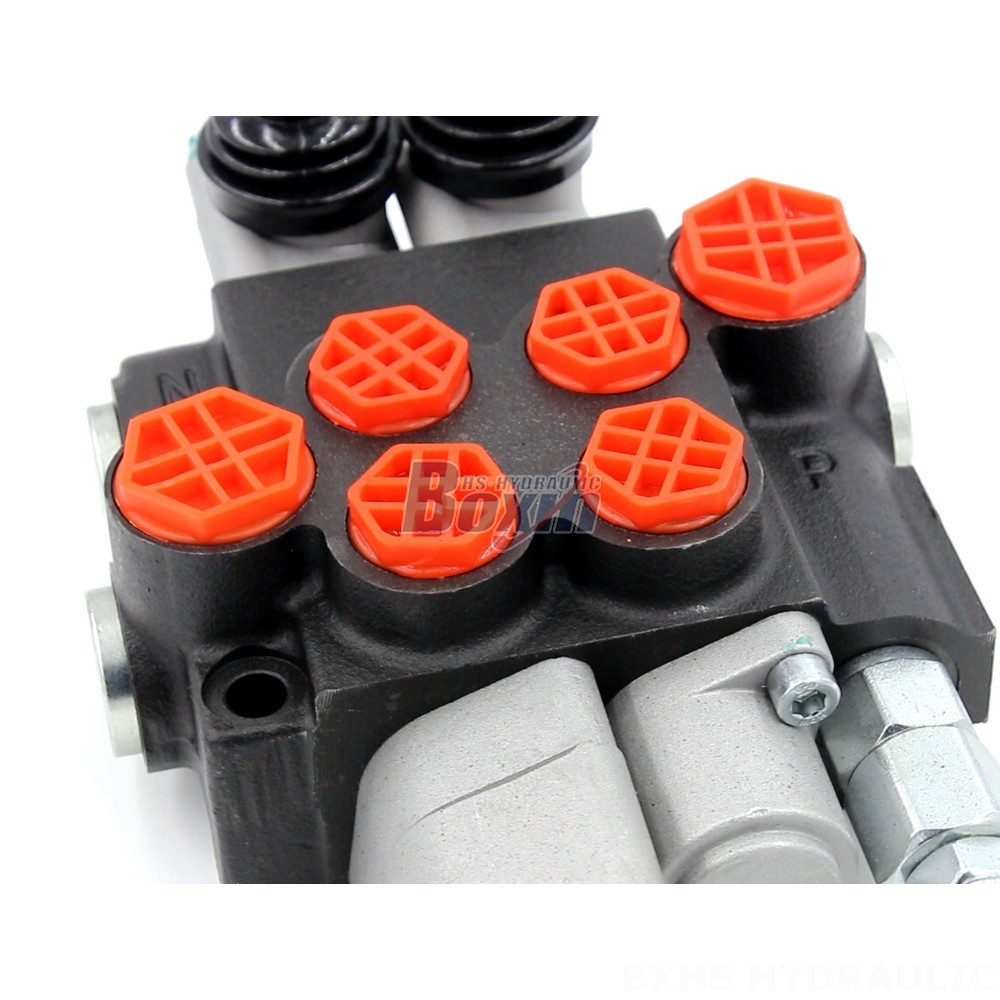

The P40-G12-G38-OT-QTW1 is a high-performance 4/2 directional monoblock hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve offers a rated flow of 40 L/min and a maximum pressure rating of 250 bar, making it suitable for a wide range of mobile machinery.

P40-Serie Monoblock-Wegeventil Parameter
Steuermethode Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug
Steuerkolben 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen
Umgebungstemperaturbereich -40 °C bis +80 °C (-40 °F bis +176 °F)
Strukturtyp Monoblockventil
Abschnitt 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt
Bereich der Betriebsviskosität 15 - 75 mm²/s (15 cSt bis 75 cSt)
Nennfluss 40 l/min (10,5 US gal/min)
Maximaldruck 250 bar (3600 psi)
Einlassanschluss G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Auslassanschluss G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Anschlussgröße G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series 4/2 directional valve is a robust monoblock valve featuring manual control. It is designed for reliable operation in demanding applications across various industries, including material handling, construction, agriculture, and industrial vehicles. The valve features a rated flow of 40 L/min and a maximum pressure rating of 250 bar, making it suitable for a wide range of mobile machinery. This valve is built to withstand harsh environments, with an operating viscosity range of 15-75 mm²/s and an ambient temperature range of -40°C to +80°C. The valve is specifically designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Its durable construction and reliable performance make it a valuable component for any hydraulic system.
