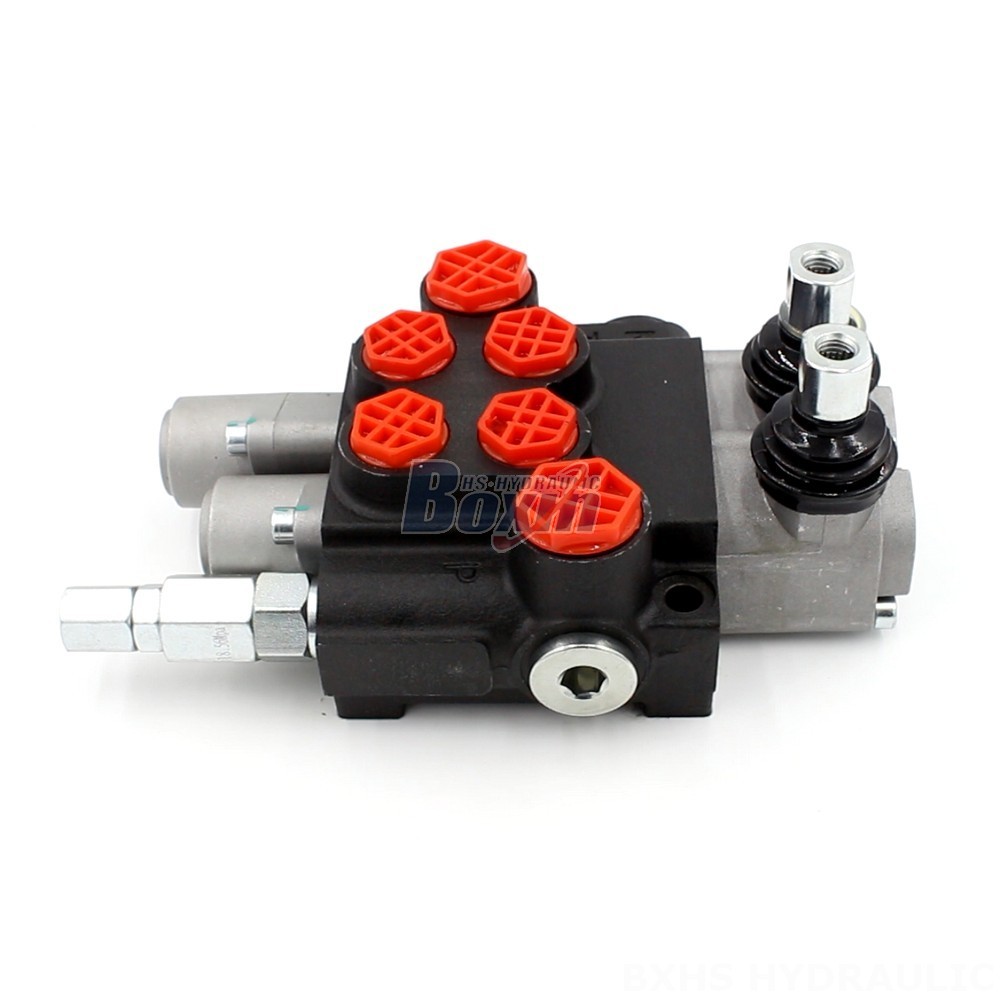

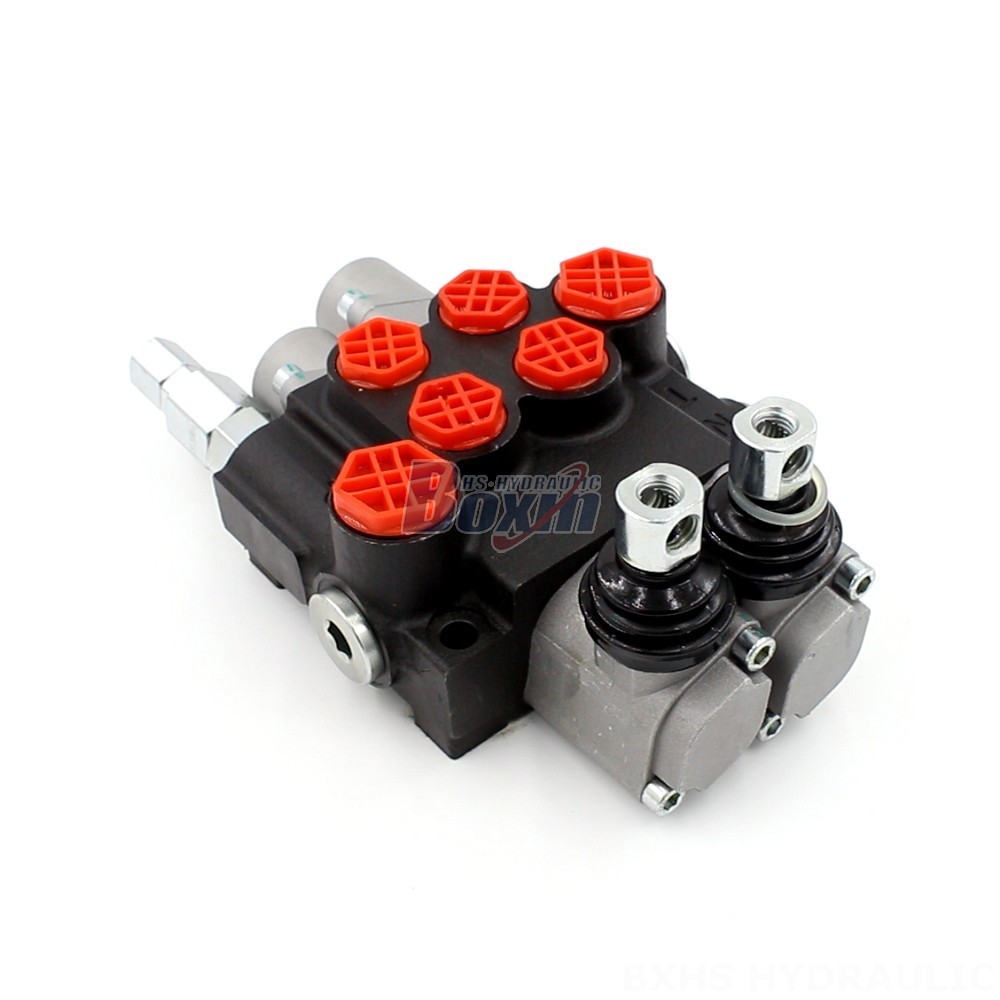

The P40-G12-G38-OT-QTW Monoblock Valve is a solenoid operated, 2-section directional control valve designed for demanding hydraulic applications in industries such as material handling, construction, and agriculture. It features a maximum operating pressure of 250 bar and a rated flow of 40 L/min, making it suitable for a wide range of machinery including telehandlers, forklifts, and excavators.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series directional control valve is a robust, monoblock construction offering manual control. The valve is designed for demanding hydraulic applications, boasting a rated flow of 40 L/min and a maximum operating pressure of 250 bar. Its operating viscosity range spans from 15 to 75 mm²/s, suitable for various hydraulic fluids. The valve is equipped with two spools, allowing for precise control over hydraulic circuits. The P40-G12-G38-OT-QTW valve is ideally suited for heavy-duty machinery within material handling, construction, and agriculture industries, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. Its compact design and high performance make it a reliable choice for demanding hydraulic applications.
