The P40-G12-G38-OT Monoblock Valve is a high-performance hydraulic valve designed for use in a wide range of applications. It features a durable and efficient design, with a rated flow of 40 L/min and a maximum pressure of 250 bar. The valve is suitable for use with a variety of fluids, including hydraulic oil, and has an operating viscosity range of 15 - 75 mm²/s. The valve is also temperature resistant, with an ambient temperature range of -40°C to +80°C.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

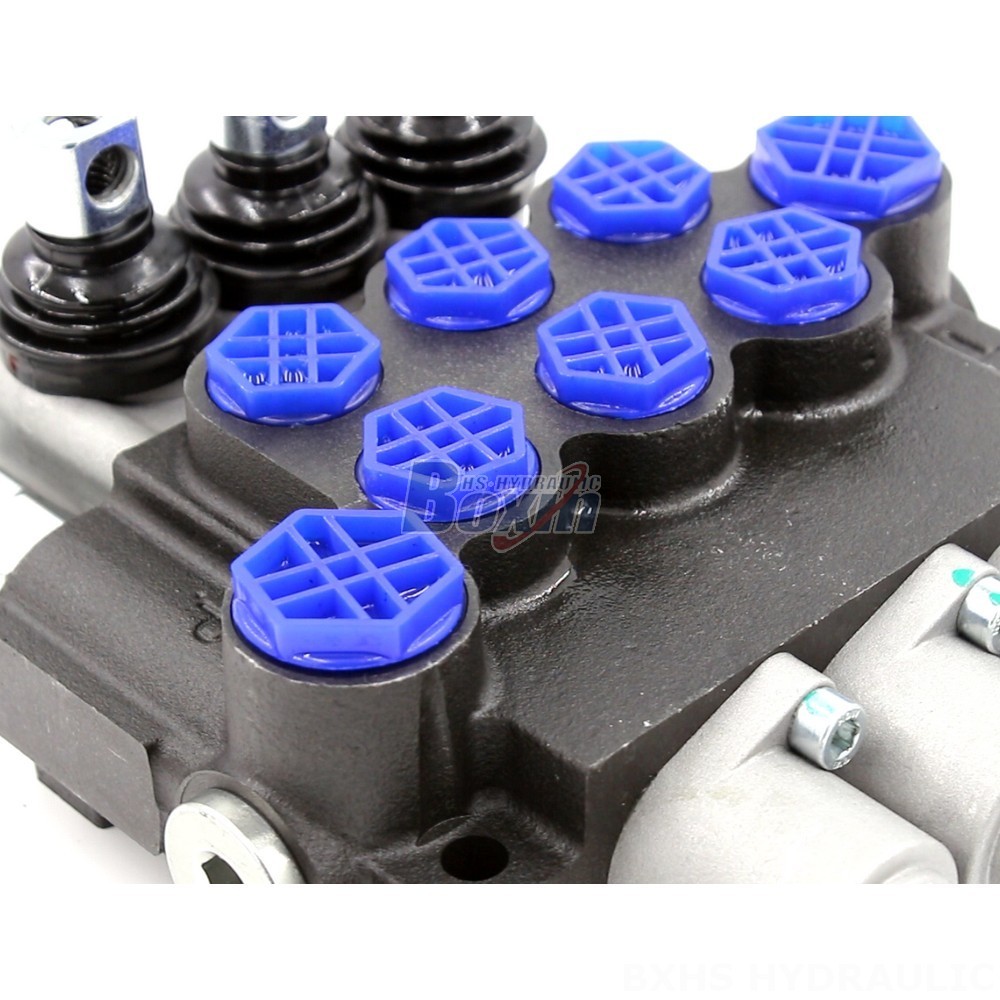

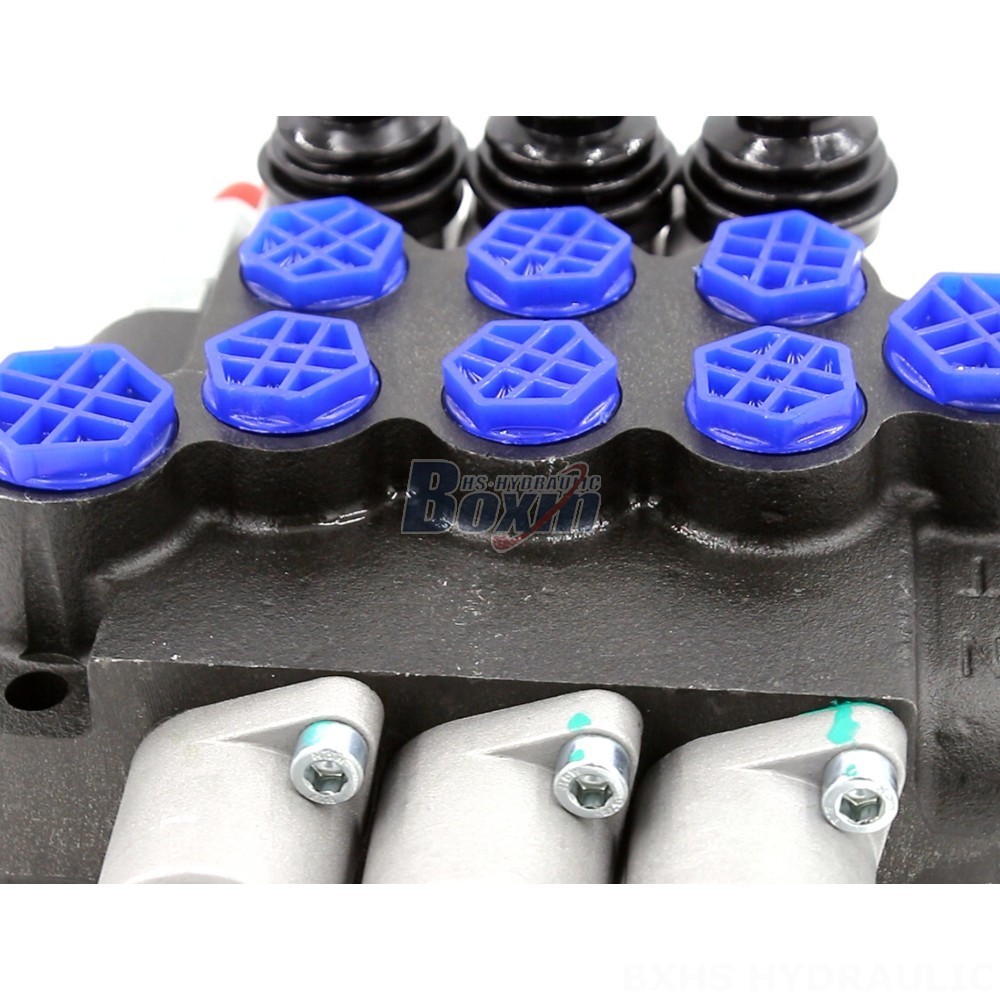

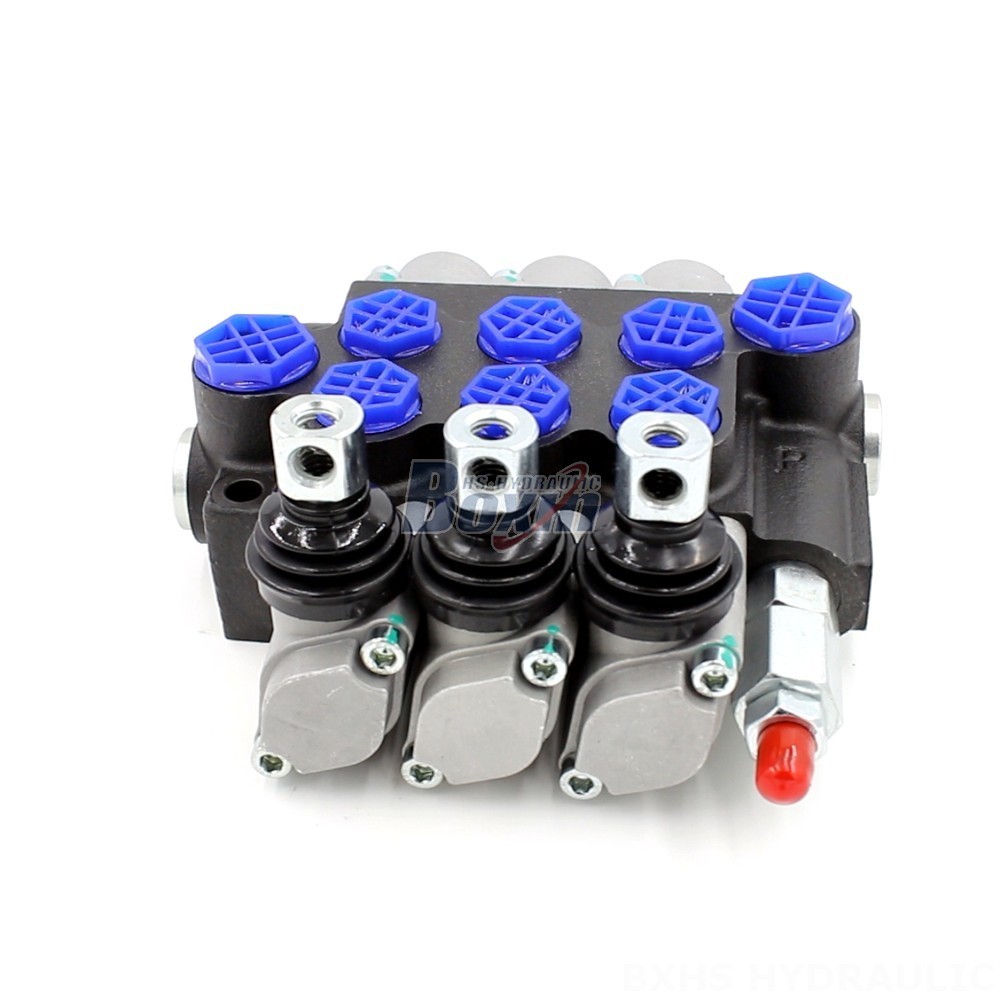

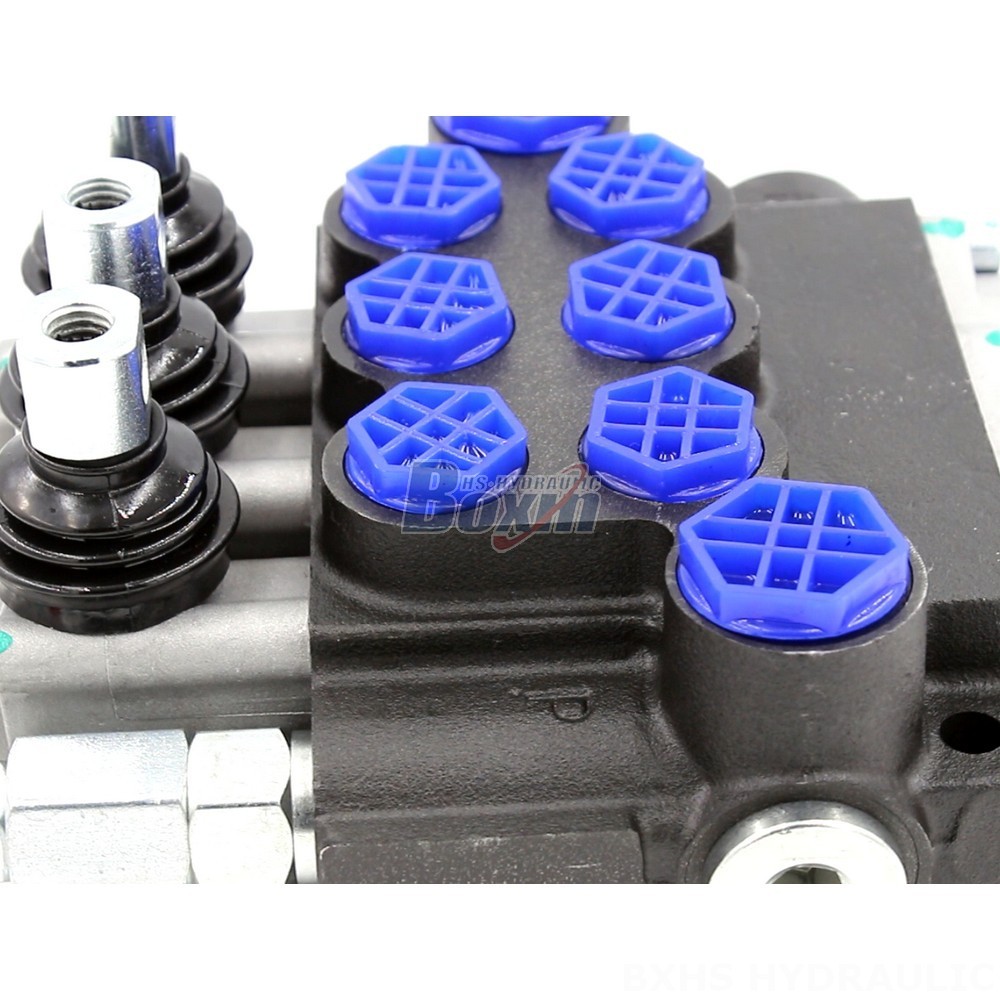

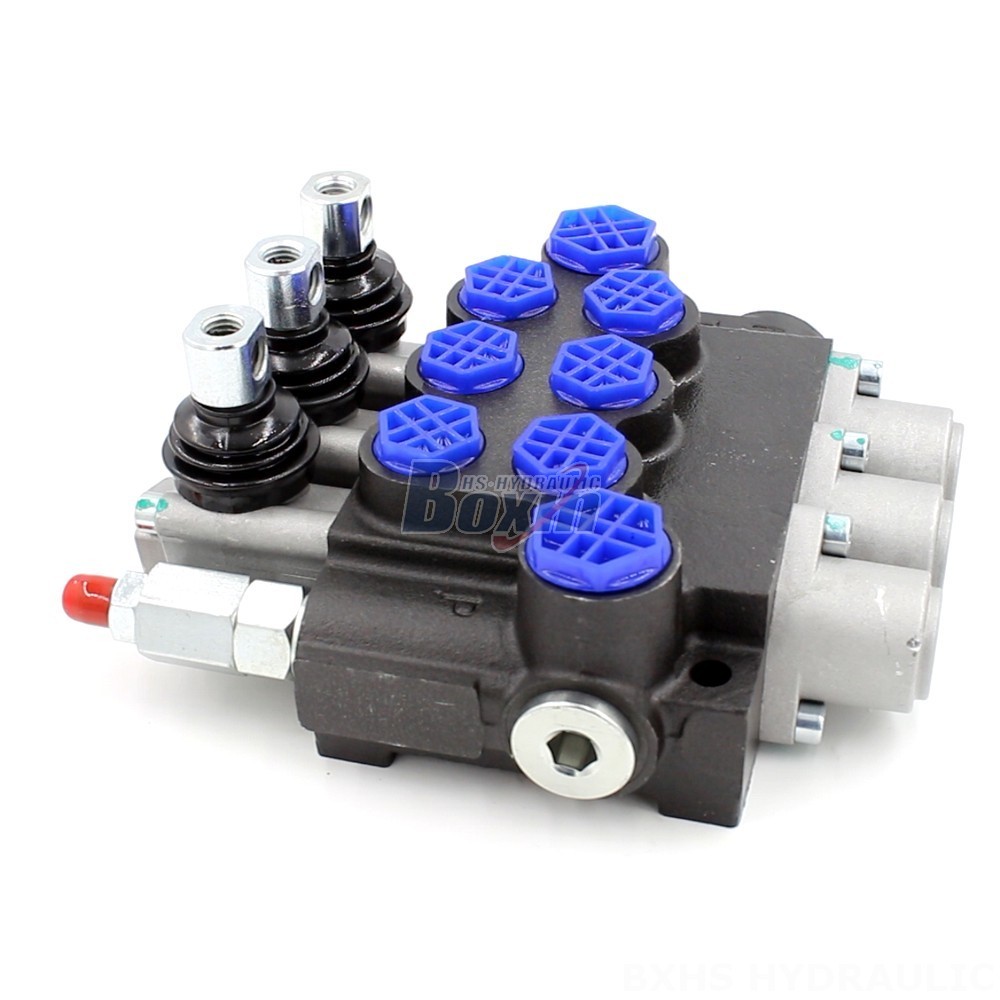

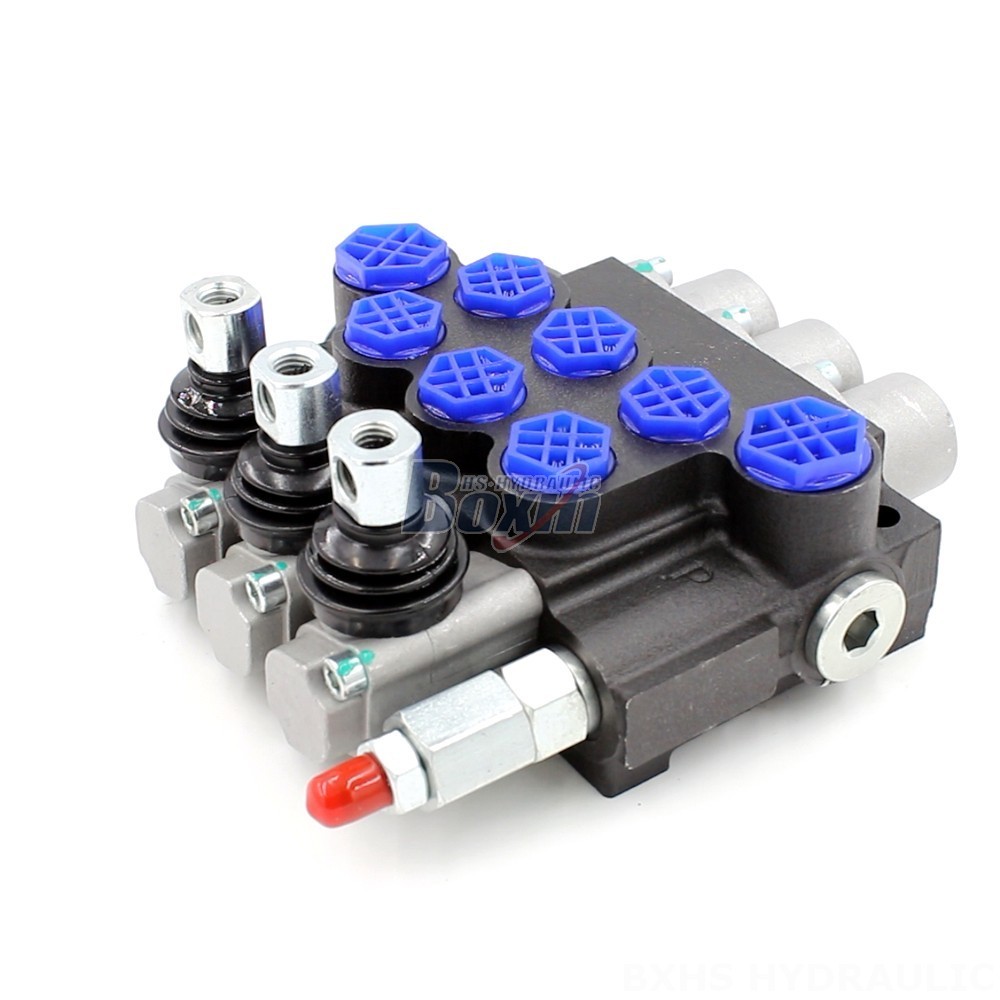

The P40-G12-G38-OT Monoblock Valve is a 3-section, 3-spool valve that is ideal for use in a variety of applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. The valve is designed to control the flow of hydraulic fluid in a system, and can be used to direct the fluid to different parts of the system. The valve is made from high-quality materials and is built to last. It is also easy to install and maintain.
**Key Features:**
* Durable and efficient design
* Rated flow of 40 L/min
* Maximum pressure of 250 bar
* Operating viscosity range of 15 - 75 mm²/s
* Ambient temperature range of -40°C to +80°C
* 3-section, 3-spool valve
* Suitable for use with a variety of fluids
* Easy to install and maintain
