Introducing the P40-G12-G38 Monoblock Directional Valve, a high-performance hydraulic valve designed for precision and durability in demanding hydraulic applications. This 4-section, manually controlled valve boasts a rated flow of 40 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of hydraulic systems.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

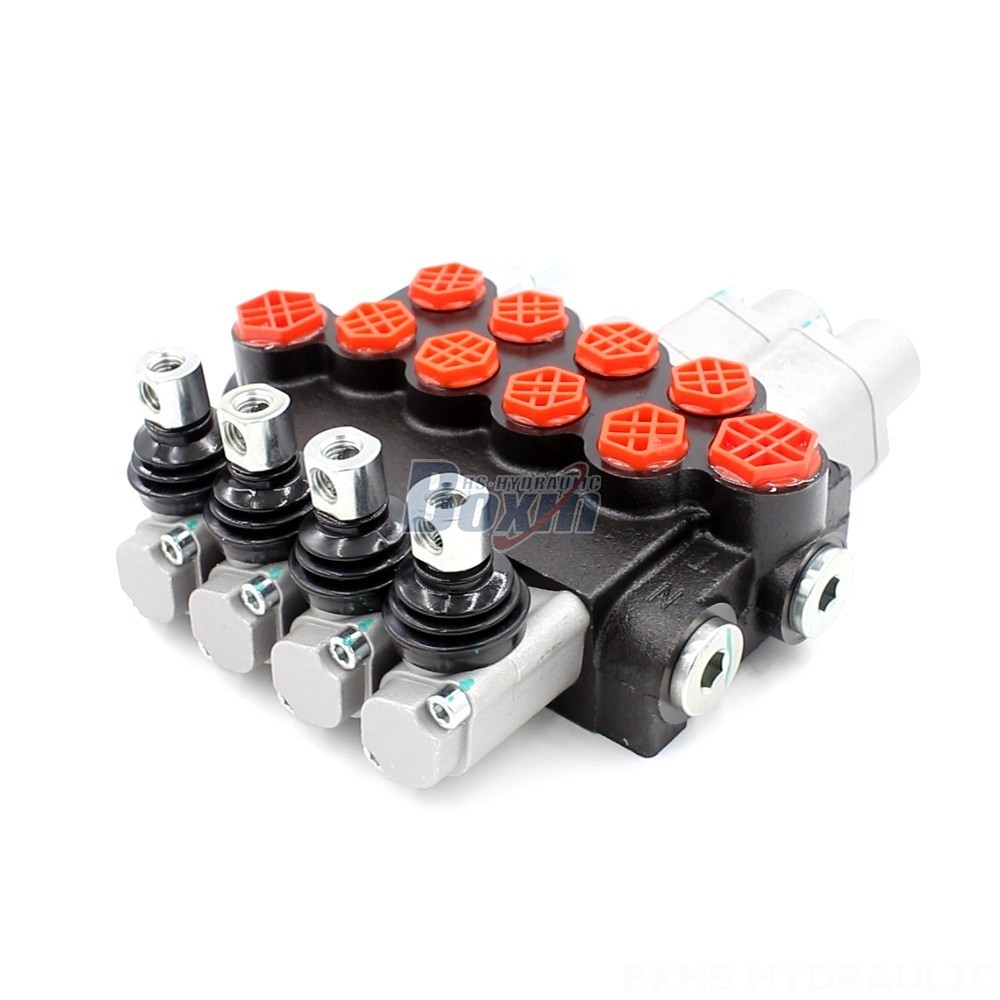

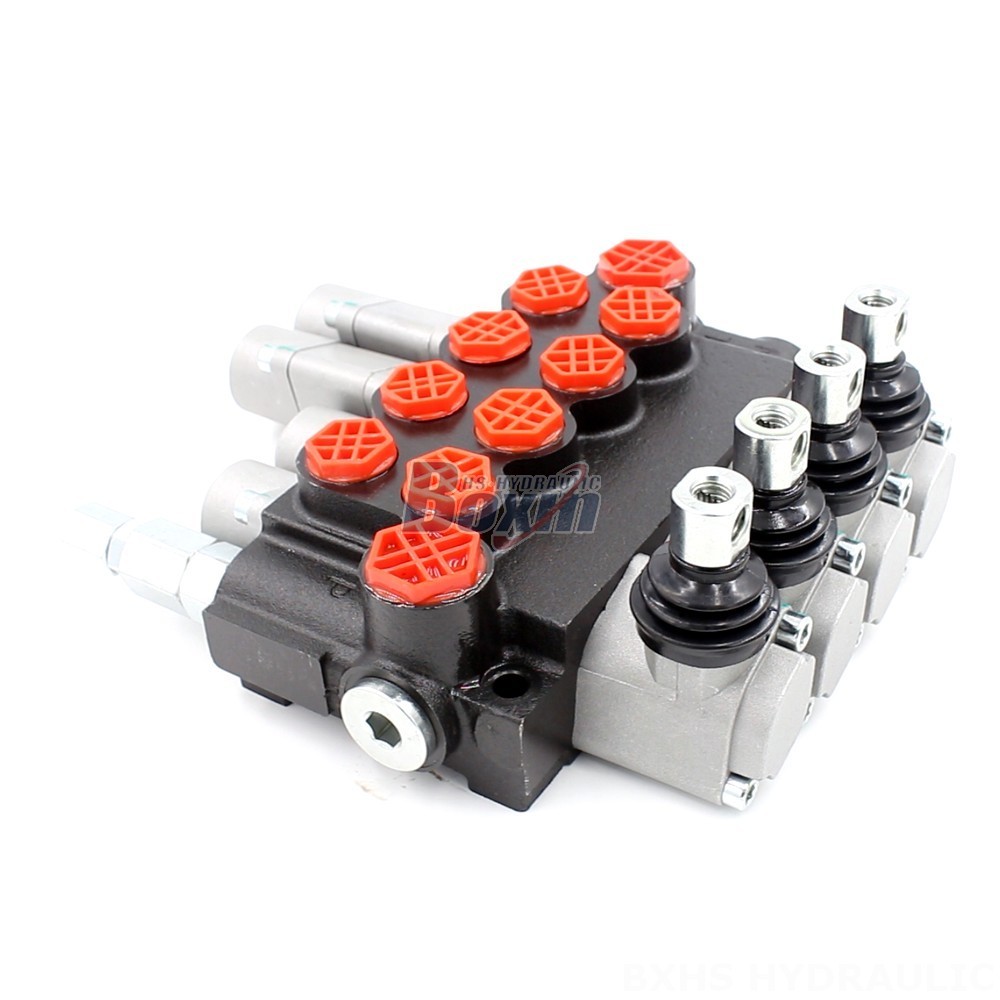

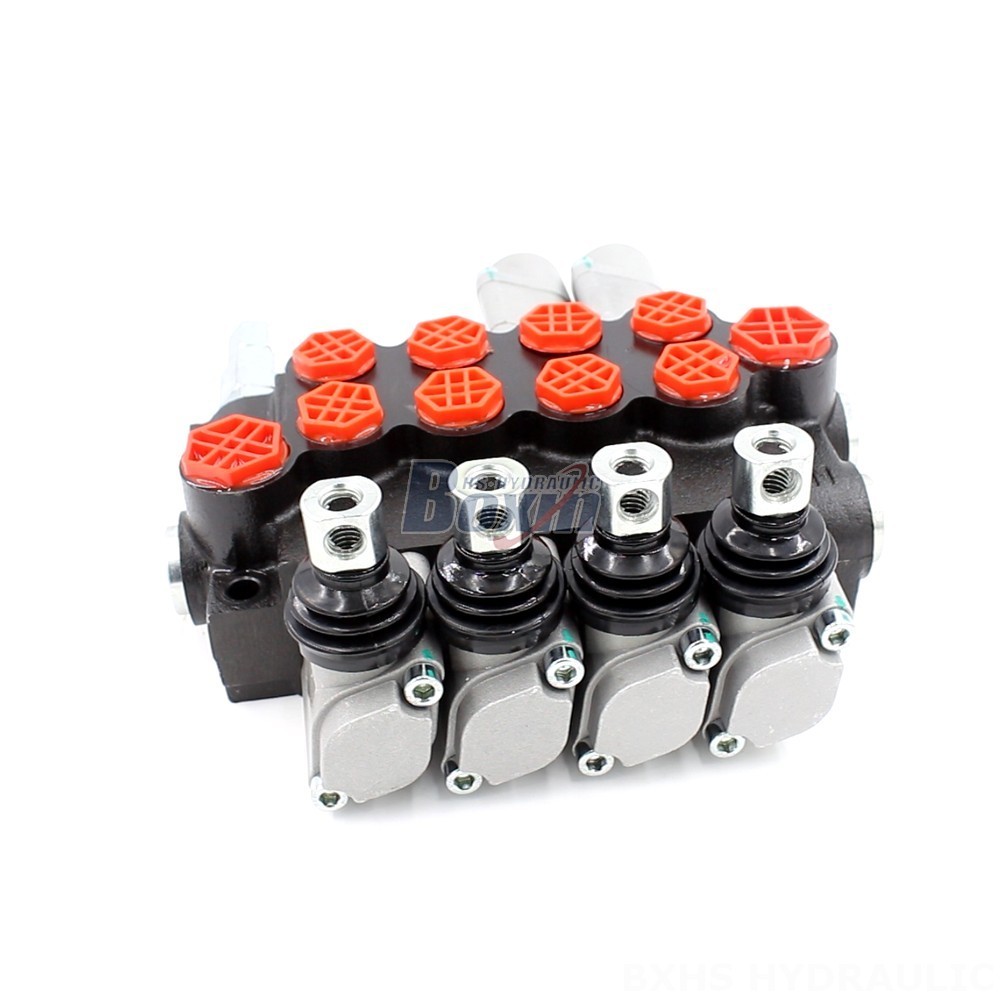

**P40-G12-G38 Monoblock Directional Valve: Precision and Durability in Hydraulics**
**Key Features:**
- **Manual Control** for precise and reliable operation
- **4 Section** design for versatile hydraulic system configurations
- **Monoblock Valve** construction for compact and robust performance
- **Rated Flow of 40 L/min** for efficient hydraulic fluid flow
- **Maximum Pressure of 250 bar** for demanding hydraulic applications
- **Operating Viscosity Range of 15 - 75 mm²/s** for compatibility with various hydraulic fluids
- **Ambient Temperature Range of -40°C to +80°C** for reliable operation in harsh environments
- **4 Spool** design for precise flow control
- **P40 Series** compatibility for seamless integration with other hydraulic components
**Application Areas:**
- Material Handling (e.g., forklifts, telehandlers)
- Construction and Earth Moving (e.g., excavators, motor graders)
- Agriculture (e.g., tractors, harvesters)
- Industrial Vehicles (e.g., skid steer loaders, compact wheel loaders)
**Applicable Models:**
- Telehandlers
- Forklifts
- All Terrain Cranes
- Stackers
- Aerial Platforms
- Motor Graders
- Midi-Excavators
- Mini-Excavators
- Skid Steer Loaders
- Compact Wheel Loaders
The P40-G12-G38 Monoblock Directional Valve is the ideal choice for hydraulic systems that demand precision, durability, and reliable performance. Its advanced design and robust construction ensure long-lasting operation even in the most challenging hydraulic applications.
