Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

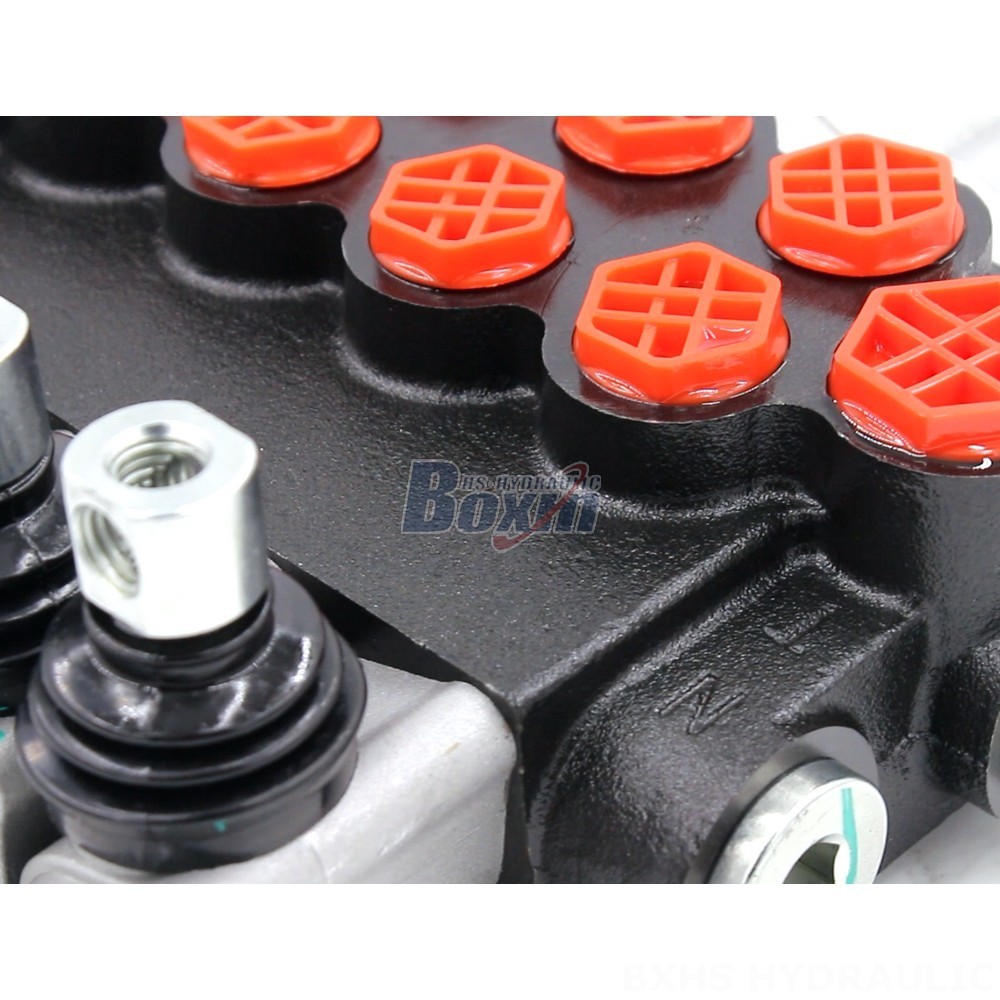

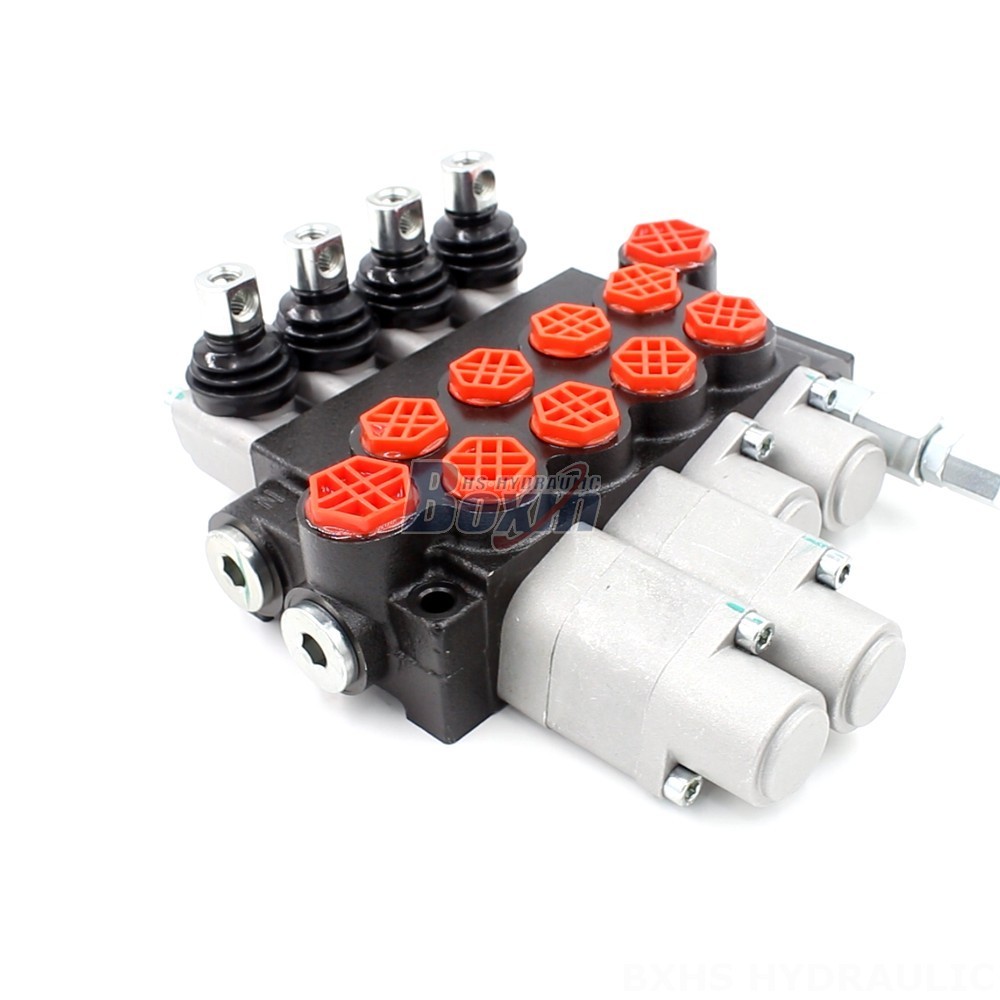

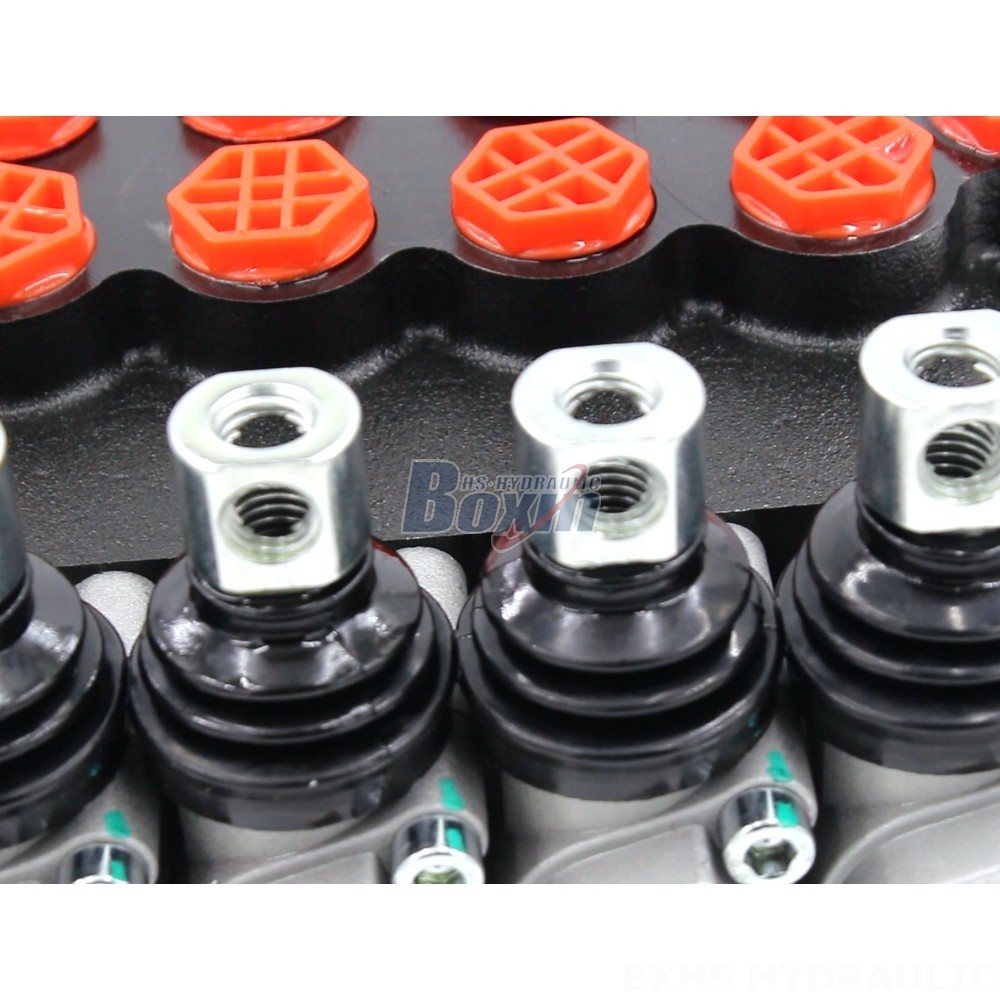

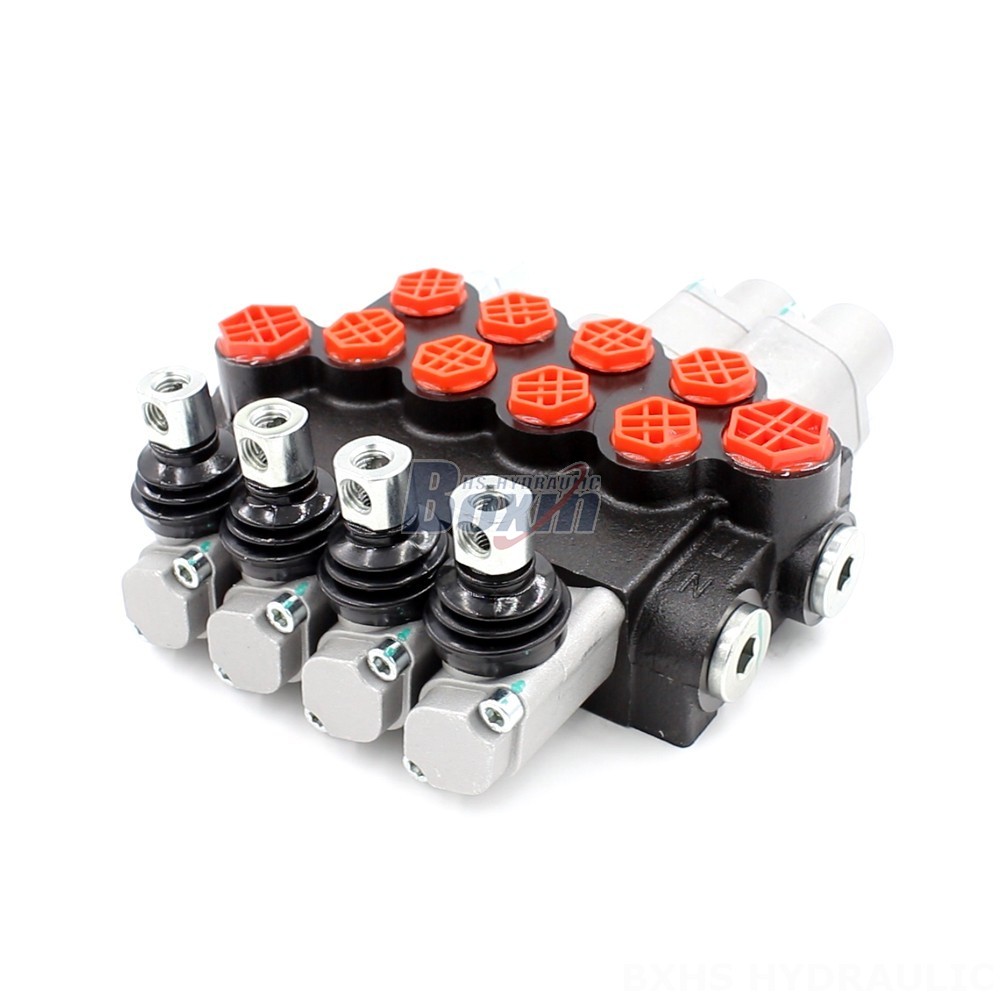

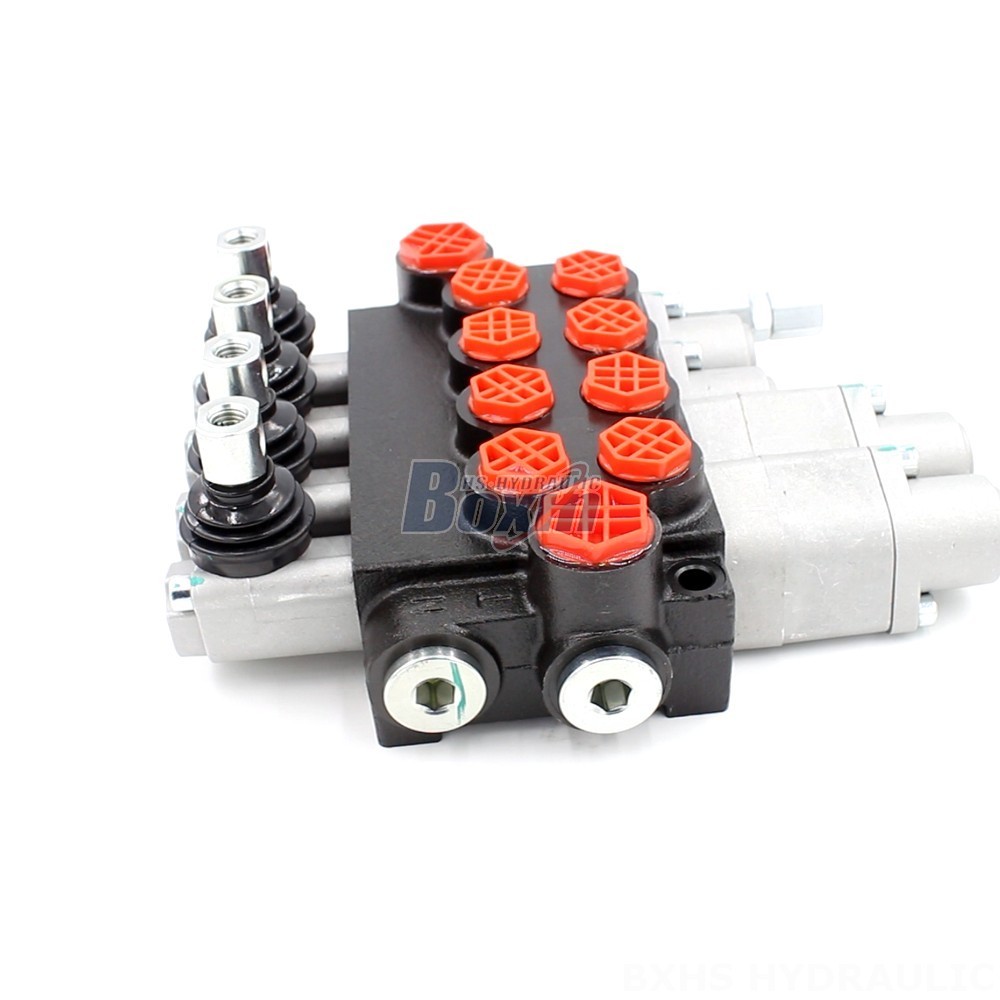

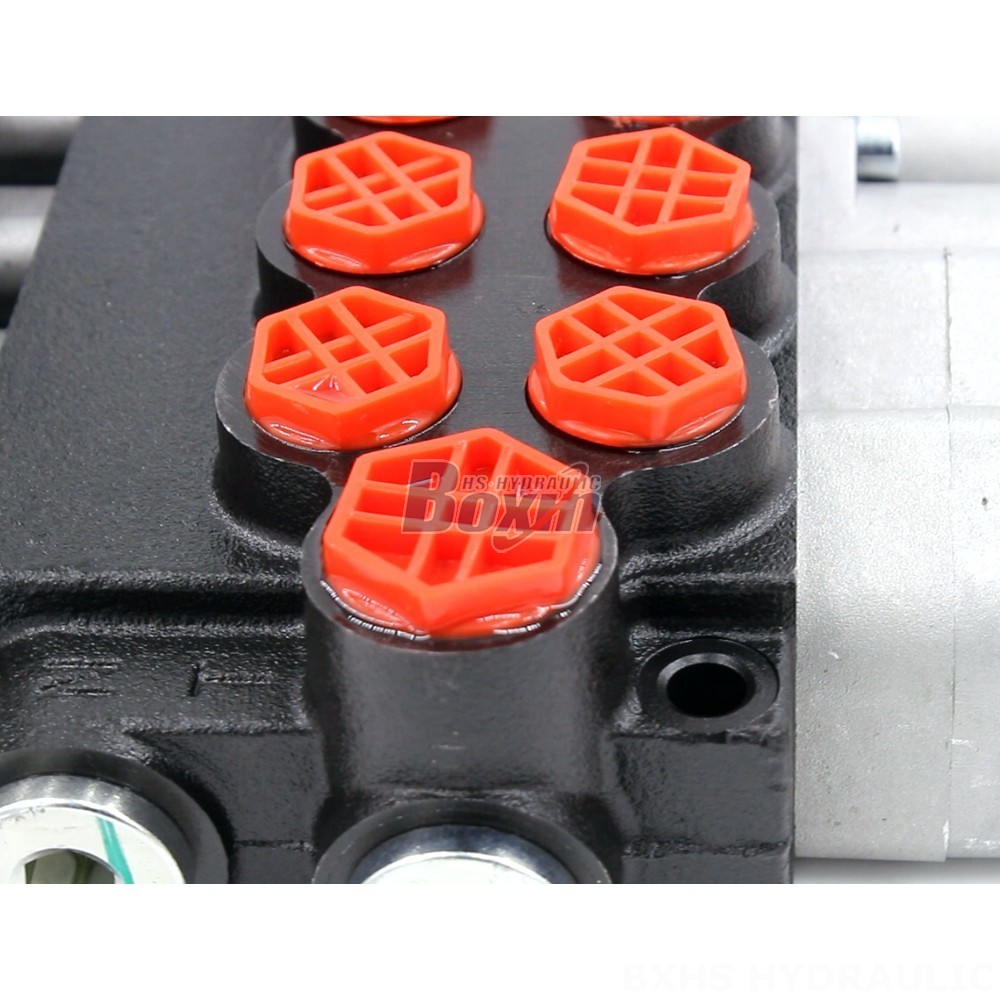

The P40-G12-G38 Hydraulic Valve is a robust and reliable 4-section, manually controlled monoblock valve designed for a wide range of industrial applications, including construction, material handling, agriculture, and industrial vehicles. It offers high performance and durability with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi).
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-G38 Hydraulic Valve is a premium choice for demanding applications. It features a robust monoblock construction with 4 sections, providing excellent control and responsiveness. The manual control method ensures precise operation and ease of use. This valve is designed to handle high flow rates up to 40 L/min (10.5 US gpm) and withstand pressures up to 250 bar (3600 psi). With its wide operating viscosity range (15-75 mm²/s) and ambient temperature range (-40°C to +80°C), the valve is suitable for a variety of environments. It is specifically designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. This makes it a versatile and reliable choice for a wide range of industrial equipment.
