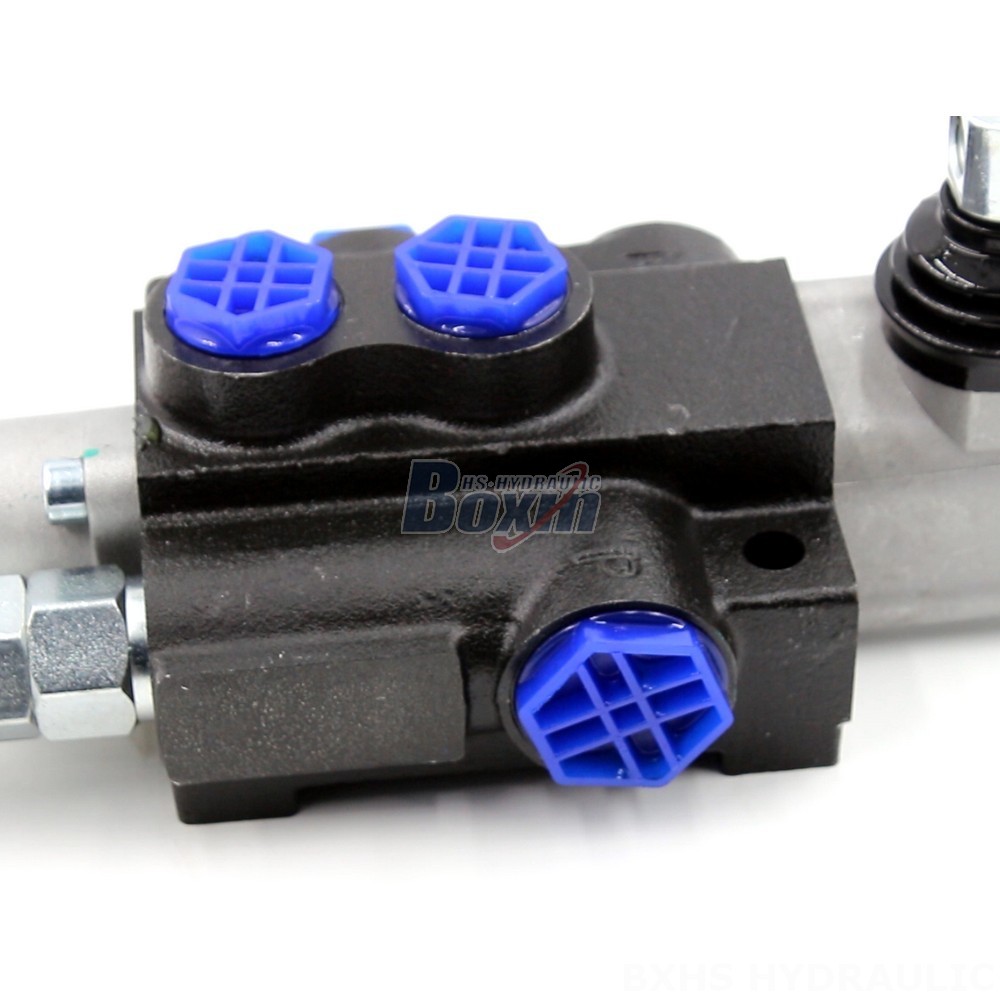

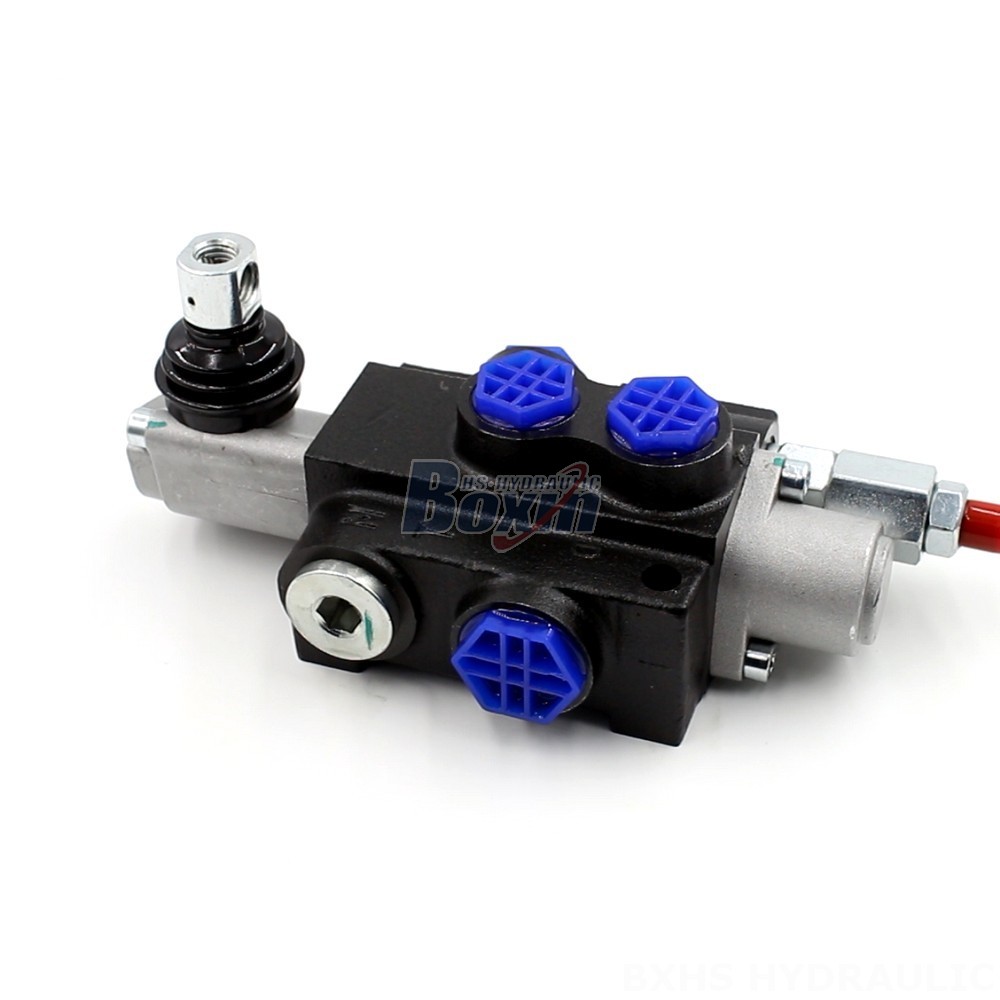

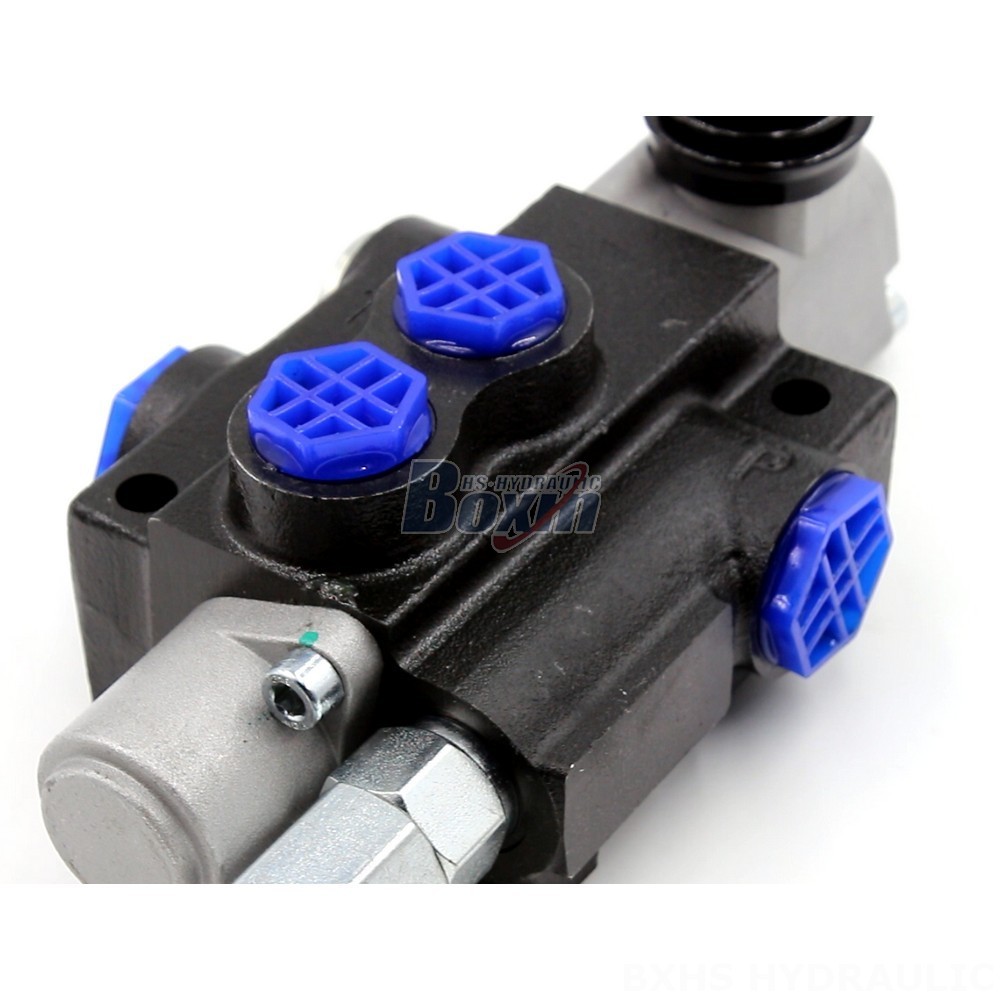

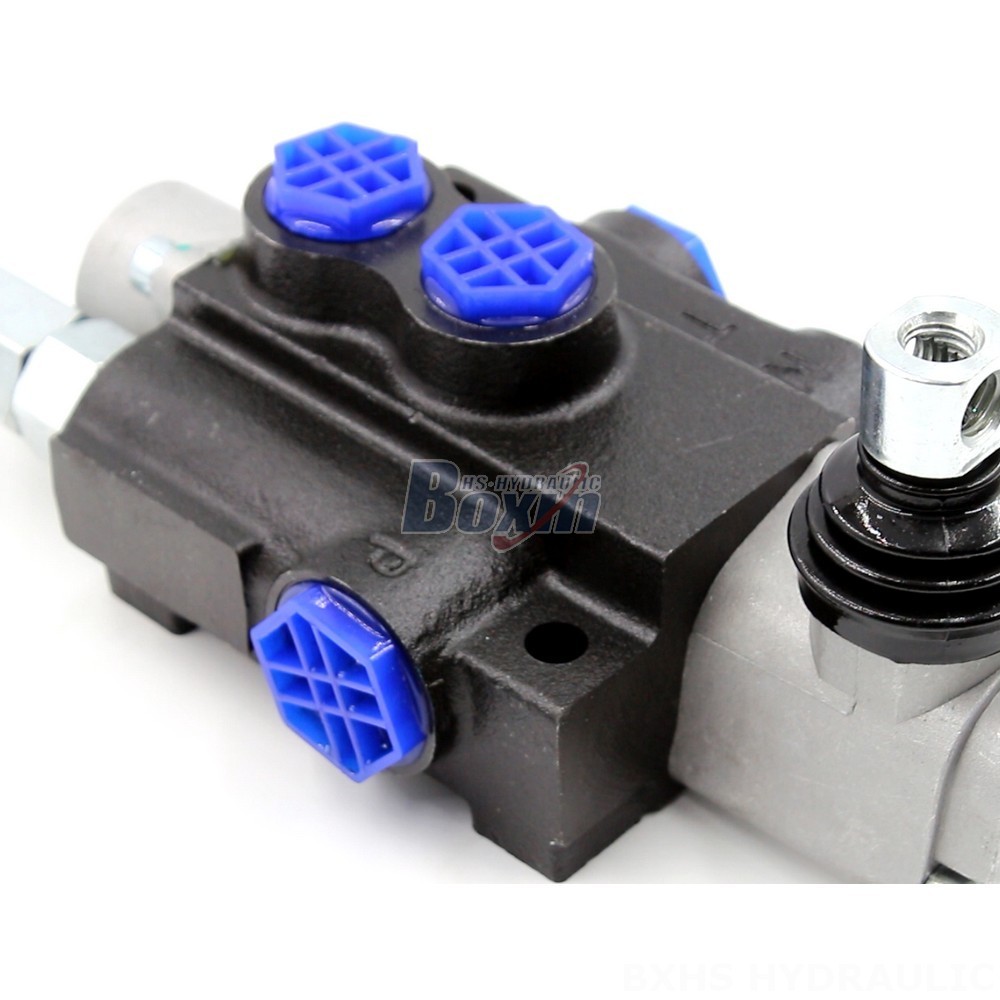

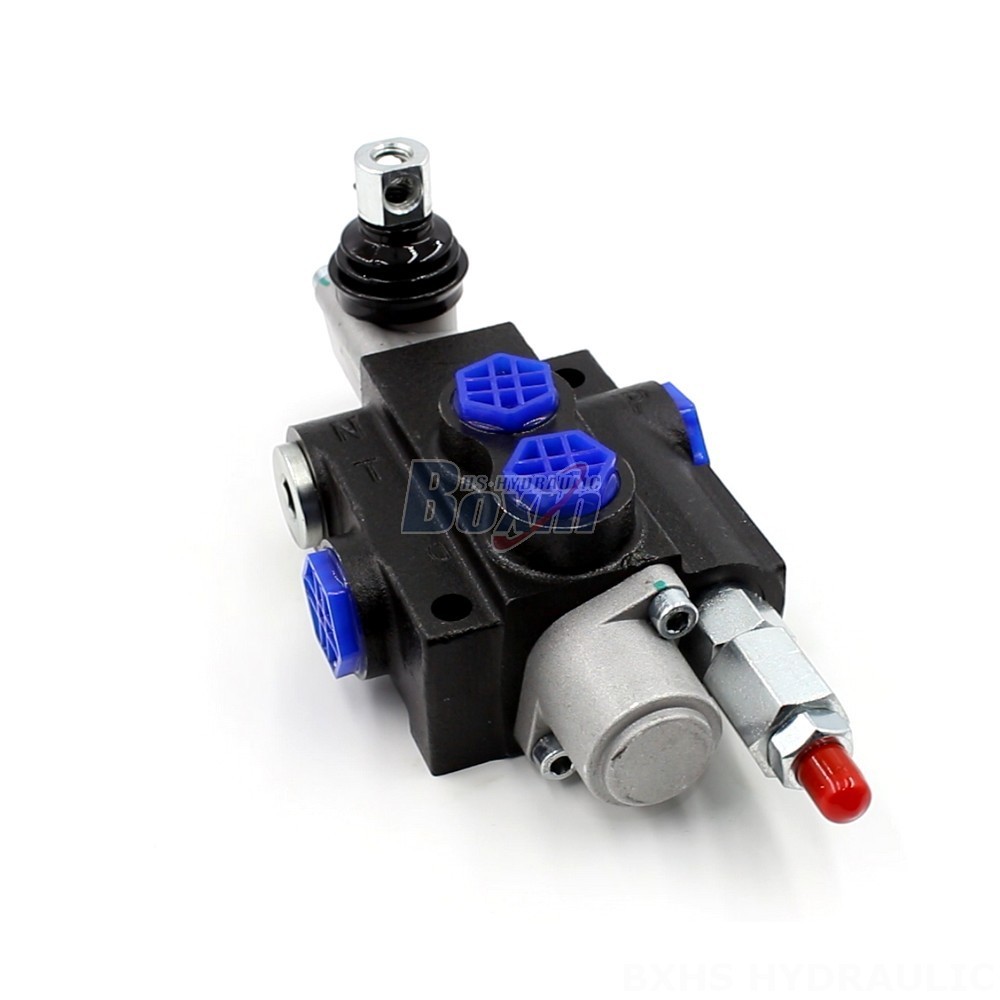

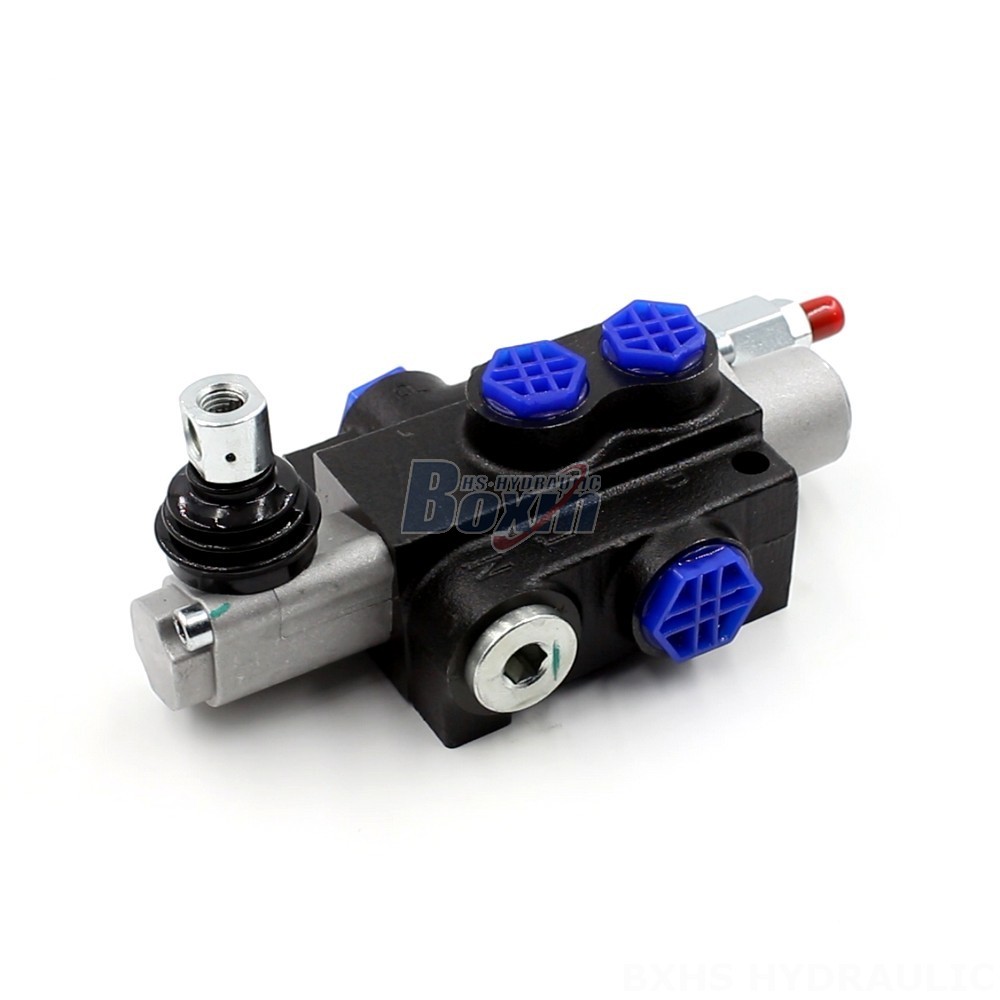

The P40-G12 Directional Control Valve is a high-performance hydraulic valve designed for demanding applications in various industries. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve offers exceptional flow control and pressure handling capabilities. Its robust monoblock construction ensures durability and reliability in harsh environments.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**Key Features:**
* Manual control for precise operation
* Monoblock valve design for compact and robust construction
* Rated flow of 40 L/min (10.5 US gpm) for efficient hydraulic flow
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for versatility
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in diverse environments
* Single spool for simplified operation
* Ideal for applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, and compact wheel loaders
