Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

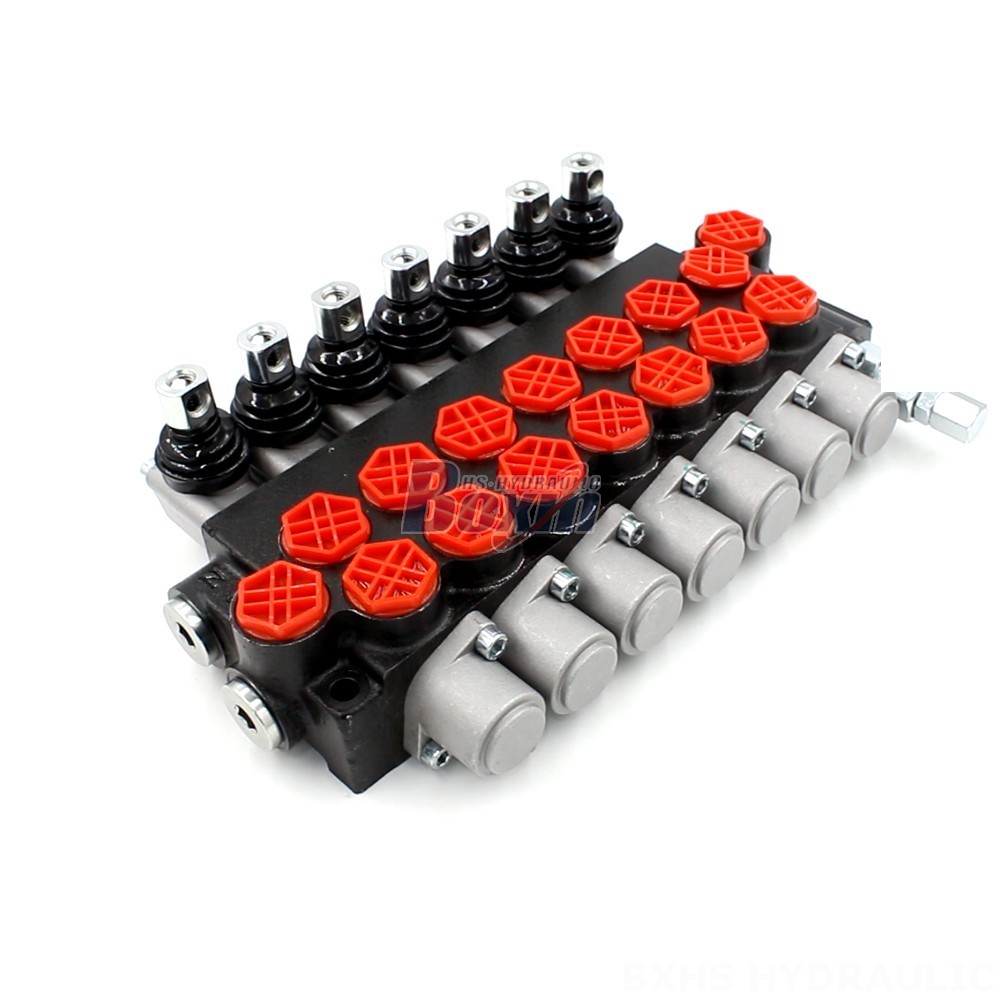

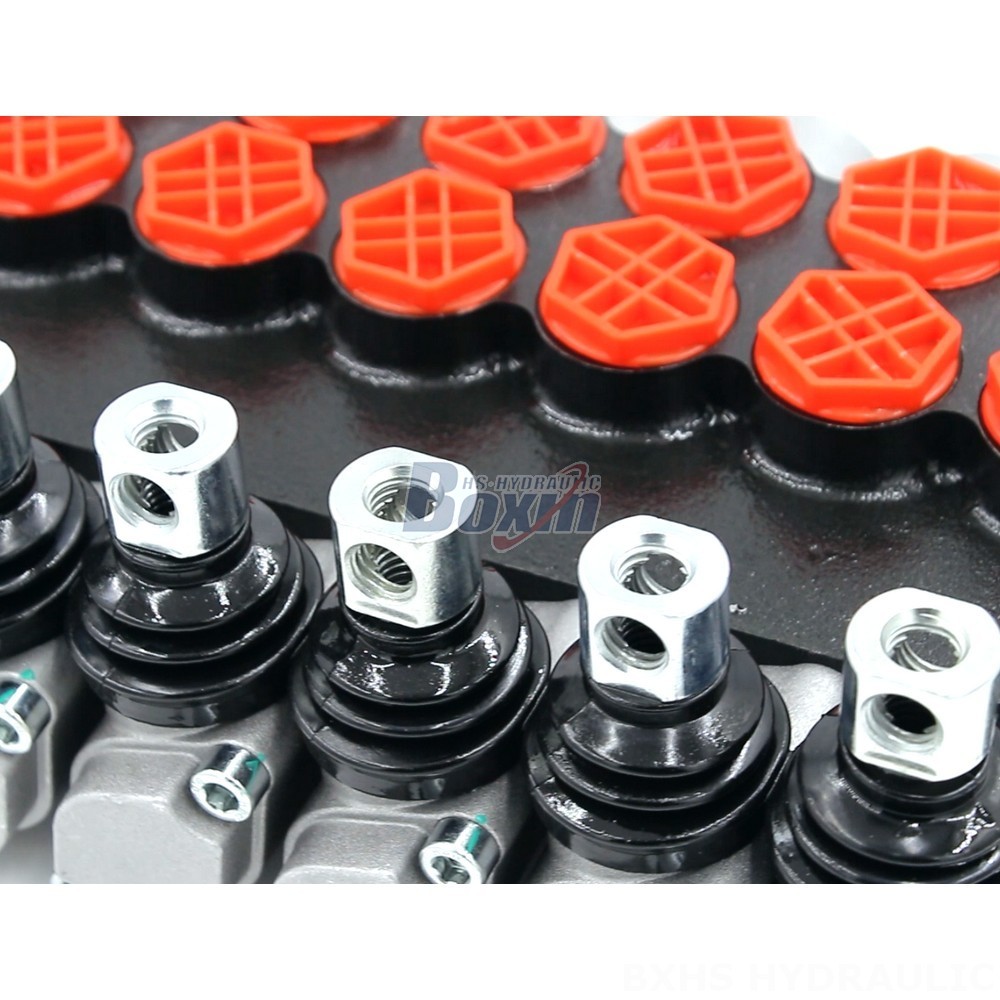

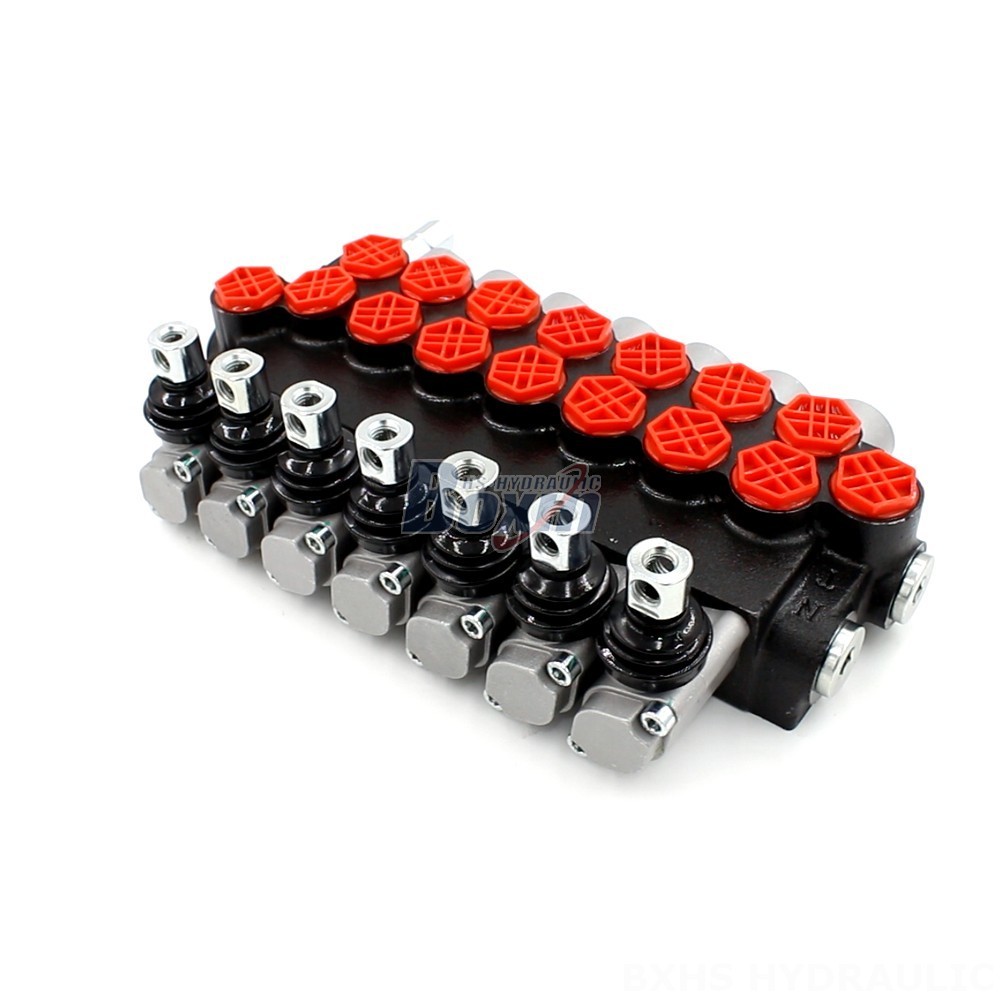

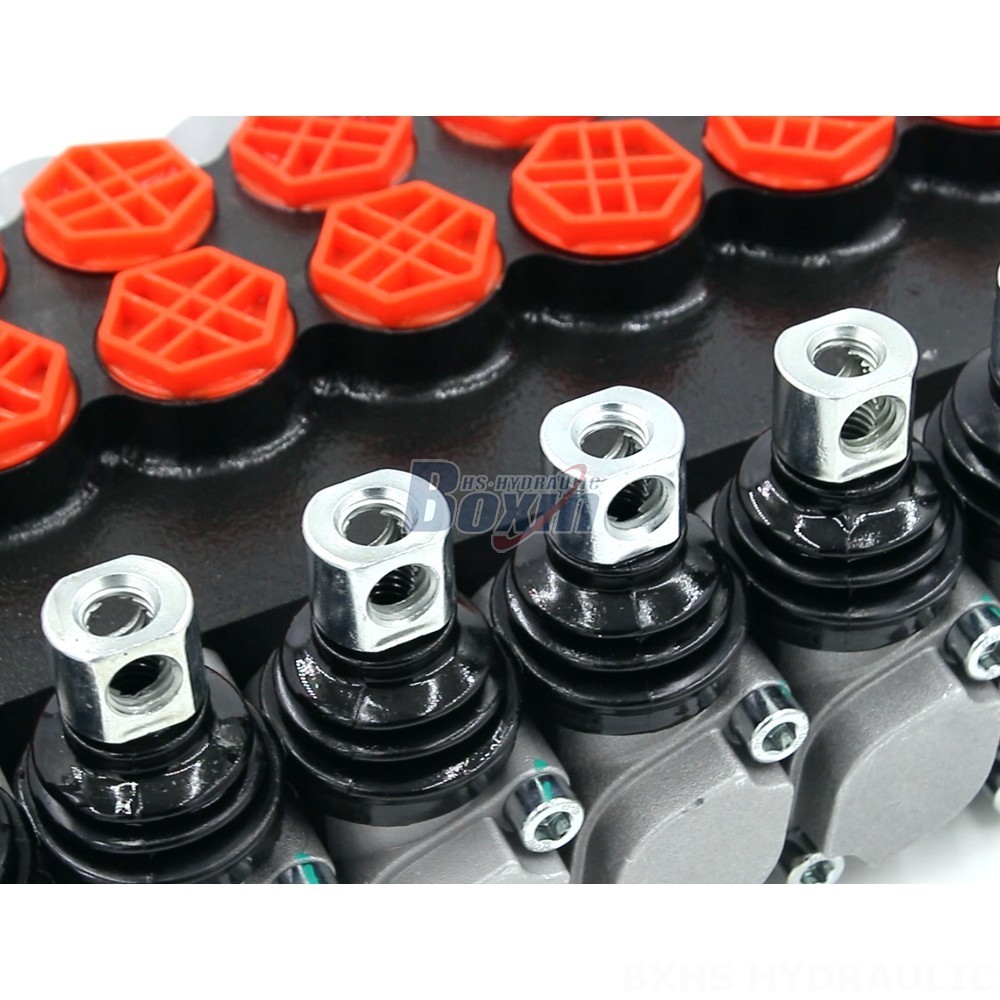

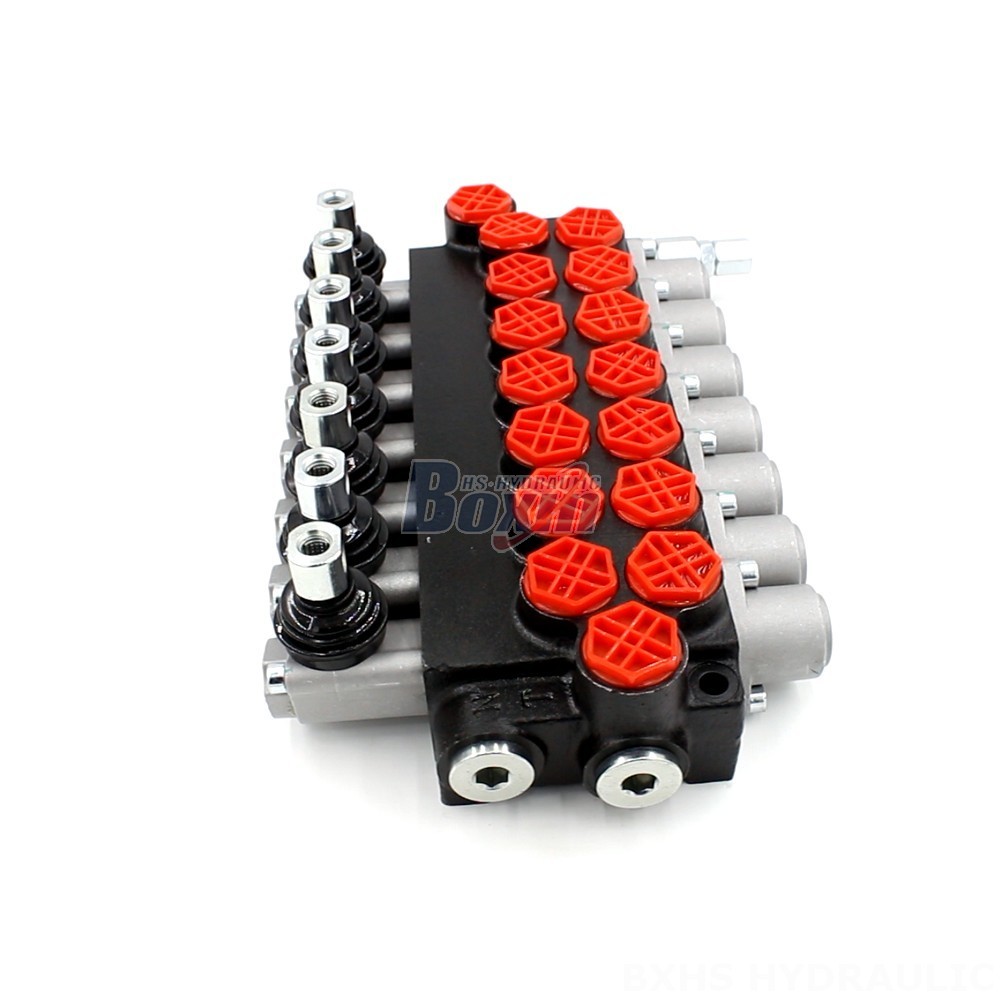

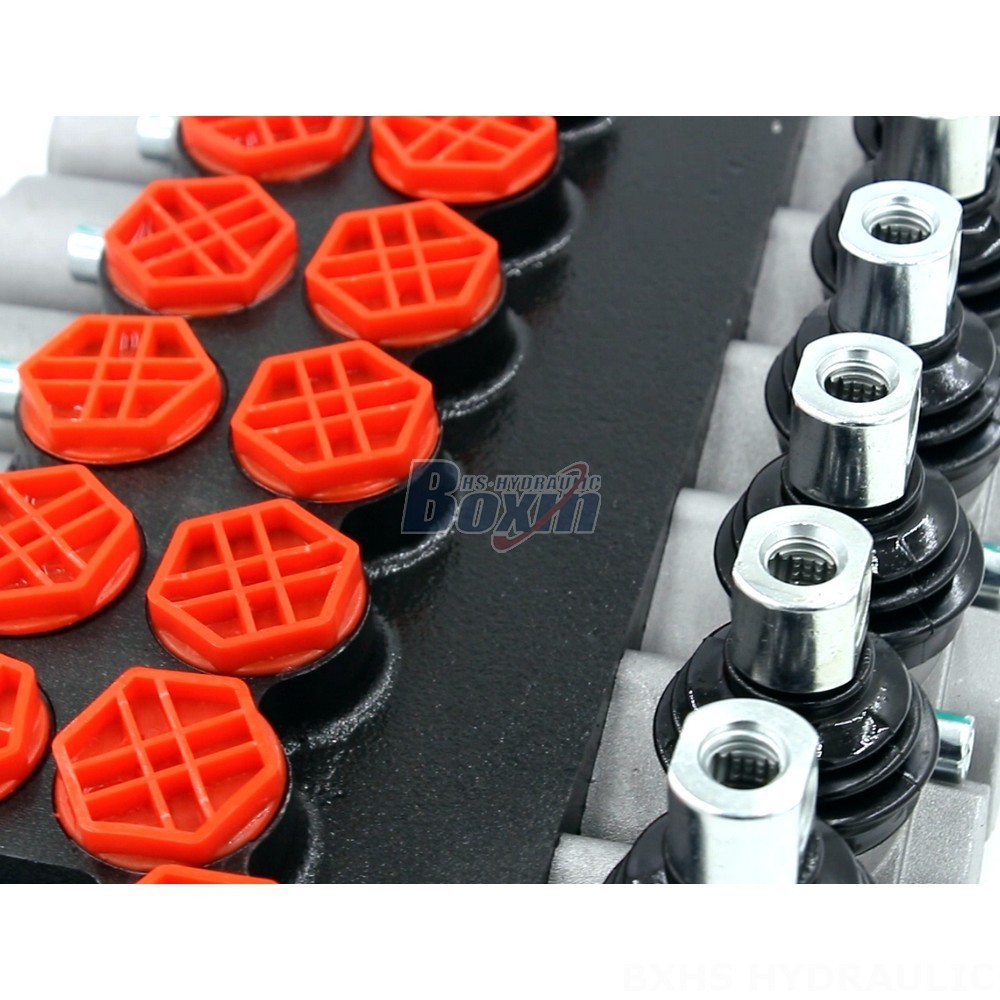

The P40-G12-7OT Hydraulic Check Valve Flow Direction Valve is a high-performance, reliable solution for controlling fluid flow in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. This monoblock valve features a 7-section design, rated flow of 40 L/min, and maximum pressure of 250 bar, making it ideal for demanding environments.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-7OT Hydraulic Check Valve Flow Direction Valve is a robust and versatile component designed for precise hydraulic control. Its monoblock construction ensures strength and durability, while the 7-section design allows for multiple flow paths and directional control. With a rated flow of 40 L/min and maximum pressure of 250 bar, this valve is capable of handling high flow rates and demanding pressures. Its operating viscosity range of 15 to 75 mm²/s and ambient temperature range of -40°C to +80°C ensure reliable performance in a variety of environments. This valve is ideal for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, and motor graders, among other applications. Its manual control method allows for simple and intuitive operation, making it a user-friendly solution for a wide range of hydraulic systems.
