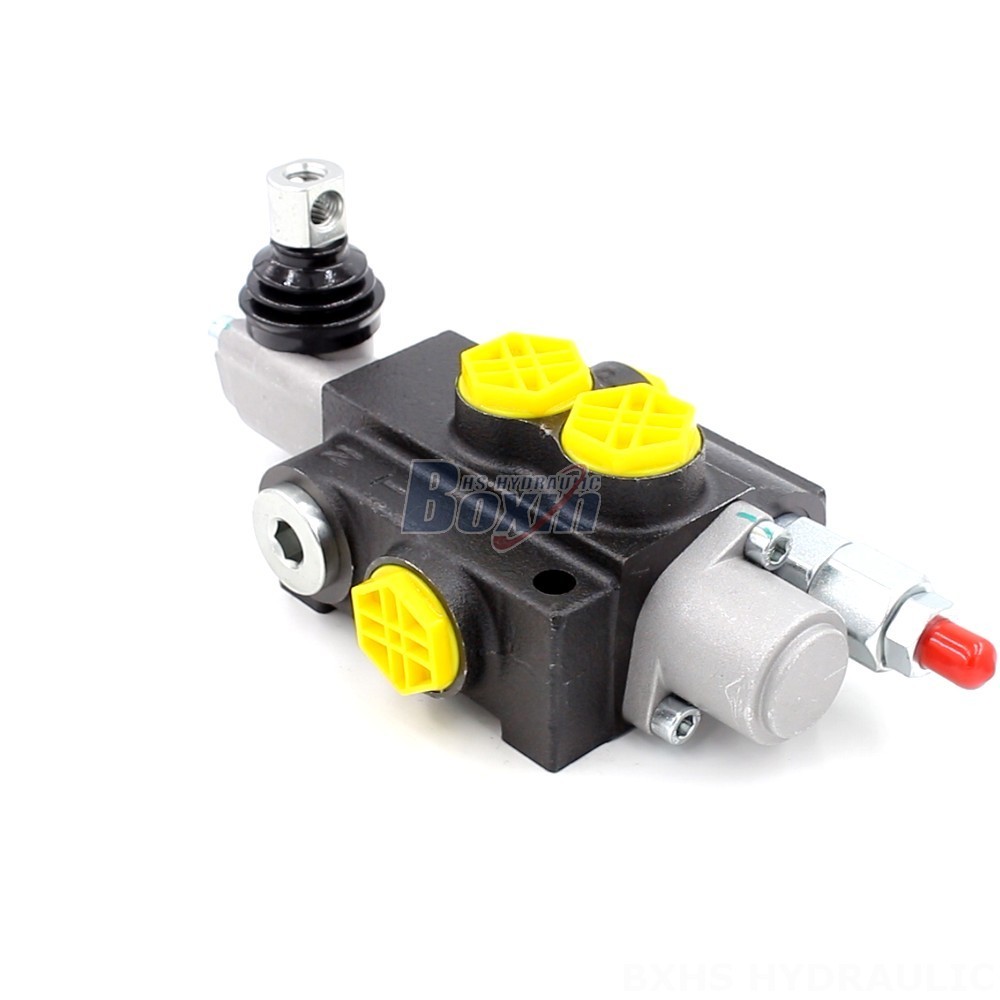

The Lkf Flow Valve P40-G12-1OT is a high-performance hydraulic directional valve designed for use in a wide range of applications, including construction equipment, material handling, industrial vehicles, and agriculture. This manual control monoblock valve features a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for demanding applications. It is also compatible with a variety of equipment, including telehandlers, forklifts, all-terrain cranes, and more.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The Lkf Flow Valve P40-G12-1OT is a reliable and durable hydraulic directional valve designed for heavy-duty applications. It features a robust monoblock construction and a single spool, providing a compact and efficient design. The valve is equipped with a manual control system for easy operation and offers a rated flow of 40 L/min (10.5 US gpm) with a maximum pressure of 250 bar (3600 psi). It is suitable for operating viscosities ranging from 15 to 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). The valve is specifically designed for use in construction equipment, material handling, industrial vehicles, and agriculture. It is compatible with a wide range of applications and equipment models, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. This versatile and reliable hydraulic valve offers superior performance and durability, making it an ideal choice for a wide range of demanding applications.
