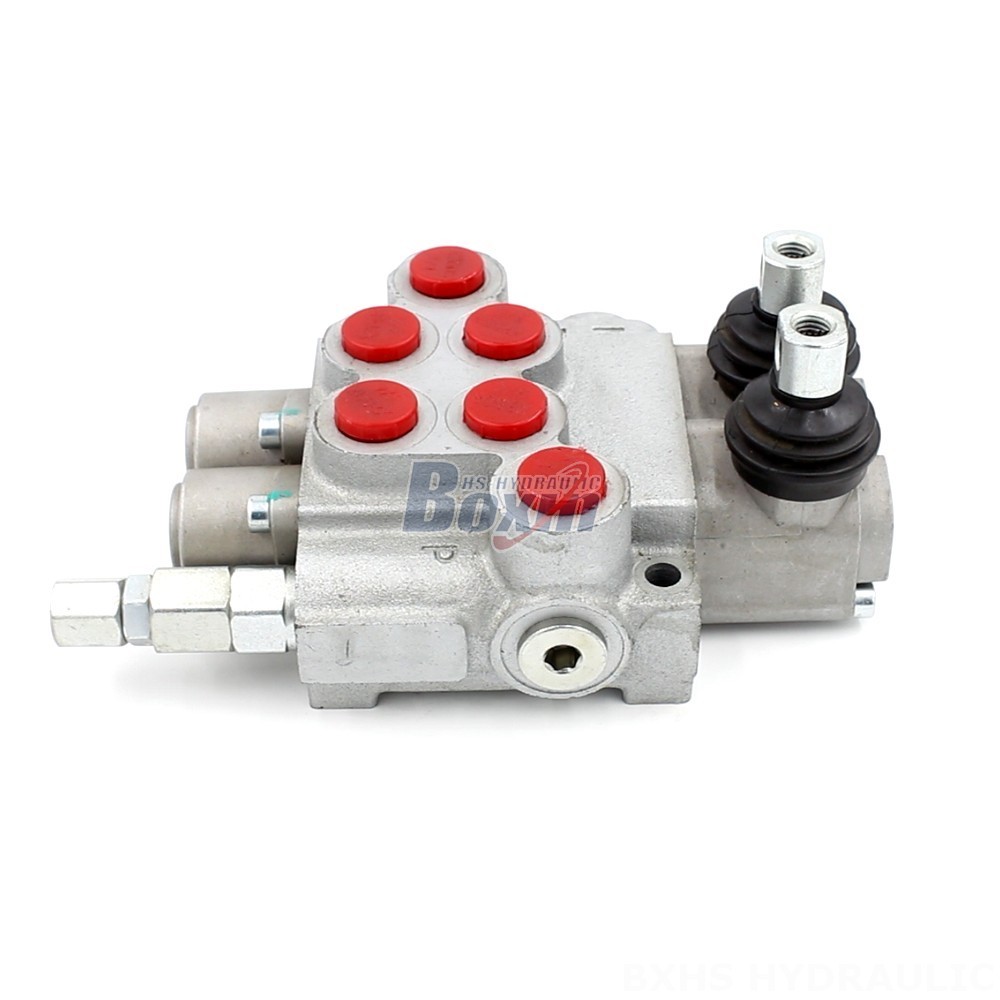

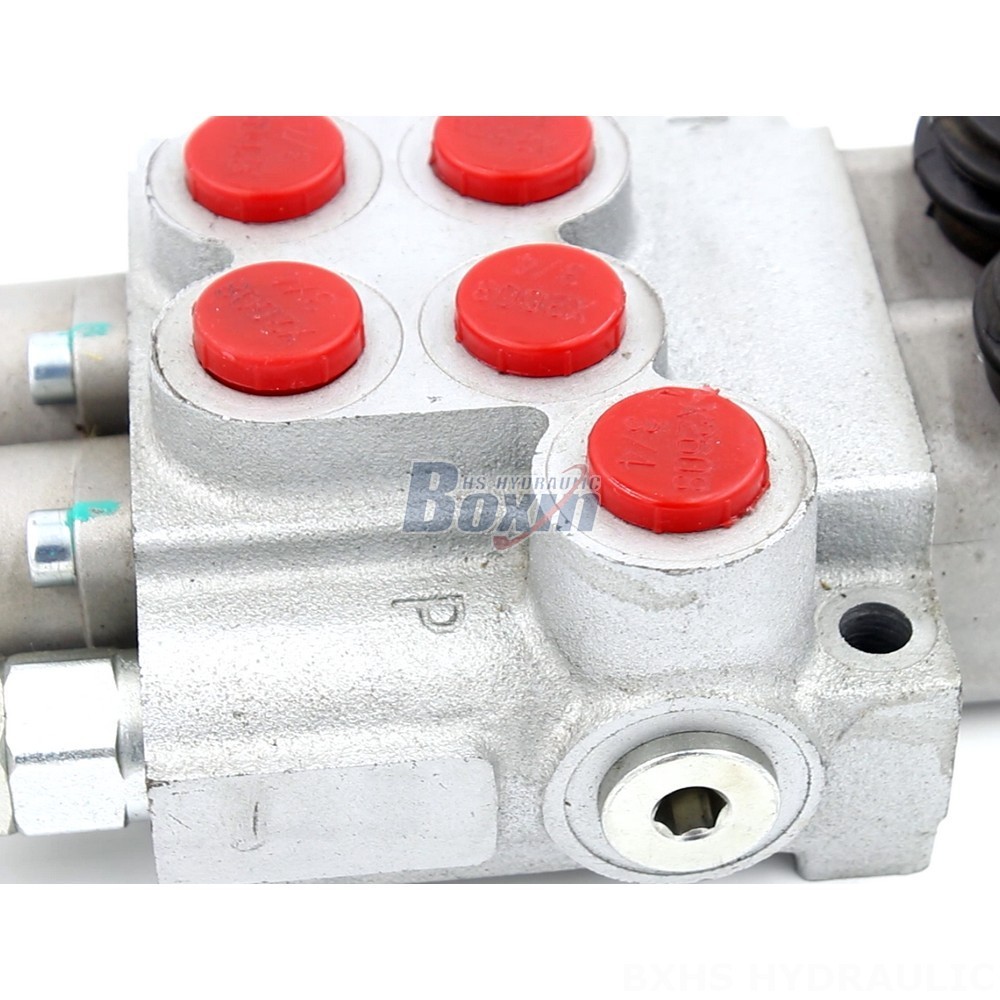

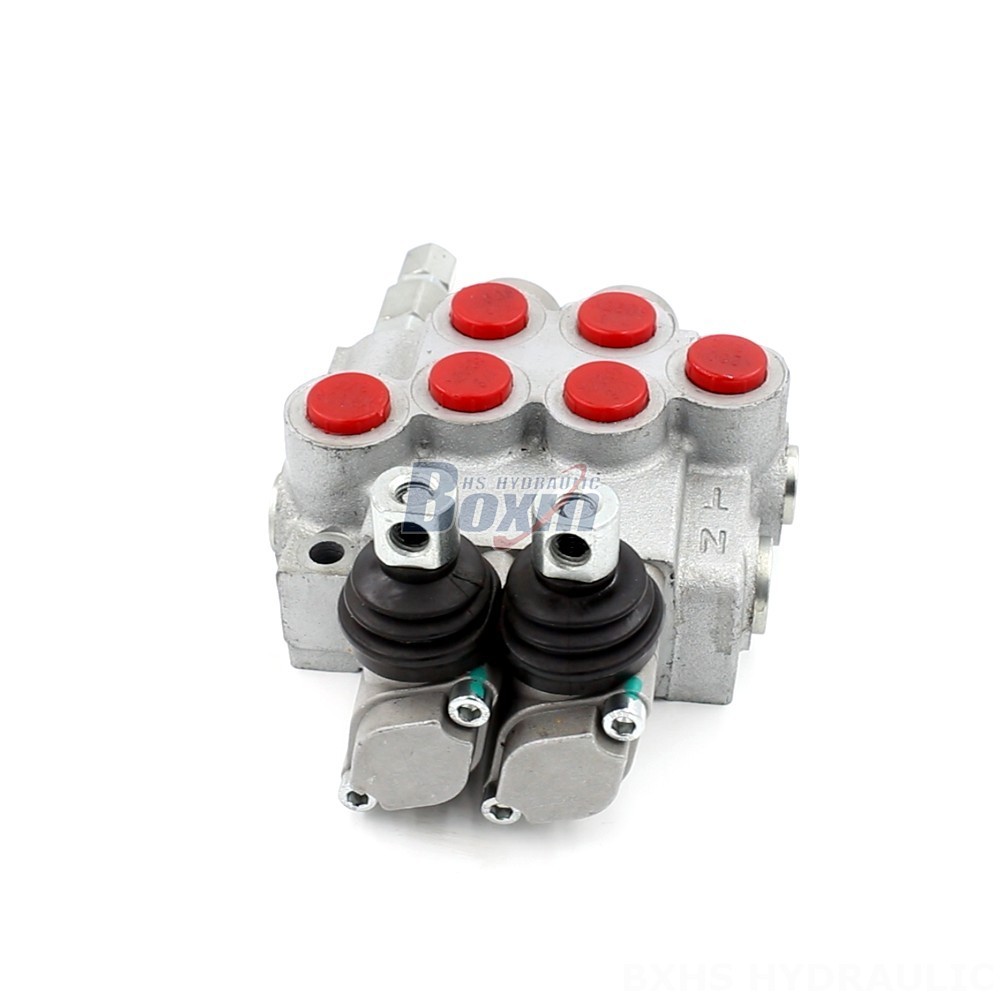

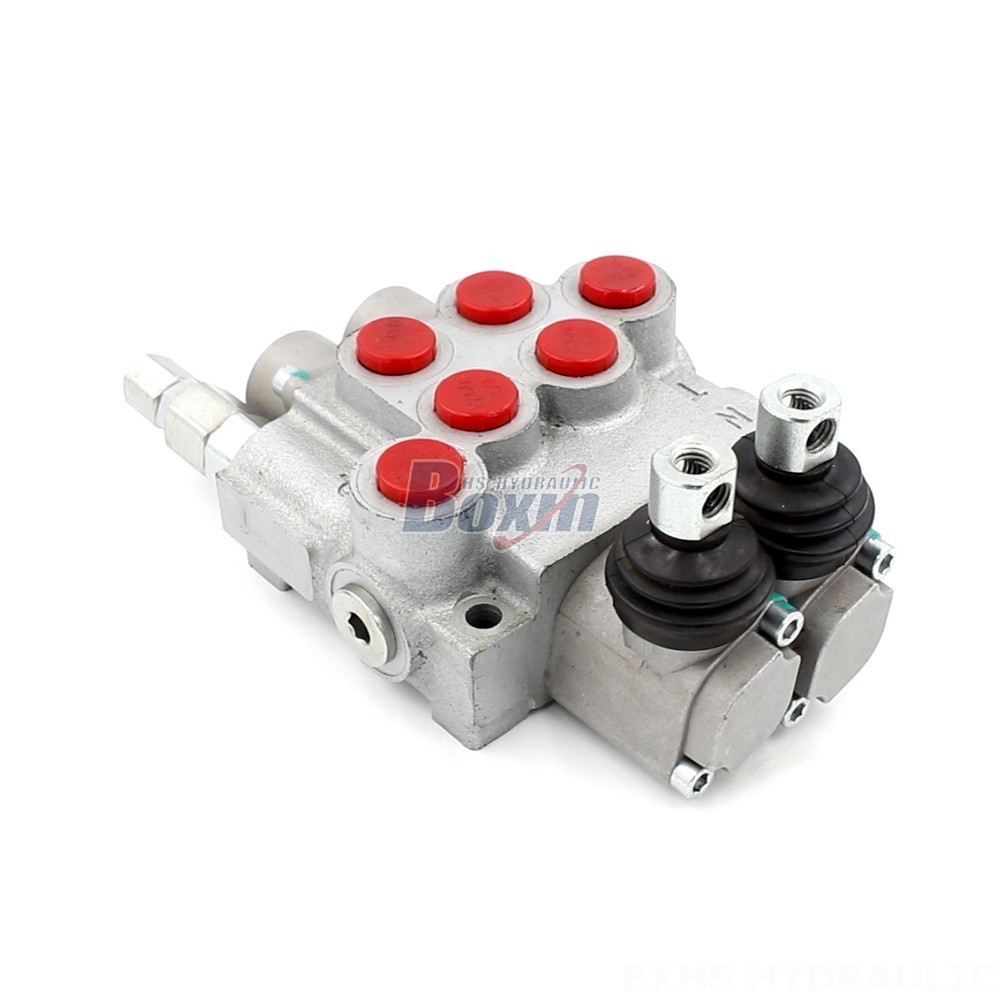

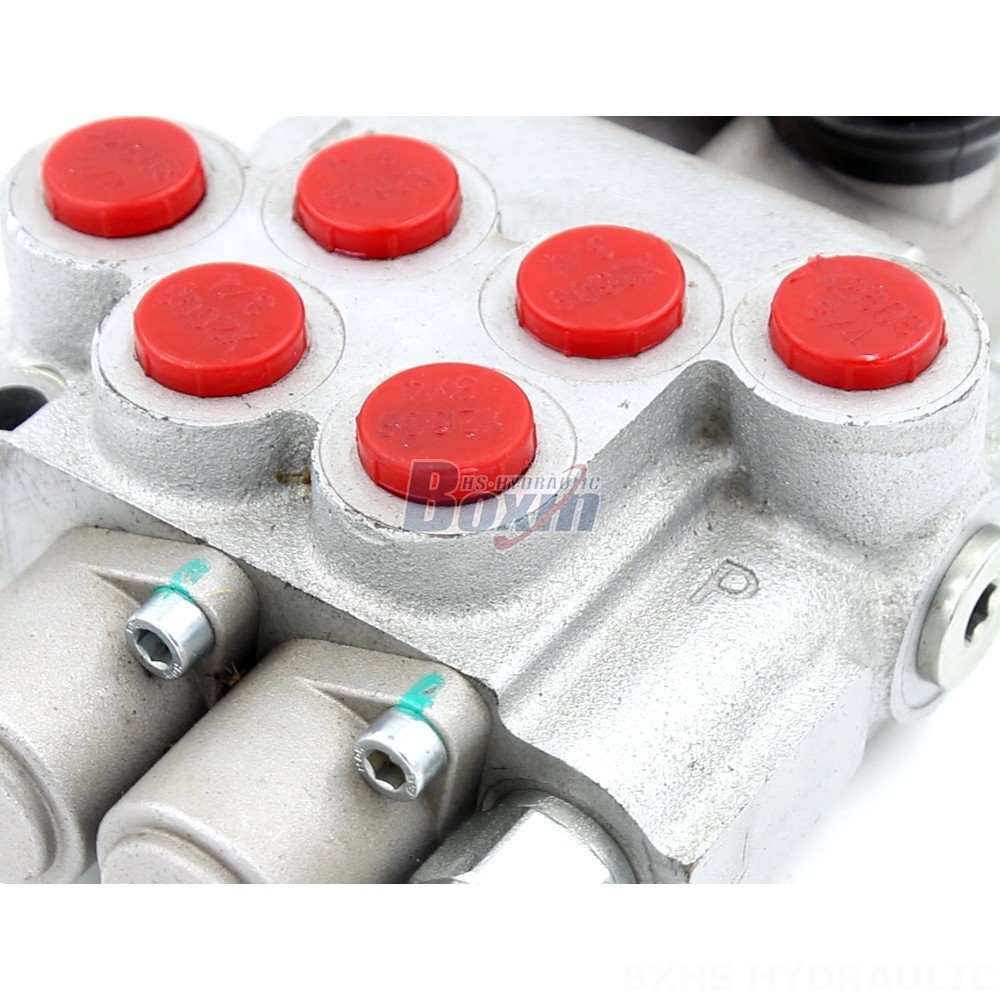

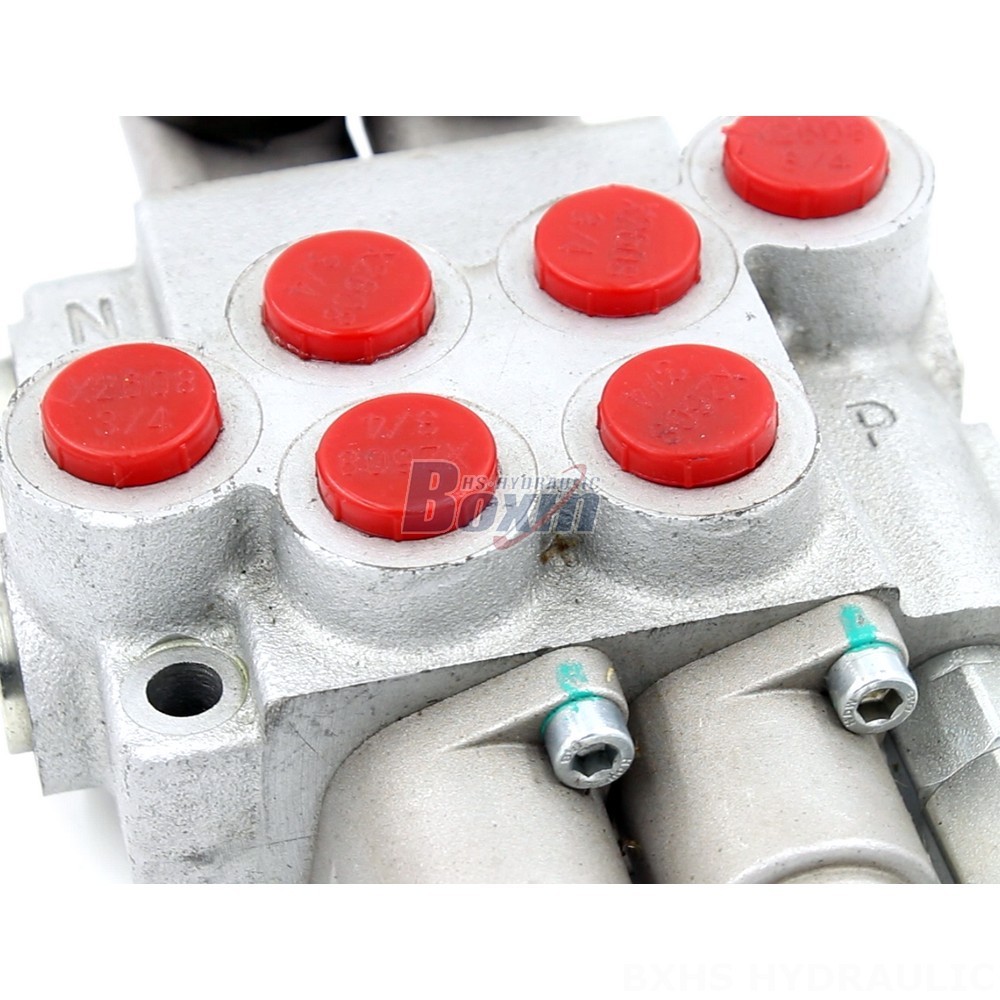

The P40-DKL 2-Spool Hydraulic Valve is a manual speed control valve designed for hydraulic cylinders in various applications, including material handling, construction, and agriculture. This 2-section monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for a wide range of equipment.
| P40-DKL-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Strukturtyp | Monoblockventil |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
The P40-DKL 2-Spool Hydraulic Valve is a high-quality, durable valve designed for controlling the speed of hydraulic cylinders. It features a manual control method and a 2-section monoblock structure. The valve has a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 250 bar (3600 psi). It is designed for use in a wide range of operating conditions, with an ambient temperature range of -40°C to +80°C (-40°F to +176°F). The valve is compatible with a variety of hydraulic fluids, with an operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). This versatile valve is suitable for various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is compatible with a wide range of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, and skid steer loaders.
