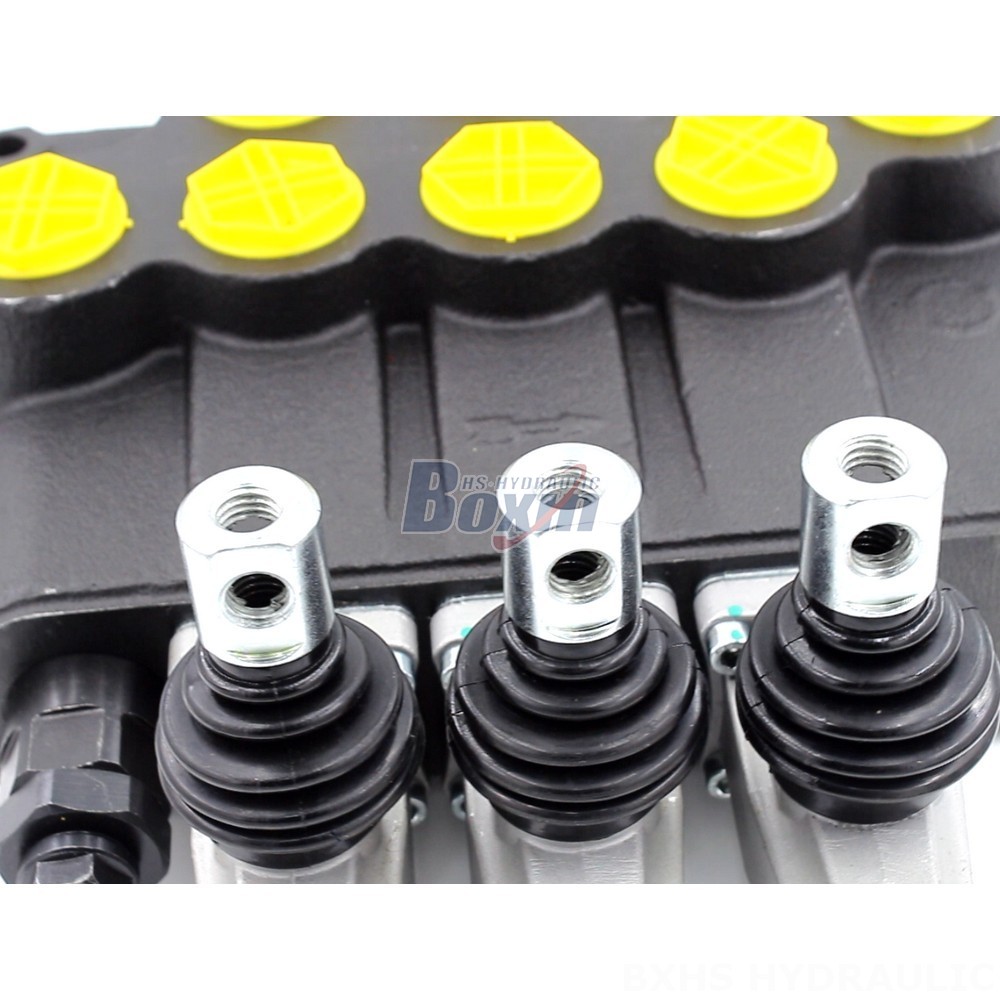

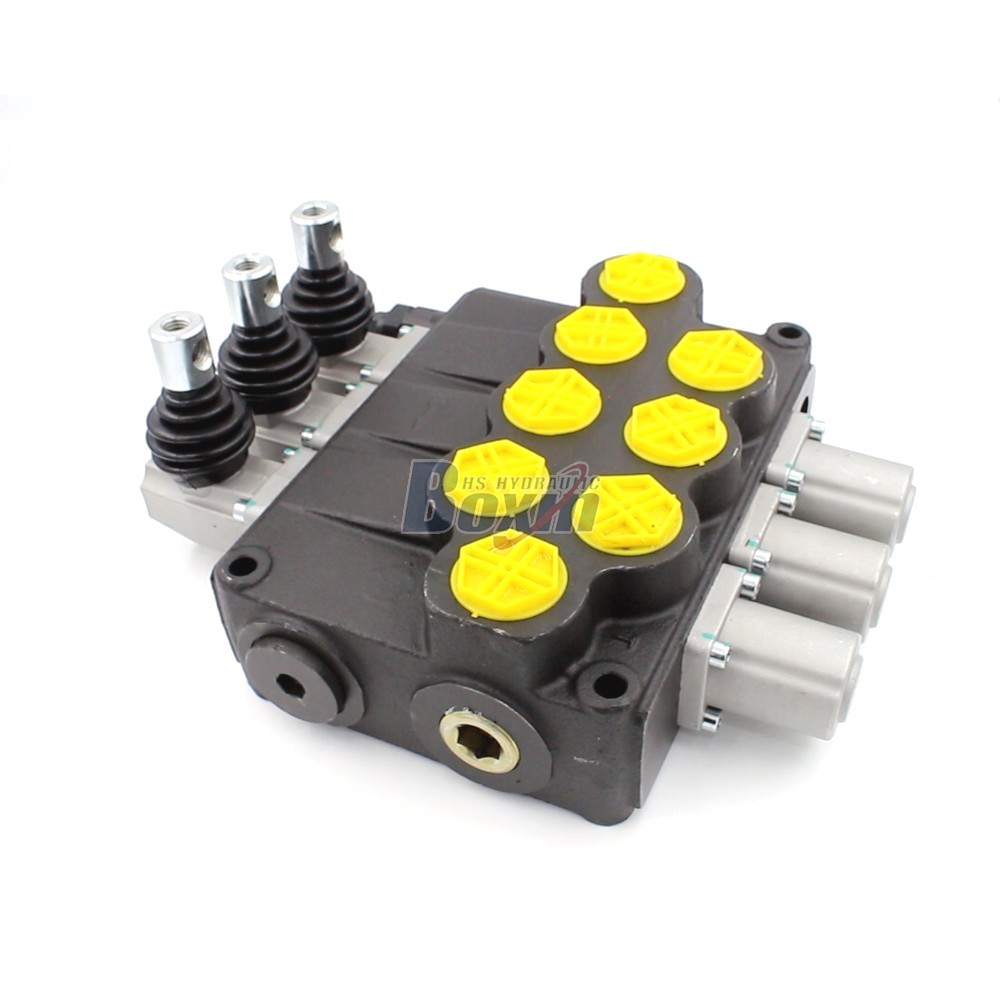

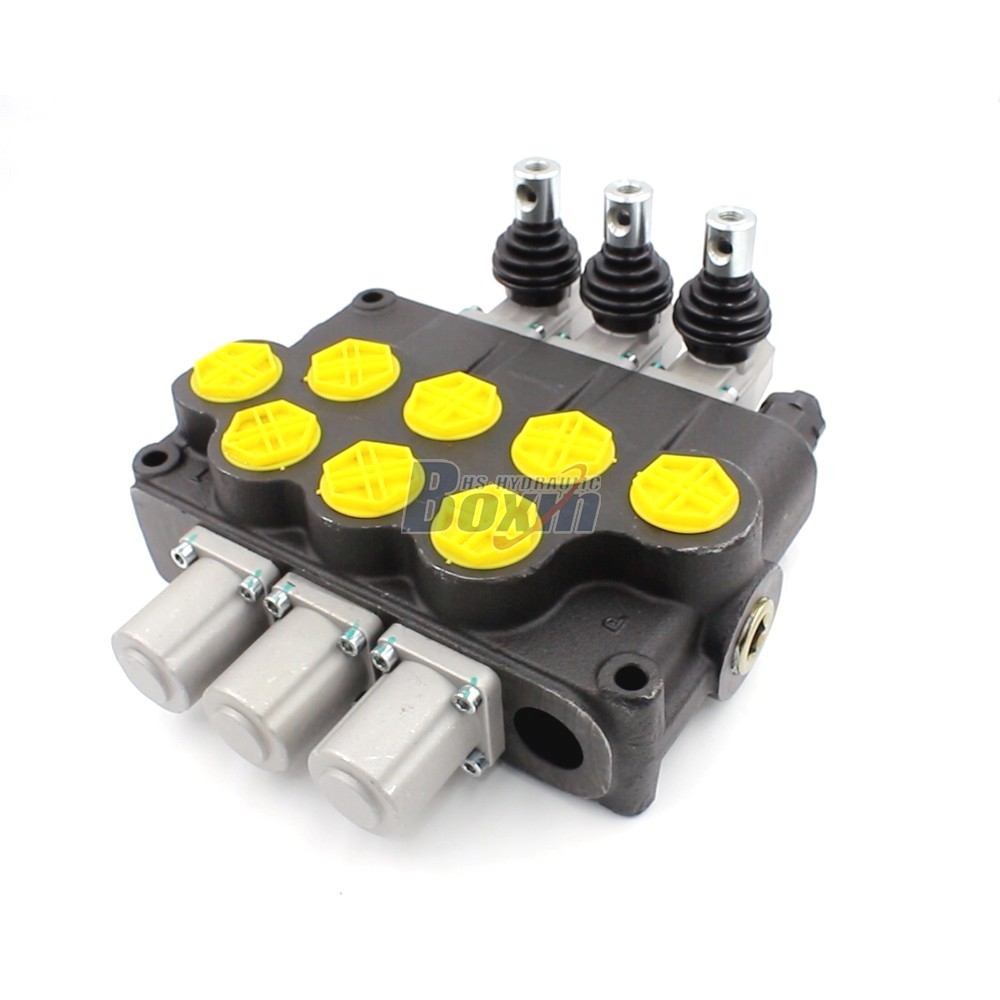

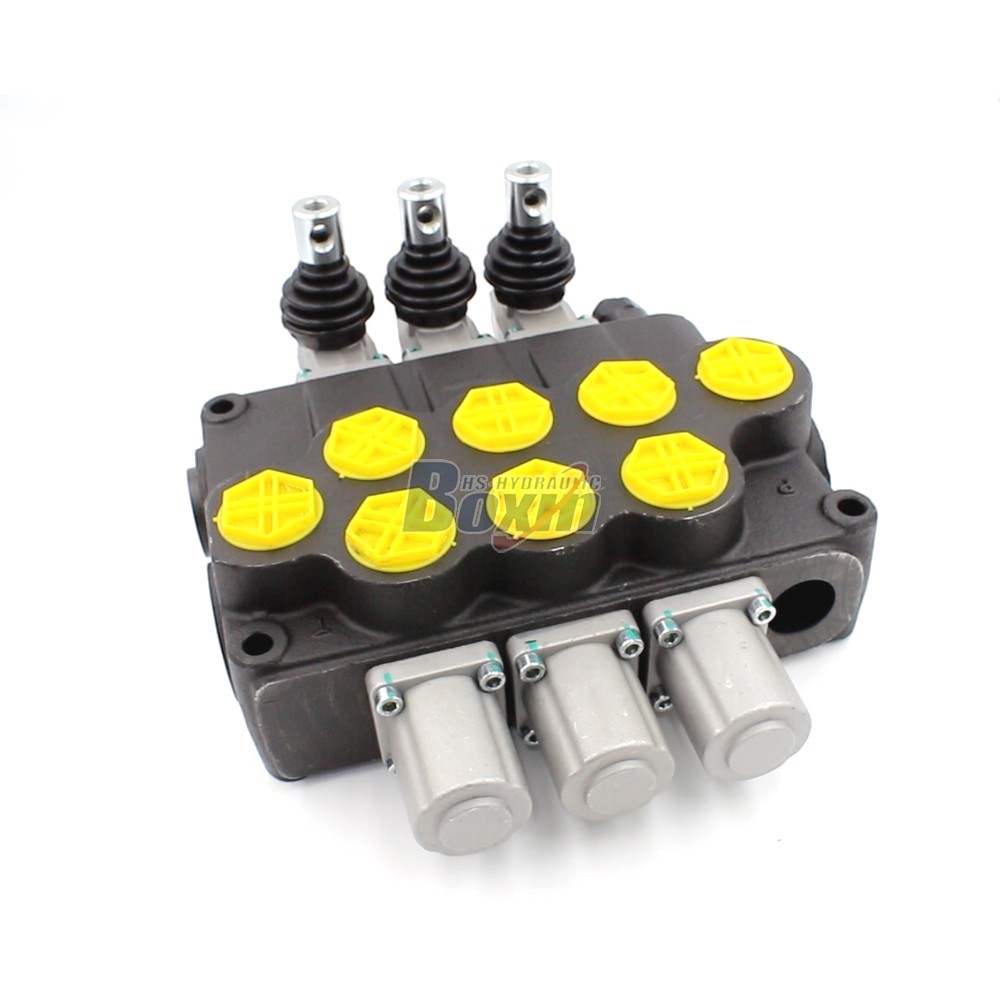

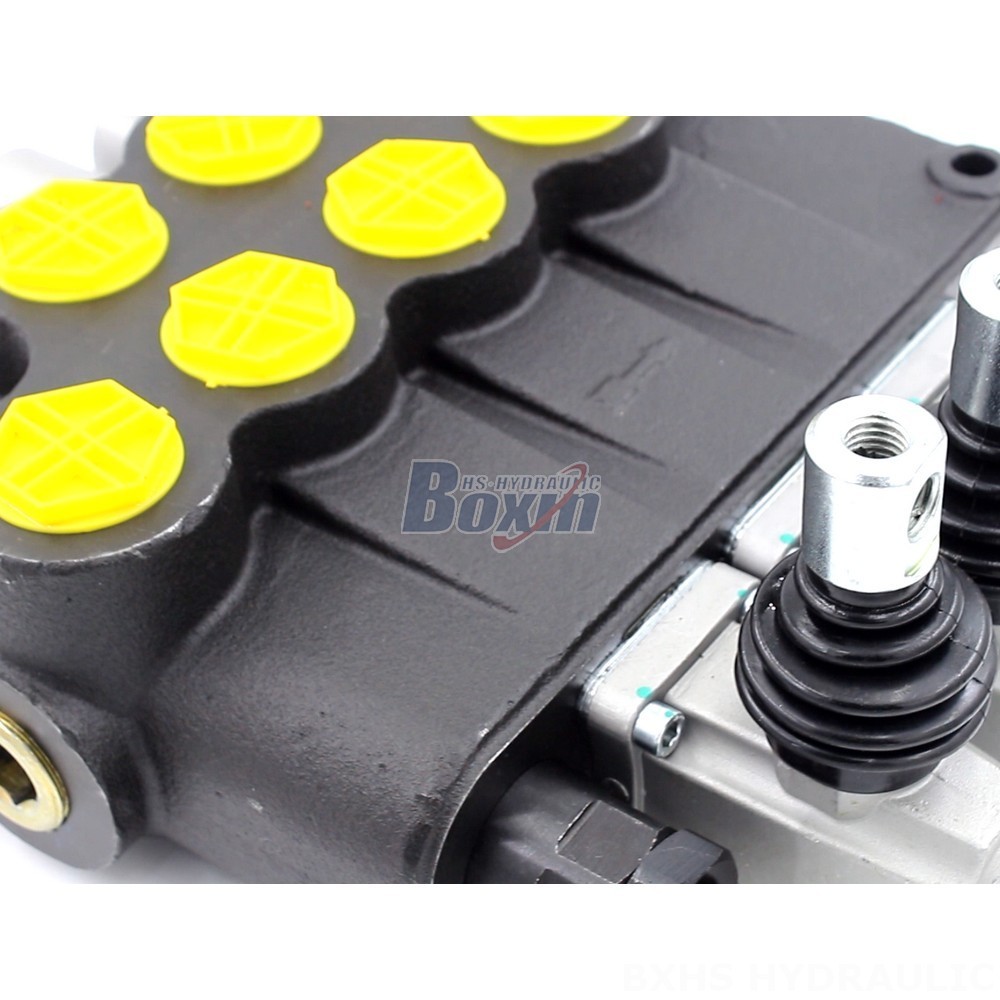

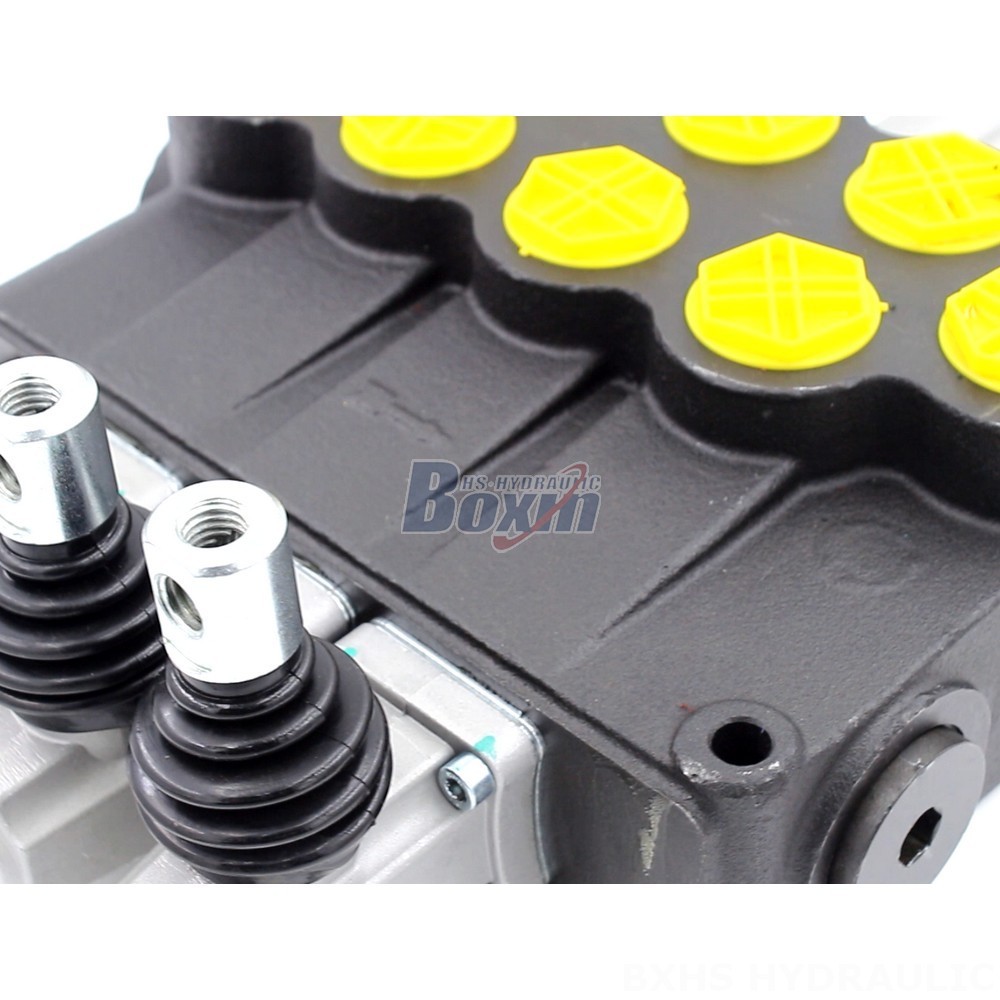

P120-G1-OT Valve: Technical Data, CAD Drawings, and Support

Steuermethode:Manuell

Steuerkolben:3 Spulen

Nennfluss:120 L/min (31,7 US gpm)

Maximaldruck:250 bar (3600 psi)

Einlassanschluss:G1

Auslassanschluss:G1

Anschlussgröße:G1

Hersteller:BXHS

Produkttyp:Monoblock-Wegeventil

Produktserie:P120 Serie Monoblock-Wegeventil

Verpackungsgröße:37*37*18

Bruttogewicht:24.10 kg

Verfügbarkeit: Auf Lager

1340 Personen sehen sich dieses Produkt an

P120-G1-OT Valve: Technical Data, CAD Drawings, and Support

P120-G1-OT Valve: Technical Data, CAD Drawings, and Support

P120-G1-OT Valve: Technical Data, CAD Drawings, and Support drawing image

The P120-G1-OT Hydraulic Forward And Reverse Valve is a high-performance, manual control monoblock valve designed for a variety of construction, material handling, and industrial applications. It features a 3-section design, 120 L/min rated flow, and a maximum pressure of 250 bar.

P120 Serie Monoblock-Wegeventil Parameter
Steuermethode Manuell, Kabel, Joystick, Manuell und Joystick
Steuerkolben 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen
Nennfluss 120 L/min (31,7 US gpm)
Maximaldruck 250 bar (3600 psi)
Einlassanschluss G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
Auslassanschluss G1, SAE 16, 1 NPT, M36×2
Anschlussgröße G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
Abschnitt 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt
Strukturtyp Monoblockventil
Umgebungstemperaturbereich -40 °C bis +80 °C (-40 °F bis +176 °F)
Bereich der Betriebsviskosität 15 - 75 mm²/s (15 cSt bis 75 cSt)

This P120 Series hydraulic valve is a 3-section, manual control monoblock valve with a rated flow of 120 L/min and a maximum pressure of 250 bar. It is ideal for use in a wide range of applications, including construction equipment (telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders), material handling equipment (telehandlers, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers), and agricultural machinery. The valve operates with an operating viscosity range of 15 - 75 mm²/s and is suitable for ambient temperatures ranging from -40°C to +80°C. The P120-G1-OT valve offers reliable performance and durability, making it an excellent choice for demanding applications.
