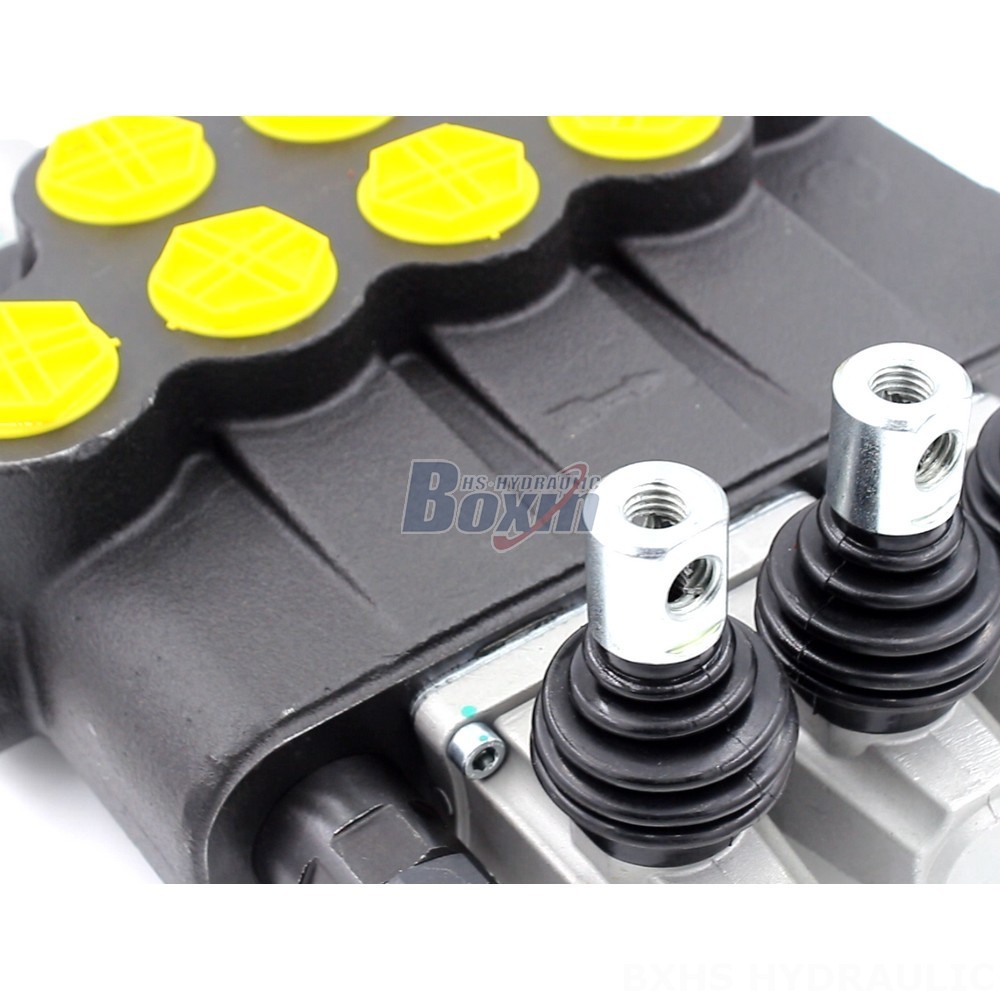

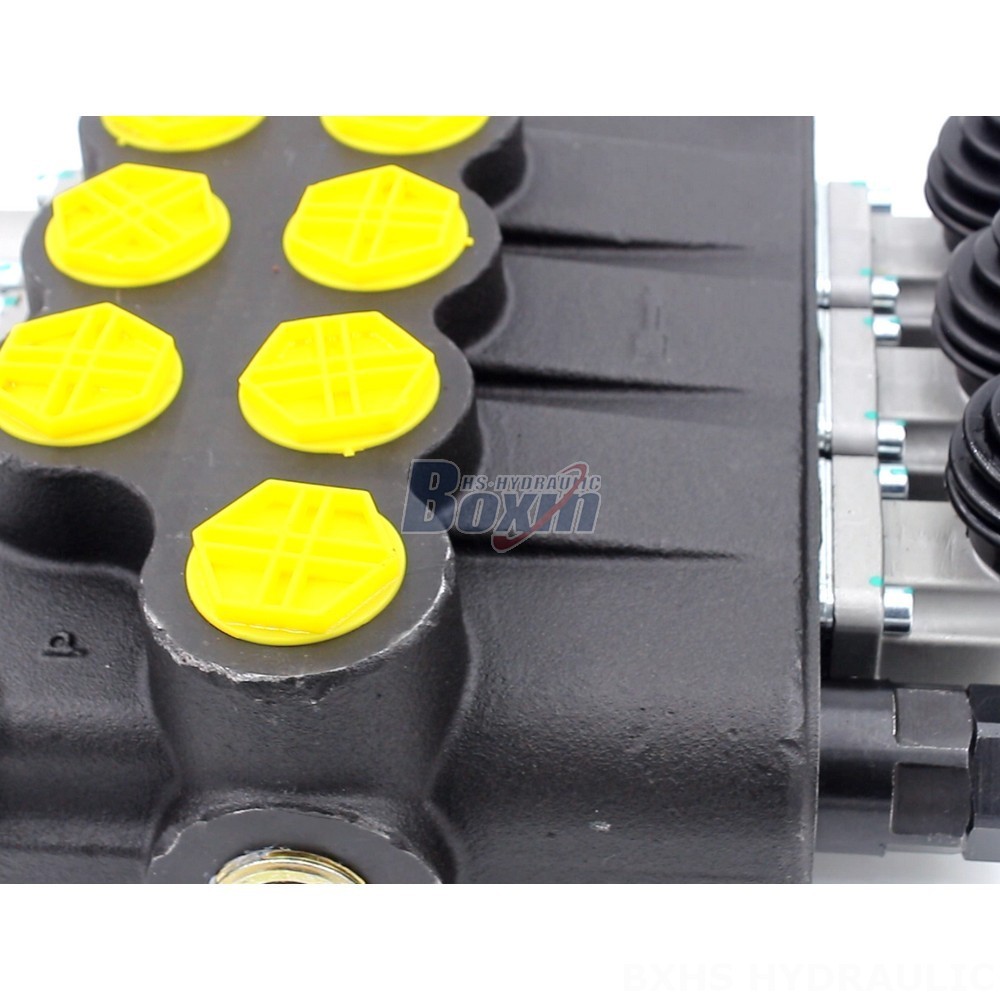

The P120-G1-OT Monoblock Valve is a 2 Spool Control Valve designed for heavy-duty applications in material handling, construction, and agriculture. This manual control valve offers a rated flow of 120 L/min and a maximum pressure of 250 bar, making it ideal for use with a wide range of equipment.
| P120 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen |
| Nennfluss | 120 L/min (31,7 US gpm) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Auslassanschluss | G1, SAE 16, 1 NPT, M36×2 |
| Anschlussgröße | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt |
| Strukturtyp | Monoblockventil |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
This 3 section, monoblock valve features a manual control method and is equipped with 3 spools. It is designed for a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers. The valve has a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 250 bar (3600 psi). It can operate in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F) and with operating viscosity ranging from 15 - 75 mm²/s (15 cSt to 75 cSt). This durable and reliable valve is built to withstand the demands of tough working environments.
