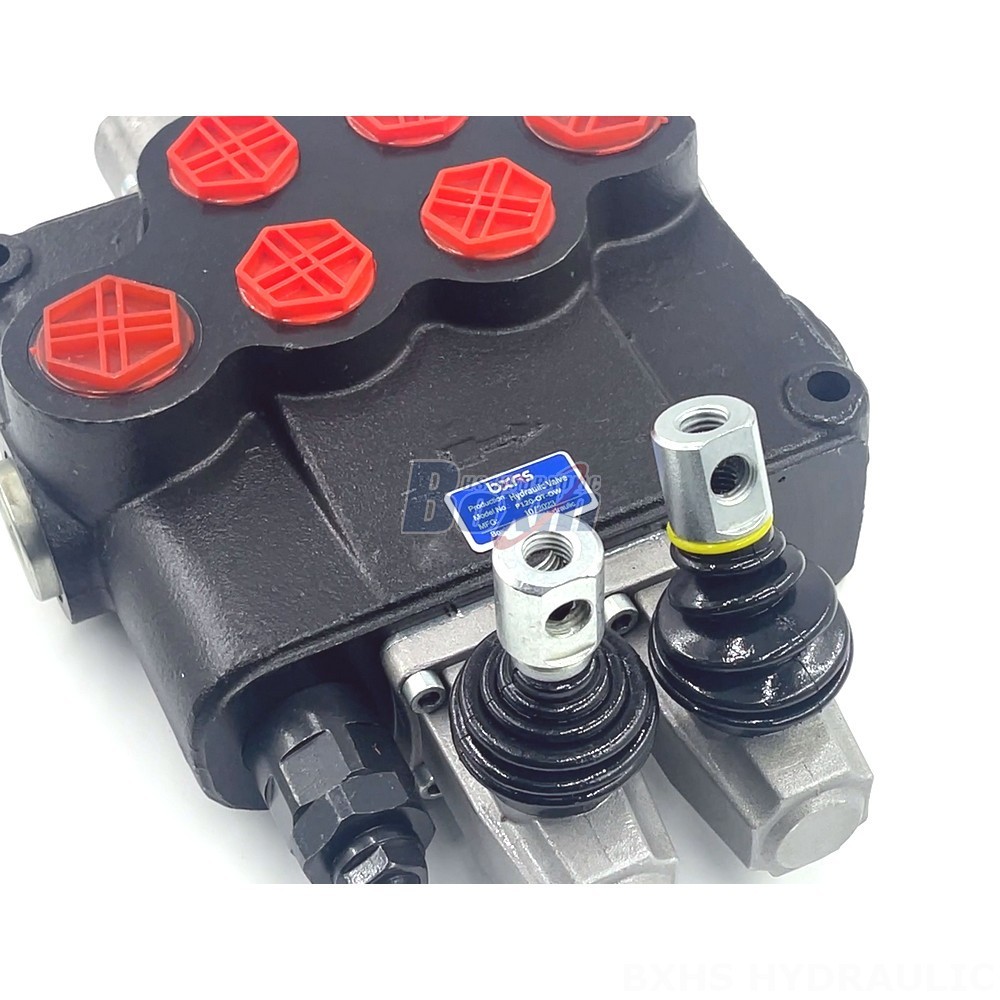

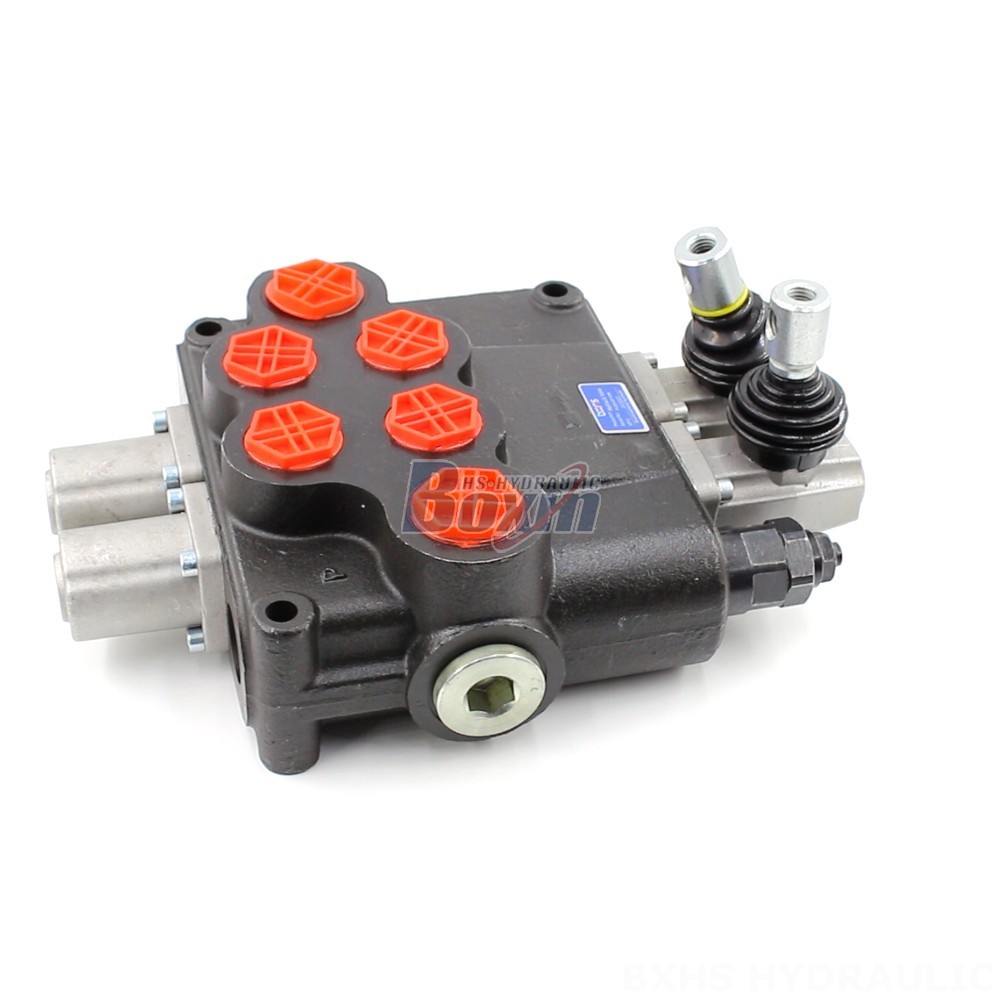

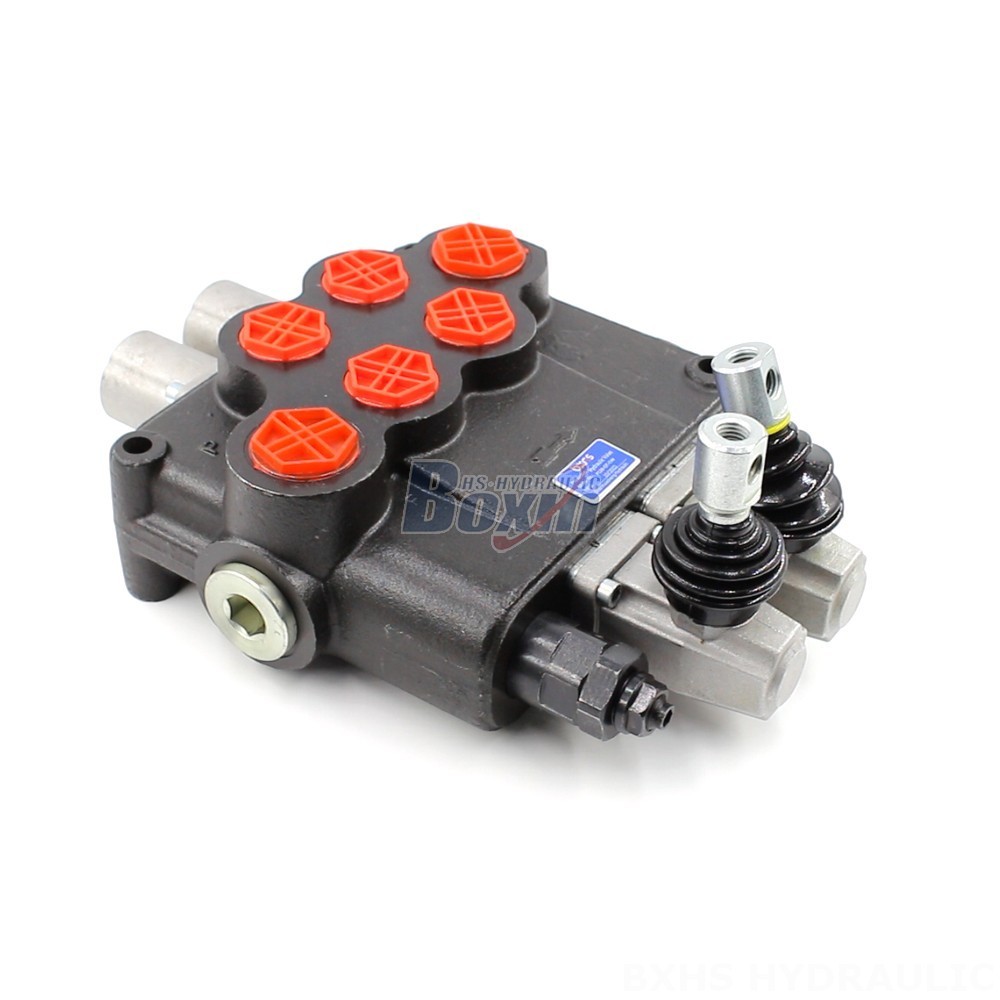

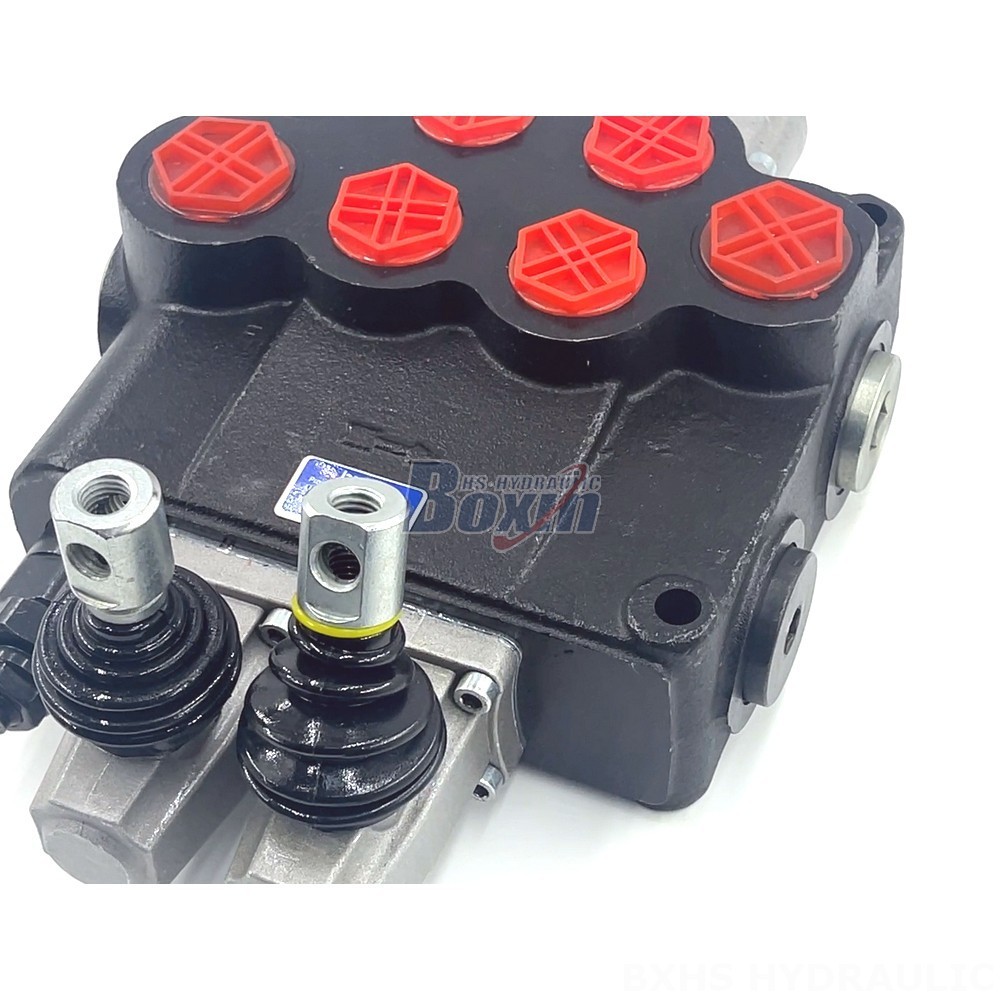

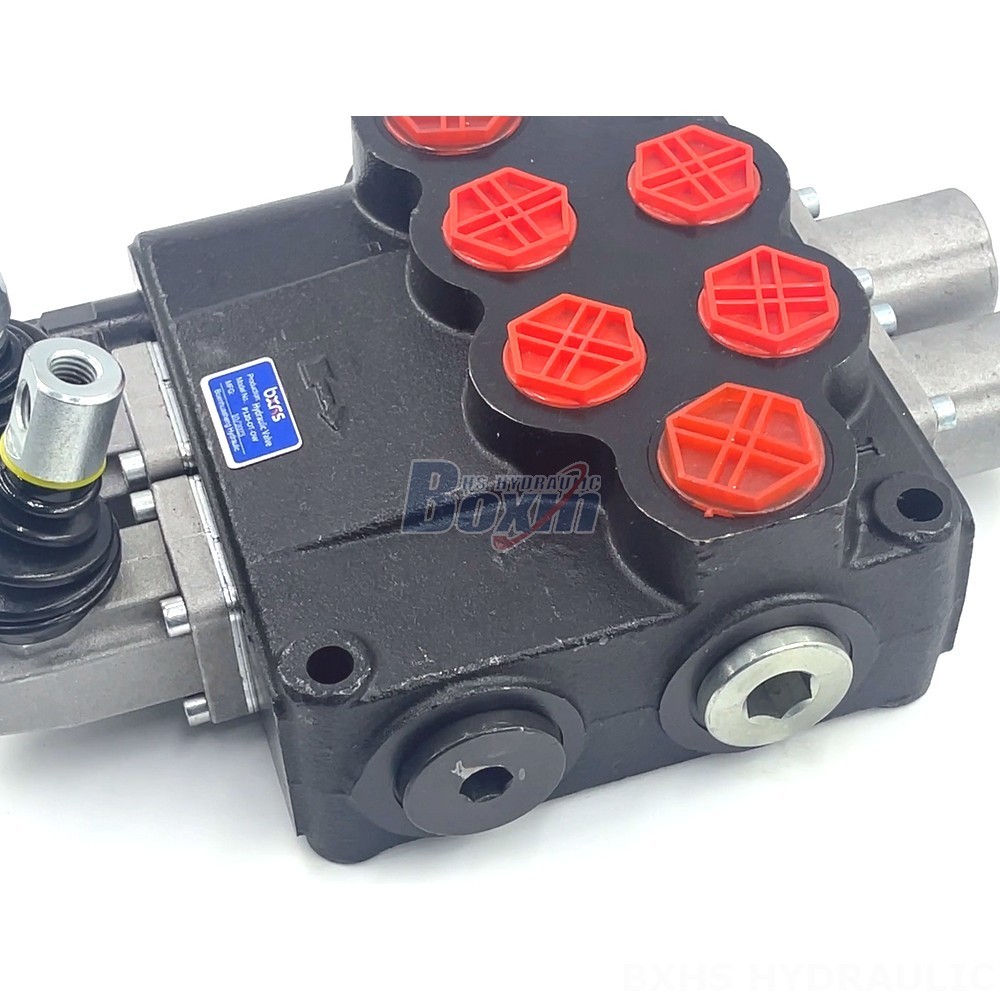

The P120 Series 5/2 Directional Control Valve is a reliable and high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a robust monoblock construction, rated flow of 120 L/min, and a maximum pressure of 250 bar, making it ideal for demanding operating conditions.
| P120 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen |
| Nennfluss | 120 L/min (31,7 US gpm) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| Auslassanschluss | G1, SAE 16, 1 NPT, M36×2 |
| Anschlussgröße | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt |
| Strukturtyp | Monoblockventil |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
The P120 Series 5/2 Directional Control Valve is a high-quality hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This manual control valve features a robust monoblock construction, providing exceptional durability and reliability. With a rated flow of 120 L/min and a maximum pressure of 250 bar, this valve can handle high flow rates and pressures. The valve operates smoothly across a wide viscosity range (15-75 mm²/s) and can withstand temperatures from -40°C to +80°C. Its 2-section design and 2-spool configuration allow for precise control of hydraulic circuits. The valve is compatible with a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, and compact wheel loaders.
