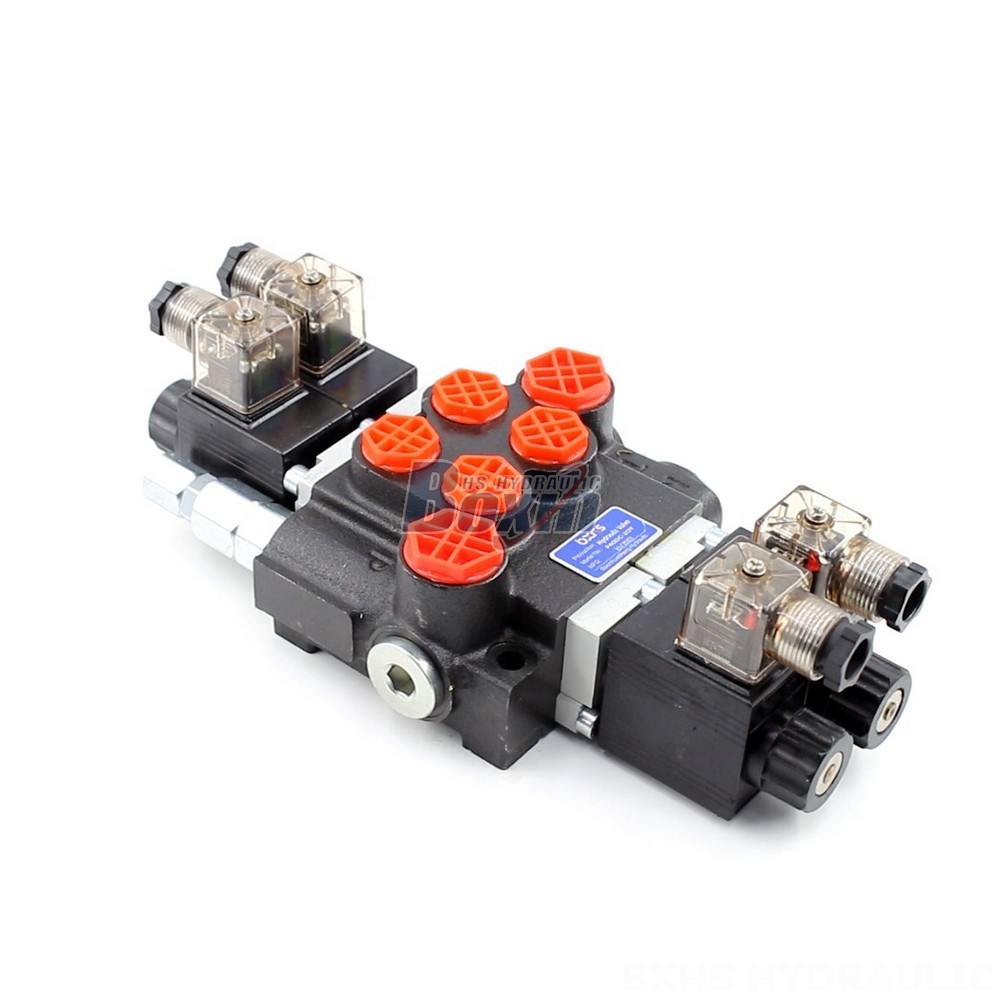

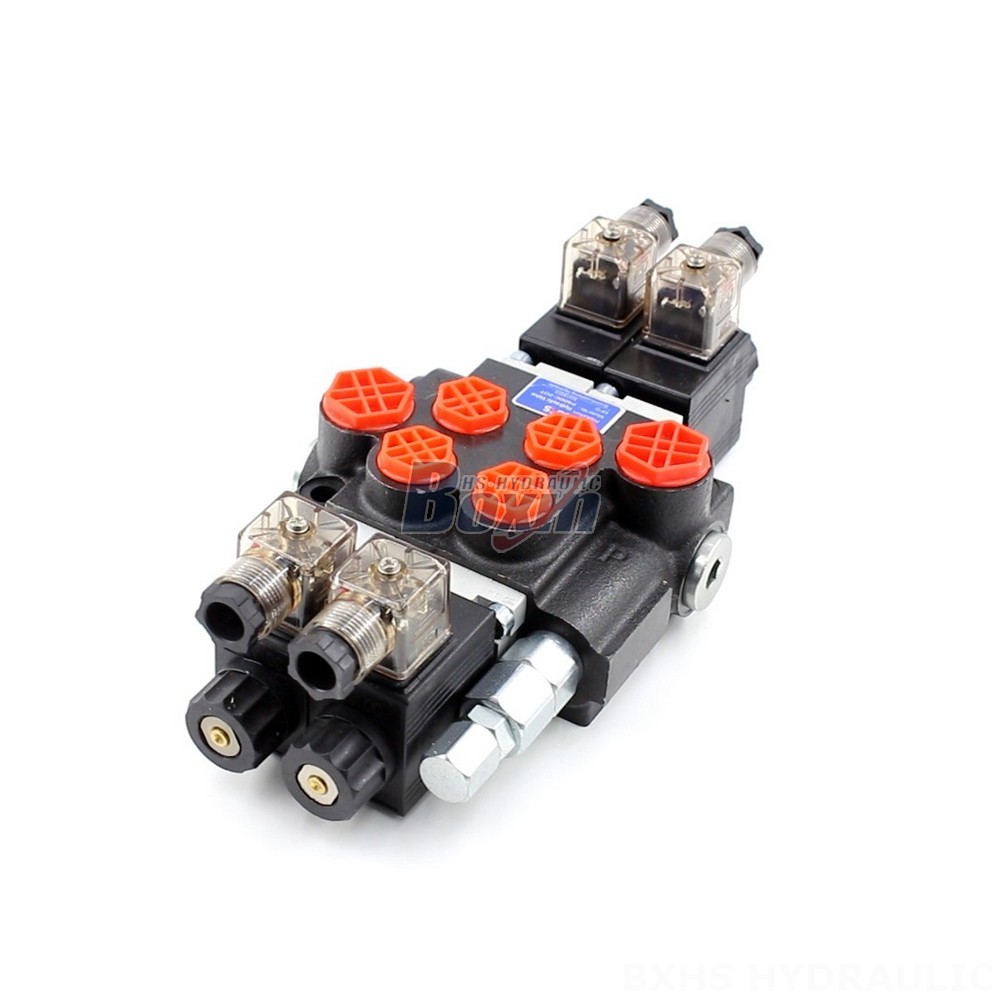

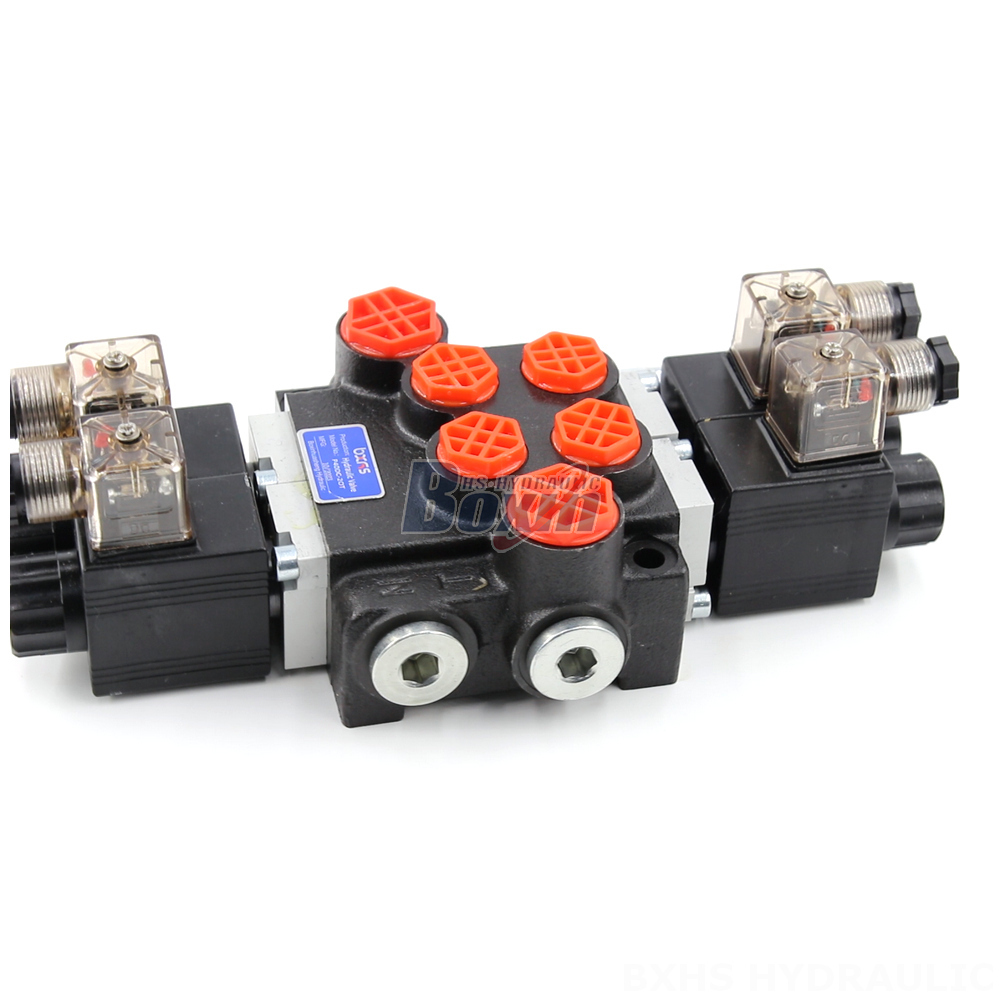

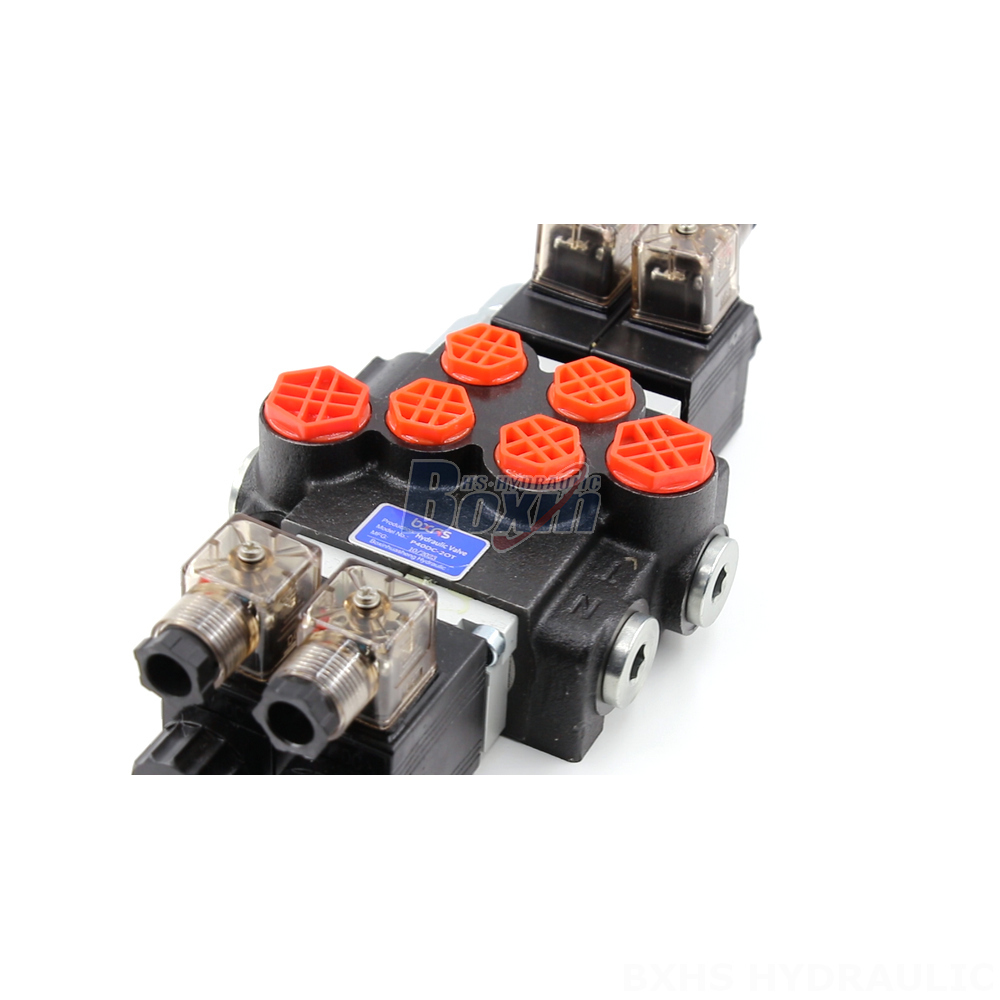

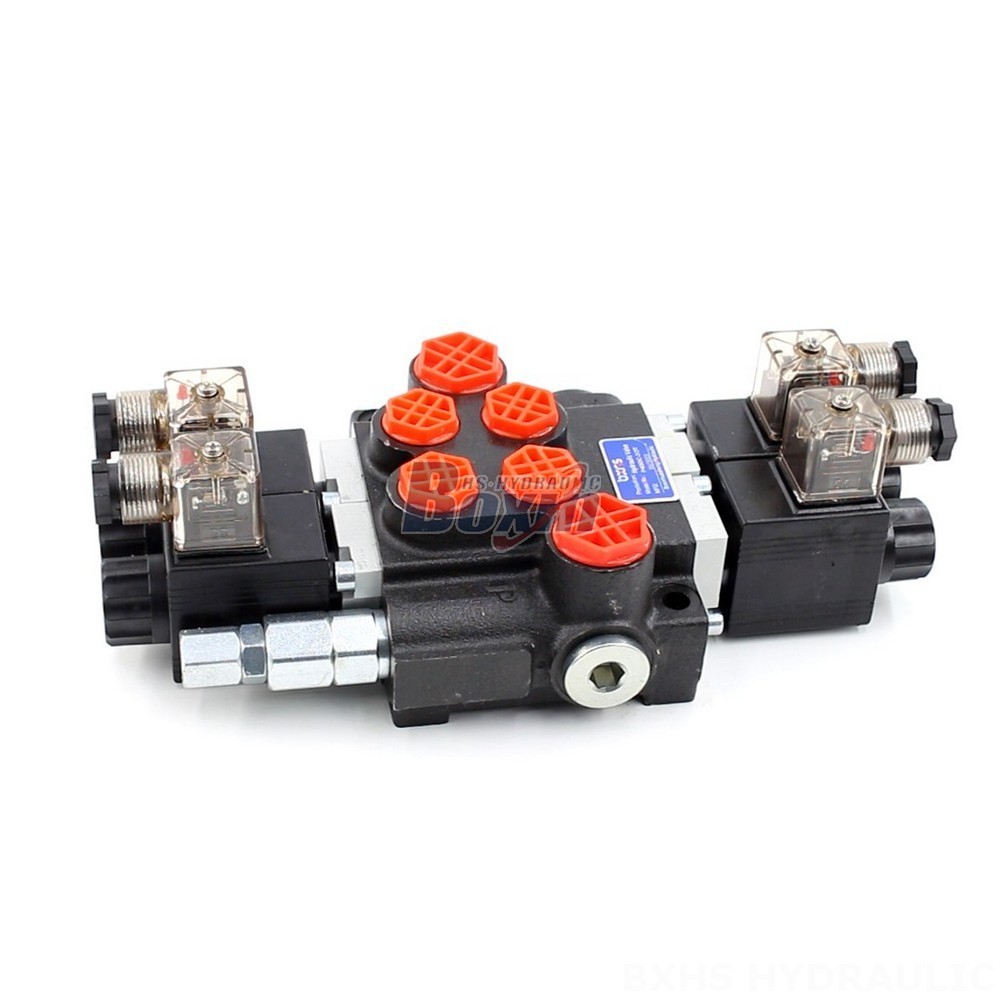

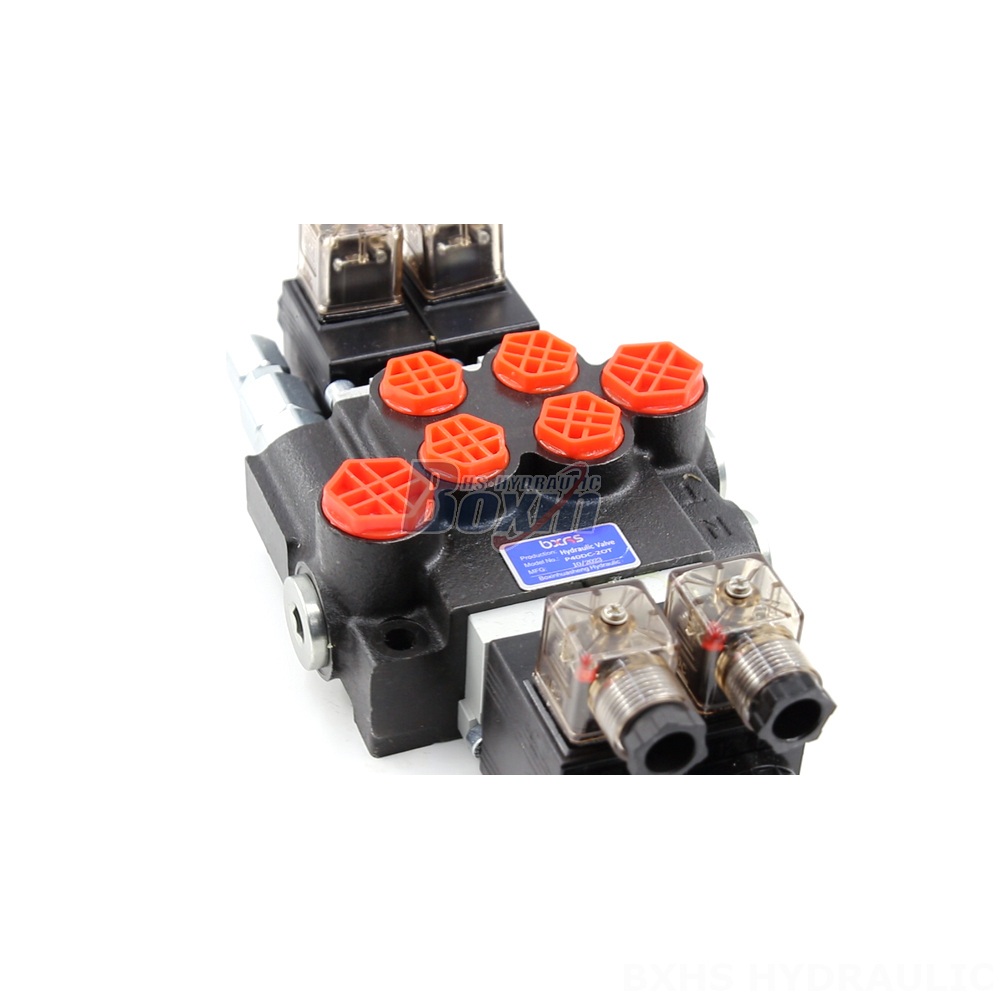

The P40 Series Hydraulic Control Pressure Reducing Valve is a high-performance solenoid-operated, monoblock directional valve designed for demanding applications in material handling, construction, and agriculture. With its 2 spool design and 40 L/min flow rate, this valve is ideal for controlling hydraulic systems in a wide range of equipment.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40 Series Hydraulic Control Pressure Reducing Valve is a robust and reliable solution for controlling hydraulic systems. It features a solenoid control method, a 2-section monoblock valve structure, and a rated flow of 40 L/min (10.5 US gpm). This valve can withstand a maximum pressure of 250 bar (3600 psi) and operates efficiently within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Designed for a wide range of applications, it's suitable for use in various types of equipment like telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers. Its compact design and durable construction make it a reliable and versatile choice for various hydraulic applications.
