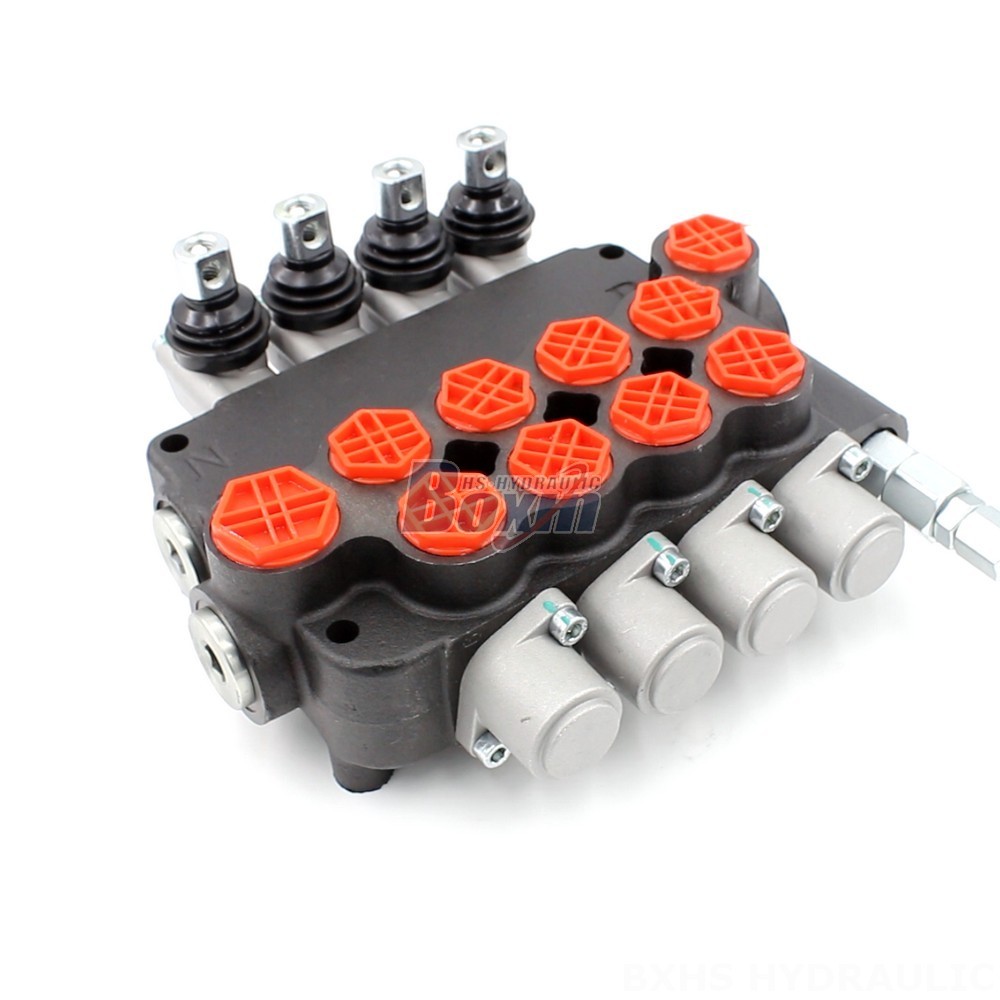

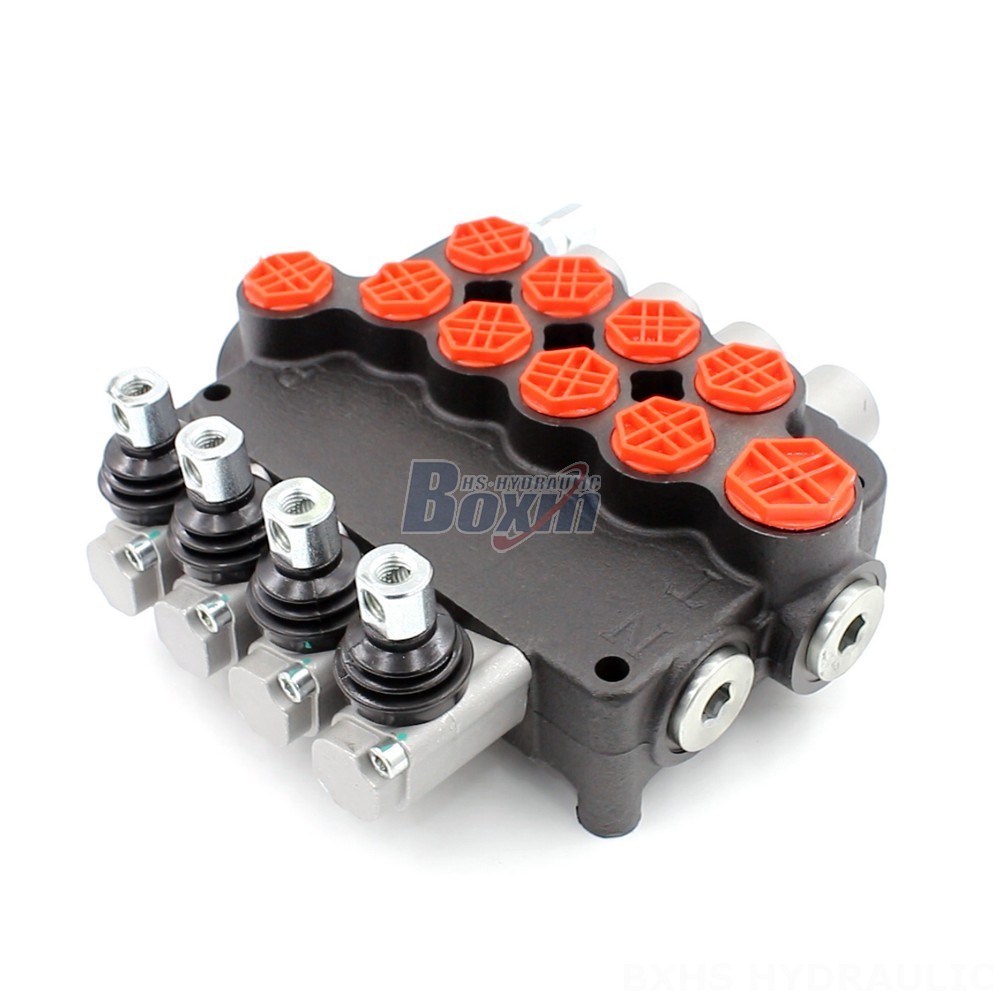

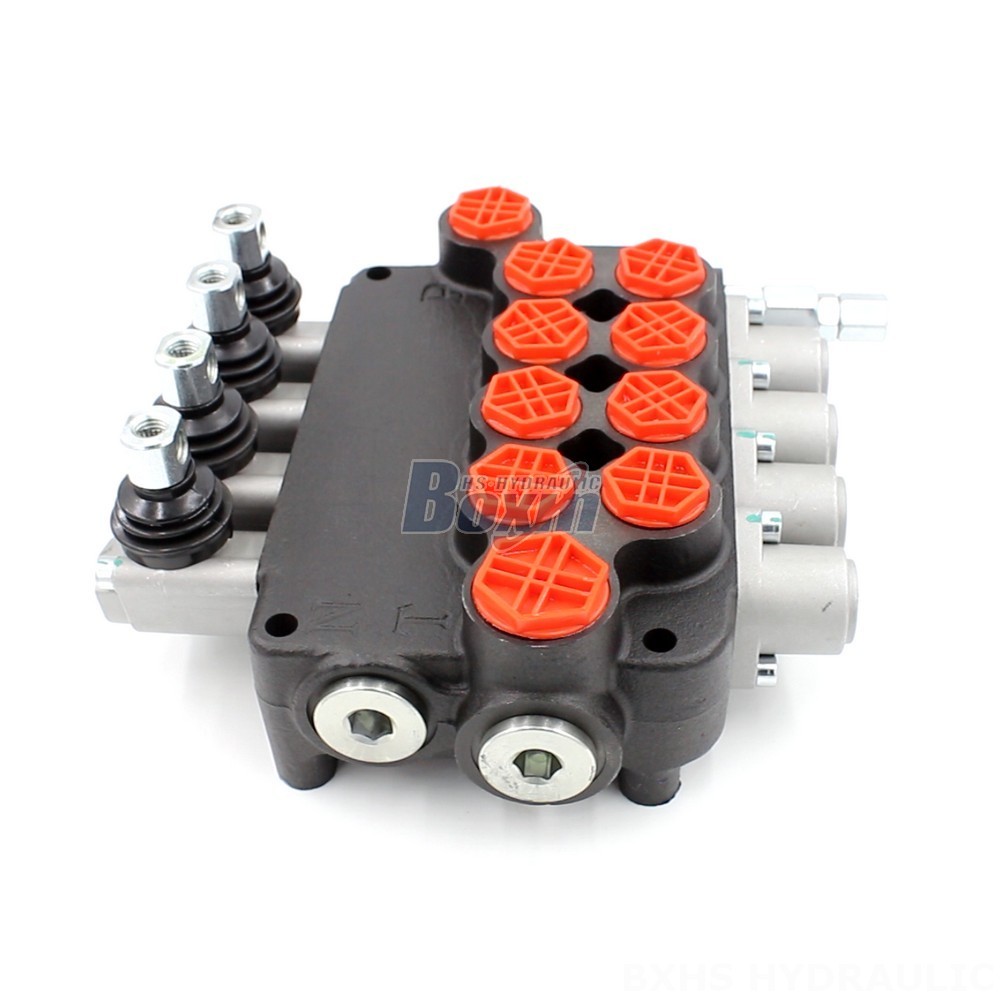

The P80 Series Manual Operated Directional Control Valve is a high-performance, 4-section monoblock valve designed for demanding applications in construction, material handling, and industrial vehicles. With a rated flow of 80 L/min and a maximum pressure of 250 bar, it provides reliable and efficient hydraulic control for a wide range of equipment.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80 Series Manual Operated Directional Control Valve is a robust and reliable hydraulic component designed for demanding applications in various industries. This 4-section monoblock valve features a manual control method, offering precise and intuitive operation. With a rated flow of 80 L/min and a maximum pressure of 250 bar, this valve is well-suited for handling high flow rates and pressures. Its compact and durable design ensures long-term reliability and performance. The valve is designed for use with a wide range of construction and material handling equipment, including telehandlers, forklifts, cranes, excavators, loaders, and more. Its versatility makes it a valuable asset for a wide range of applications.
