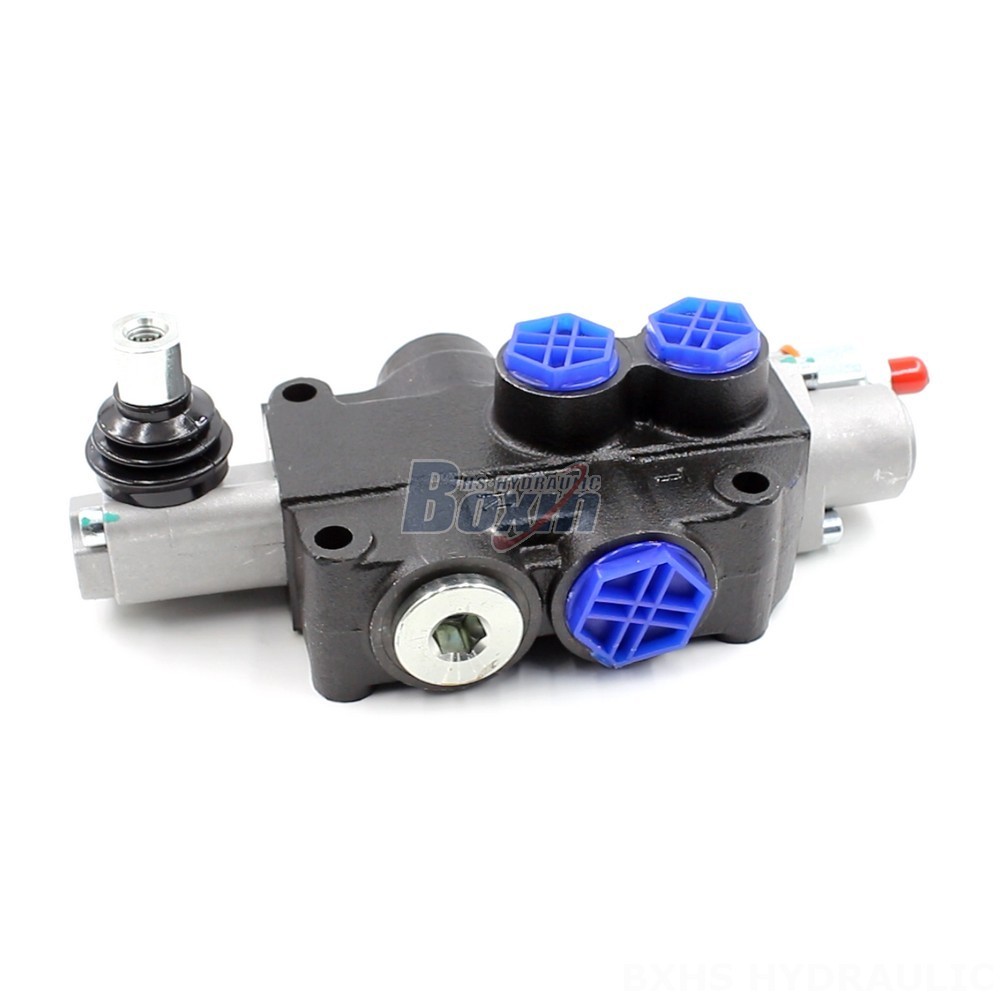

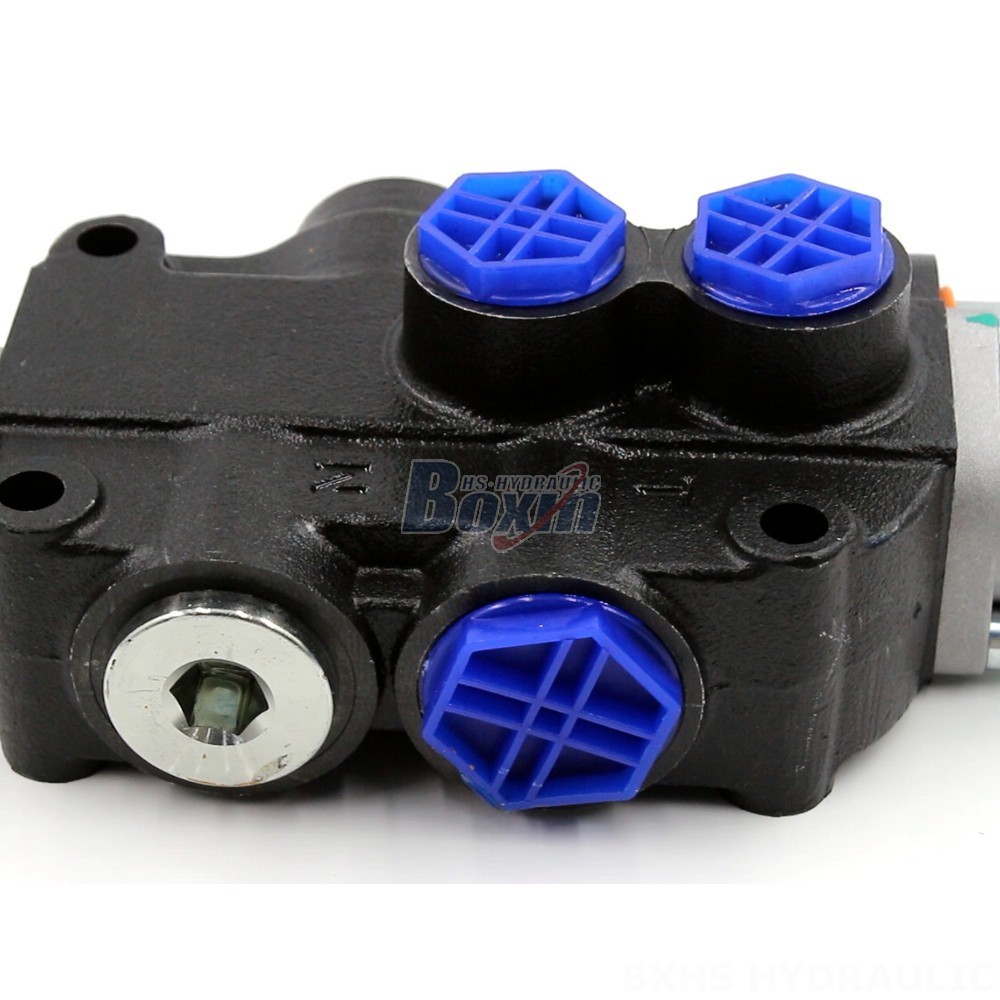

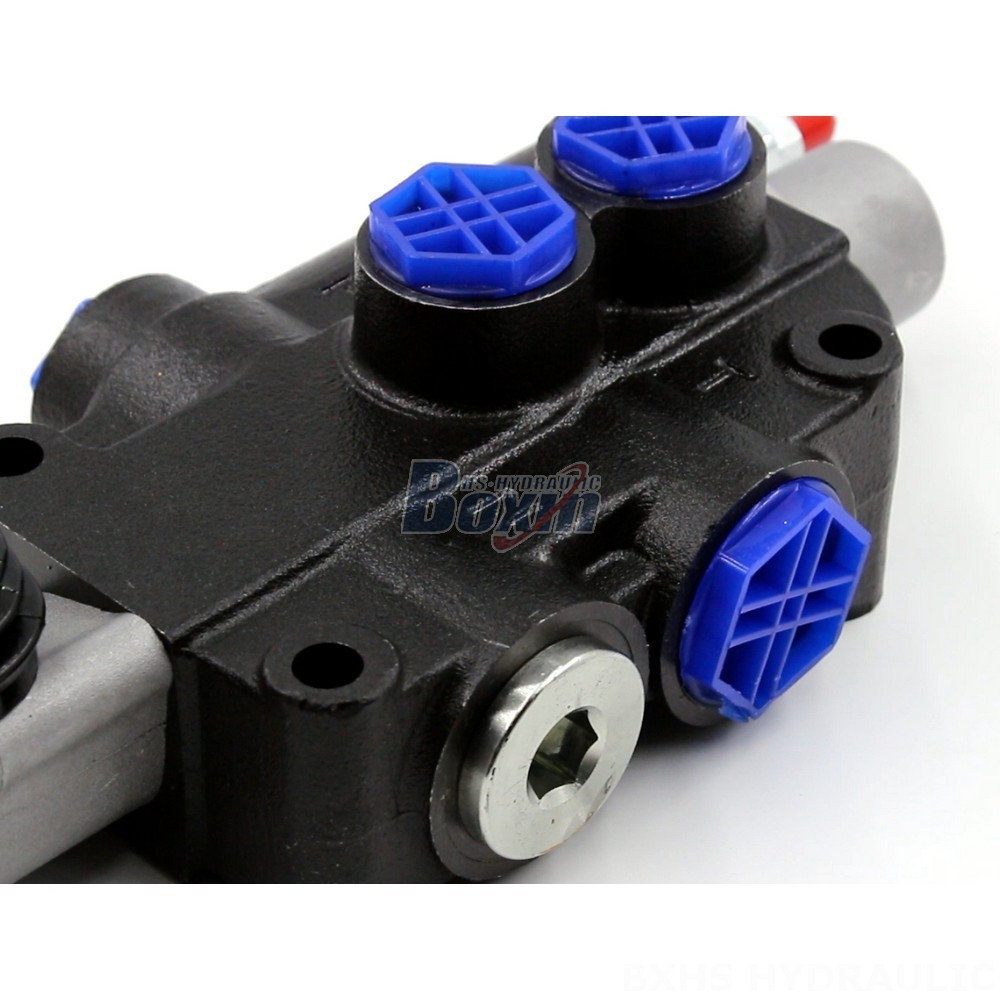

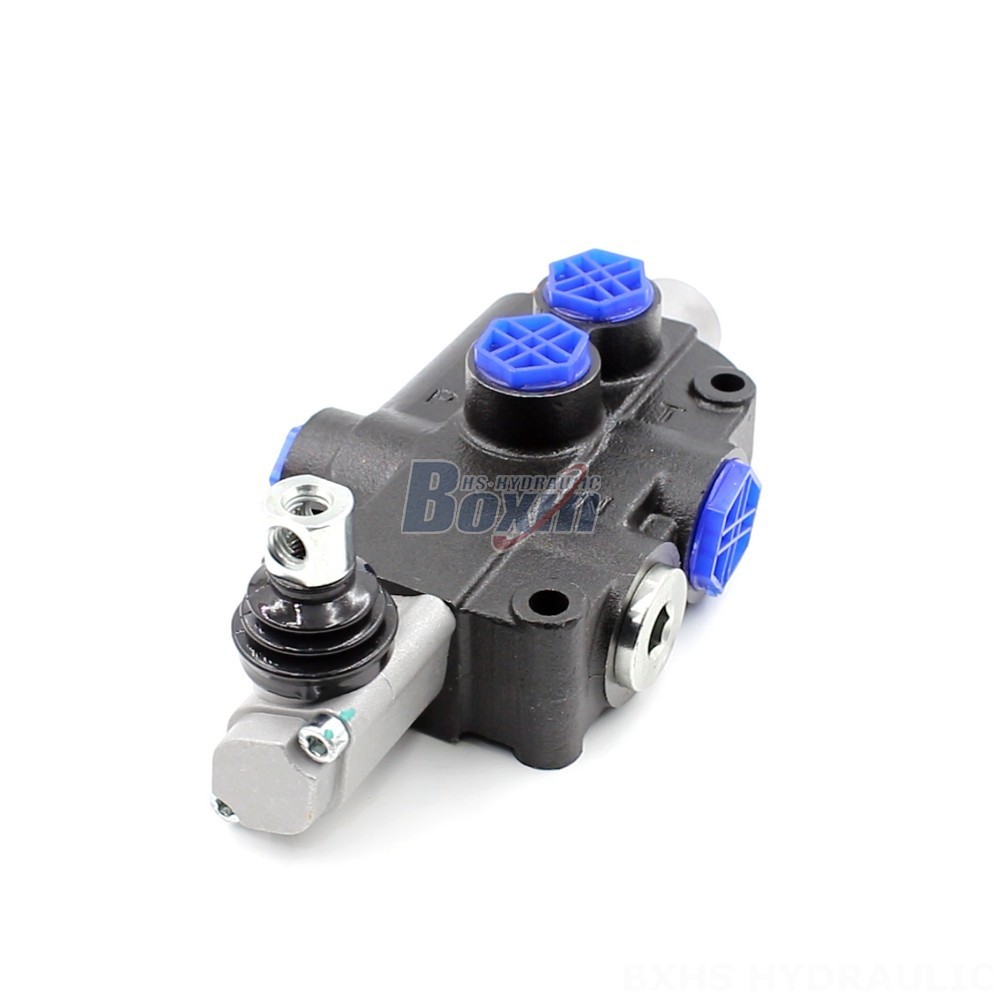

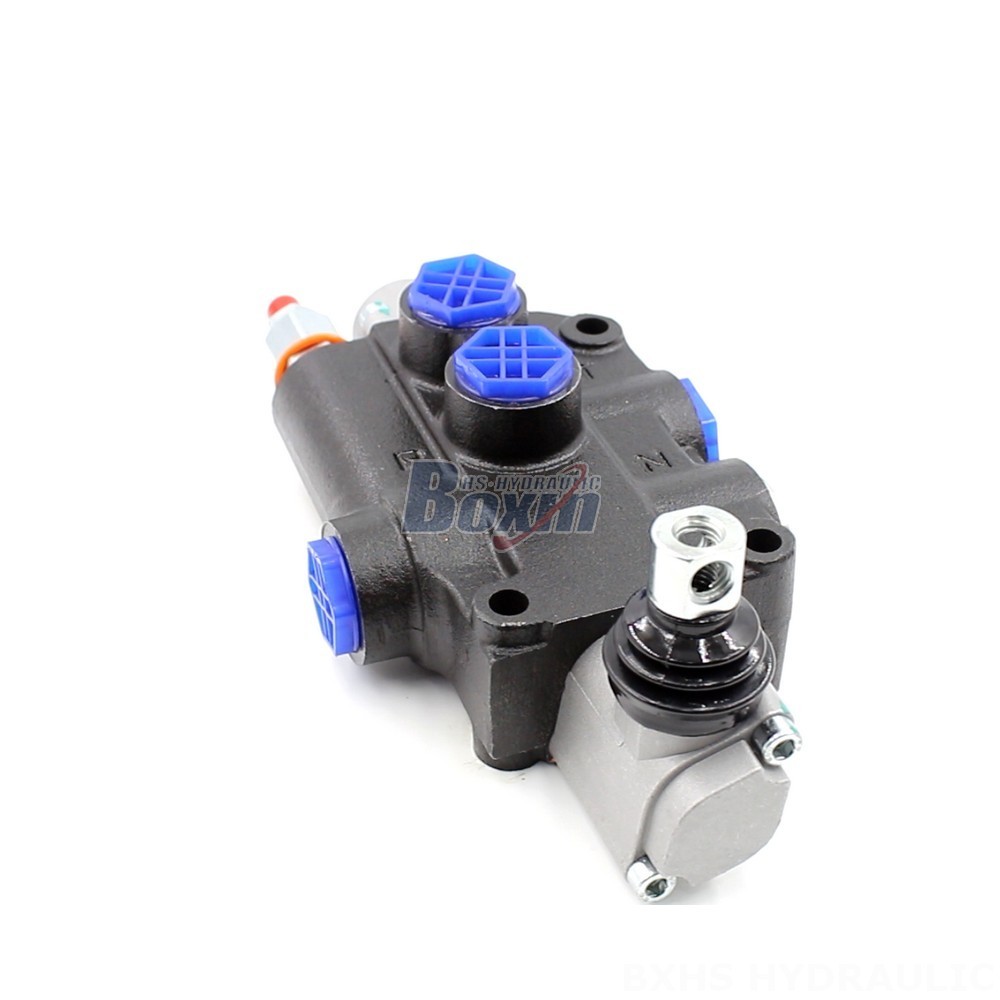

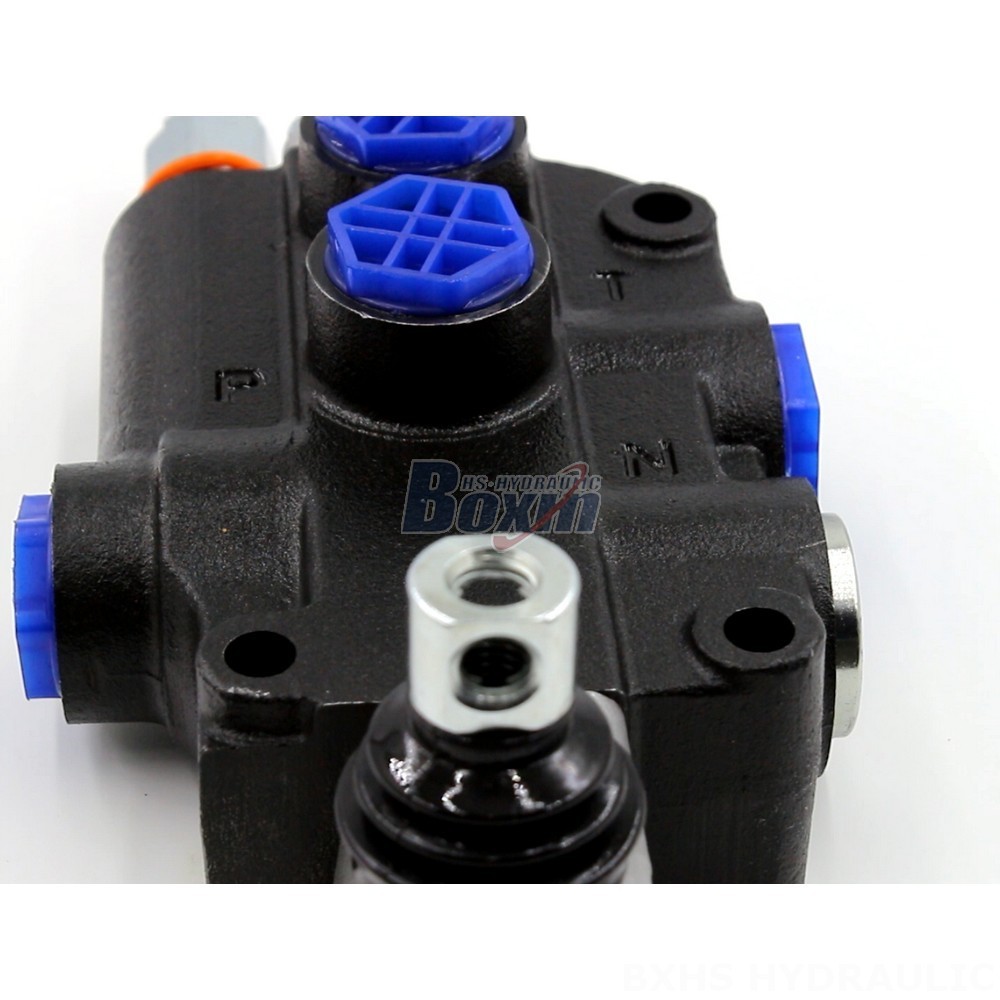

The P80-G12-G34 Series Monoblock Directional Valve is a high-performance hydraulic valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. It is designed for manual control and features a monoblock construction for durability and reliability. The valve is highly customizable to meet the specific requirements of various applications, making it a perfect choice for industries such as construction, agriculture, and material handling.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
**P80-G12-G34 Series Monoblock Directional Valve**
**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** P80 Series
**Applications:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Models:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- MIDI-EXCAVATOR
- MINI-EXCAVATOR
- SKID STEER LOADER
- COMPACT WHEEL LOADER
The P80-G12-G34 Monoblock Directional Valve is a robust and reliable choice for a wide range of hydraulic applications. Its customizable design and high performance make it an excellent option for demanding applications in various industries.
