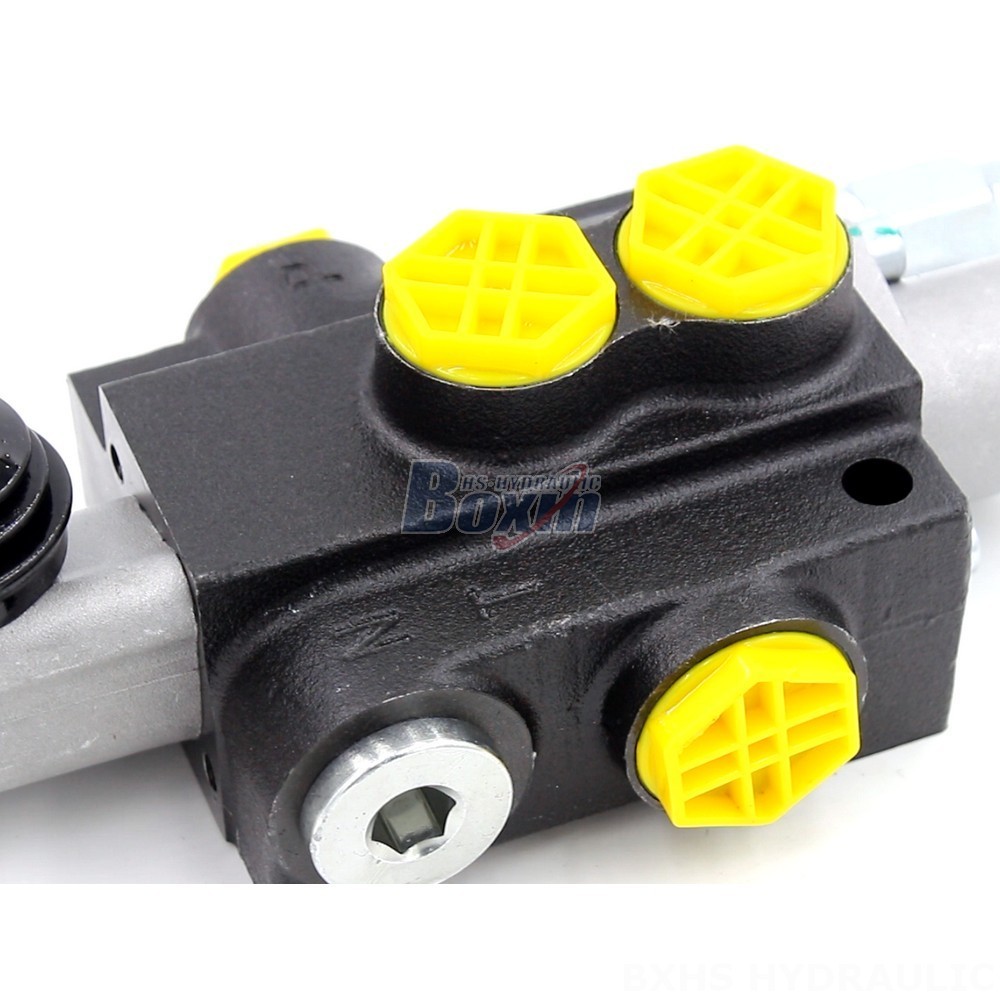

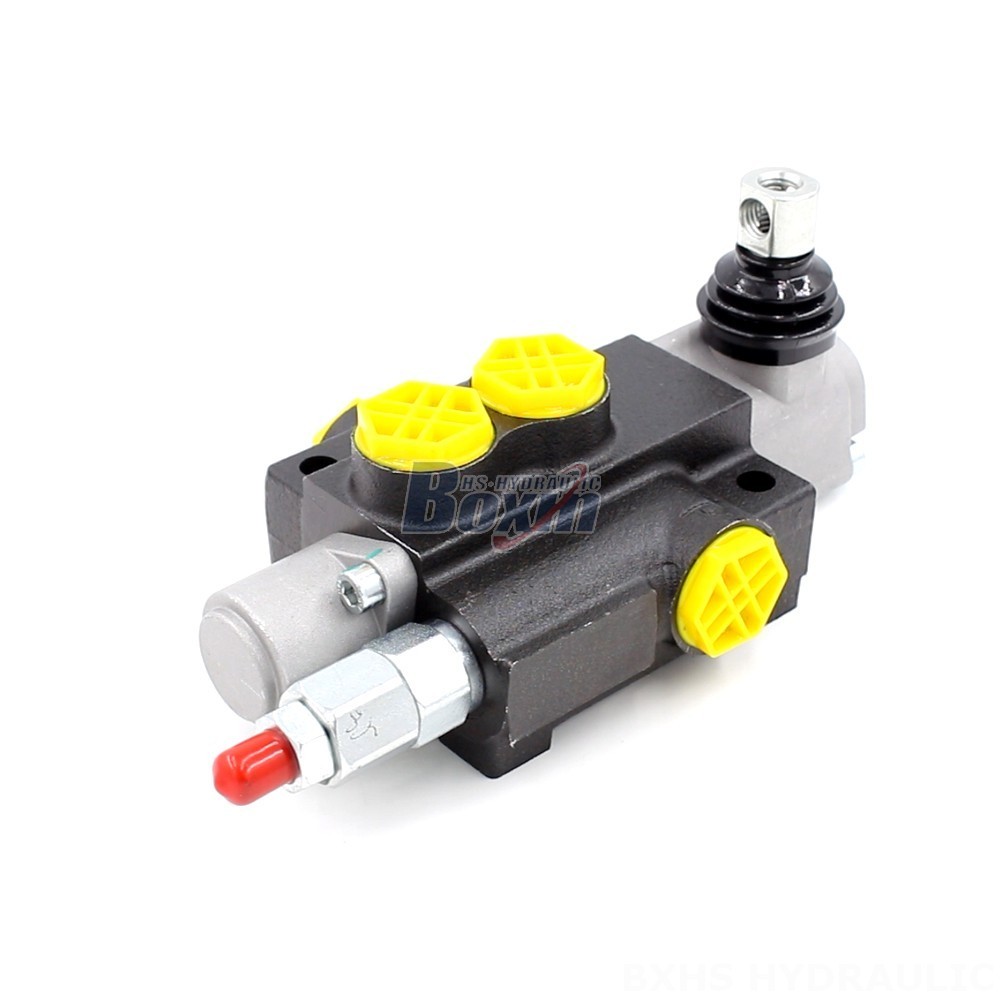

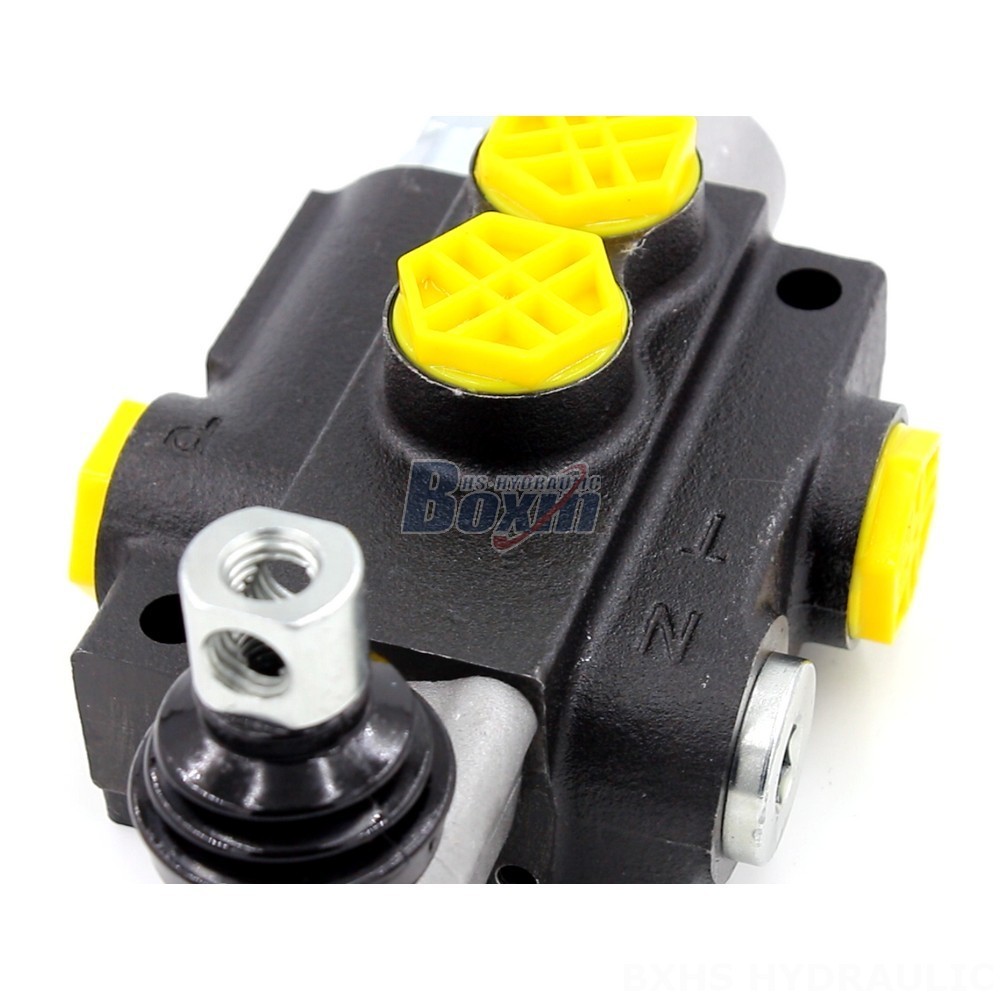

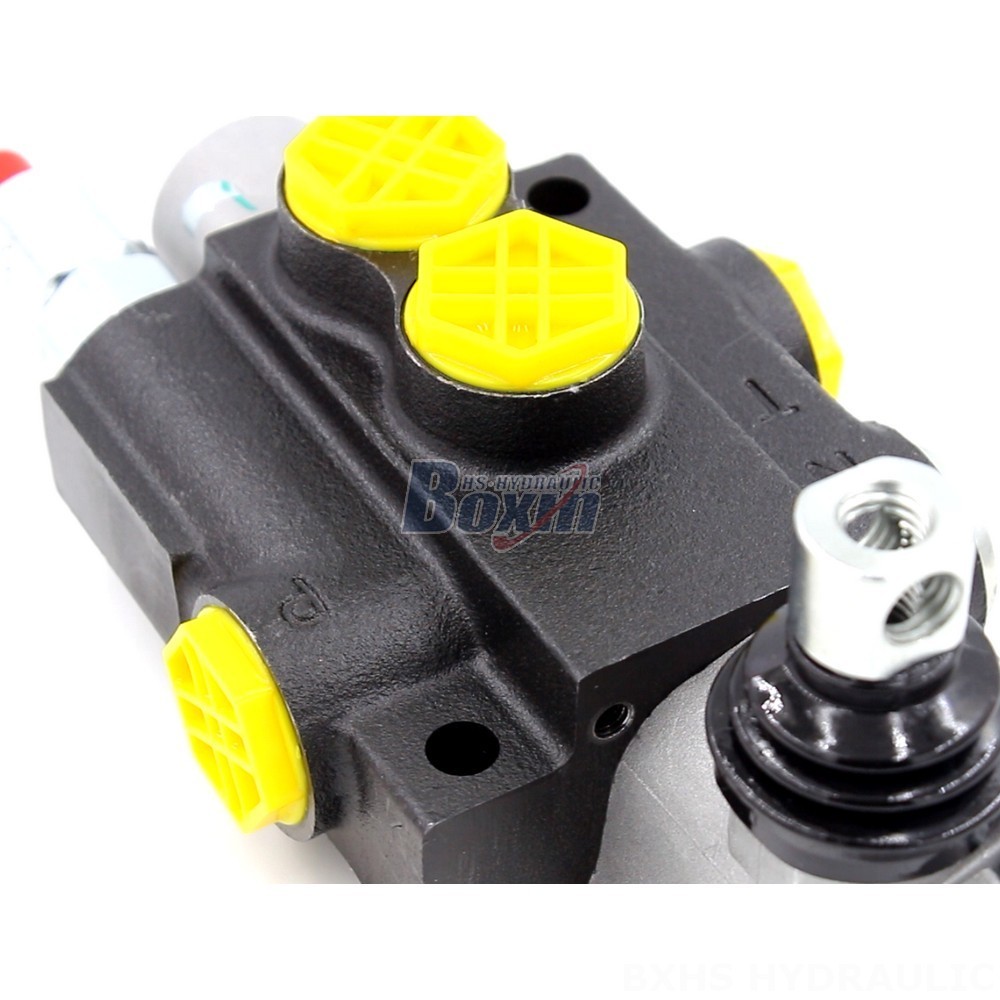

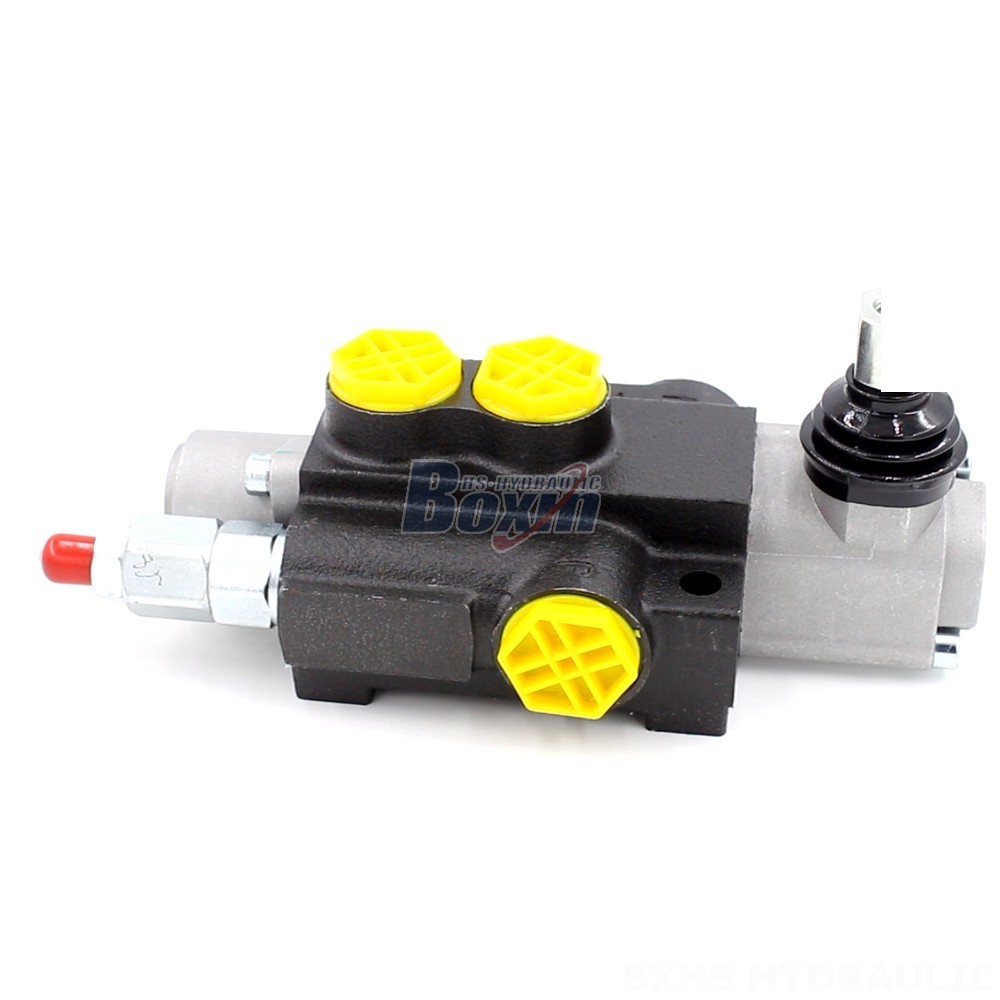

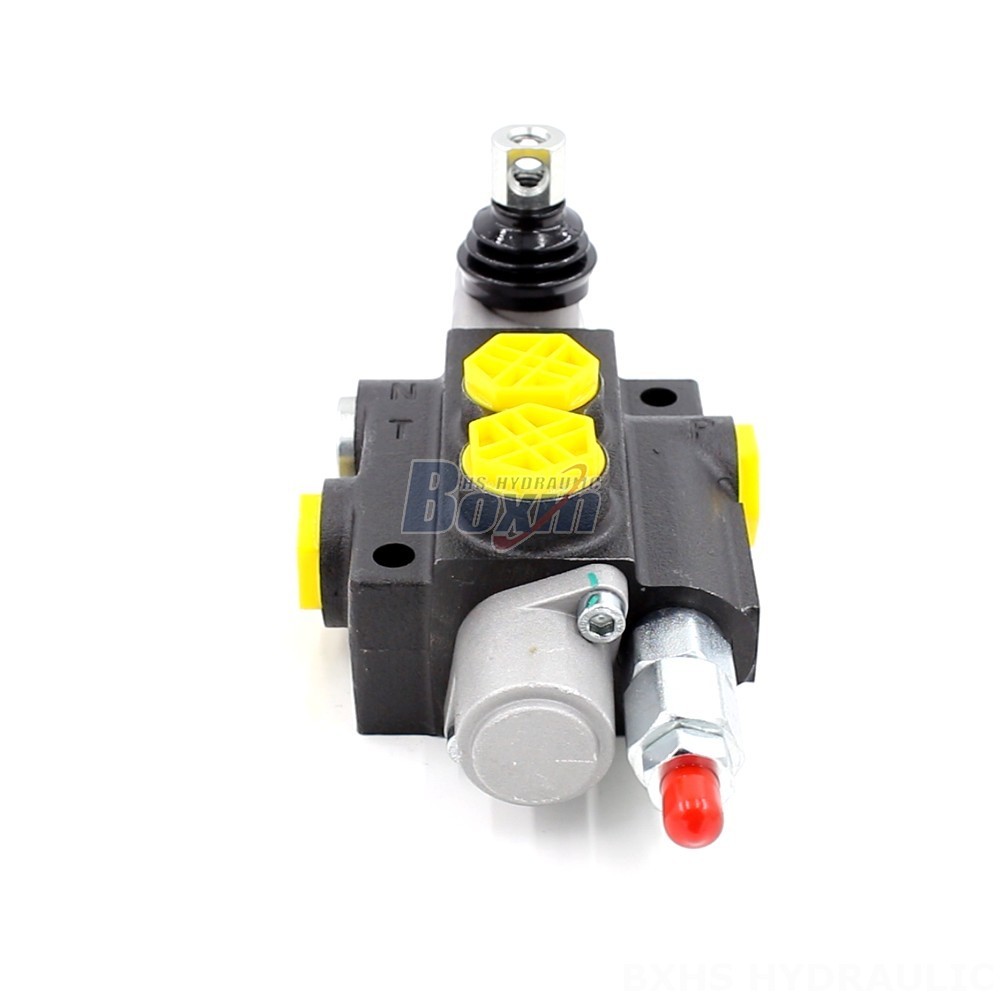

Monoblock Directional Control Valve | P40-G12-1OT Hydraulics

Steuermethode:Manuell

Steuerkolben:1 Spule

Nennfluss:40 l/min (10,5 US gal/min)

Maximaldruck:250 bar (3600 psi)

Einlassanschluss:G1/2

Auslassanschluss:G1/2

Anschlussgröße:G1/2

Hersteller:BXHS

Produkttyp:Monoblock-Wegeventil

Produktserie:P40-Serie Monoblock-Wegeventil

Verpackungsgröße:23*16*11

Bruttogewicht:3.00 kg

Verfügbarkeit: Auf Lager

1242 Personen sehen sich dieses Produkt an

Monoblock Directional Control Valve | P40-G12-1OT Hydraulics

Monoblock Directional Control Valve | P40-G12-1OT Hydraulics

Monoblock Directional Control Valve | P40-G12-1OT Hydraulics drawing image

This P40 Series Pressure Compensated Control Valve is a monoblock directional control valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It is suitable for use in material handling, construction, earthmoving, agriculture, and industrial vehicle applications.

P40-Serie Monoblock-Wegeventil Parameter
Steuermethode Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug
Steuerkolben 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen
Umgebungstemperaturbereich -40 °C bis +80 °C (-40 °F bis +176 °F)
Strukturtyp Monoblockventil
Abschnitt 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt
Bereich der Betriebsviskosität 15 - 75 mm²/s (15 cSt bis 75 cSt)
Nennfluss 40 l/min (10,5 US gal/min)
Maximaldruck 250 bar (3600 psi)
Einlassanschluss G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Auslassanschluss G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Anschlussgröße G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-1OT Hydraulics is a high-performance, manual control, monoblock directional control valve designed for demanding applications. This valve offers pressure compensation, ensuring consistent performance across varying loads and pressures. With a rated flow of 40 L/min and a maximum pressure of 250 bar, it is suitable for a wide range of hydraulic systems. Its compact design and robust construction make it ideal for use in material handling, construction, earthmoving, agriculture, and industrial vehicle applications. The valve is compatible with a variety of equipment including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
