Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM

Steuermethode:Manuell

Steuerkolben:5 Spulen

Nennfluss:45 l/min (11,8 US gal/min)

Maximaldruck:315 bar (4600 psi)

Einlassanschluss:G3/8

Auslassanschluss:G3/8

Anschlussgröße:G3/8

Hersteller:BXHS

Produkttyp:Monoblock-Wegeventil

Produktserie:SD5-Serie Monoblock-Wegeventil

Verpackungsgröße:35*31*21

Bruttogewicht:12.50 kg

Verfügbarkeit: Auf Lager

1366 Personen sehen sich dieses Produkt an

Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM

Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM

Manual Monoblock Directional Valve - SD5-G38 Series | Wholesale & OEM drawing image

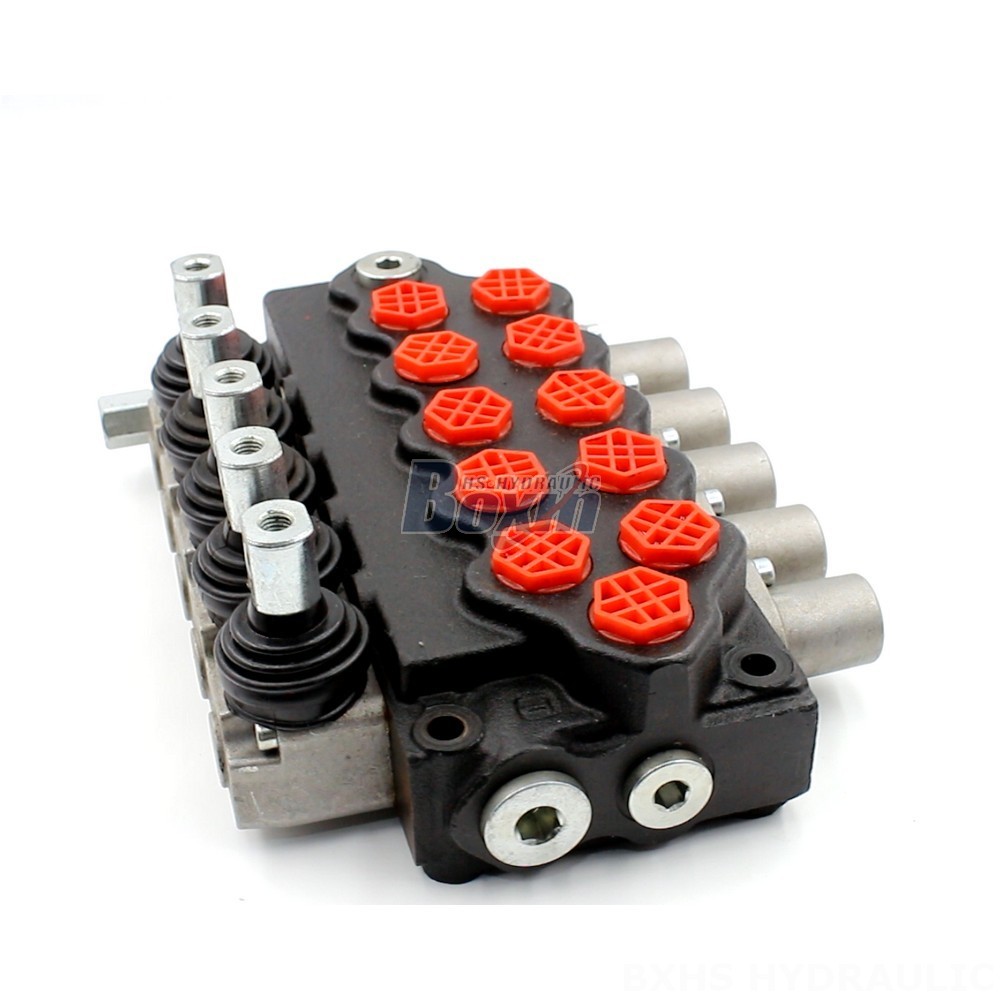

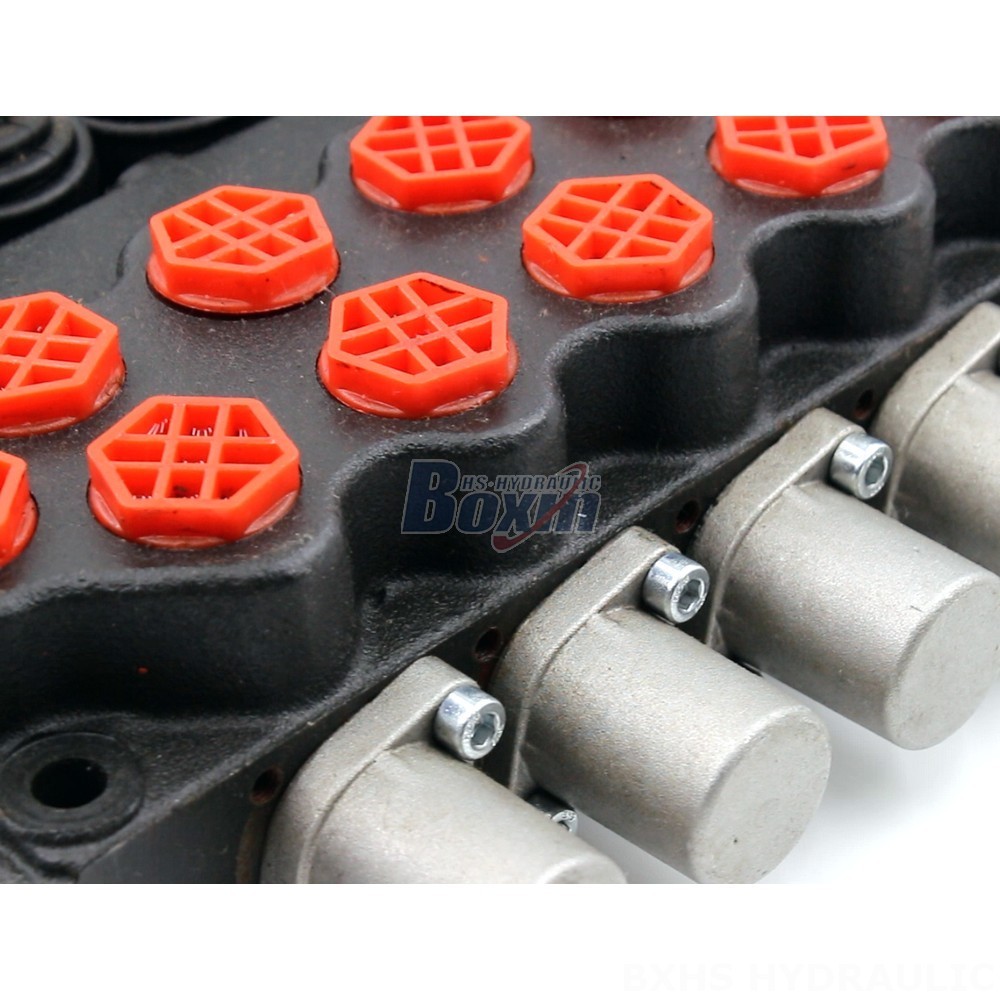

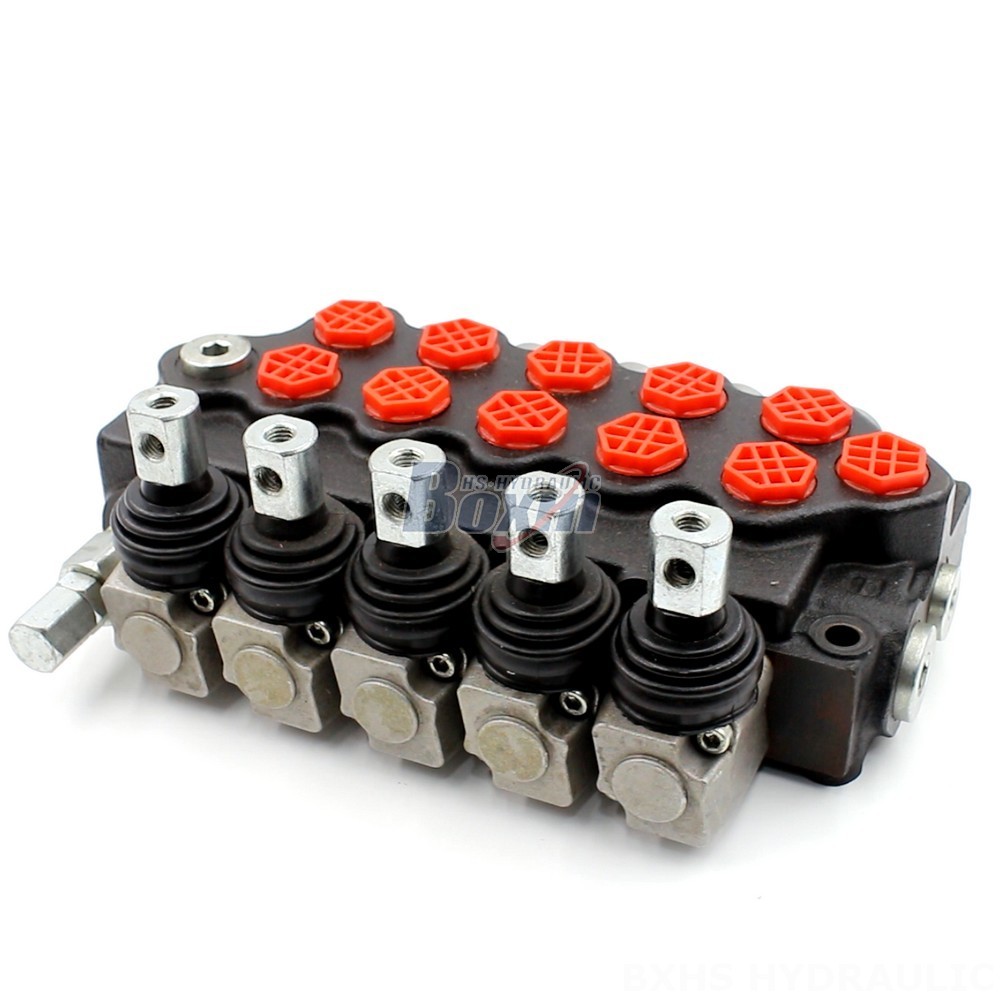

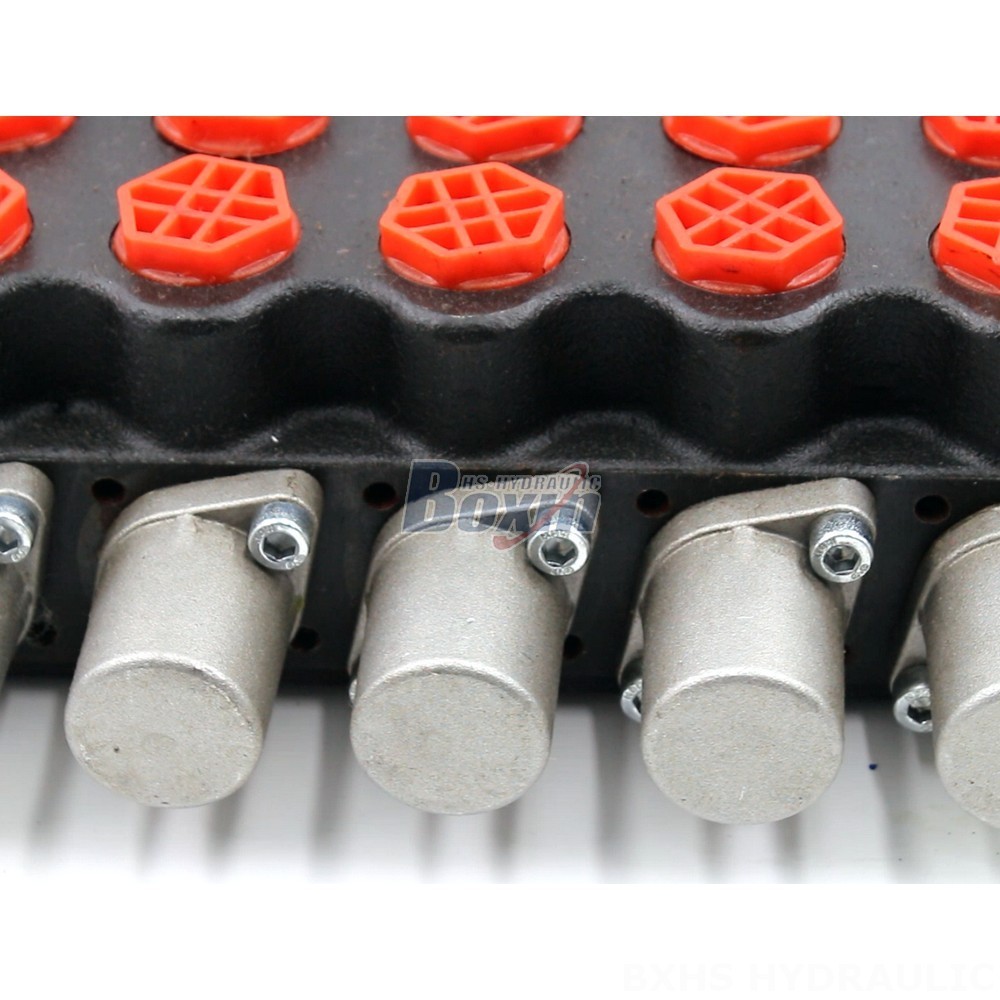

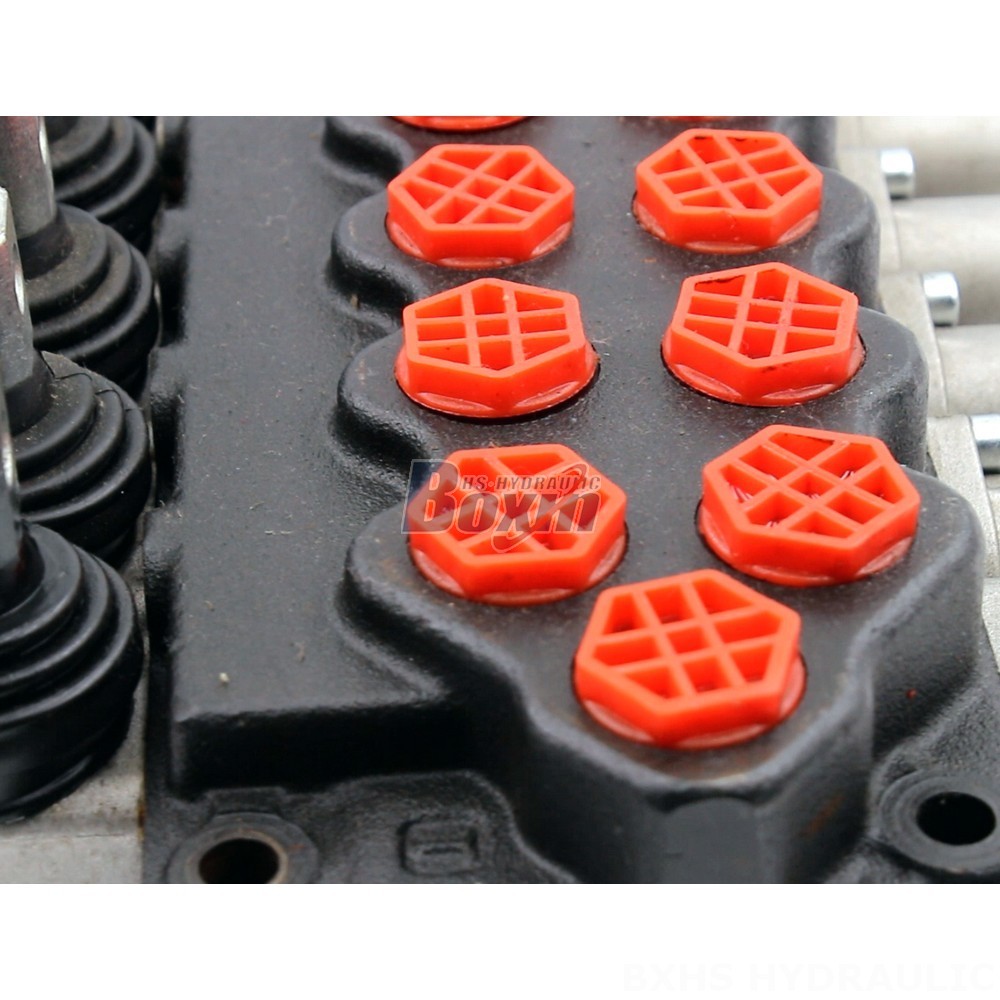

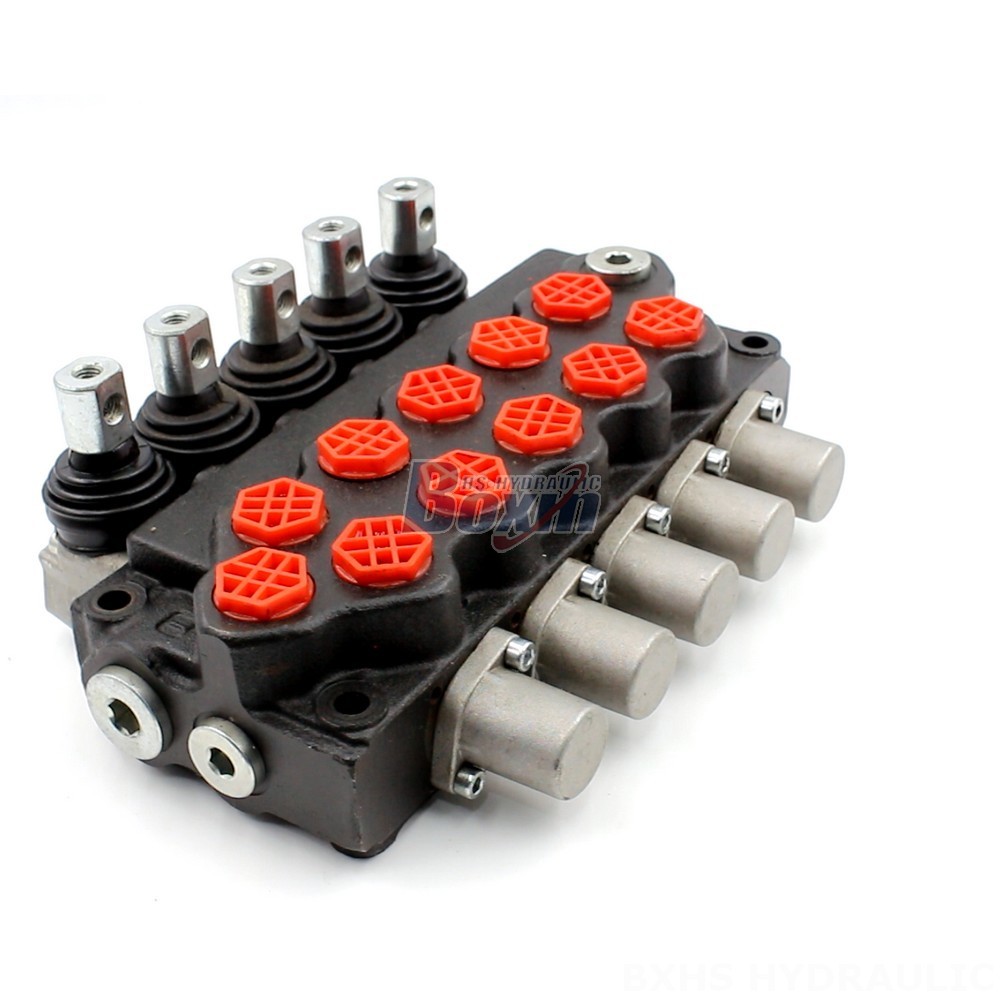

The SD5-G38 Series Lever Hydraulic Valve is a 5-section, manual monoblock directional valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. This high-performance valve features a rated flow of 40 L/min and a maximum pressure of 305 bar, making it ideal for demanding operating conditions.

SD5-Serie Monoblock-Wegeventil Parameter
Steuermethode Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick
Steuerkolben 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen
Umgebungstemperaturbereich -40 °C bis +60 °C (-40 °F bis +140 °F)
Strukturtyp Monoblockventil
Abschnitt 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt
Bereich der Betriebsviskosität 15 - 75 mm²/s (15 cSt bis 75 cSt)
Nennfluss 40 l/min (10,5 US gal/min)
Maximaldruck 305 bar (4400 psi)
Einlassanschluss G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
Auslassanschluss G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
Anschlussgröße G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

The SD5-G38 Series Lever Hydraulic Valve is a robust and reliable 5-section, manual monoblock directional valve. It is designed for use in a wide range of heavy-duty applications, including telehandlers, forklifts, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, harvesters, and other construction and industrial vehicles. This valve offers a rated flow of 40 L/min and a maximum pressure of 305 bar, making it suitable for demanding operating conditions. The valve also features a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +60°C (-40°F to +140°F), ensuring reliable performance in various environments. We offer wholesale and OEM options, making it easy for you to find the perfect solution for your needs. Contact us today to learn more about this high-performance hydraulic valve.
