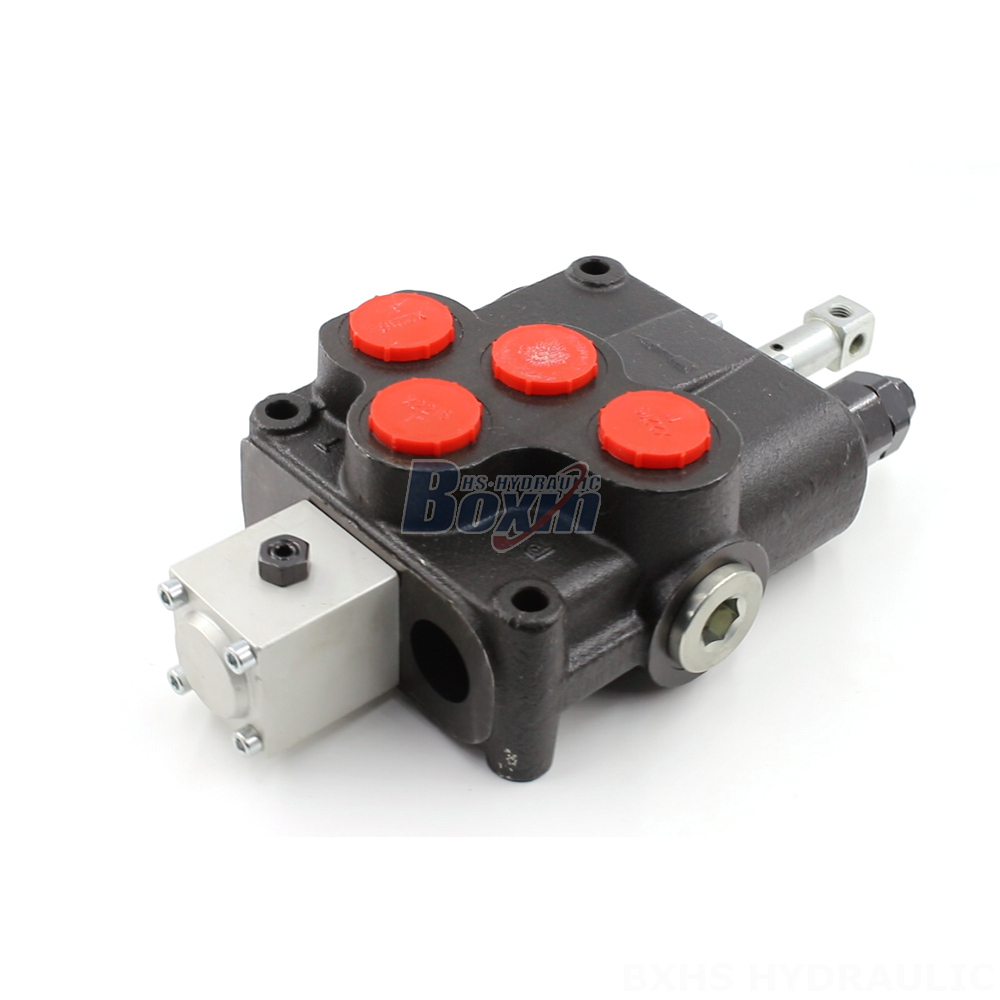

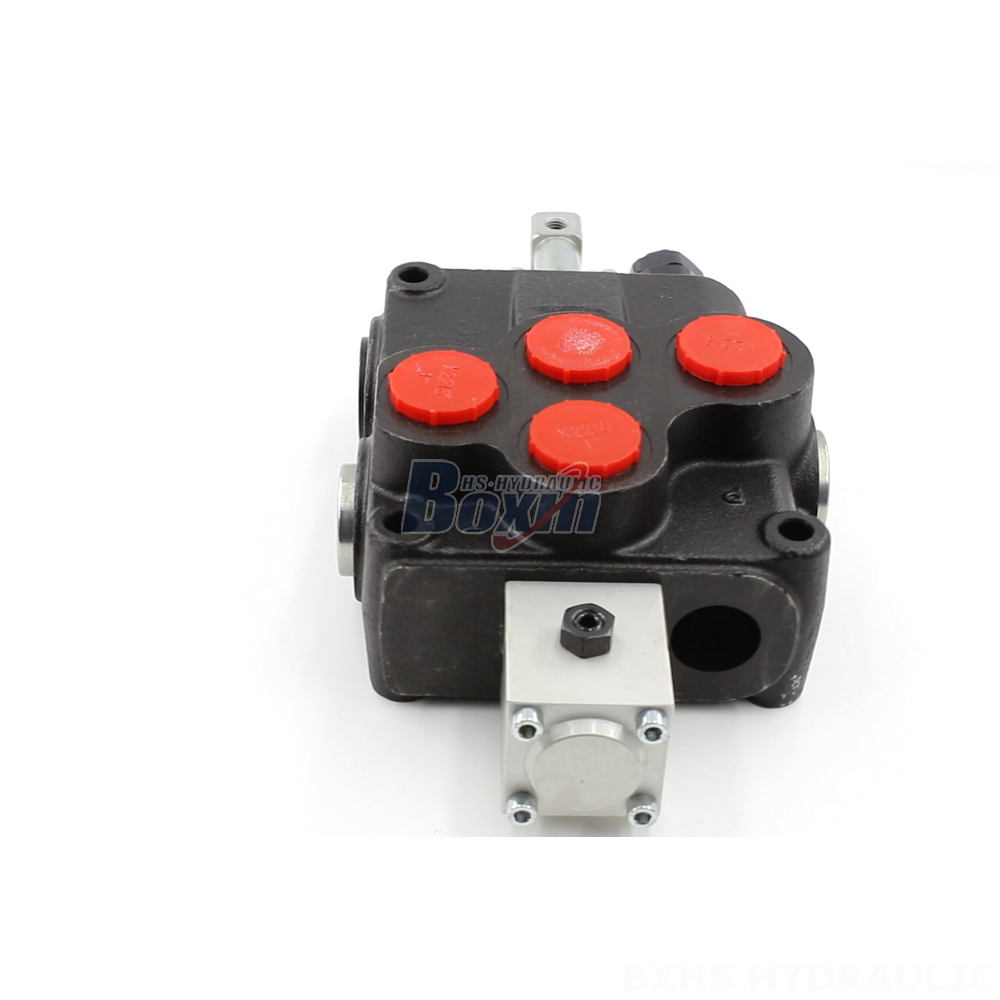

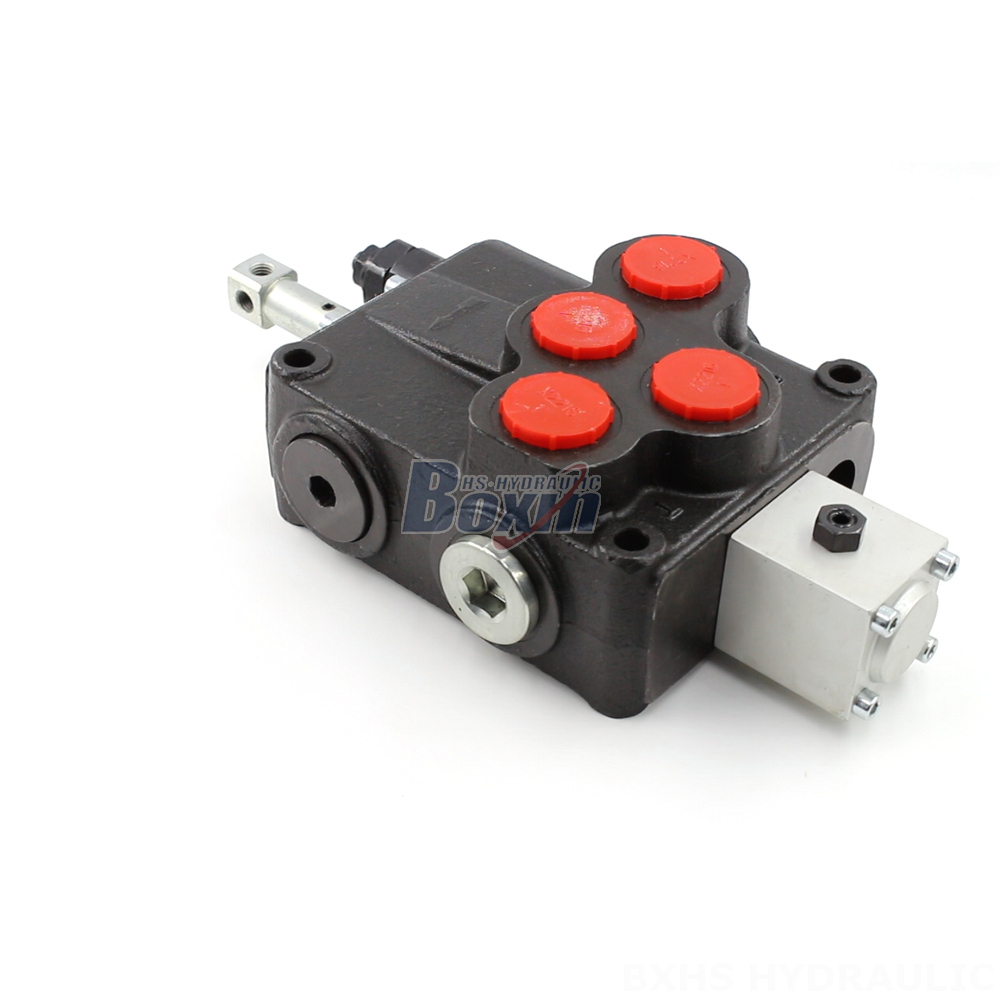

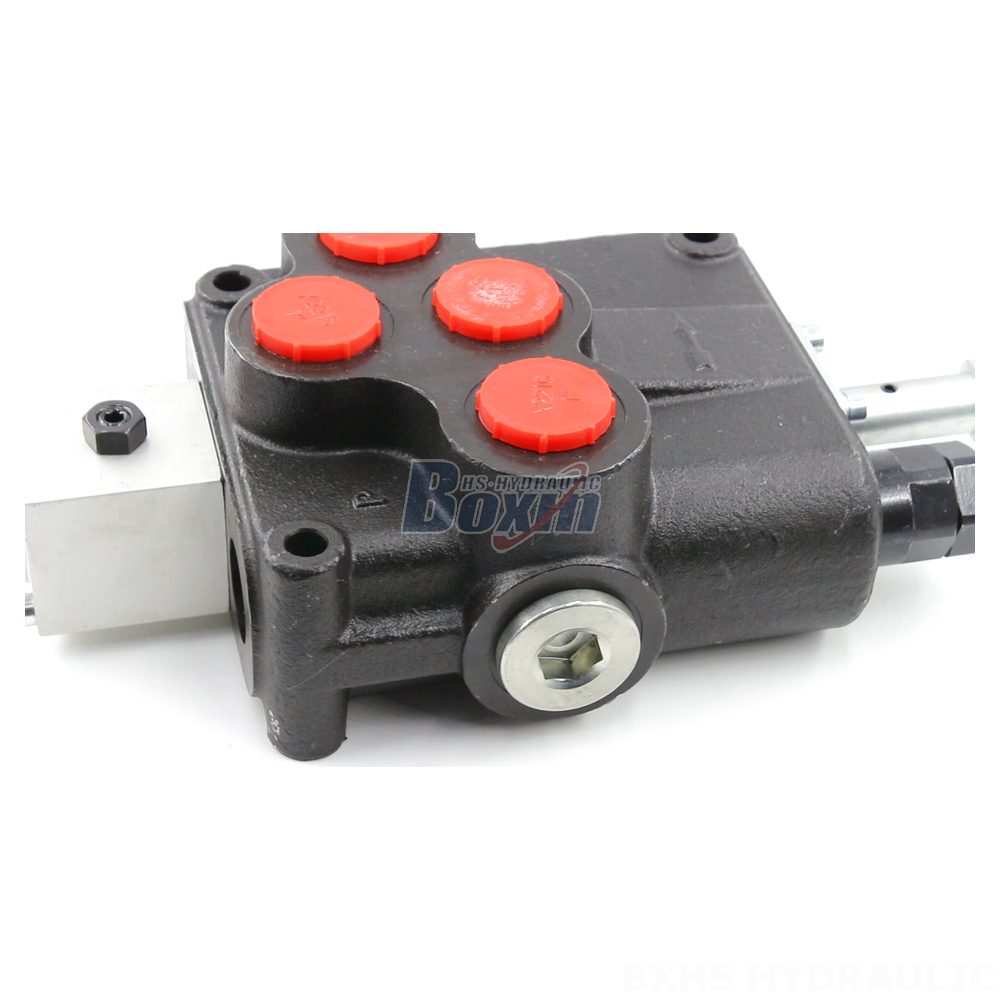

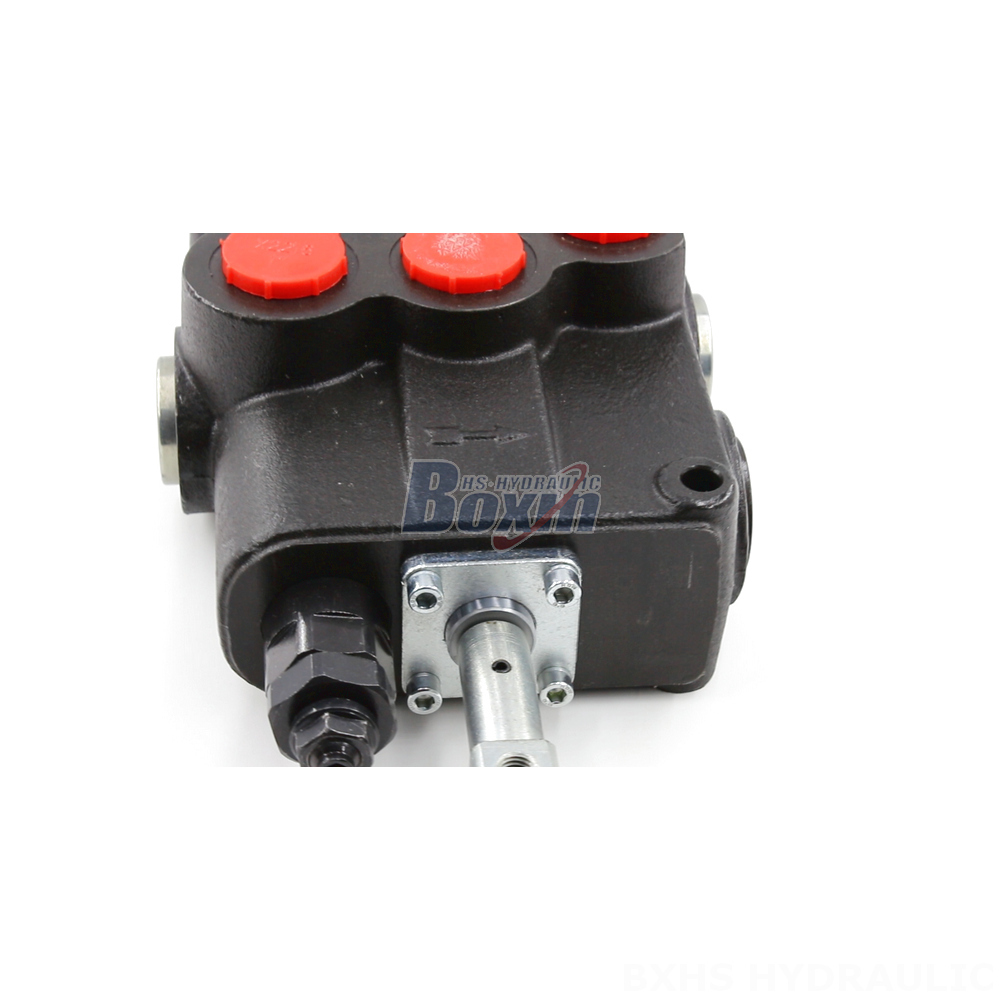

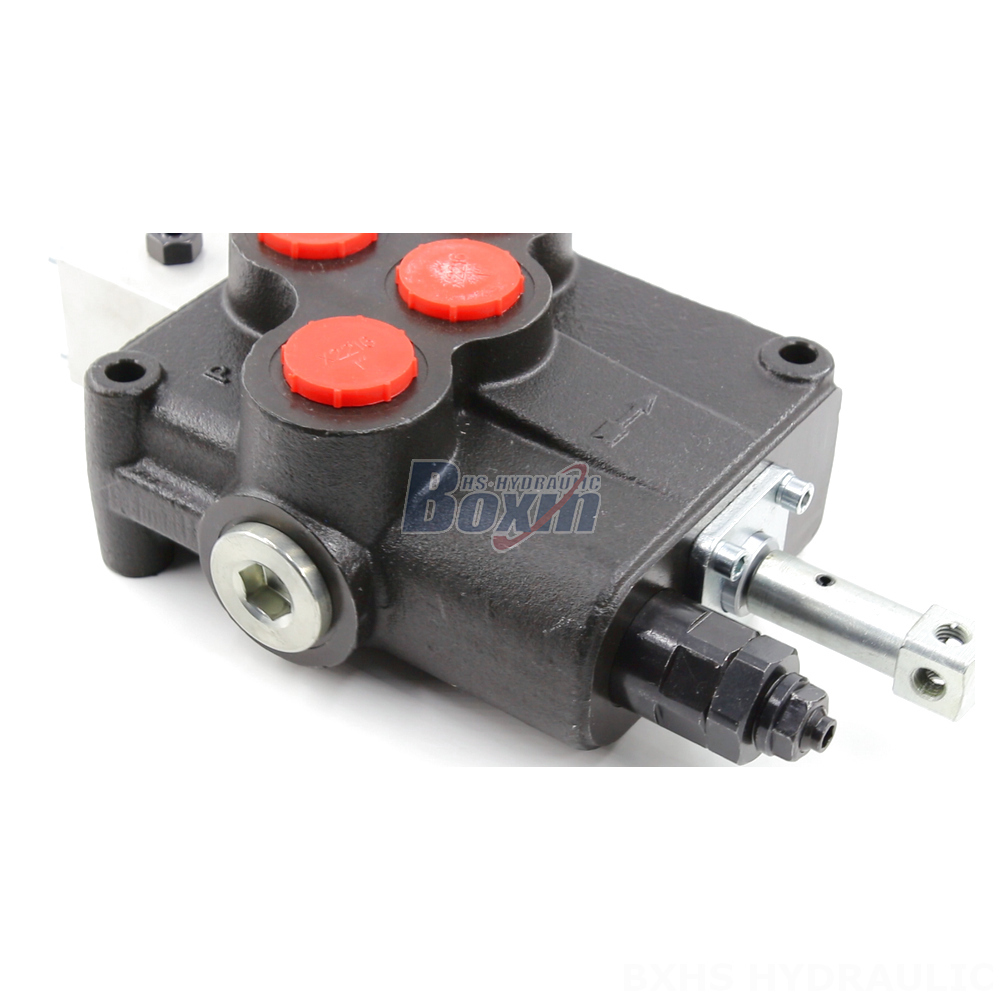

The SD18 Series Log Splitter Hydraulic Lever Manual Monoblock Directional Valve is a high-performance hydraulic valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a robust monoblock construction, manual control, and a rated flow of 120 L/min (31.7 US gpm) at a maximum pressure of 315 bar (4600 psi). Ideal for use in telehandlers, forklifts, cranes, stackers, backhoes, seeding machines, harvesters, balers, skip loaders, and wood splitters.
| SD18-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen |
| Nennfluss | 160 l/min (42,2 US gal/min) |
| Maximaldruck | 305 bar (4400 psi) |
| Einlassanschluss | G1/2, G1, SAE 16 |
| Auslassanschluss | G1, SAE 16 |
| Anschlussgröße | G1, SAE 16 |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt |
| Strukturtyp | Monoblockventil |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
This SD18 Series hydraulic valve is a manual, monoblock directional valve specifically designed for log splitting applications. It offers a single section with one spool, providing efficient and reliable control of hydraulic flow. The valve features a rated flow of 120 L/min (31.7 US gpm) and a maximum operating pressure of 315 bar (4600 psi), ensuring it can handle demanding tasks. Its robust construction and wide operating viscosity range (-40°C to +80°C/-40°F to +176°F) make it suitable for various environments. The SD18 Series is an excellent choice for manufacturers and distributors seeking a high-quality, reliable, and efficient hydraulic valve for their log splitting equipment.
