Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit
Innovation treibt Entwicklung voran Technologie gestaltet die Zukunft
990 Personen sehen sich dieses Produkt an
The P40-U78-U34-OT-YW Series Manual Monoblock Directional Valve is a high-performance valve designed for use in a wide range of hydraulic systems. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for use in demanding applications. The valve is constructed from high-quality materials and is designed to provide long service life.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

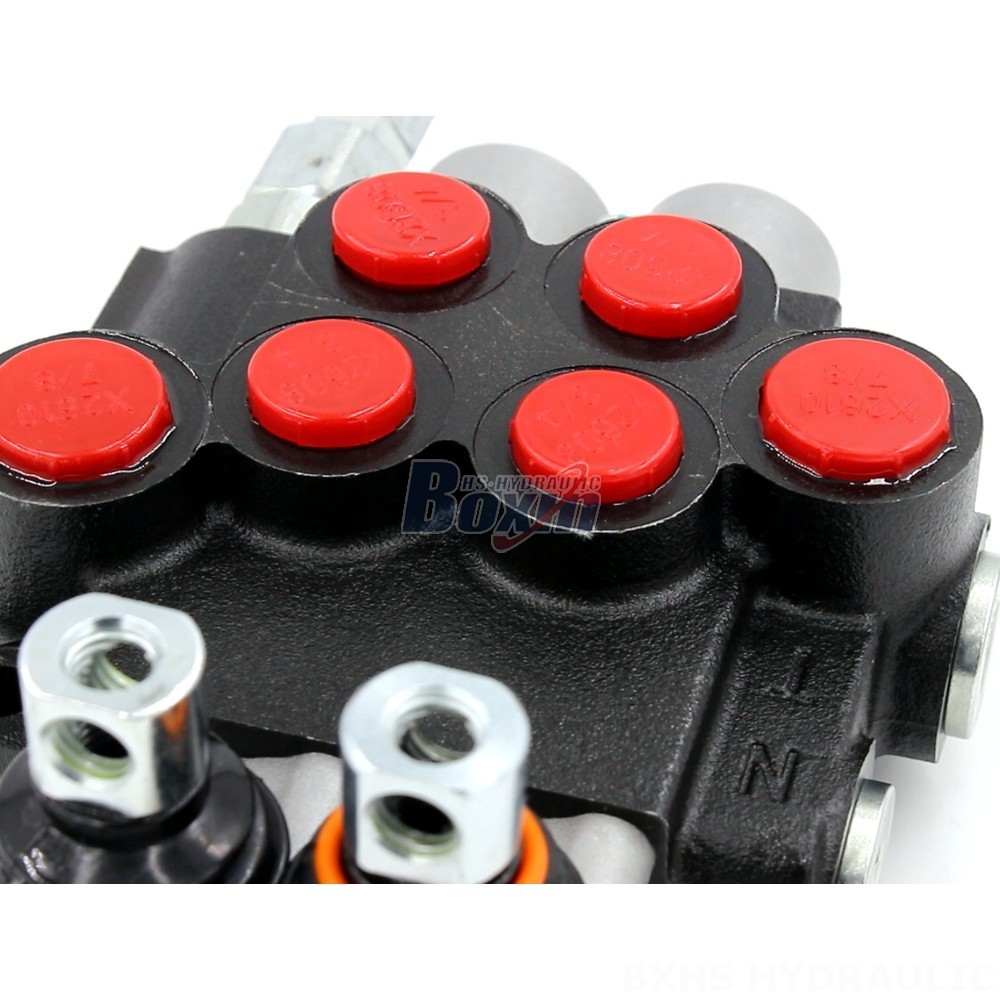

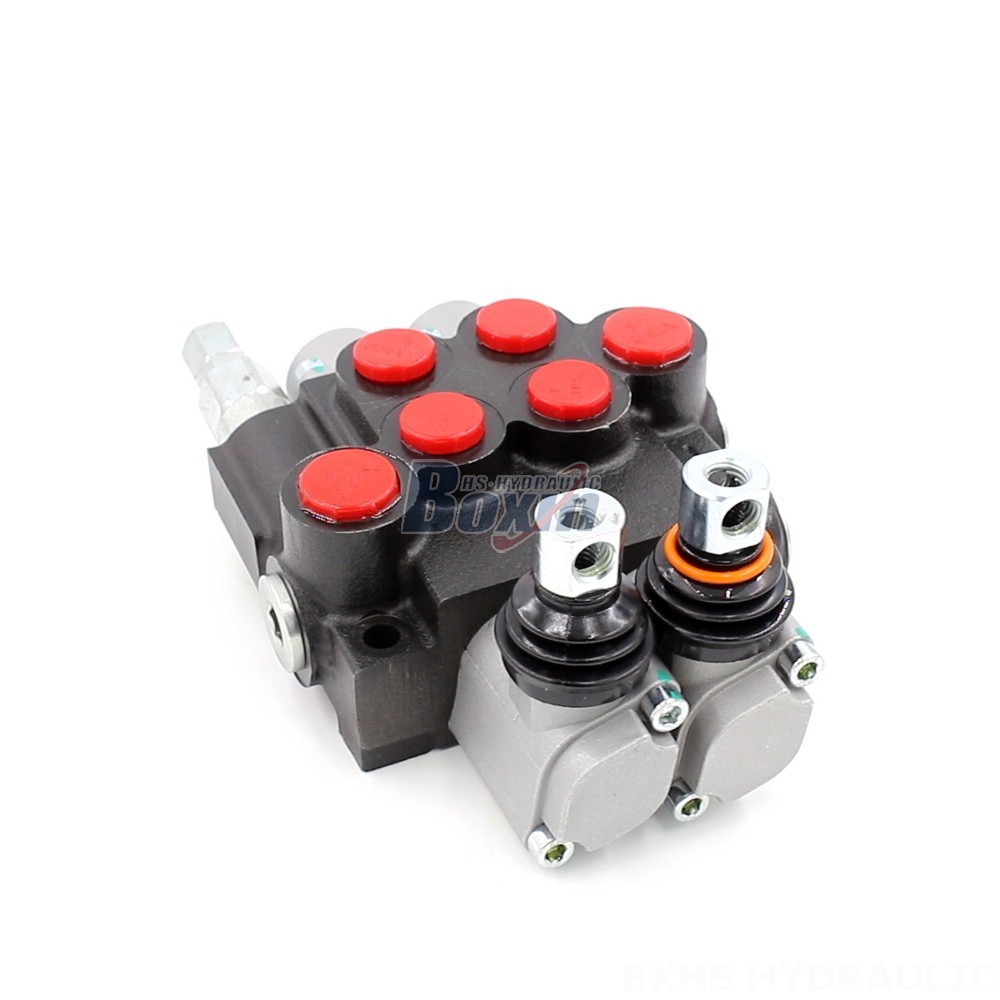

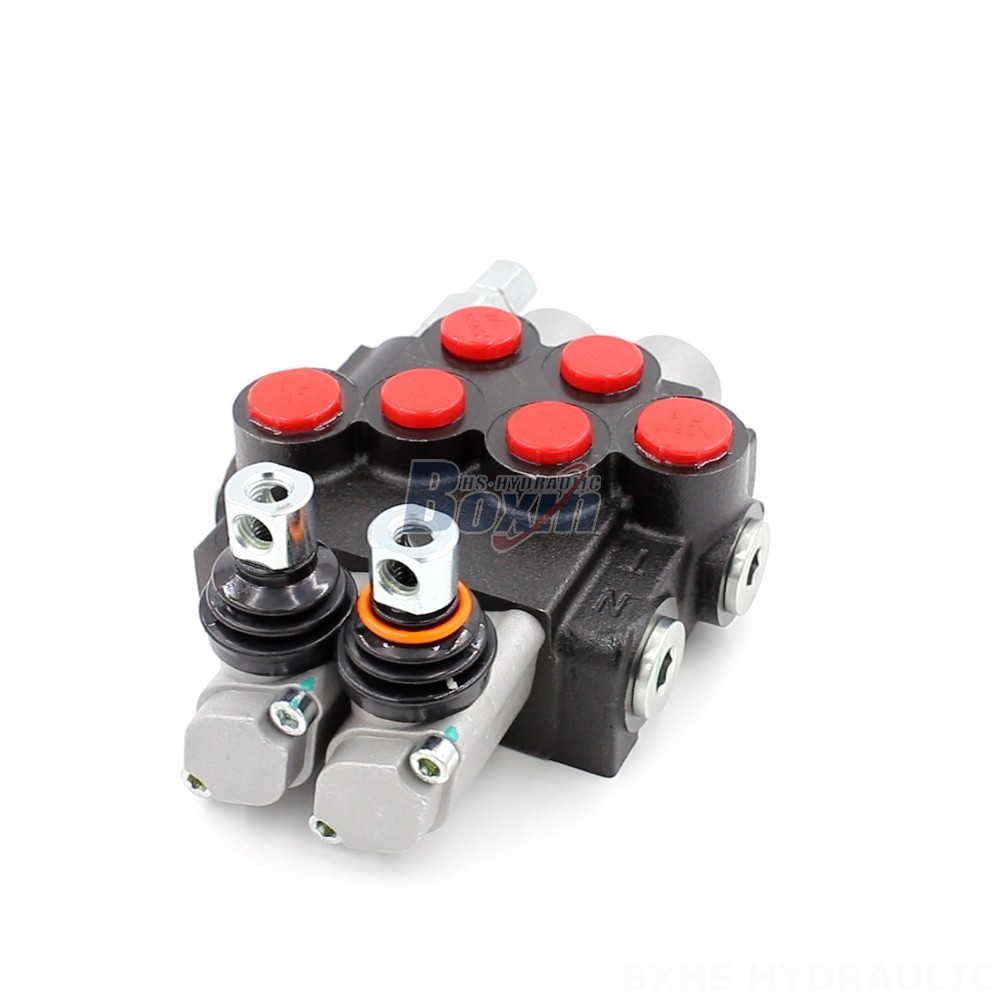

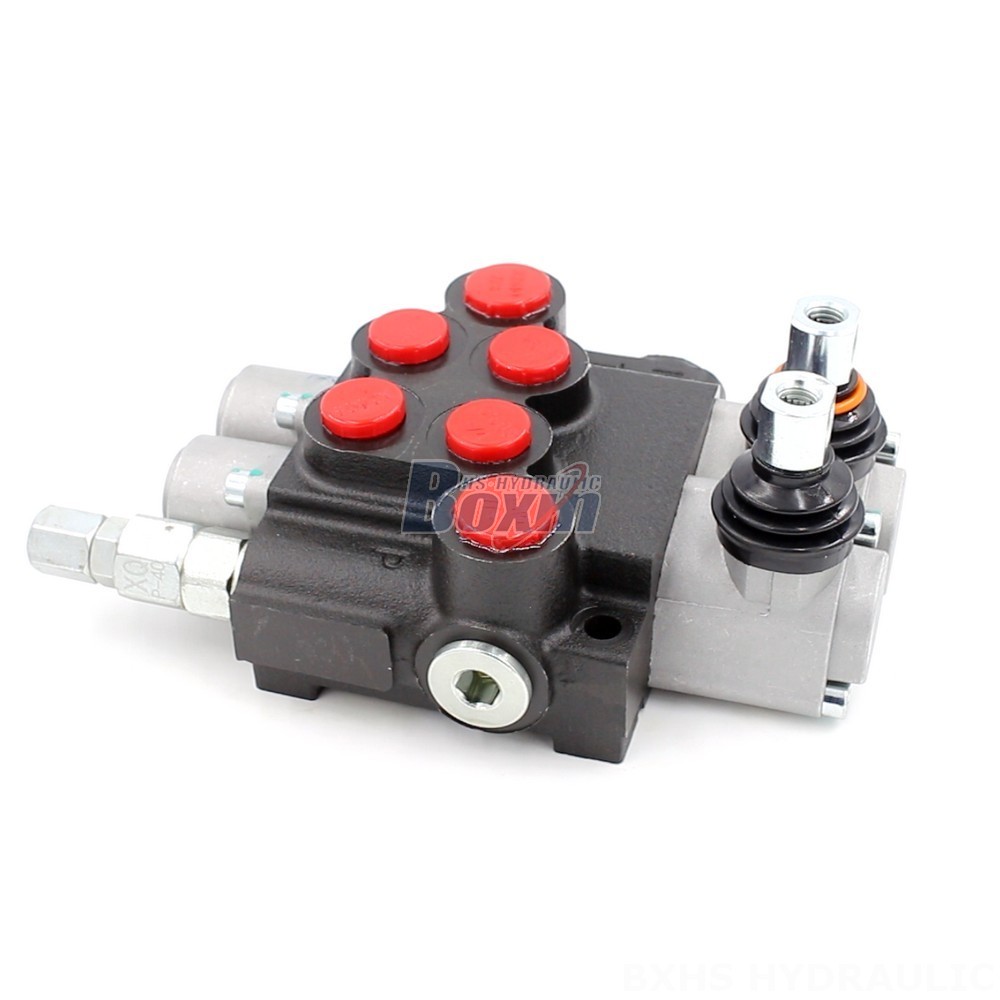

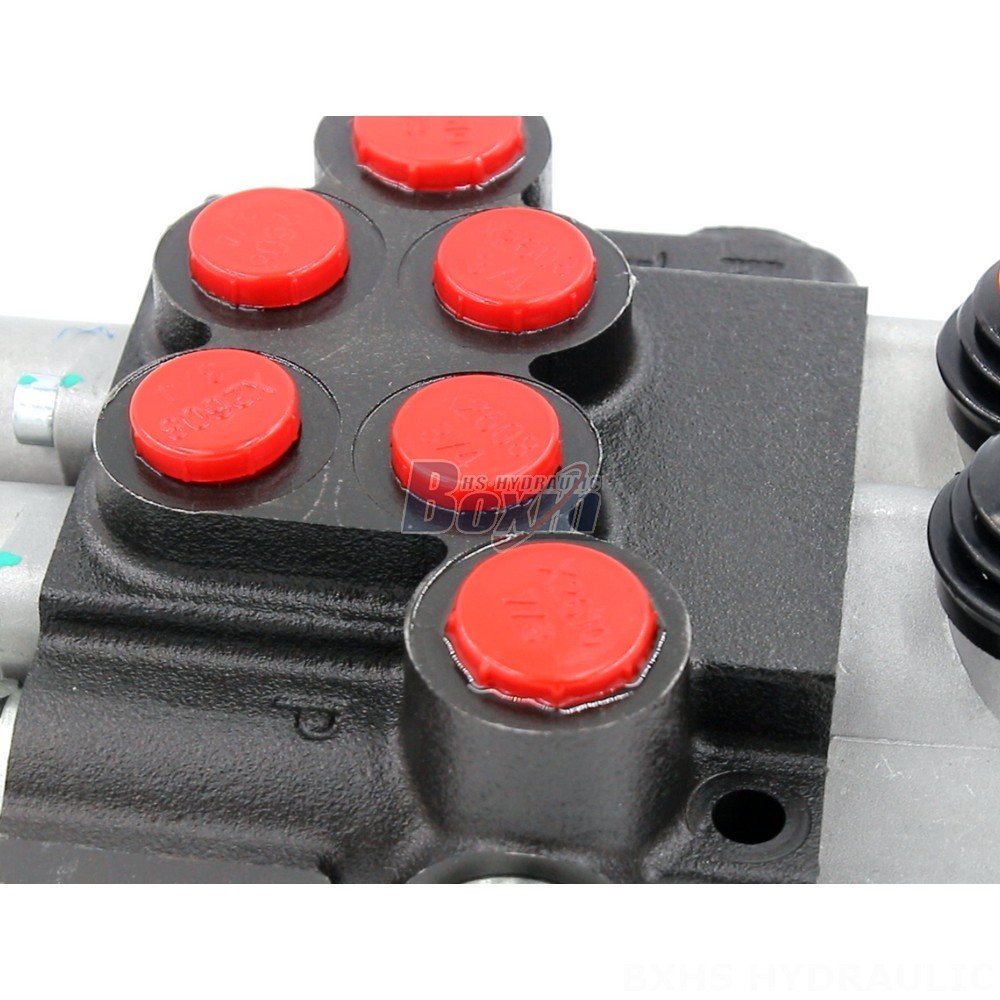

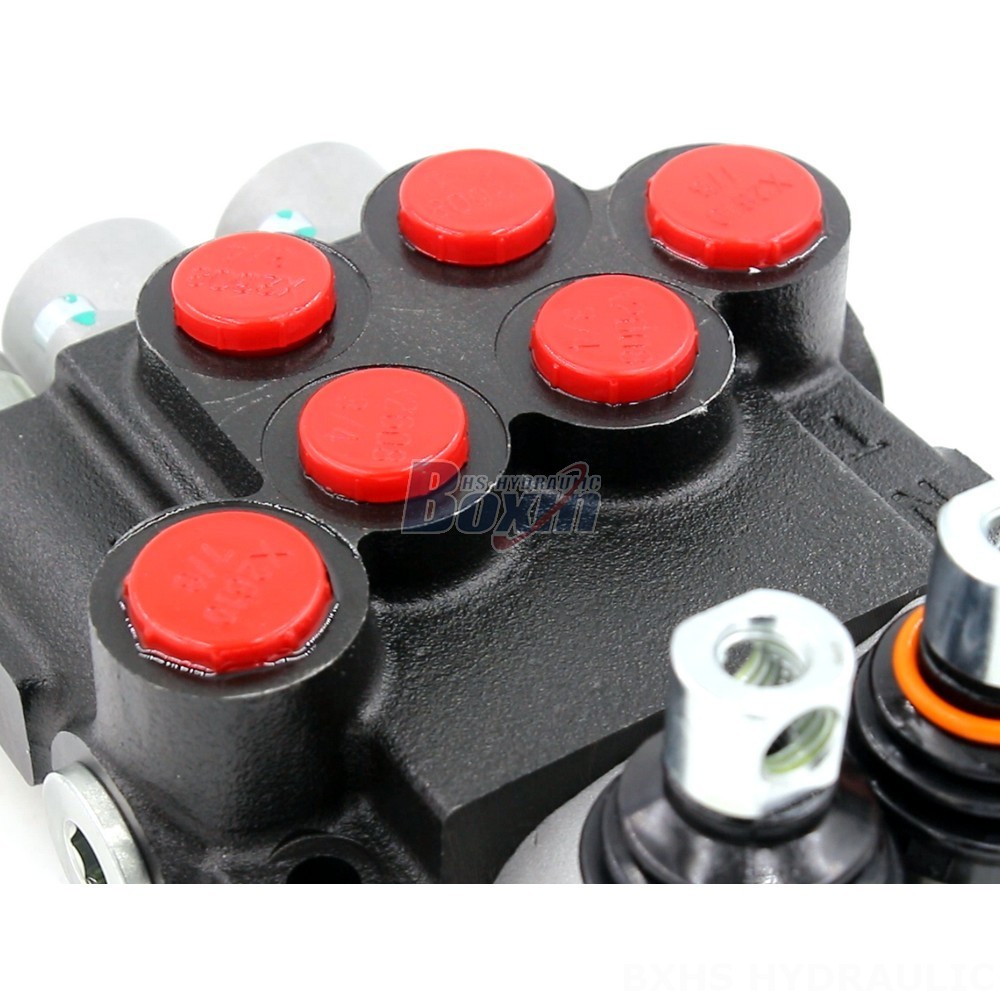

**Manual Monoblock Directional Valve - P40-U78-U34-OT-YW Series**
The P40-U78-U34-OT-YW Series Manual Monoblock Directional Valve is a compact and lightweight valve that is ideal for use in mobile hydraulic systems. The valve is constructed from high-strength aluminum alloy and is designed to withstand the harsh conditions of mobile applications. The valve is also equipped with a manual override lever that allows the operator to manually control the valve in the event of a power failure.
**Key Features:**
* Rated flow: 40 L/min (10.5 US gpm)
* Maximum pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* Spool: 2 Spool
* Series: P40 Series
**Applications:**
The P40-U78-U34-OT-YW Series Manual Monoblock Directional Valve is suitable for use in a wide range of mobile hydraulic applications, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
**Benefits:**
* Compact and lightweight design
* High strength aluminum alloy construction
* Manual override lever
* Long service life
