Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit
Innovation treibt Entwicklung voran Technologie gestaltet die Zukunft
983 Personen sehen sich dieses Produkt an

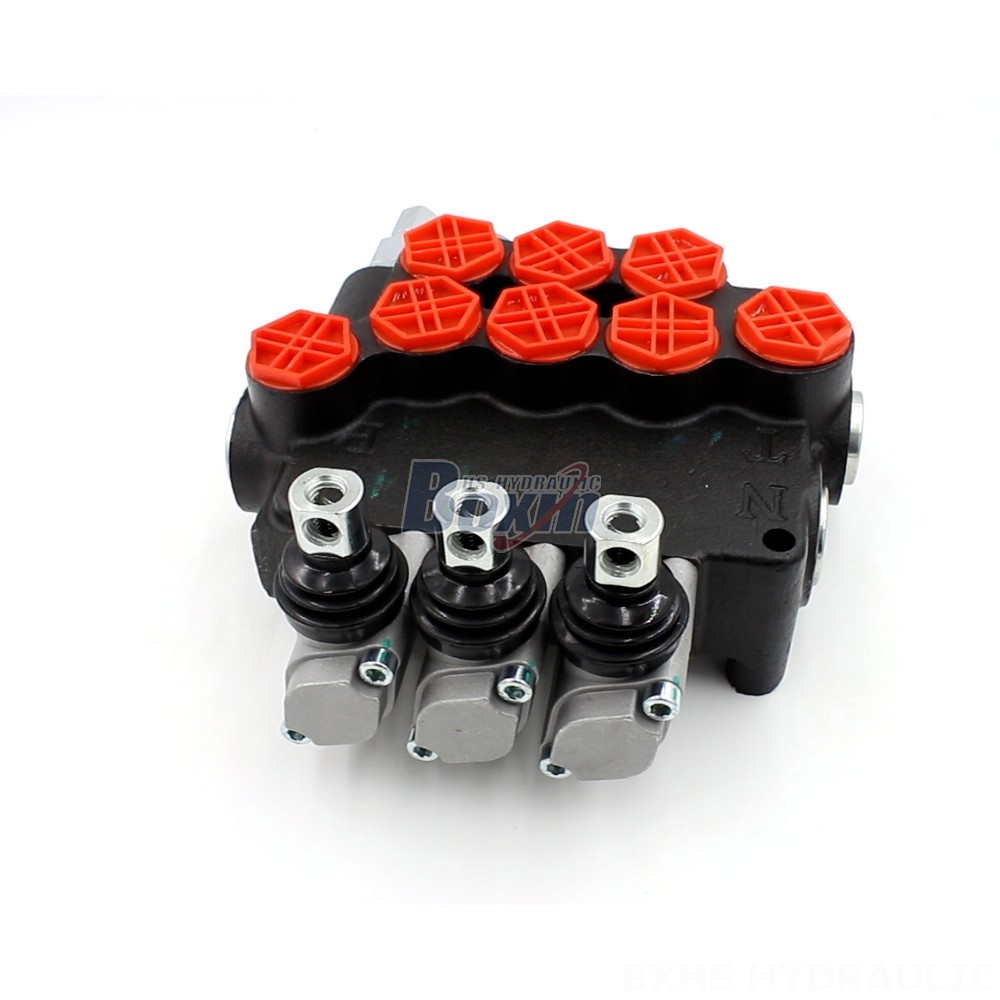

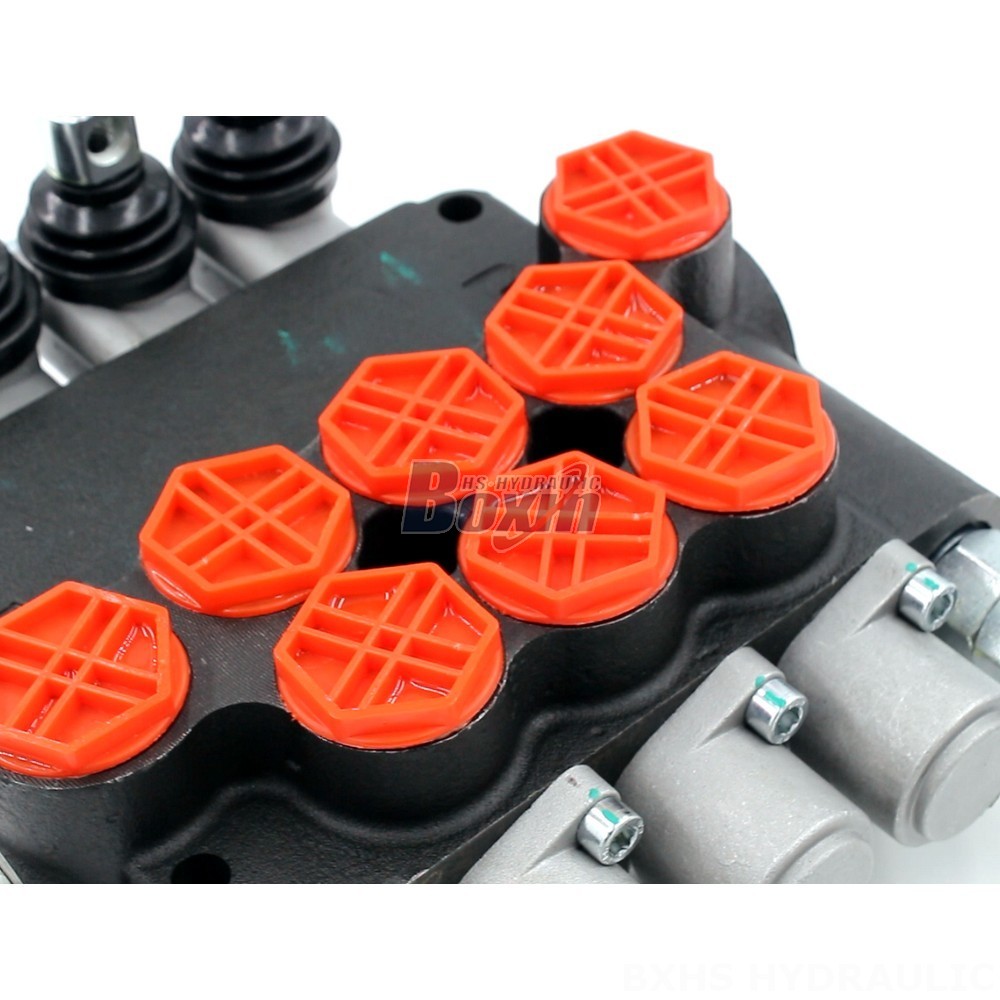

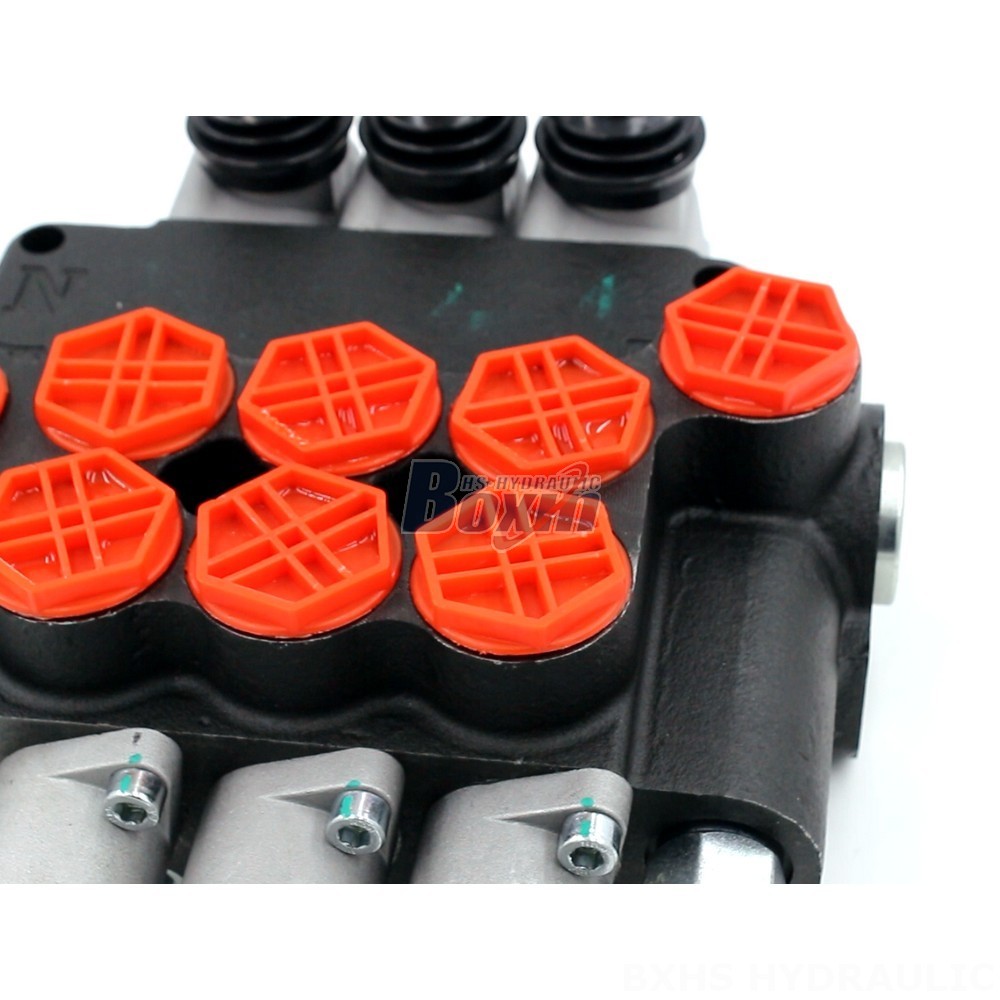

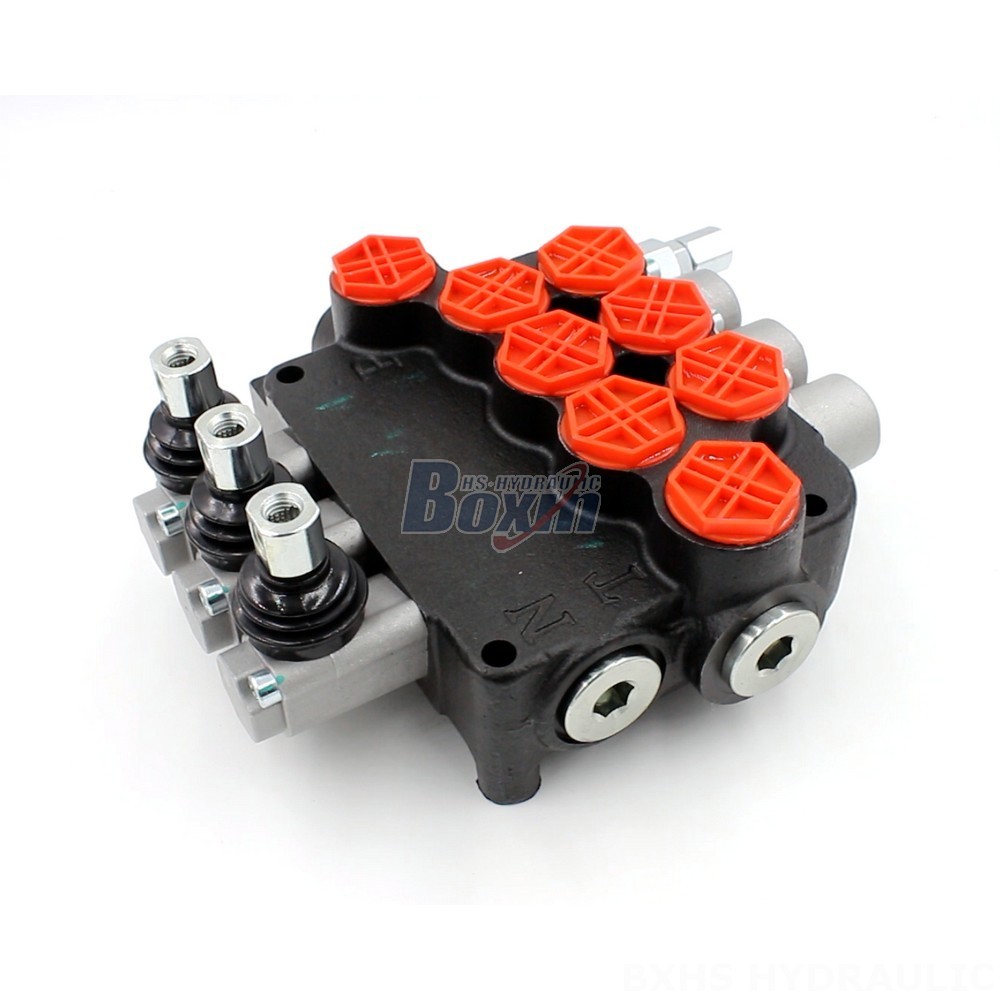

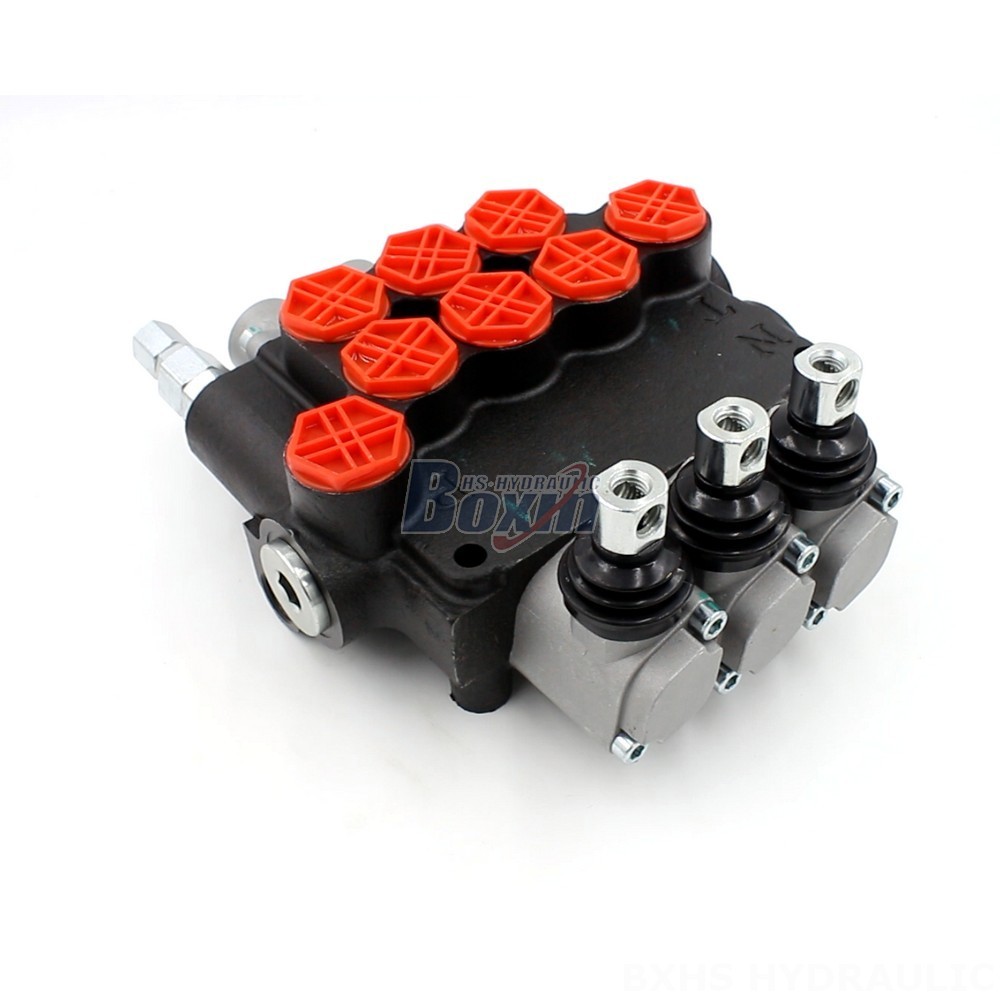

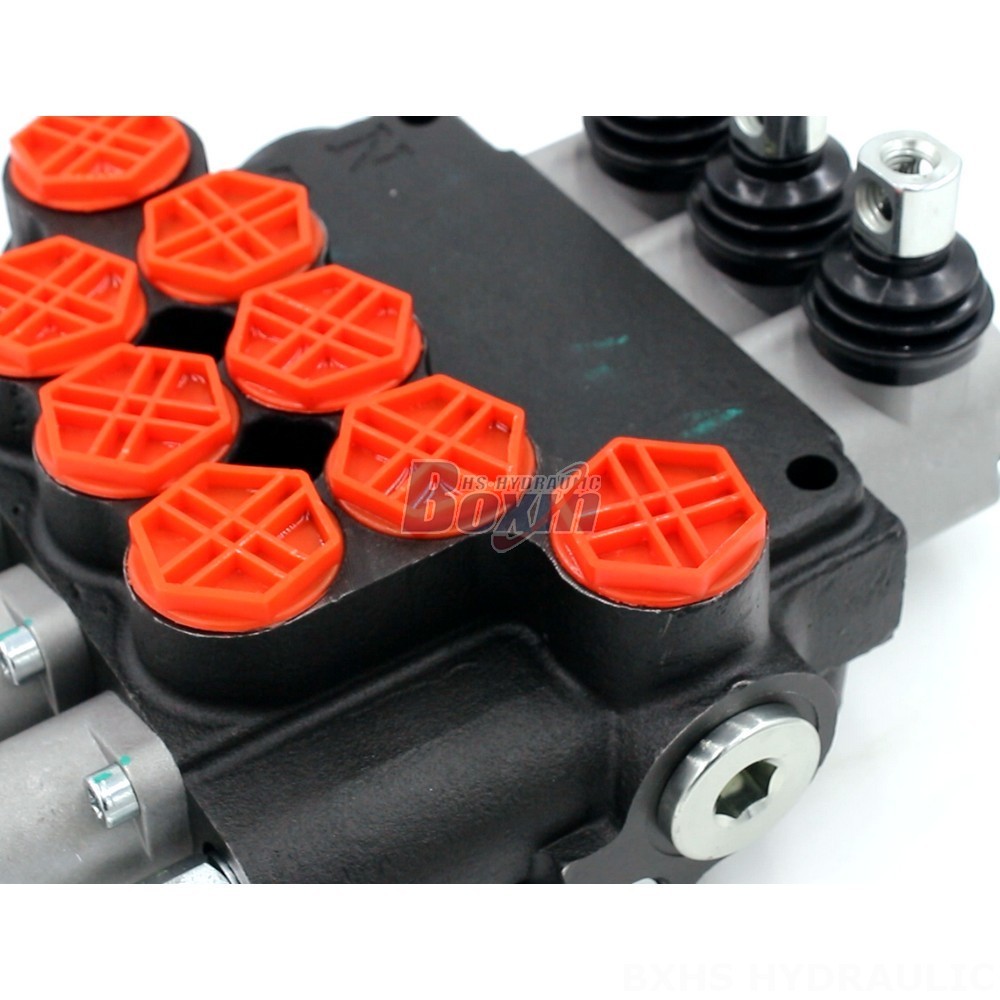

This P80 Series manual directional valve is a 3-section monoblock valve with pneumatic control, designed for heavy-duty applications in construction, material handling, agriculture and industrial vehicles. With a rated flow of 80 L/min and a max pressure of 250 bar, this valve is ideal for controlling hydraulic systems in telehandlers, forklifts, excavators, loaders, and more.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
This manual directional valve features a 3-section monoblock design, providing reliable and efficient control of hydraulic systems. The valve is pneumatically controlled, allowing for easy and precise operation. Its rated flow of 80 L/min and max pressure of 250 bar make it suitable for demanding applications. The valve operates at a viscosity range of 15-75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. It is particularly well-suited for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers, face drill rigs, concrete boom pumps, pave rollers, rotary drilling equipment, and crushers.
