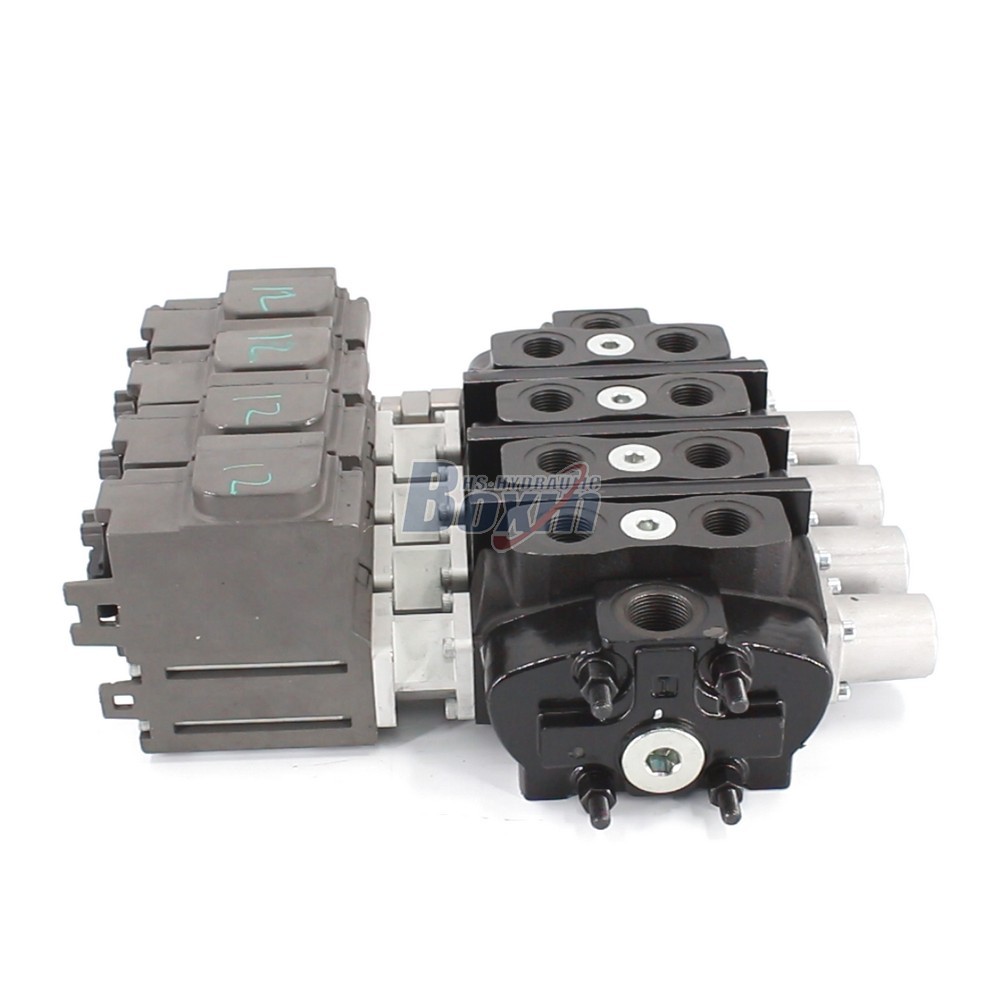

This Industrial Grade SD8EMA-4OT is a 4-spool Sectional Directional Valve featuring electric motor control, rated for 90 L/min flow and 315 bar max pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for telehandlers, forklifts, and agricultural machinery with full OEM/ODM support.
| SD8-Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Elektromotor |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 90 l/min (23,8 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M22×1.5, SAE 10 |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, 3/4 NPT |
| Anschlussgröße | G1/2, M22×1.5, SAE 10 |
**1. High-Efficiency Sectional Directional Valve Design**
- Engineered as a modular Sectional Directional Valve, this unit features 4 spools allowing flexible circuit expansion for complex hydraulic systems.
- Rated Flow of 90 L/min (23.8 US gpm) ensures smooth operation in material handling and construction equipment without pressure drop issues.
**2. Reliable Electric Motor Operated Valve Control**
- Equipped with a precise Electric Motor Operated Valve mechanism, offering remote control capabilities ideal for automated aerial platforms and wood splitters.
- Eliminates manual lever fatigue, providing consistent spool shifting accuracy for mini-excavators and compact wheel loaders in demanding environments.
**3. Heavy-Duty 4 Spool Hydraulic Valve Performance**
- Built to withstand Max Pressure of 315 bar (4600 psi), this 4 Spool Hydraulic Valve guarantees durability in high-load applications like backhoe loaders and dumpers.
- Inlet Port M22×1.5 and Outlet Port M27×2.0 are designed for secure connections, preventing leaks under extreme vibration conditions typical in earth-moving tasks.
**4. Customizable SD8 Series Control Valve Solutions**
- As part of the versatile SD8 Series Control Valve lineup, we offer extensive customization including private label laser marking and specific port configurations.
- Supported by 35+ senior engineers, our OEM/ODM Available service allows wholesalers to tailor valve stacks for tractors and front-end loaders to meet exact OEM specs.
**5. Factory Direct Sales Quality Assurance**
- Benefit from Factory Direct Sales pricing from a manufacturer with 25+ years of experience, 68,000㎡ production base, and annual capacity of 1.5 million units.
- Every valve undergoes 100% bench testing for pressure, flow, and sealing; IATF 16949 and CE certified, ensuring zero-defect delivery for global distributors.
