Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

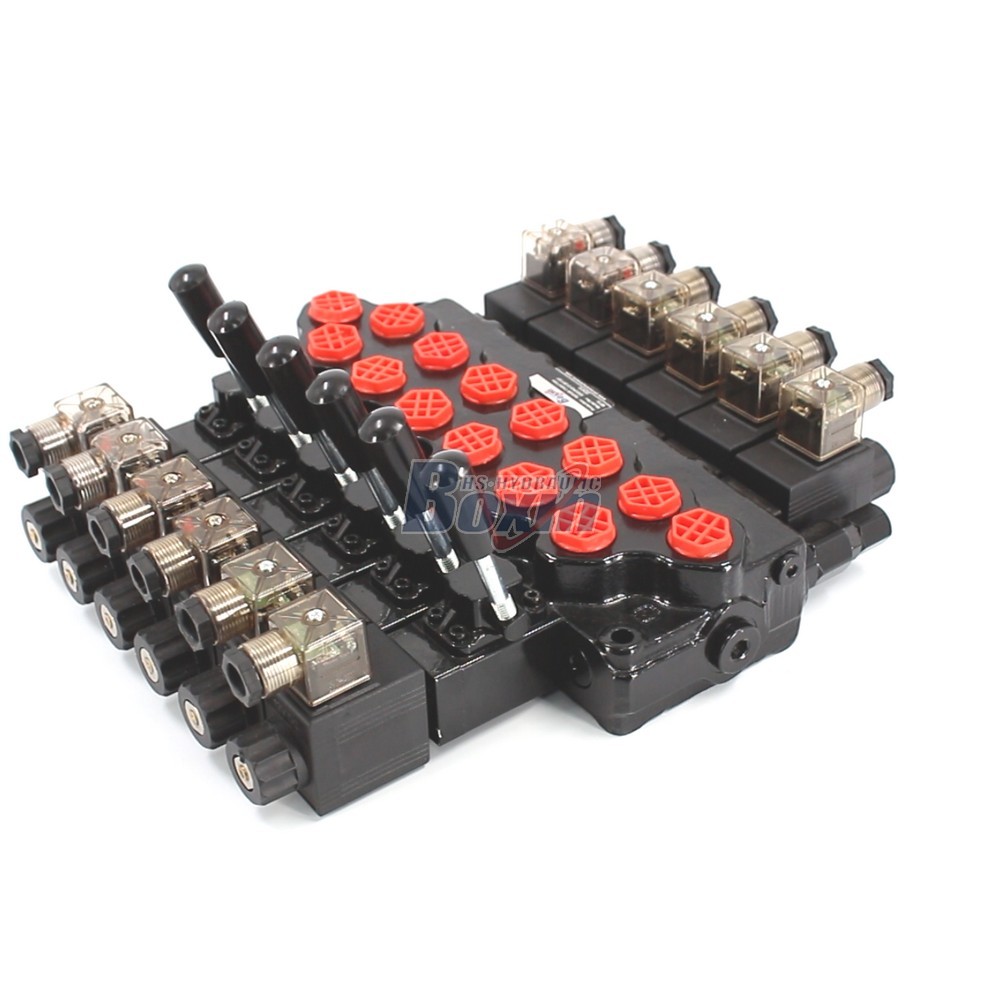

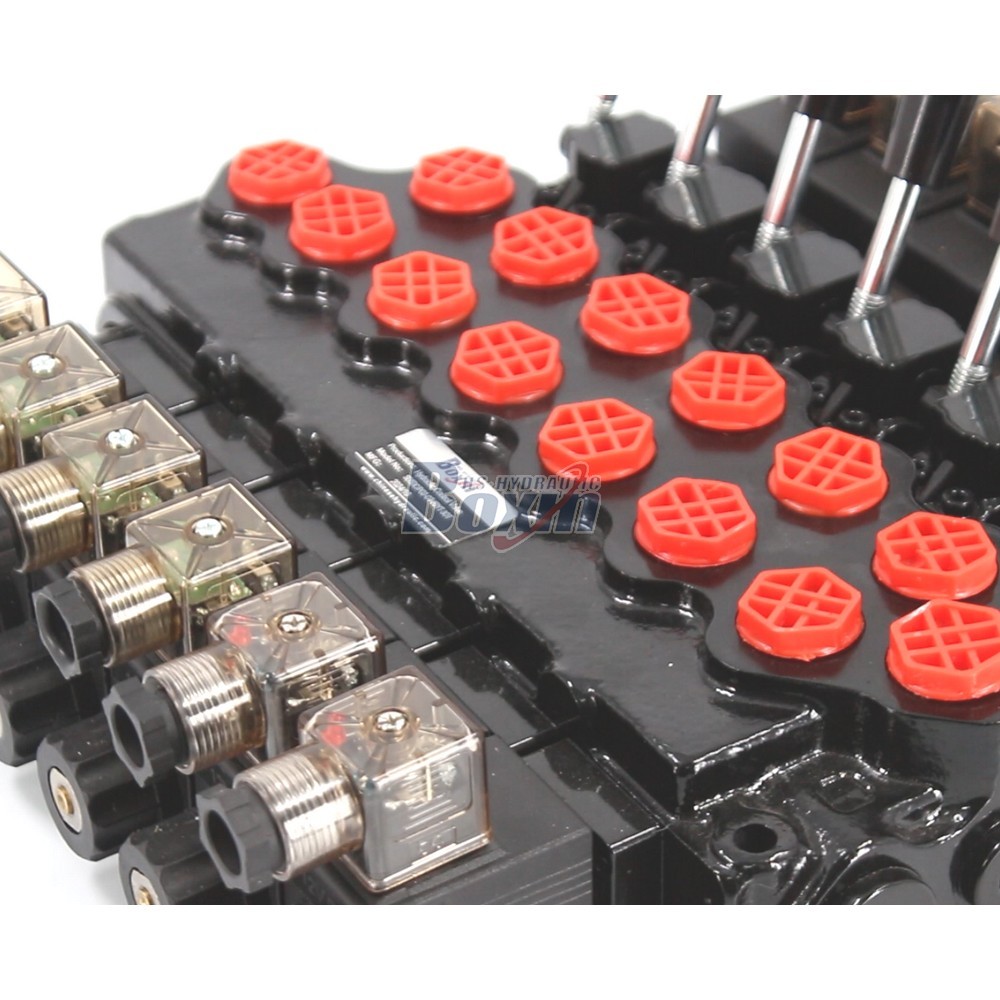

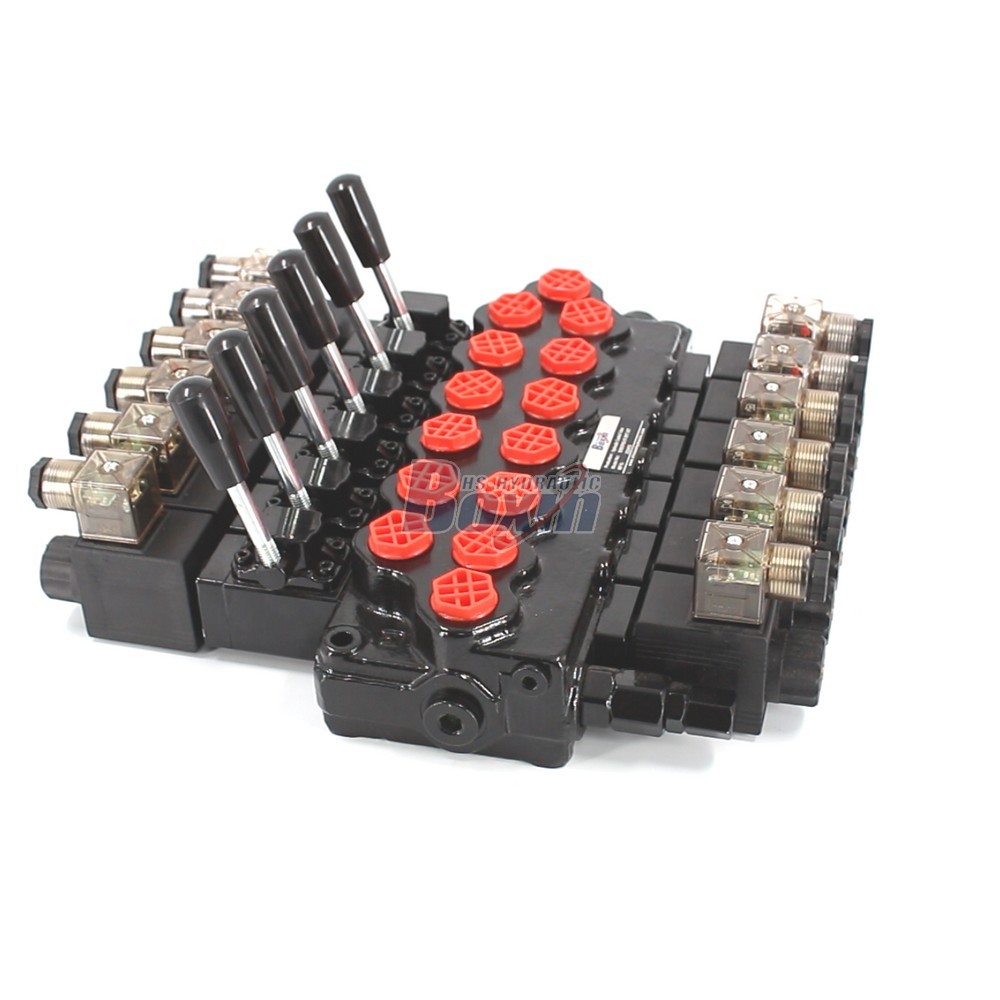

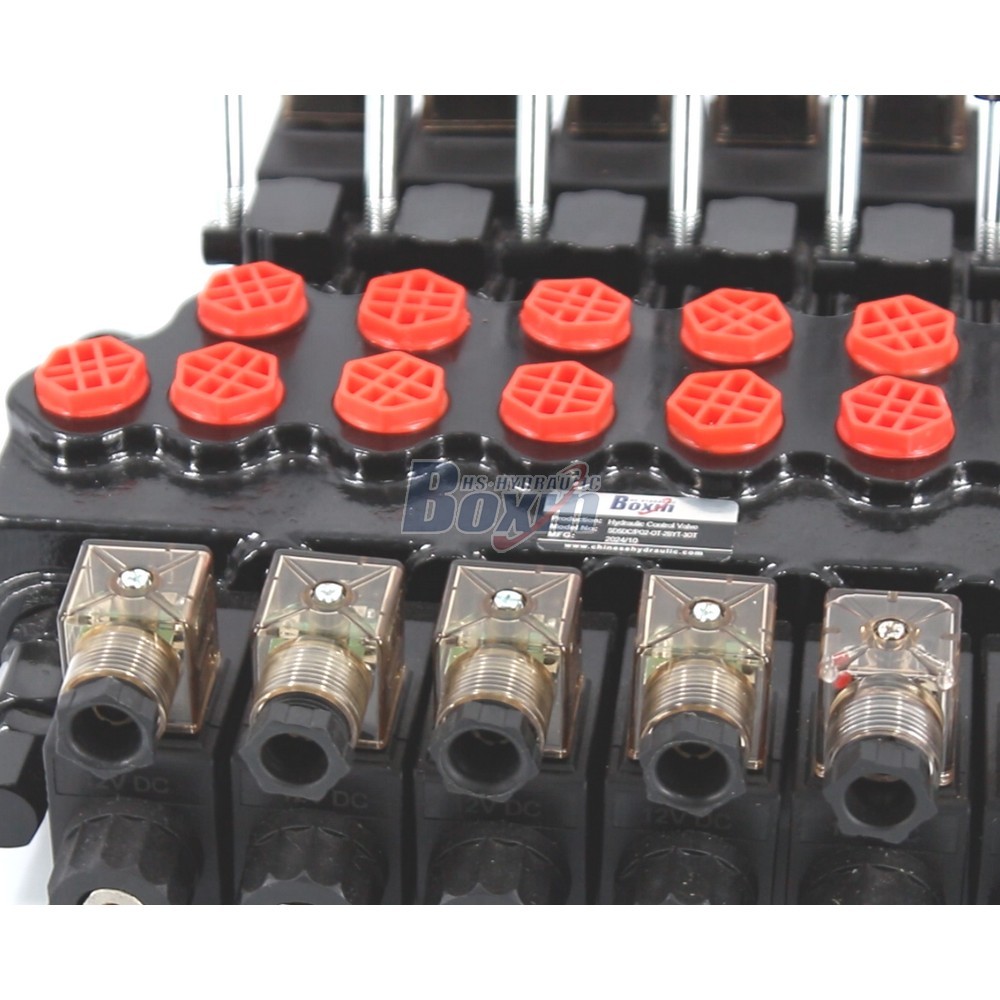

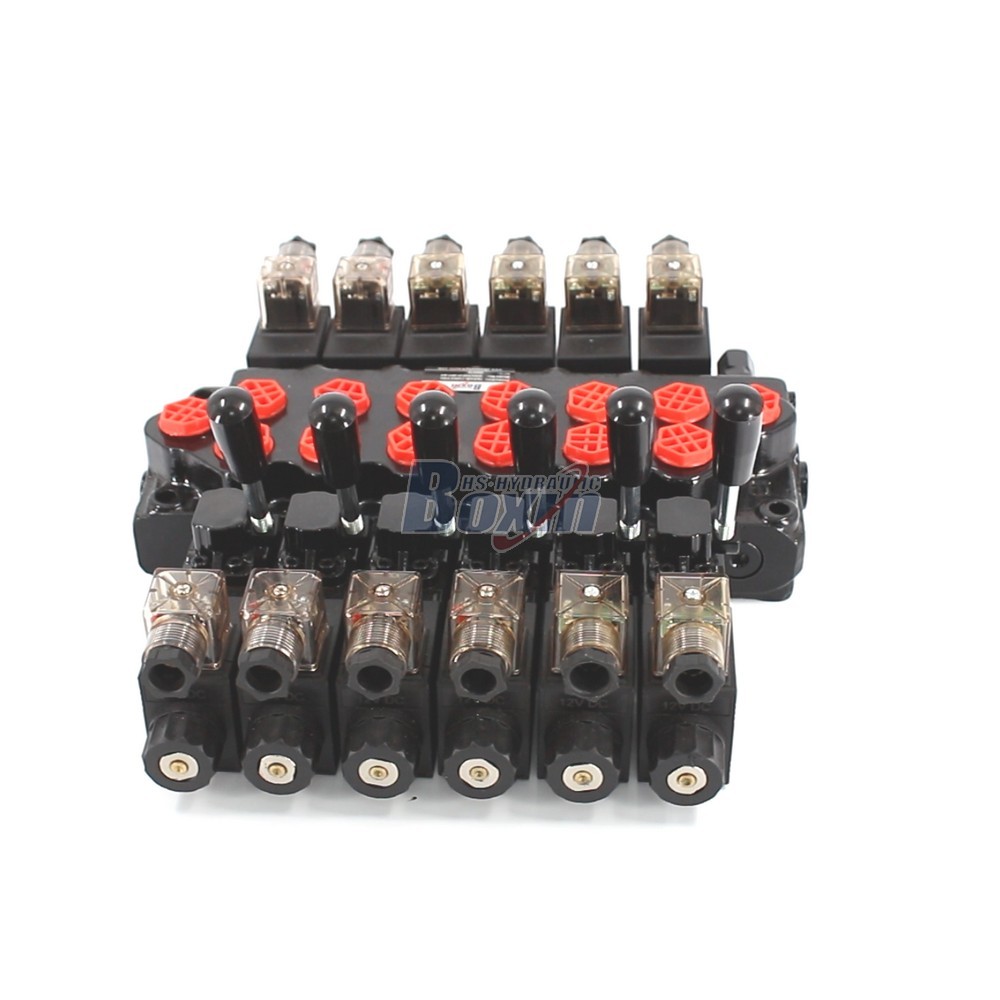

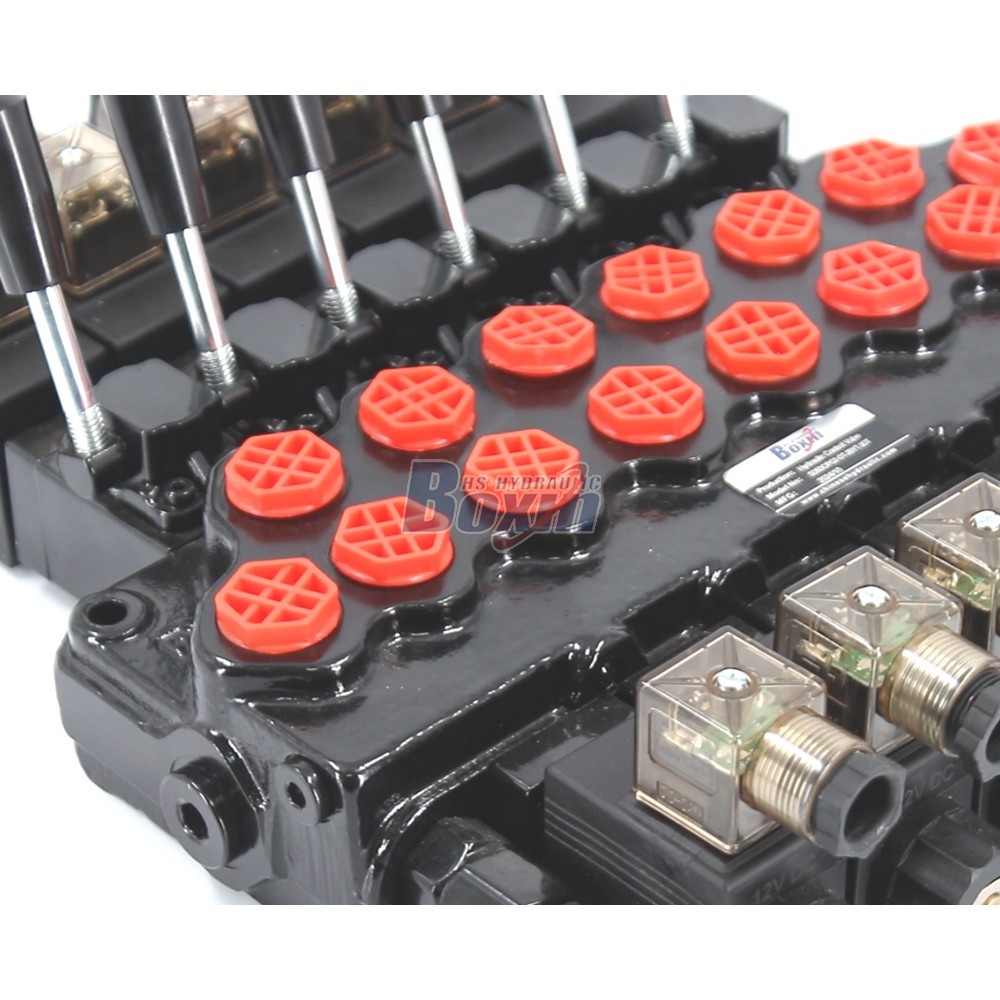

The SD5-PG2 is a robust 6-spool monoblock solenoid directional valve designed for demanding industrial, agricultural, and construction applications. Rated for flow up to 45 L/min and pressures up to 315 bar, this high-performance valve ensures precise control across a wide range of mobile equipment.
| SD5-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +60 °C (-40 °F bis +140 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 305 bar (4400 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Anschlussgröße | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
As a leading manufacturer of professional hydraulic solutions, we offer the SD5-PG2 solenoid directional valve to global markets. This unit is engineered for durability, supporting heavy-duty operations in applications like forklifts, front-end loaders, mini-excavators, and telehandlers. We are a direct factory source providing flexible manufacturing, OEM, ODM, and customized production services to meet your specific technical requirements. We are actively seeking partnerships with international distributors, wholesalers, and trade companies to expand our global supply chain. Benefit from our factory-direct wholesale pricing, rigorous quality control, and scalable production capacity. Contact us today to discuss how our hydraulic control valves can integrate into your equipment or explore our comprehensive wholesale and private labeling opportunities.
