Industrial Grade P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump from Factory

Verdrängung:64,6 cm³/U

Nenndruck:16 MPa (2320 psi)

Maximaldruck:17 MPa (2465 psi)

Maximaldrehzahl:2200 U/min

Drehrichtung:Bidirektional

Hersteller:BXHS

Produkttyp:Hydraulikzahnradpumpe

Produktserie:P21-Serie Hydraulikzahnradpumpe

Verpackungsgröße:45*25*18

Bruttogewicht:16.00 kg

Verfügbarkeit: Auf Lager

160 Personen sehen sich dieses Produkt an

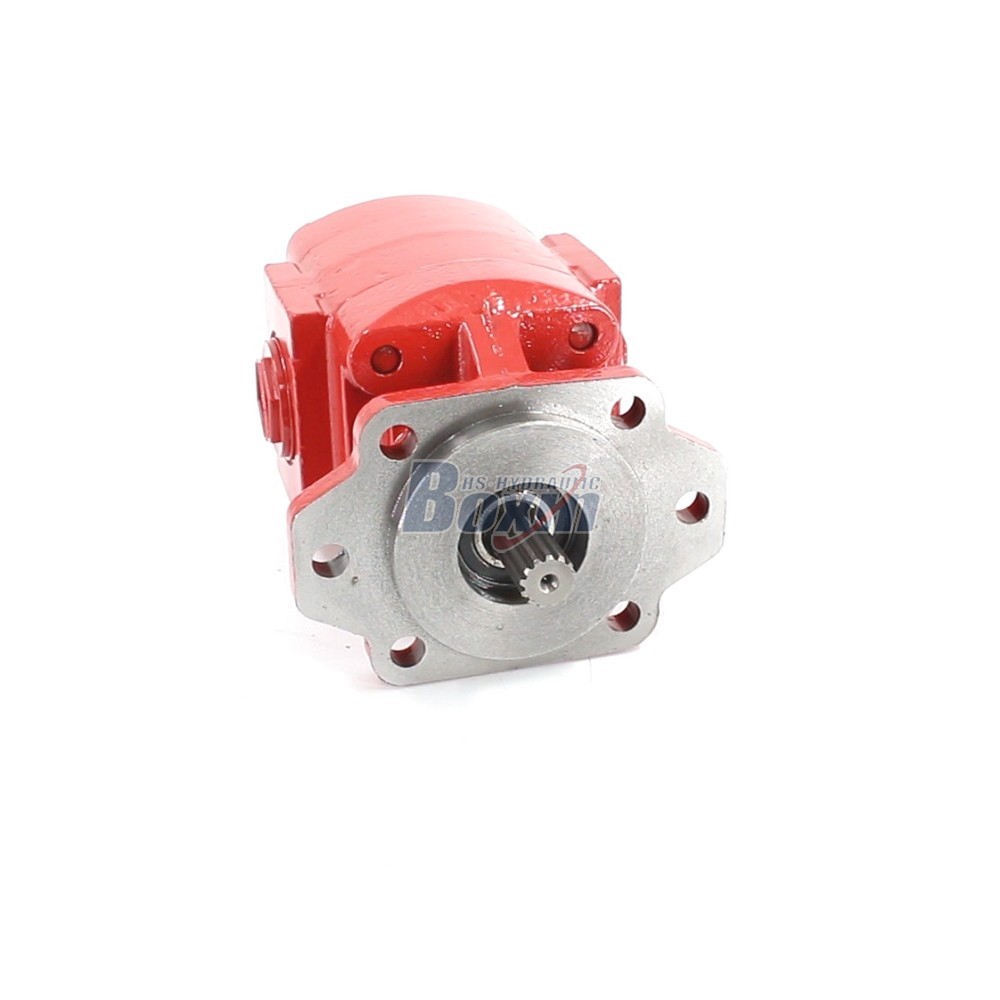

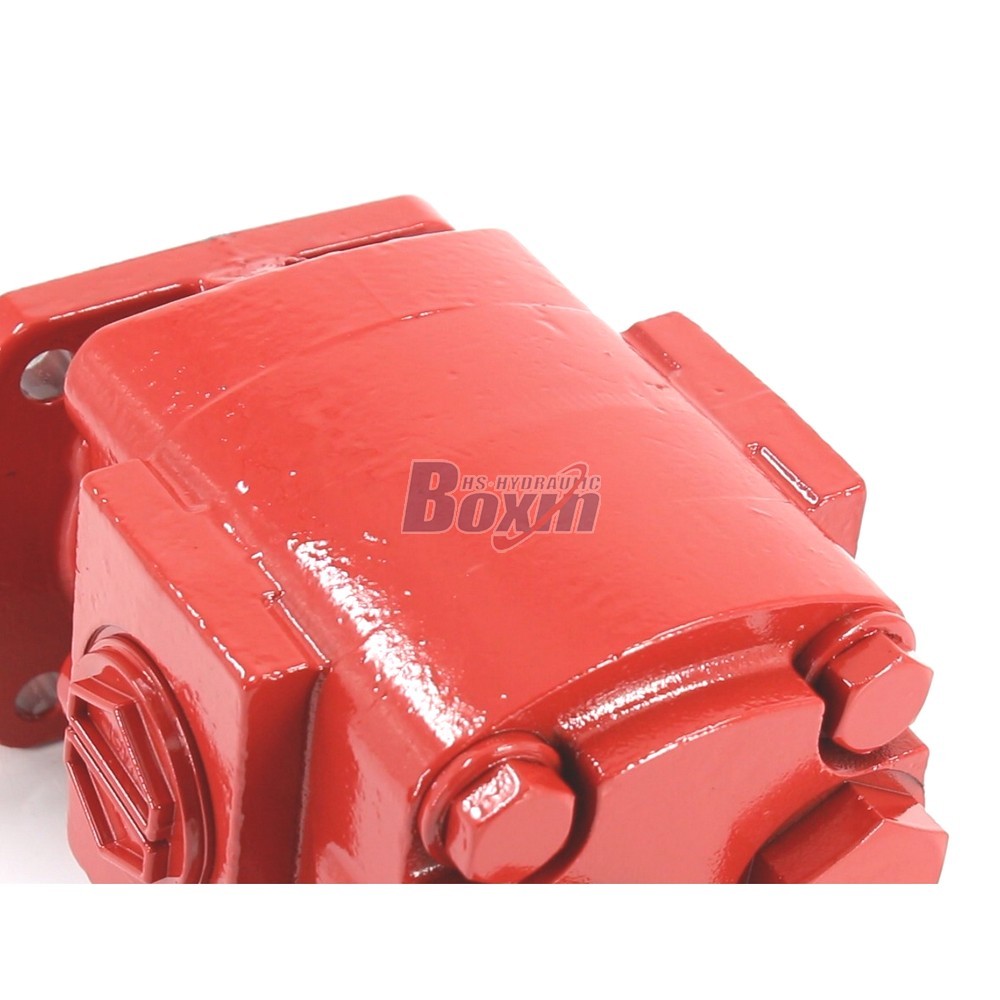

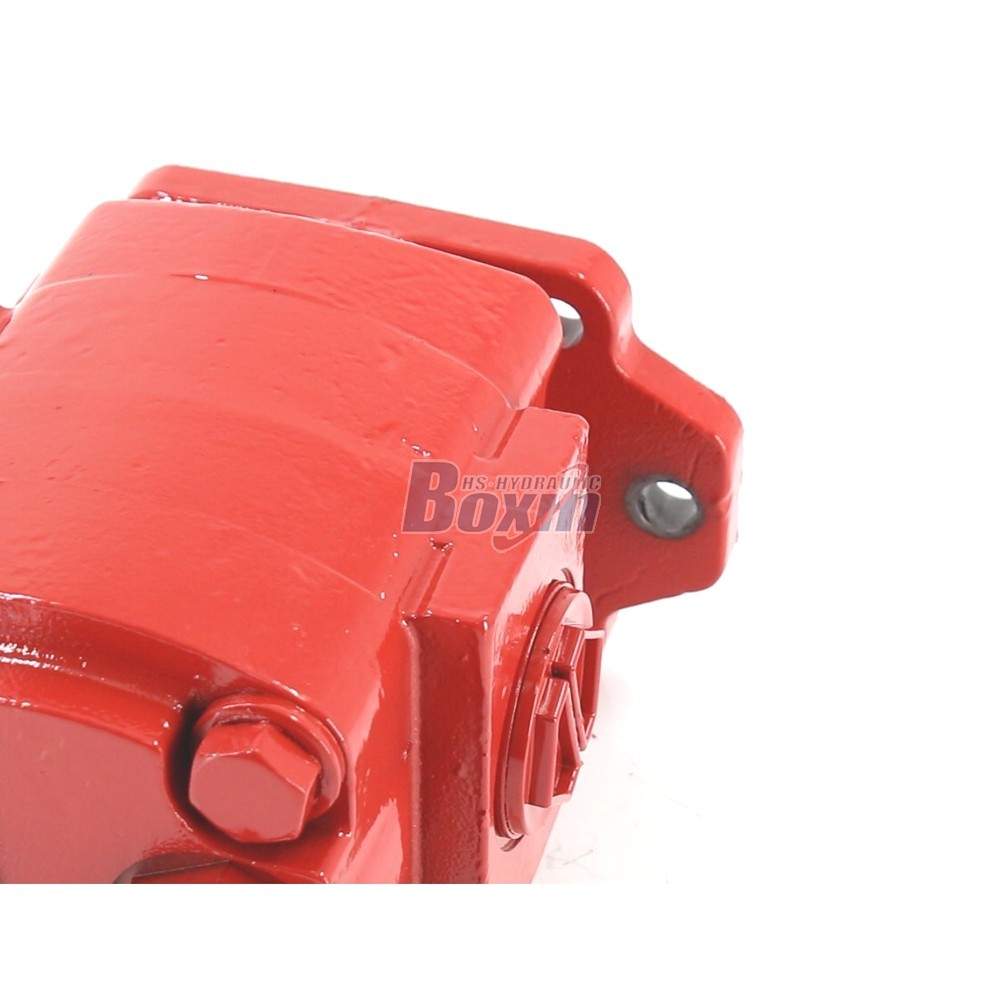

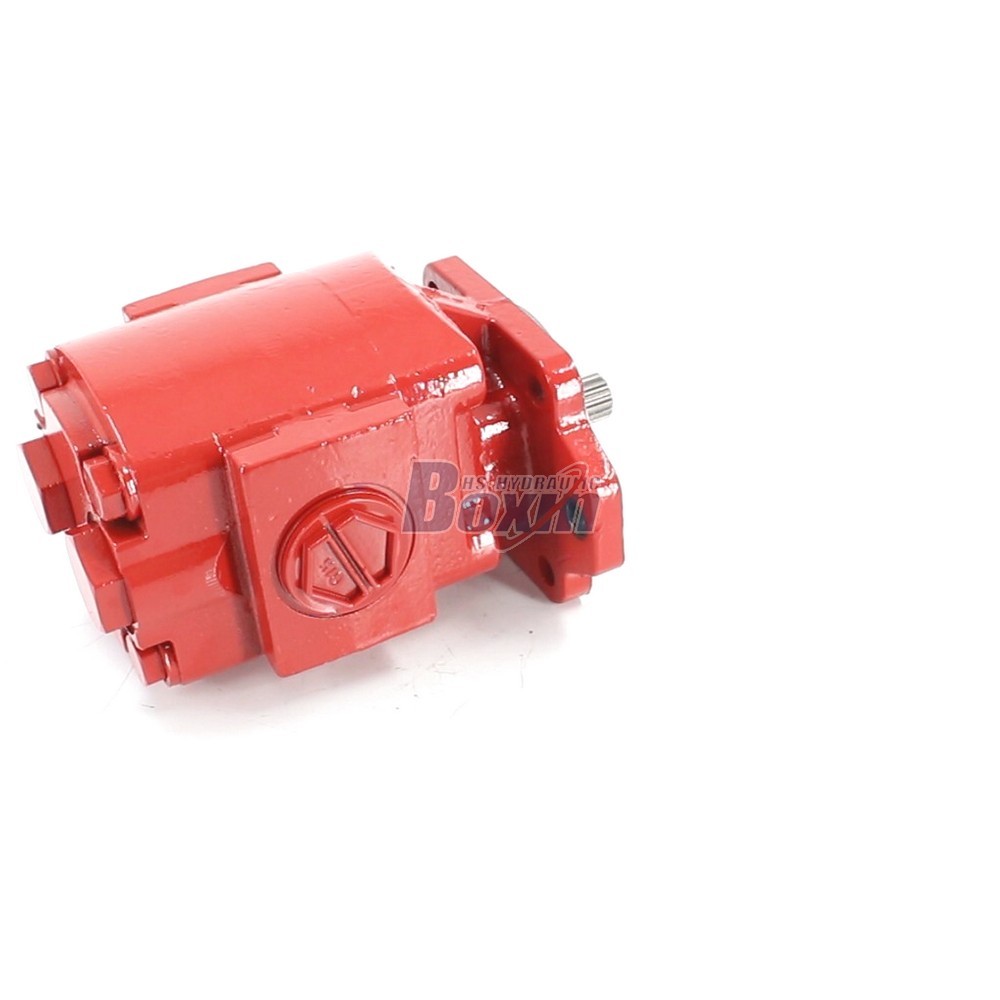

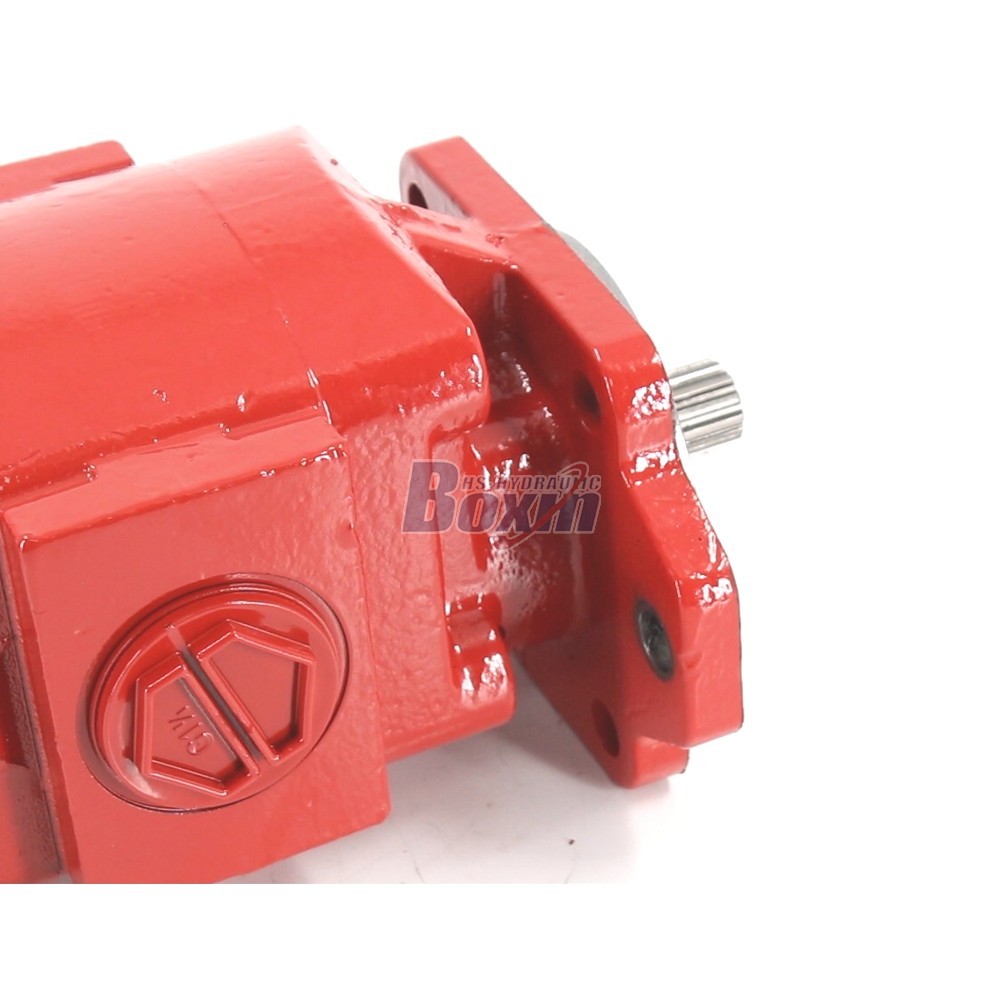

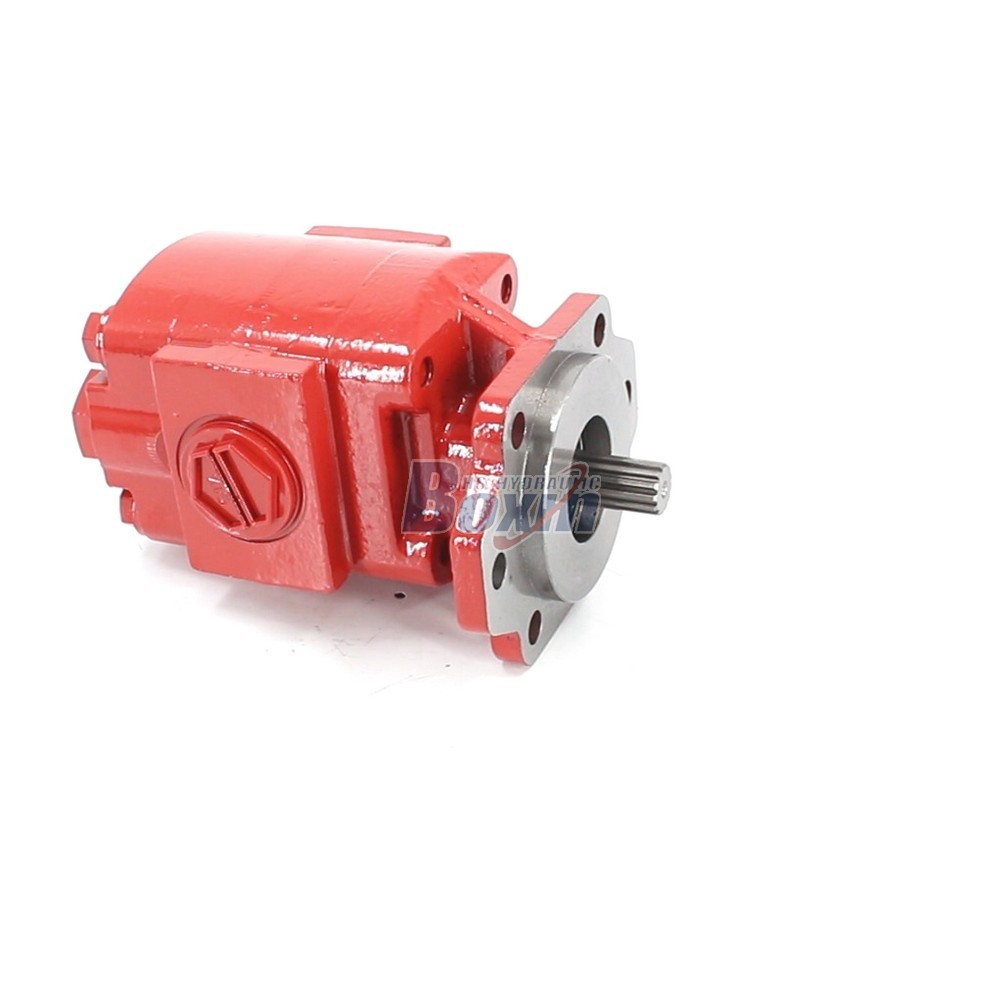

Industrial Grade P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump from Factory

Industrial Grade P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump from Factory

Industrial Grade P21A646JEAL20-25-H 64.6 cc/rev Hydraulic Gear Pump from Factory drawing image

This Industrial Grade P21A646JEAL20-25-H Hydraulic Gear Pump features a 64.6 cc/rev displacement and handles up to 17 MPa (2465 psi) max pressure at 2200 r/min. Manufactured by a 25-year IATF 16949 certified factory, it offers bidirectional rotation and seamless compatibility with forklifts, loaders, and agricultural machinery.

P21-Serie Hydraulikzahnradpumpe Parameter
Verdrängung 64,6 cm³/U
Nenndruck 16 MPa (2320 psi)
Maximaldruck 17 MPa (2465 psi)
Nenndrehzahl 600 U/min
Maximaldrehzahl 2400 U/min
Drehrichtung Bidirektional
Material Gusseisen
Struktur Außenverzahnte Pumpe
Flanschversion A-Ovalflansch, B-Vierkantflansch, ISO-4-Befestigungslöcher, UNI-3-Befestigungslöcher, SAE-Flansch
Wellentyp X: Evolventenverzahnte Keilwelle

**1. High-Efficiency Hydraulic Gear Pump Specifications**
- Delivers precise flow with 64.6 cc/rev displacement, operating at rated pressure of 16 MPa (2320 psi) and max pressure of 17 MPa (2465 psi).
- Supports bidirectional rotation with rated speed of 2000 r/min and max speed of 2200 r/min, ensuring stable power transmission for heavy-duty applications.

**2. Versatile P21 Series Gear Pump Applications**
- Engineered for Material Handling, Construction, and Agriculture sectors, perfectly fitting Forklifts, Telehandlers, Skid Steer Loaders, and Backhoe Loaders.
- Compatible with Compact Wheel Loaders, Tractors, Sprayers, Sweepers, and Waste Compactors, providing reliable hydraulic power across diverse industrial vehicles.

**3. Professional Manufacturer Quality Assurance**
- Backed by 25+ years of expertise and IATF 16949 certification, every unit undergoes 100% bench testing for pressure, flow, and sealing integrity.
- Utilizes 260+ vertical machining centers and strict oil cleanliness detection, ensuring CE compliance and SGS verified durability for long service life.

**4. Customizable OEM Hydraulic Gear Pump Solutions**
- Supported by 35+ senior engineers, we offer full OEM/ODM services including custom appearance, casting modifications, and laser logo branding.
- Ideal for distributors seeking Private Label options, our factory provides flexible customization to match specific host machine requirements and market preferences.

**5. Factory Direct Sales & Global Supply Capability**
- As a Wholesale China Factory with 68,000 sqm facility and 1.5 million annual capacity, we ensure timely delivery and competitive pricing for bulk orders.
- Products feature anti-rust treatment and heavy-duty wooden crate packaging, making us a trusted Exported Worldwide partner for stable and secure logistics.
