The DCV58 Solenoid Valve is a high-performance hydraulic valve designed for demanding applications in various industries such as construction, earth moving, agriculture, and industrial vehicles. It features a solenoid control method, a 1-section design, and a sectional valve structure, providing precise control and reliability in harsh operating conditions.
| DCV58-Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Magnet, Magnetisch und manuell |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen, 11 Spulen, 12 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt, 11 Abschnitt, 12 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 350 bar (5100 psi) |
| Einlassanschluss | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Auslassanschluss | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Anschlussgröße | G1/2, M22×1.5, SAE 10, 1/2 NPT |

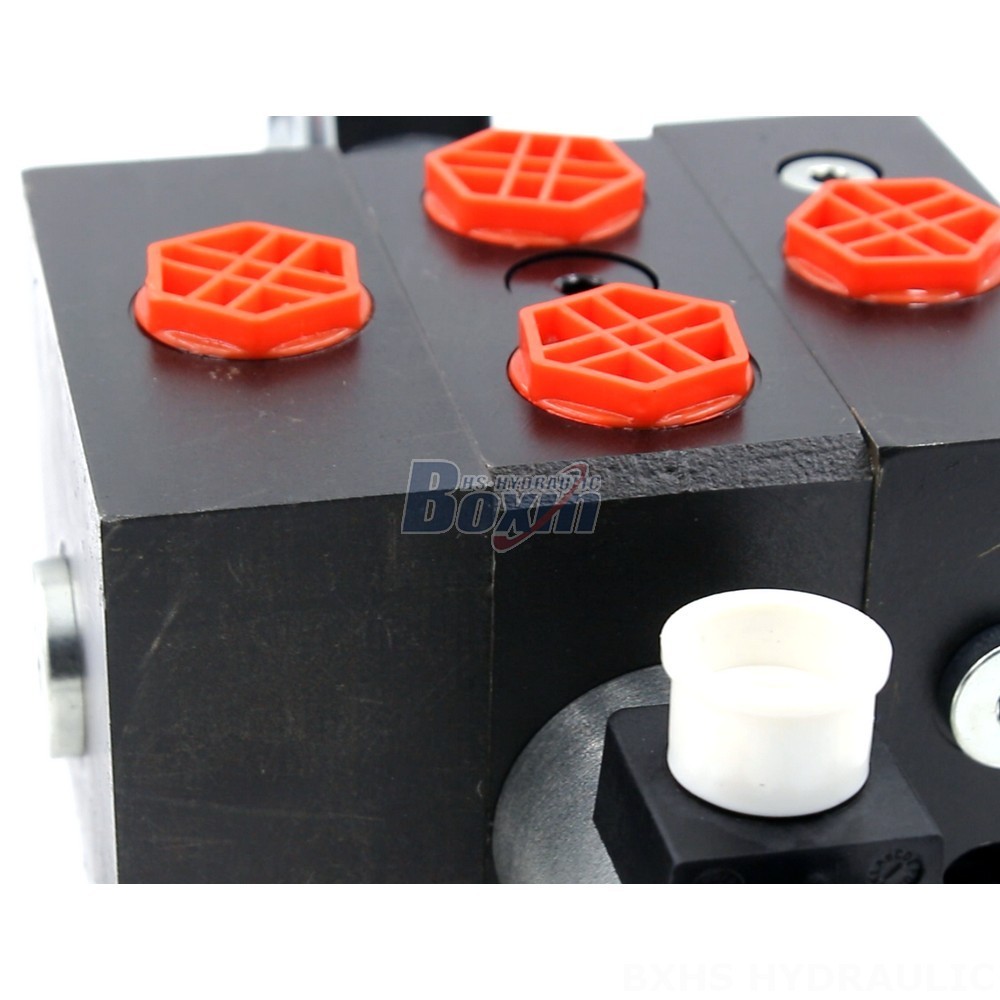

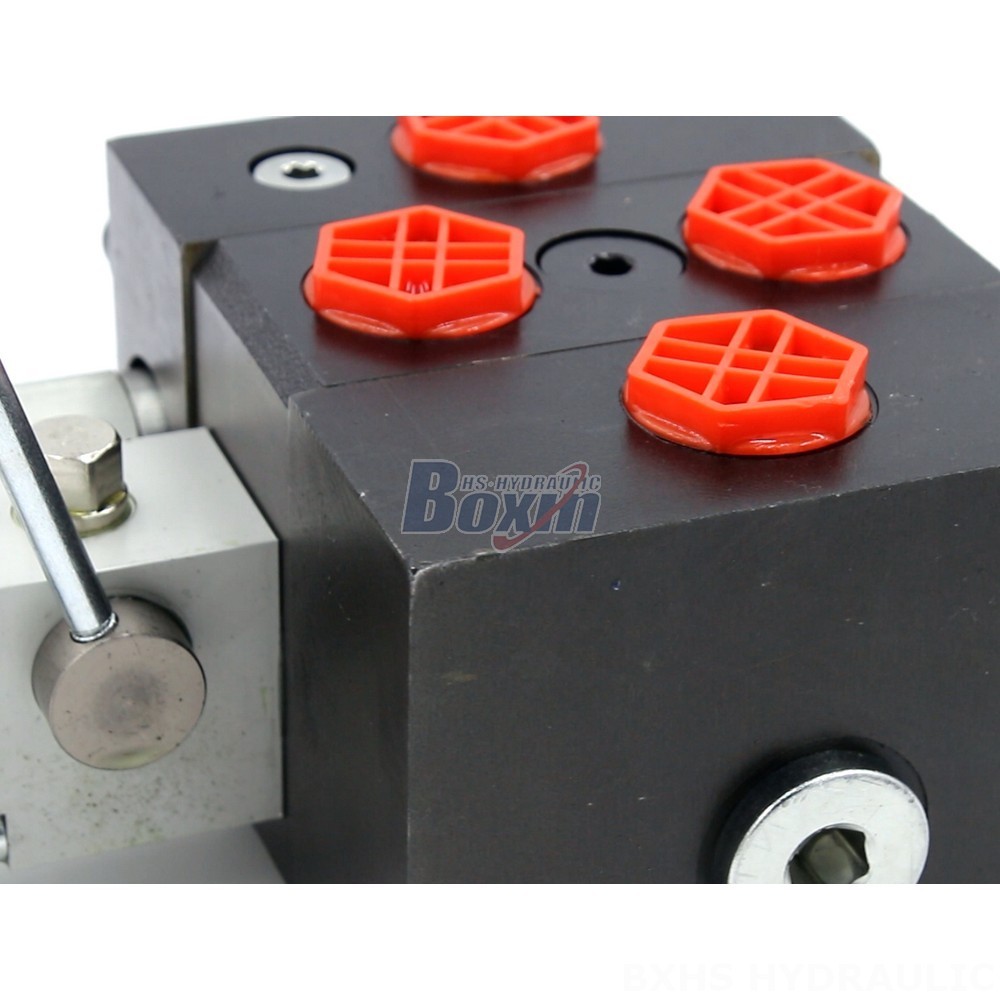

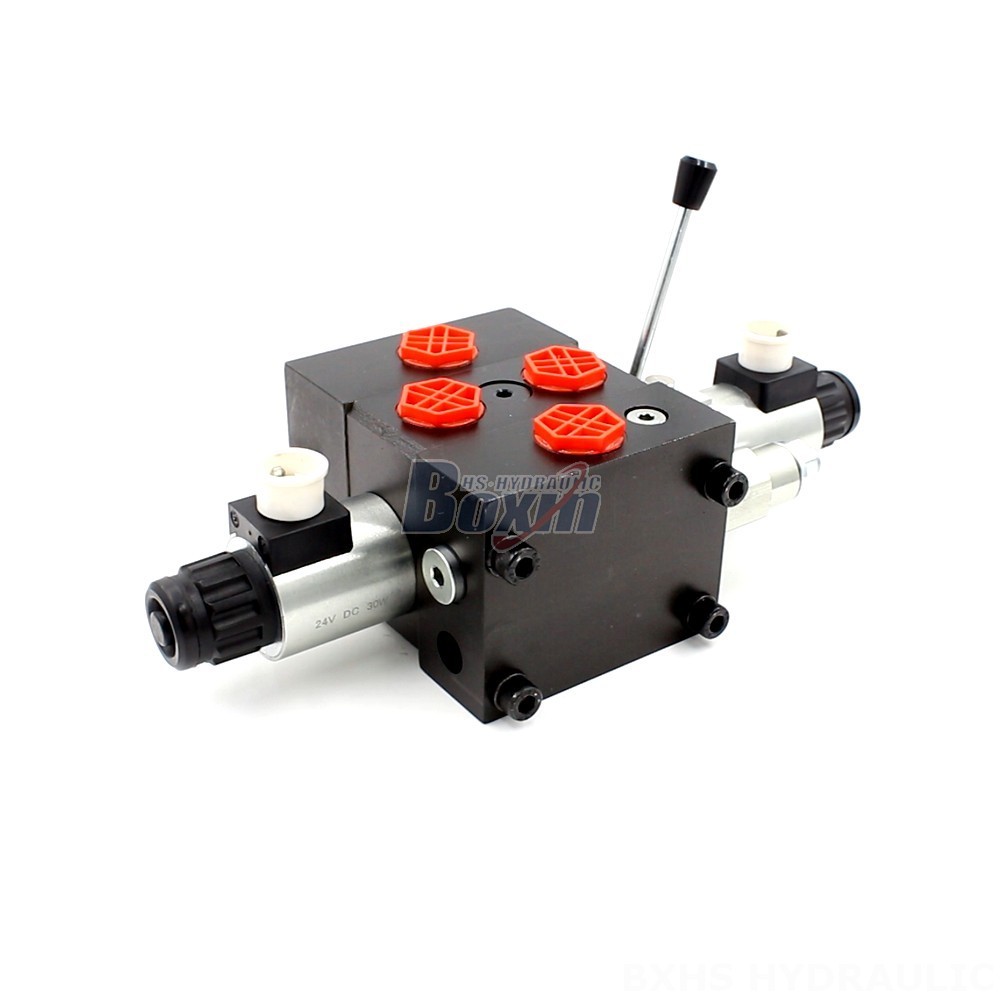

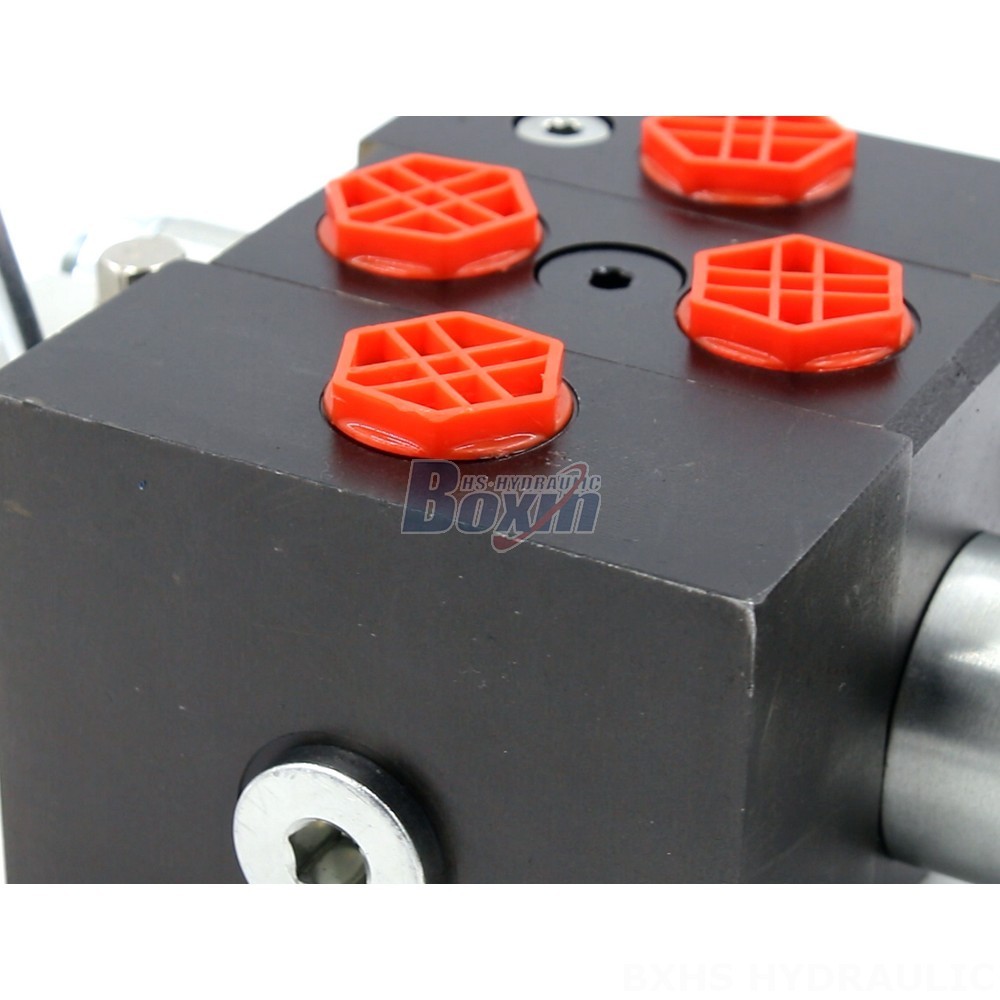

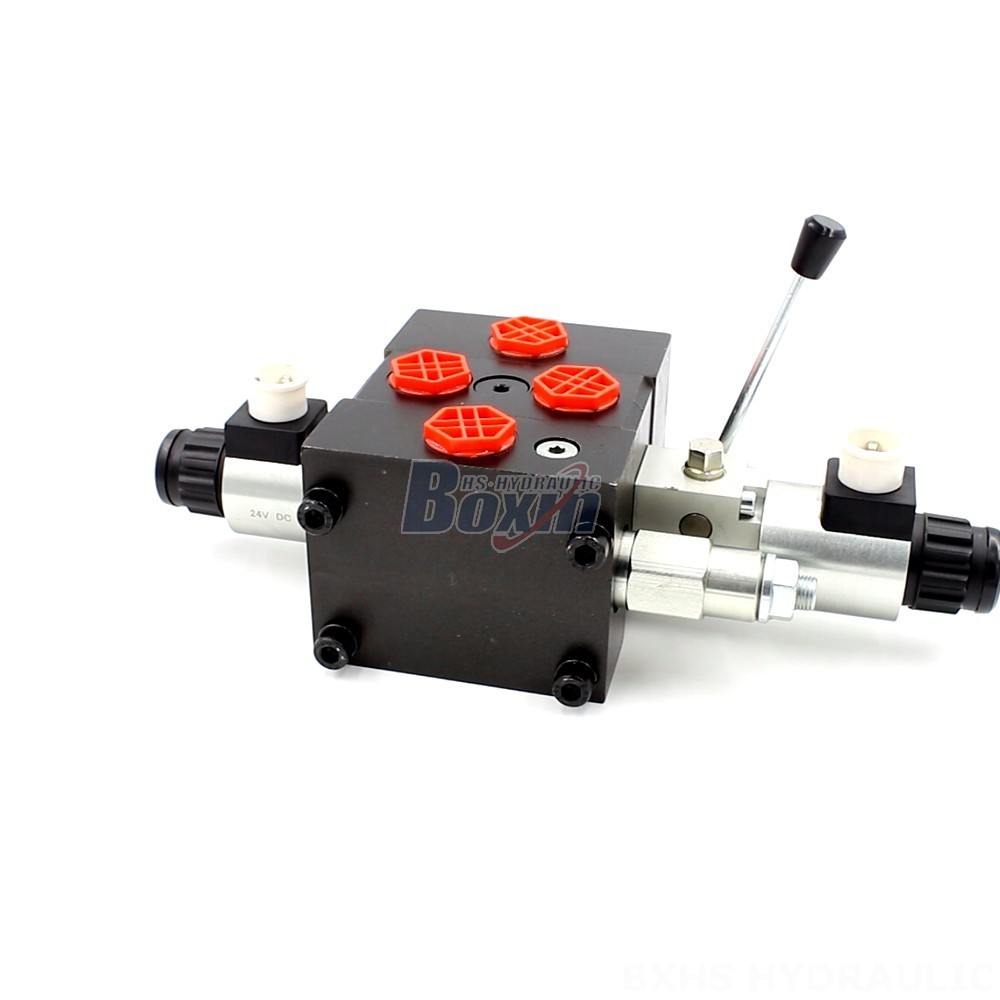

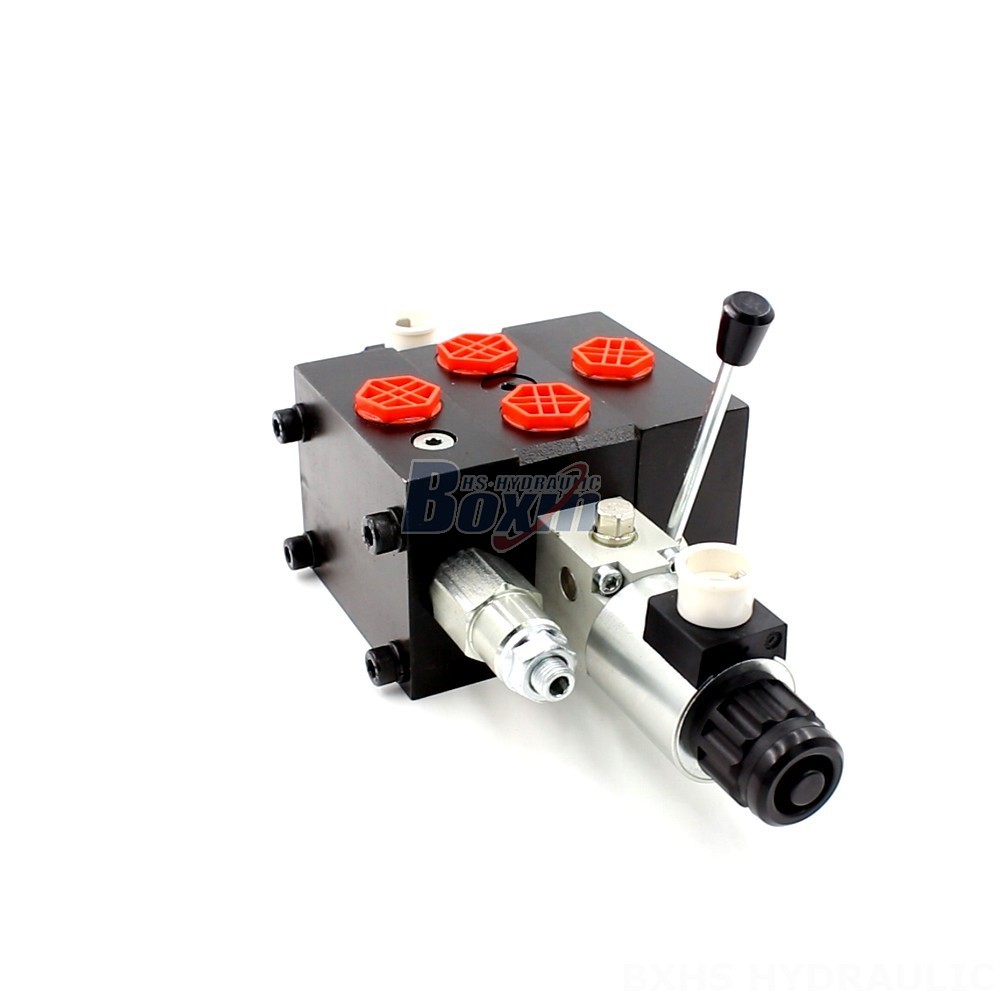

**DCV58 Solenoid Valve for Demanding Applications**
The DCV58 Solenoid Valve is engineered to meet the rigorous requirements of industrial applications. With its robust construction and high-quality components, it offers exceptional performance and durability.
**Key Features:**
* **Control Method:** Solenoid
* **Section:** 1 Section
* **Structure Type:** Sectional valve
* **Rated Flow:** 60 L/min (15.8 US gpm)
* **Max Pressure:** 350 bar (5100 psi)
* **Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
* **Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
* **Spool:** 1 Spool
* **Series:** DCV58 Series
**Applications:**
The DCV58 Solenoid Valve finds applications in a wide range of industrial equipment, including:
* Telehandlers
* Forklifts
* All Terrain Cranes
* Stackers
* Aerial Platforms
* Motor Graders
* Midi-Excavators
* Mini-Excavators
* Skid Steer Loaders
* Compact Wheel Loaders
With its exceptional performance and versatility, the DCV58 Solenoid Valve is an ideal choice for hydraulic systems demanding reliability, precision, and durability.
