Introducing the SD5 Series Hydraulic Valve, manufactured by us, a leading global provider of hydraulic solutions. This high-performance valve is designed to meet the demanding hydraulic requirements of various industries, including material handling, construction, agriculture, and industrial vehicles.
| SD5-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +60 °C (-40 °F bis +140 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 305 bar (4400 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| Anschlussgröße | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |

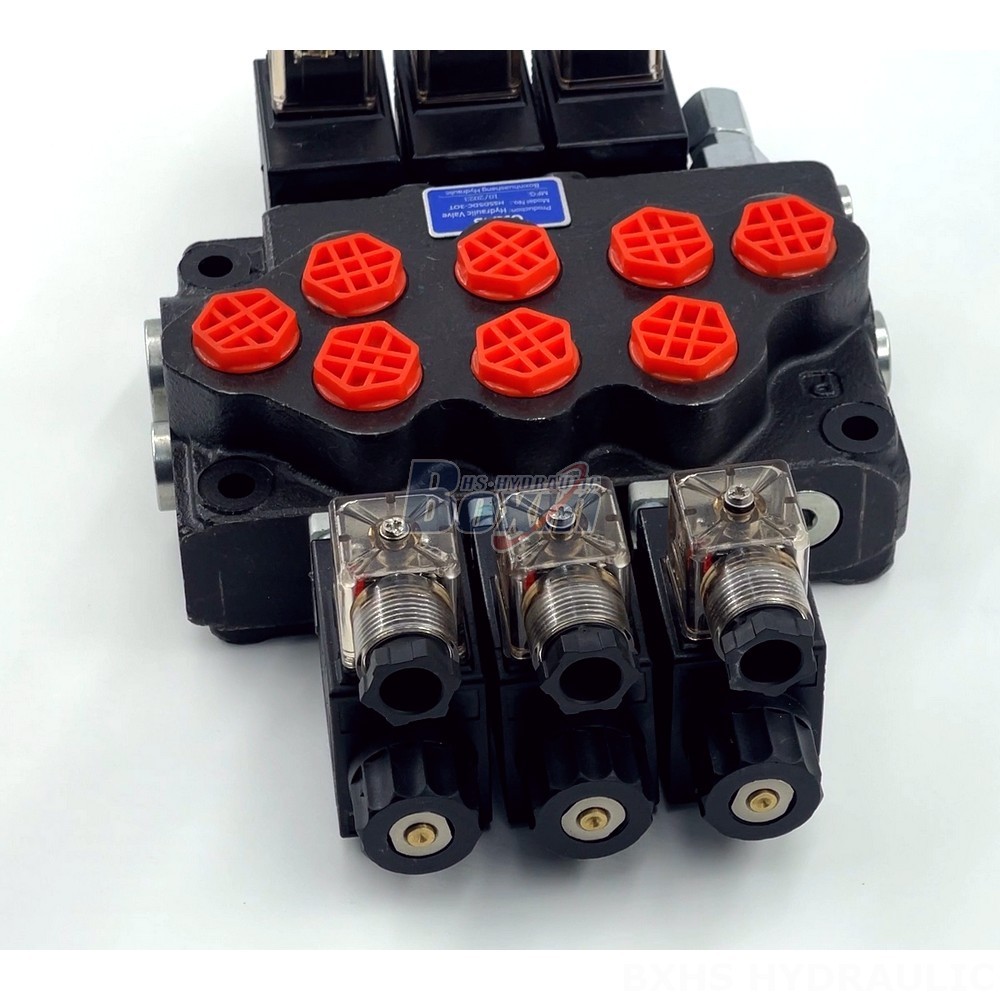

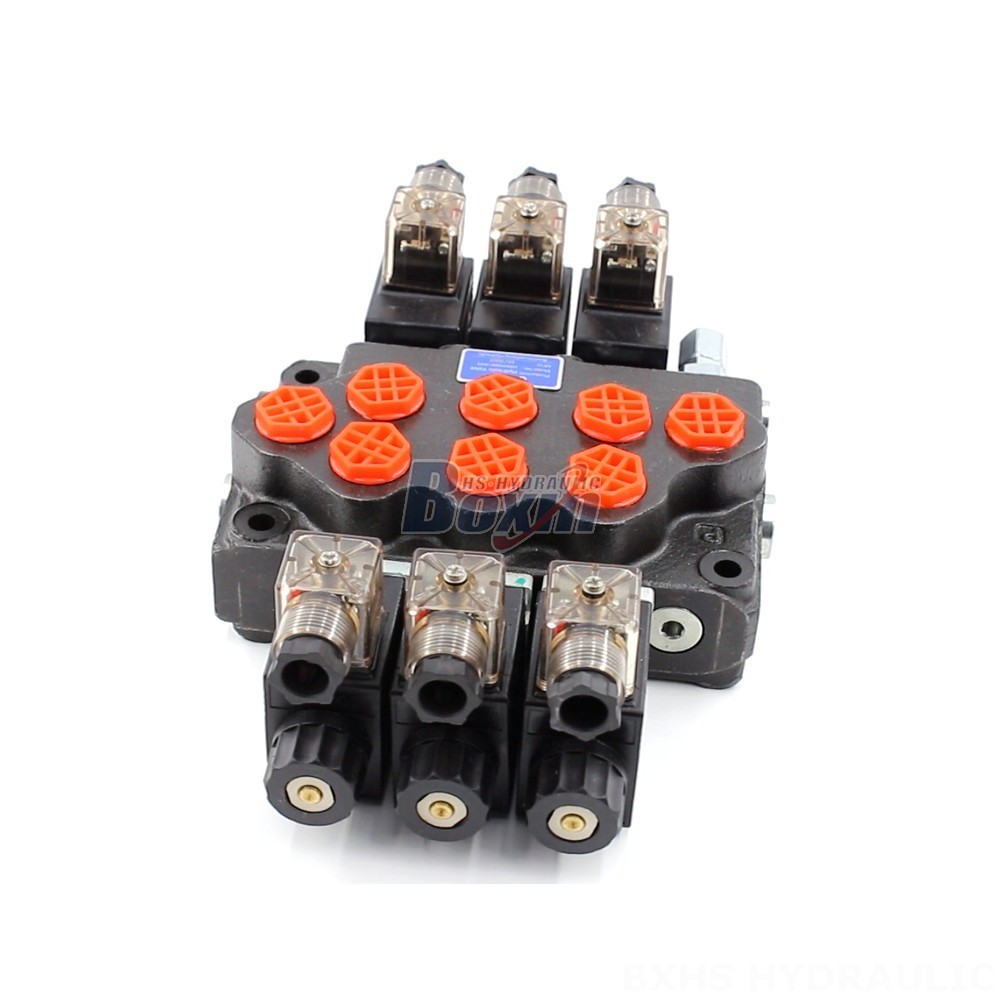

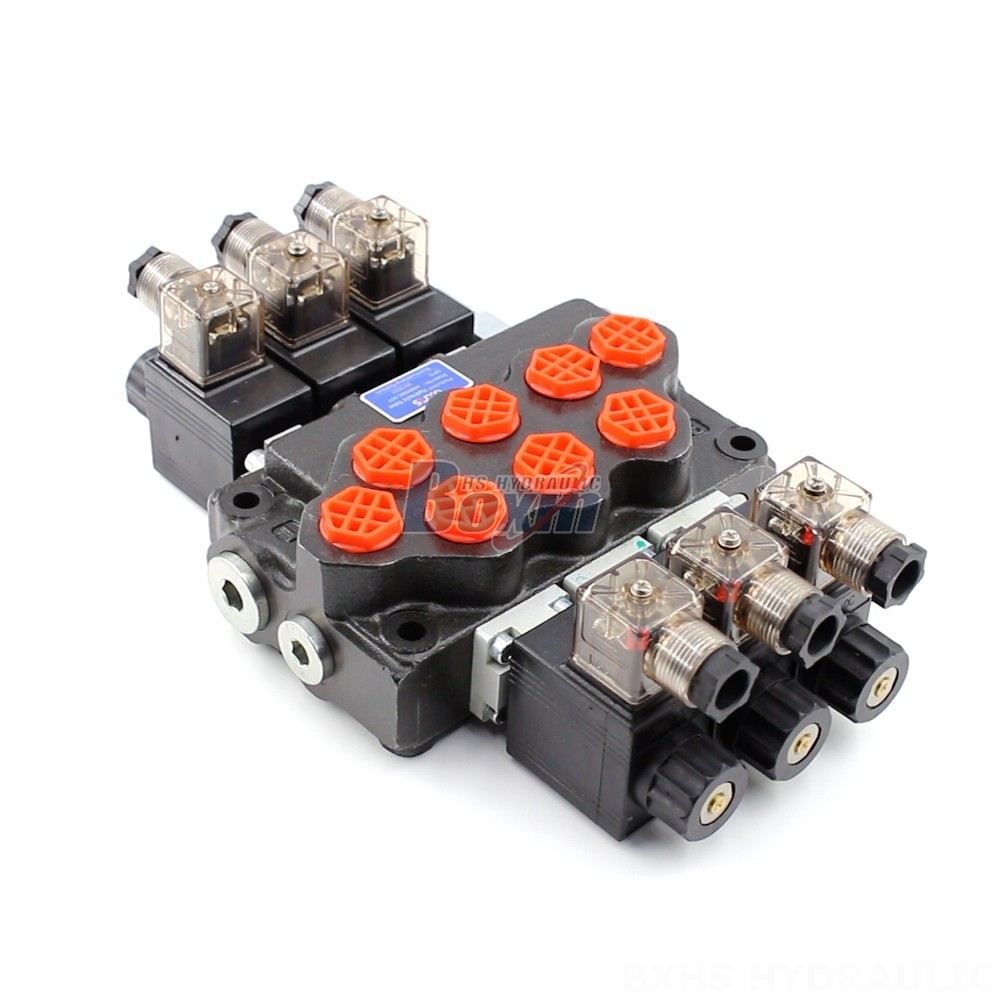

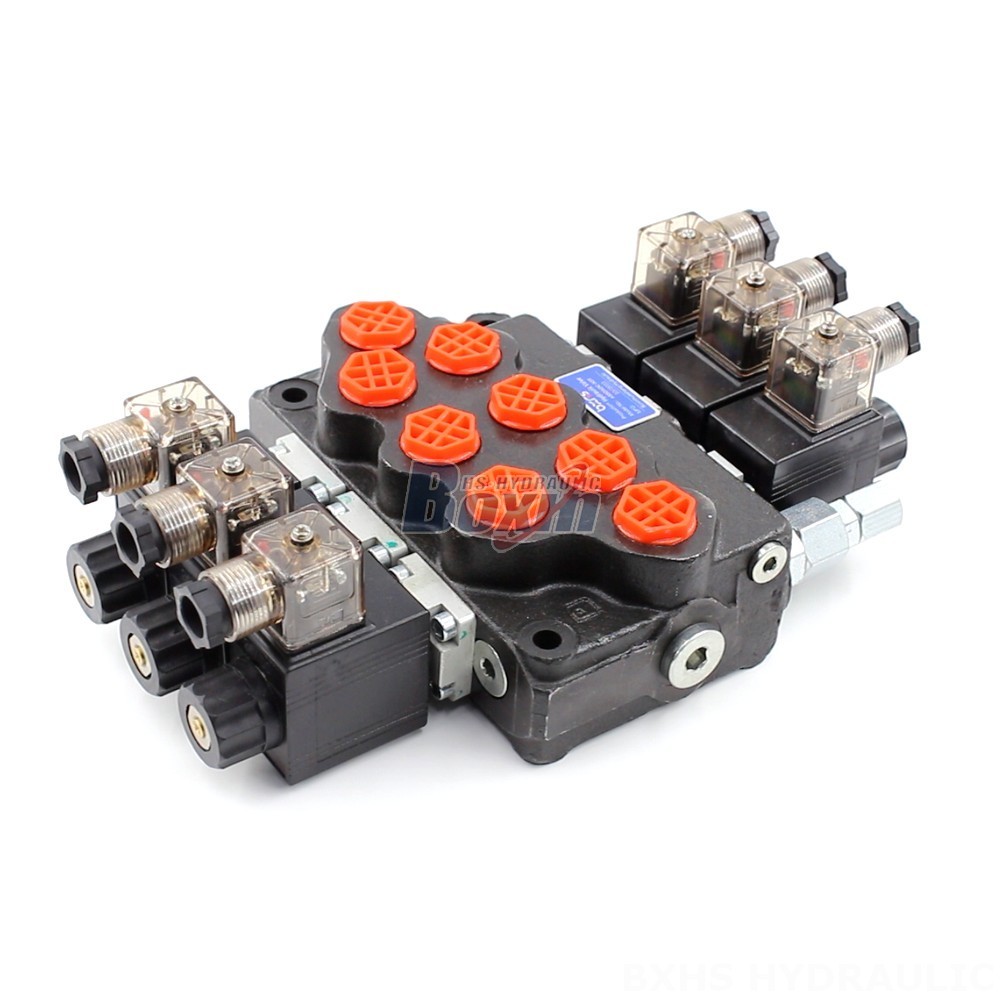

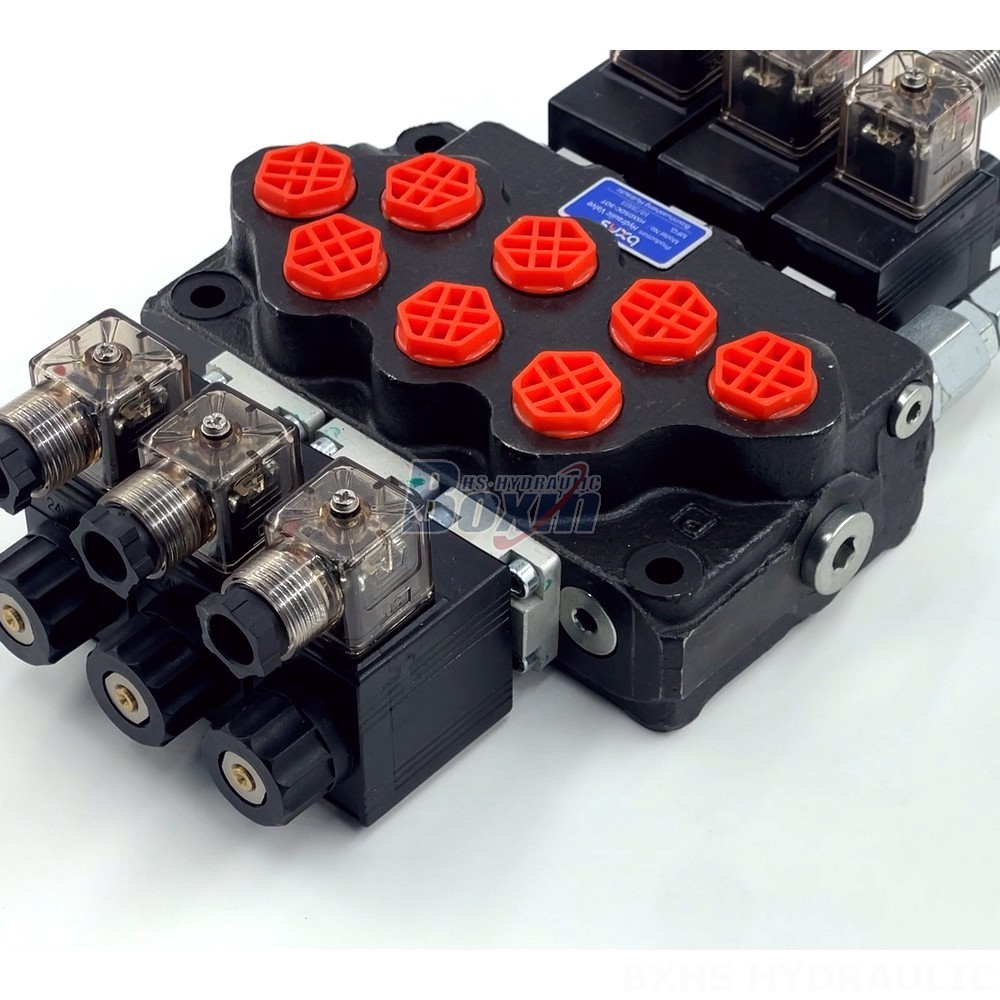

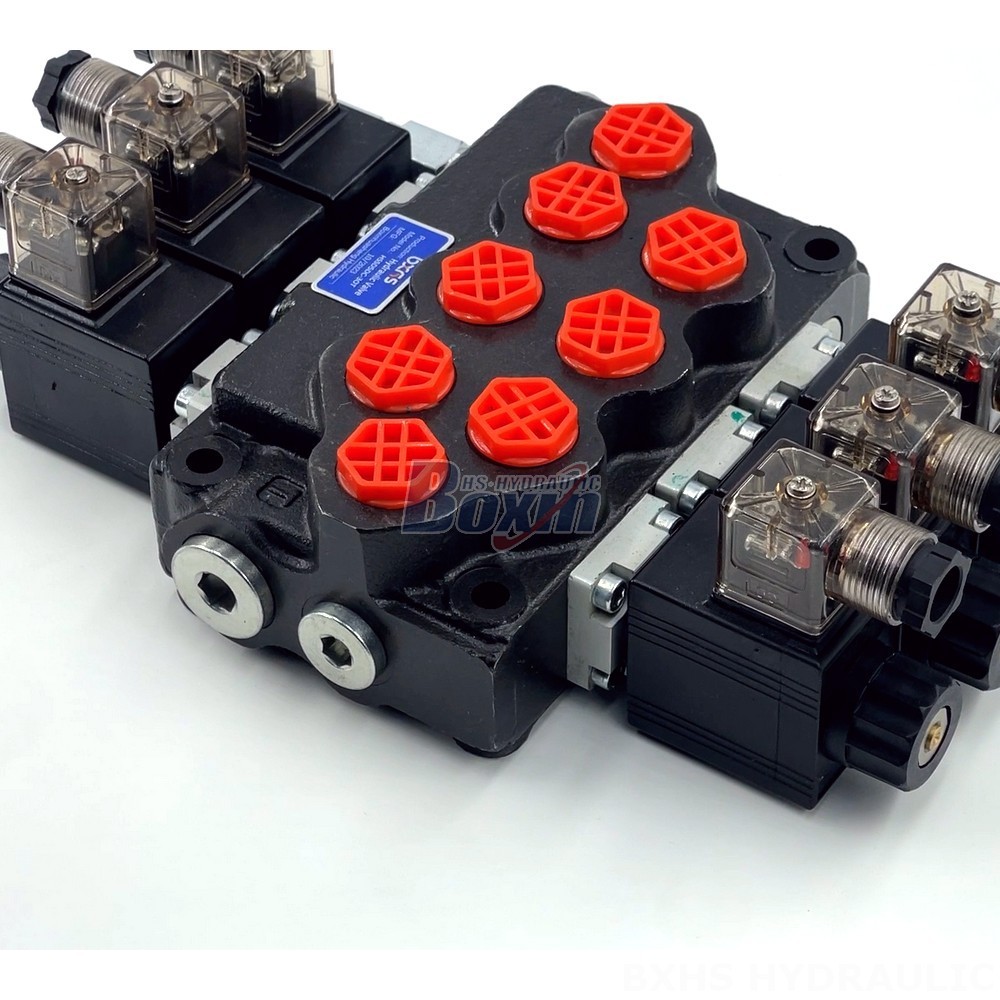

The SD5 Series Hydraulic Valve features a solenoid control method, 3-section design, and monoblock valve structure. It delivers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure of 305 bar (4400 psi). The valve operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and an ambient temperature range of -40°C to +60°C (-40°F to +140°F). Its versatile 3-spool design makes it suitable for a wide range of applications, including telehandlers, forklifts, cranes, stackers, and excavators. As a manufacturer, we offer competitive factory prices and wholesale options for bulk orders. Contact us today to learn more and discuss your hydraulic valve requirements.
