Enhance the performance of your hydraulic systems with our Hydraulic System Optimization: SD8 Sectional Directional Valves. Designed for demanding applications, these valves offer precise control, high flow capacity, and durability.
| SD8-Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 90 l/min (23,8 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, SAE 10 |
| Auslassanschluss | G1/2, G3/4, SAE 10, 3/4 NPT |
| Anschlussgröße | G1/2, SAE 10 |

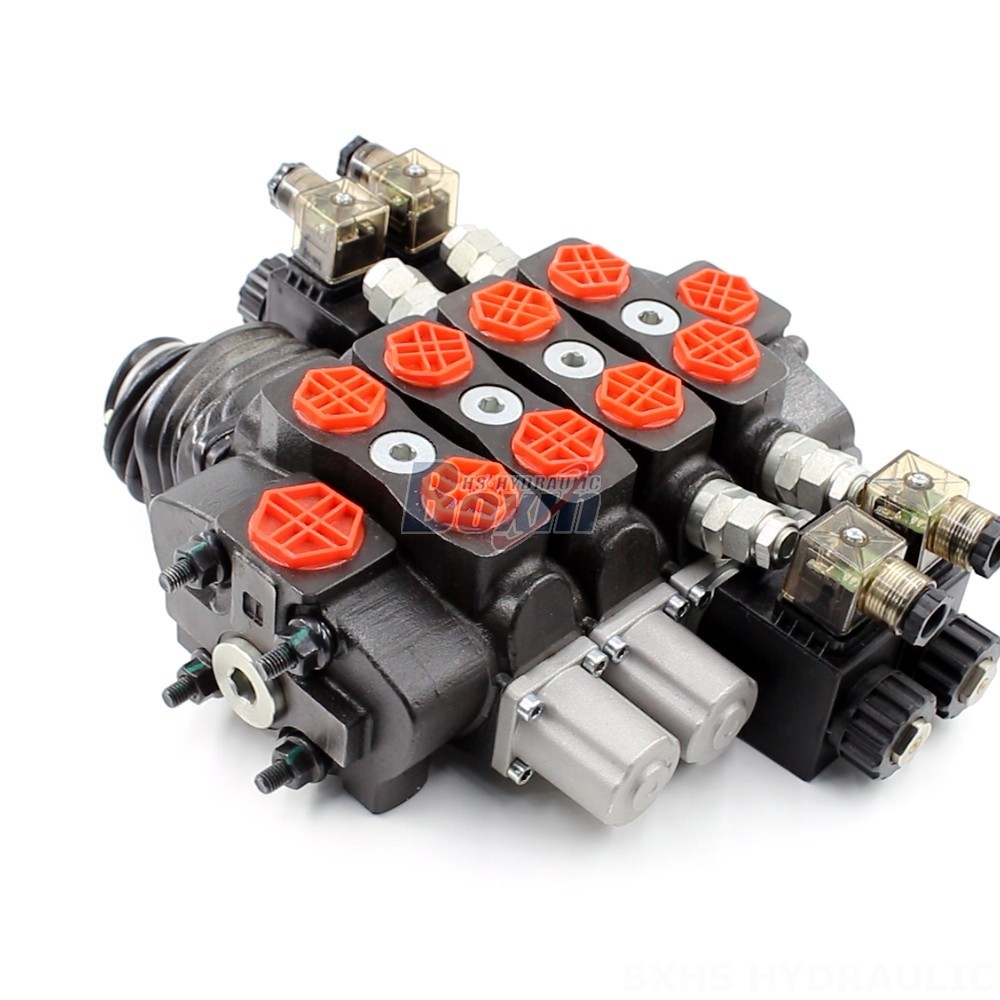

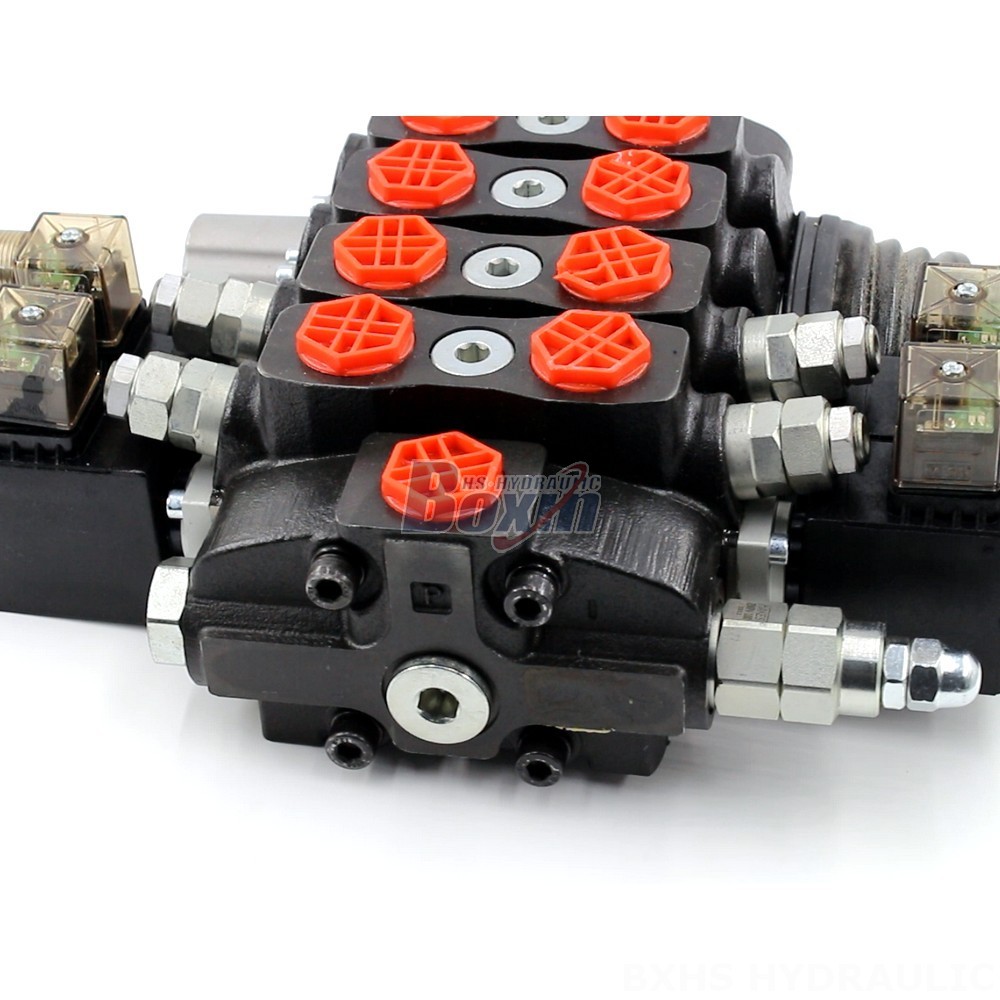

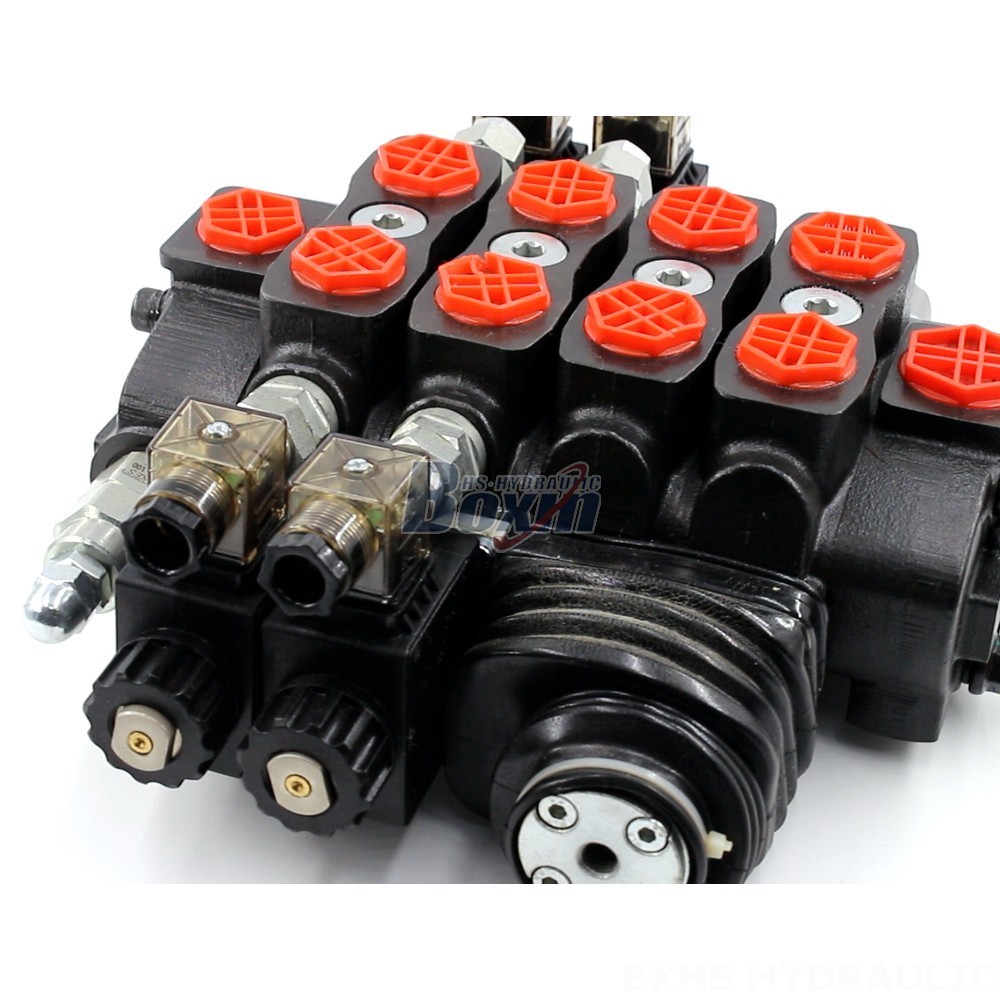

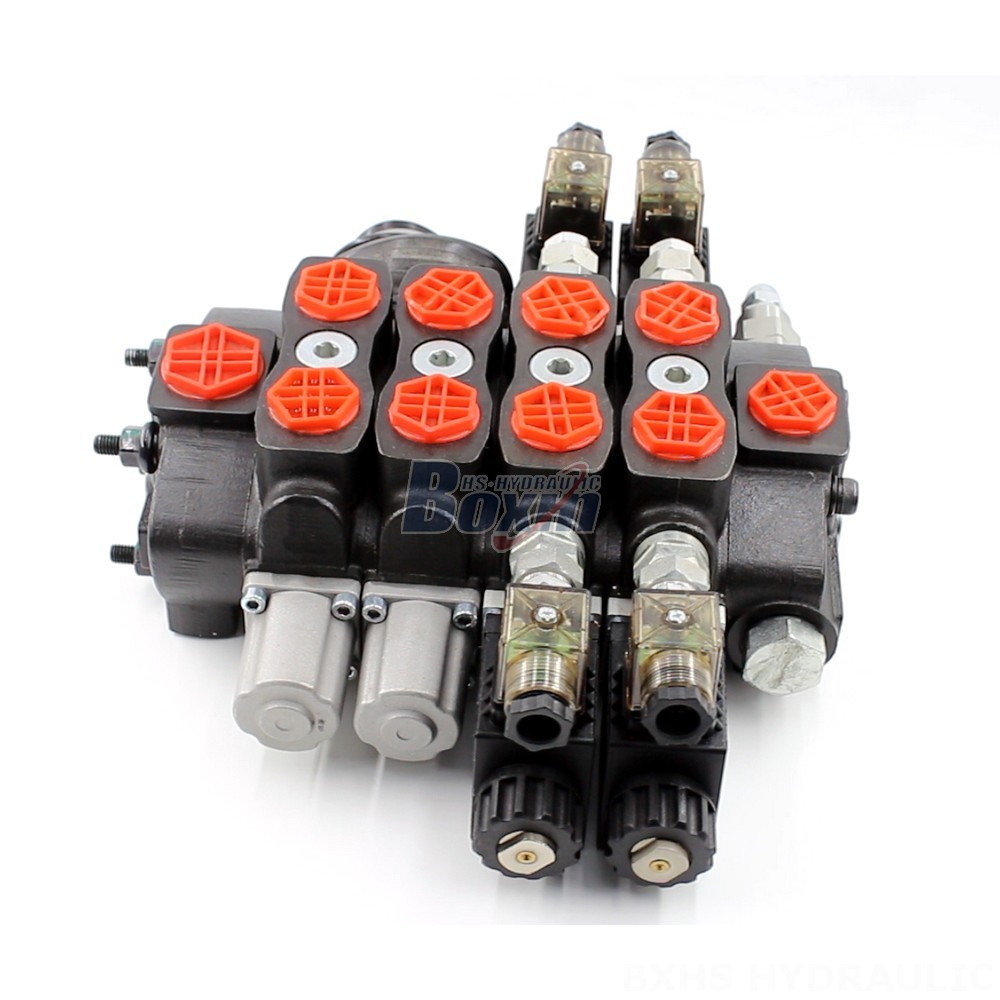

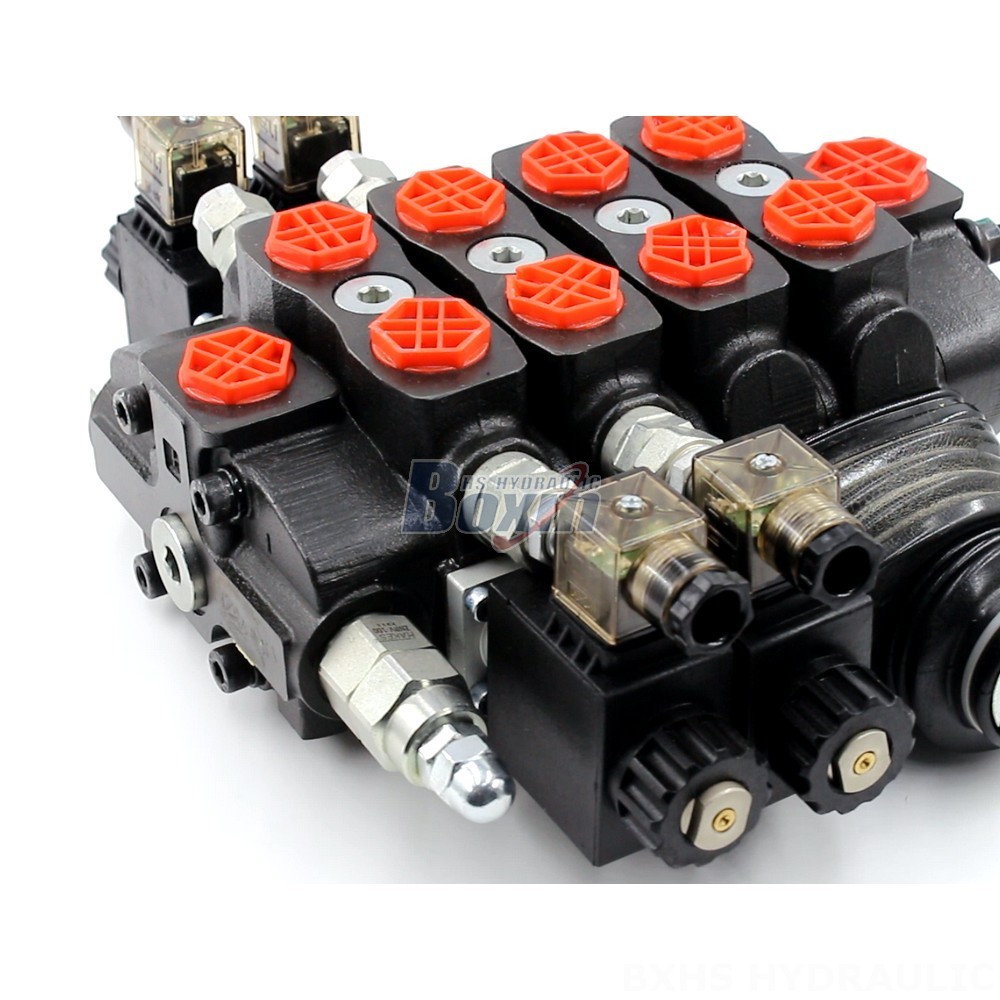

**Hydraulic System Optimization: SD8 Sectional Directional Valves**
Optimize your hydraulic system's performance and efficiency with our SD8 Sectional Directional Valves. These valves provide precise control, high flow capacity, and exceptional durability for demanding applications in various industries.
**Key Features:**
* Solenoid and joystick control for responsive and accurate operation
* Sectional design allows for customization and flexibility
* 3 section configuration for versatile control
* 90 L/min rated flow for high-volume applications
* Maximum pressure of 350 bar for robust performance
* Wide operating viscosity range (12 - 400 mm²/s) for diverse fluid compatibility
* 3 spool design for precise flow management
**Applications:**
Our SD8 Sectional Directional Valves are ideal for applications requiring precise fluid control and high flow capacity. They are commonly used in:
* Material handling equipment
* Construction and earth moving machinery
* Agricultural vehicles
* Industrial vehicles
**Applicable Models:**
These valves are suitable for various hydraulic systems, including those found in:
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
