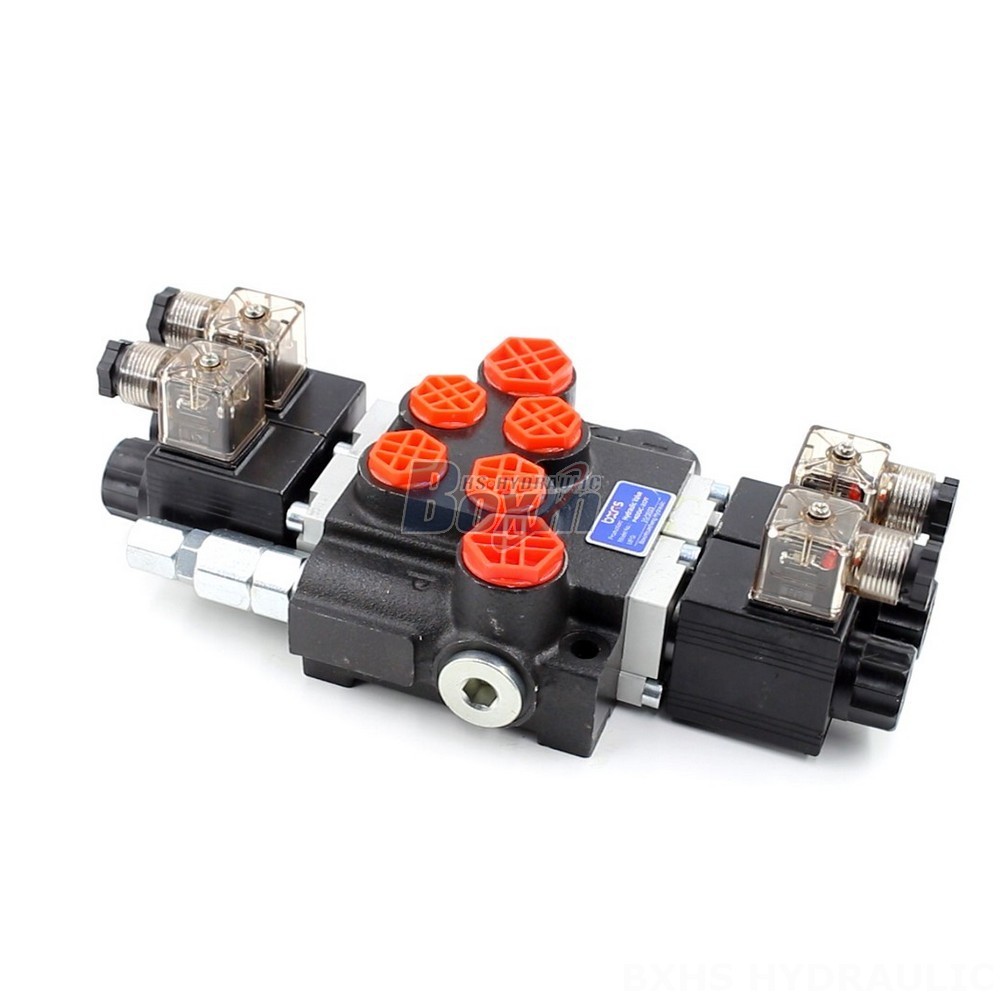

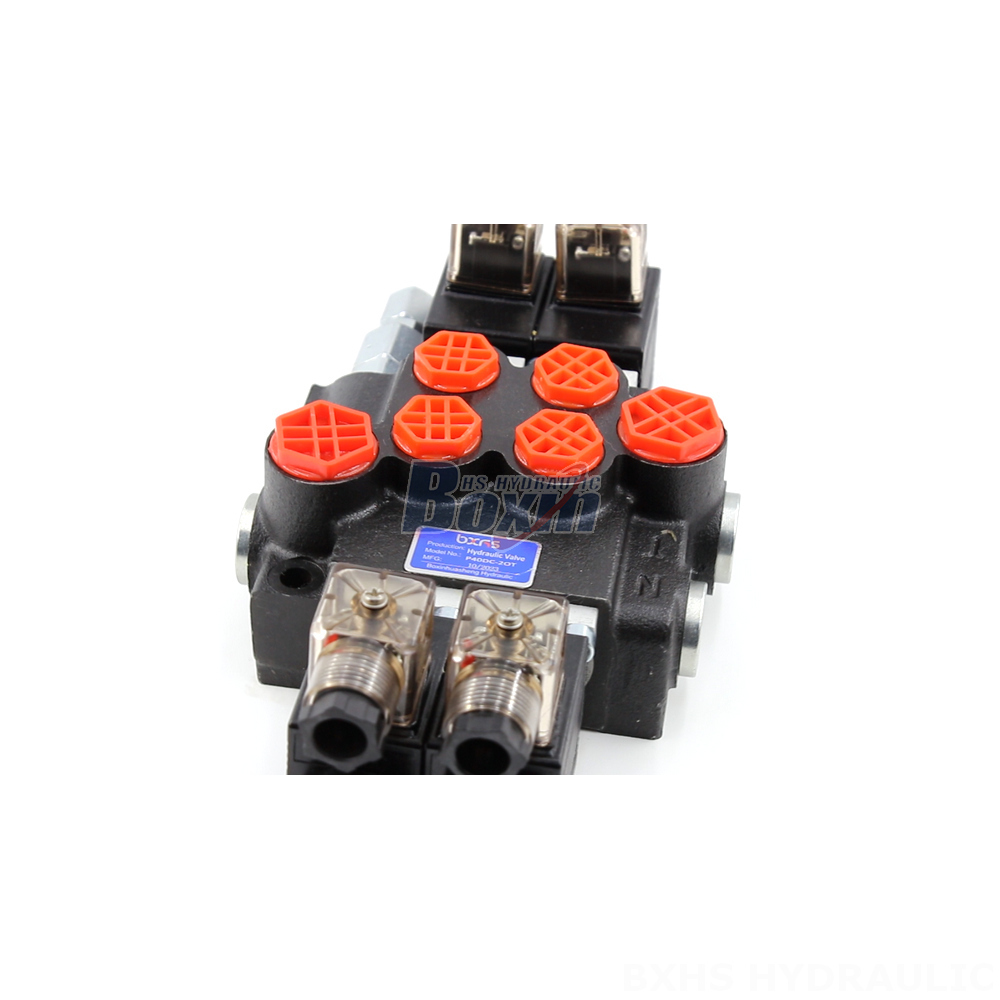

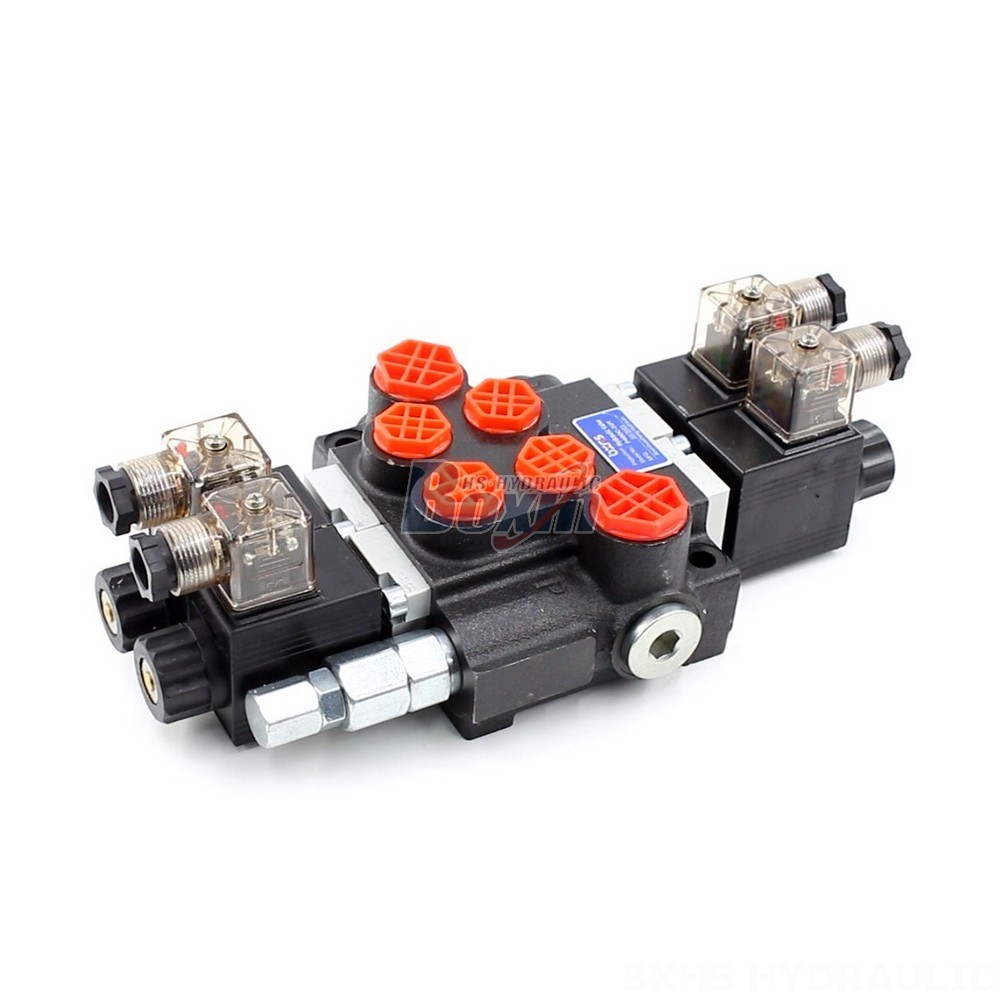

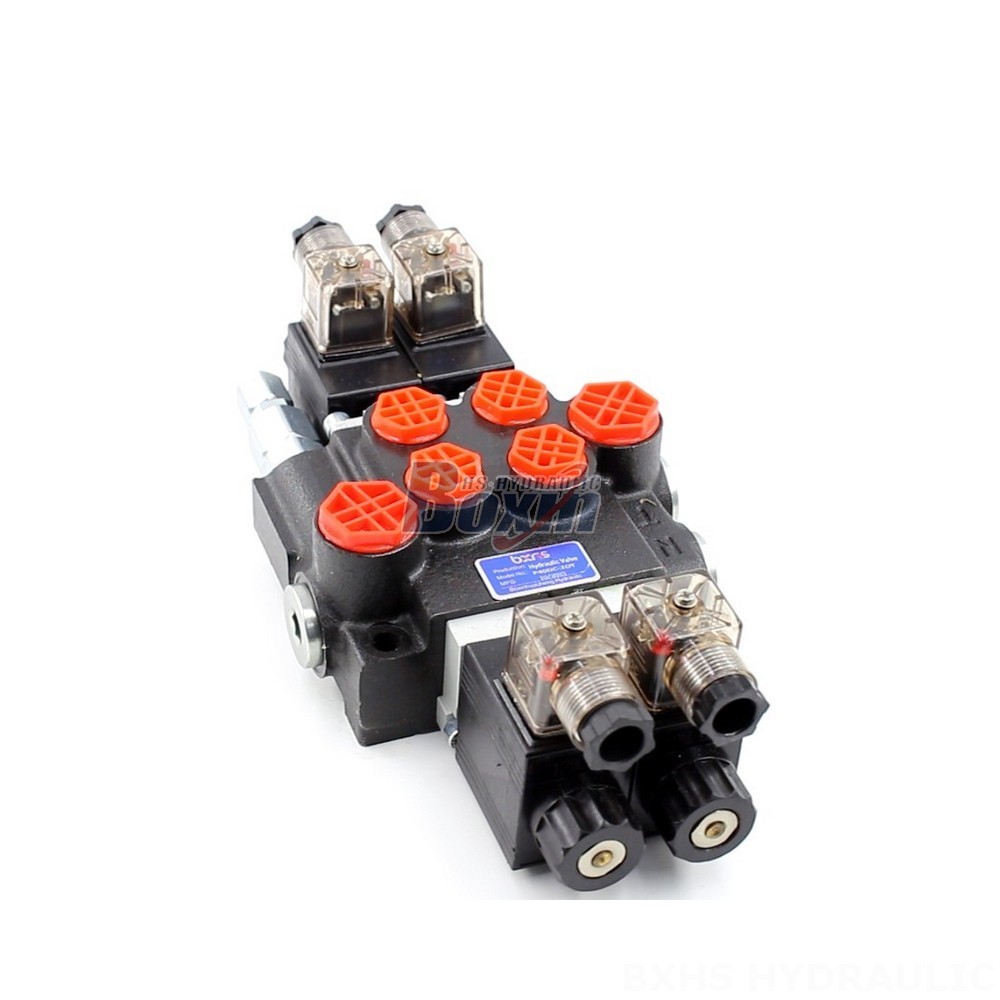

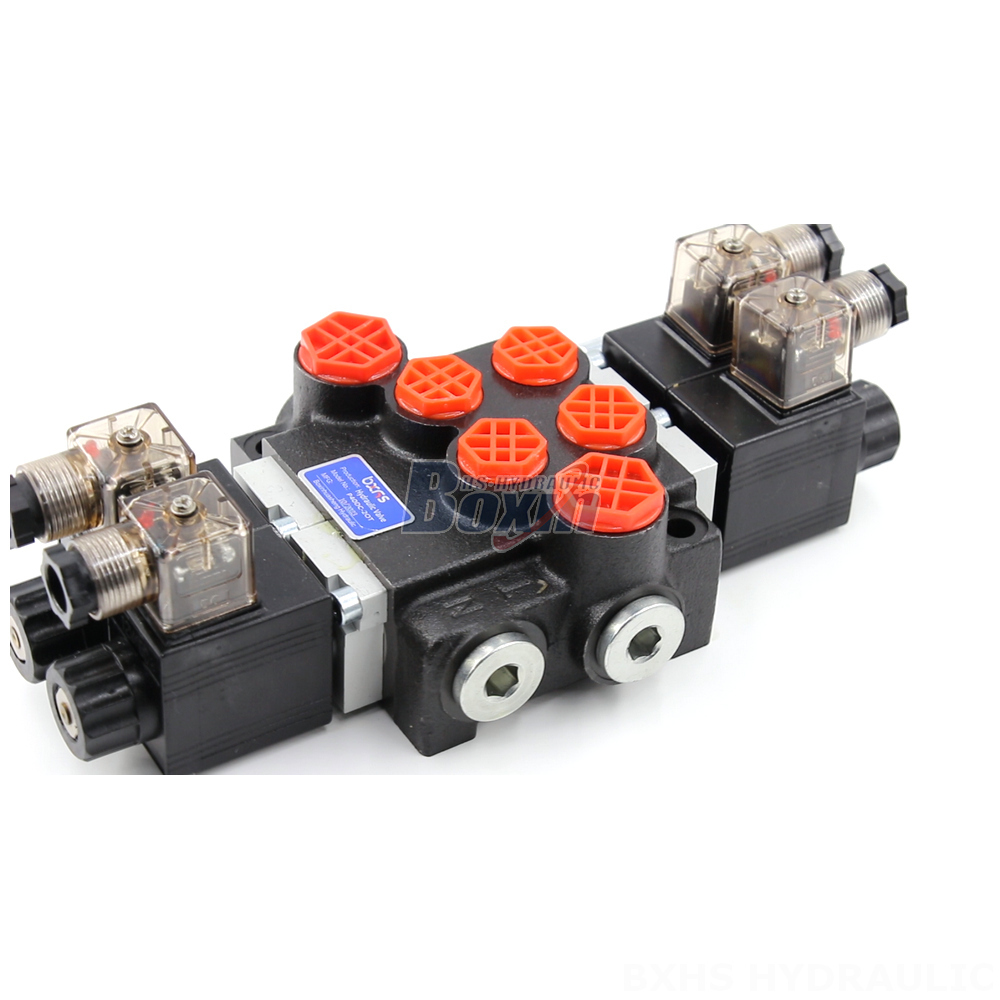

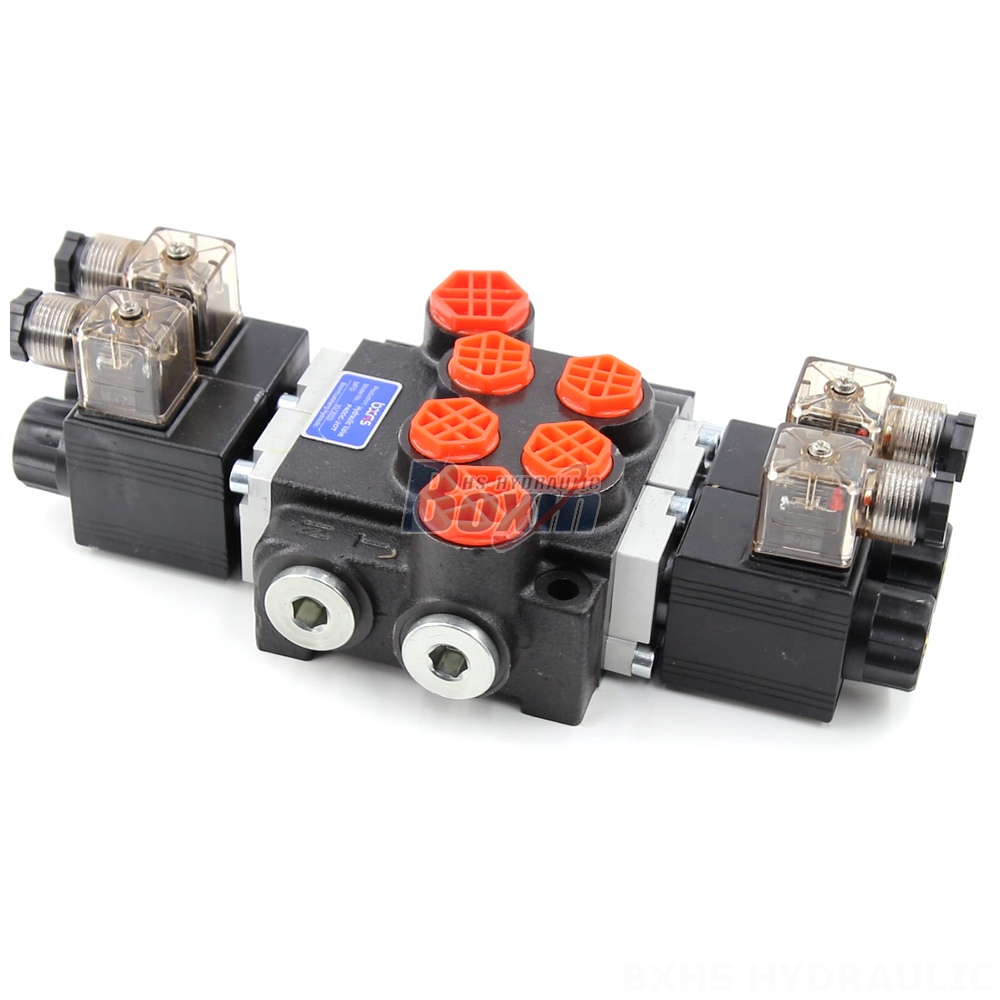

Hydraulic P40 Solenoid 2 Spool Monoblock Directional Valves

Steuermethode:Magnet

Steuerkolben:2 Spulen

Nennfluss:40 l/min (10,5 US gal/min)

Maximaldruck:250 bar (3600 psi)

Einlassanschluss:G1/2

Auslassanschluss:G1/2

Anschlussgröße:G3/8

Hersteller:BXHS

Produkttyp:Monoblock-Wegeventil

Produktserie:P40-Serie Monoblock-Wegeventil

Verpackungsgröße:30*18*12

Bruttogewicht:6.50 kg

Verfügbarkeit: Auf Lager

1613 Personen sehen sich dieses Produkt an

Hydraulic P40 Solenoid 2 Spool Monoblock Directional Valves

Hydraulic P40 Solenoid 2 Spool Monoblock Directional Valves

Hydraulic P40 Solenoid 2 Spool Monoblock Directional Valves drawing image

The P40 Series 2 Spool Monoblock Directional Valve is a high-performance solenoid-controlled hydraulic valve designed for demanding applications in material handling, construction, and agriculture. It features a robust design, high flow rate, and wide operating temperature range.

P40-Serie Monoblock-Wegeventil Parameter
Steuermethode Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug
Steuerkolben 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen
Umgebungstemperaturbereich -40 °C bis +80 °C (-40 °F bis +176 °F)
Strukturtyp Monoblockventil
Abschnitt 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt
Bereich der Betriebsviskosität 15 - 75 mm²/s (15 cSt bis 75 cSt)
Nennfluss 40 l/min (10,5 US gal/min)
Maximaldruck 250 bar (3600 psi)
Einlassanschluss G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Auslassanschluss G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
Anschlussgröße G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series 2 Spool Monoblock Directional Valve is a reliable and efficient solution for controlling hydraulic systems in various applications. It features a compact monoblock design, two spools for versatile operation, and a solenoid control method for precise actuation. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve can handle demanding hydraulic loads. Its wide operating temperature range from -40°C to +80°C ensures reliable performance in various environments. This valve is ideal for applications in material handling, construction, and agriculture, particularly in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers.
