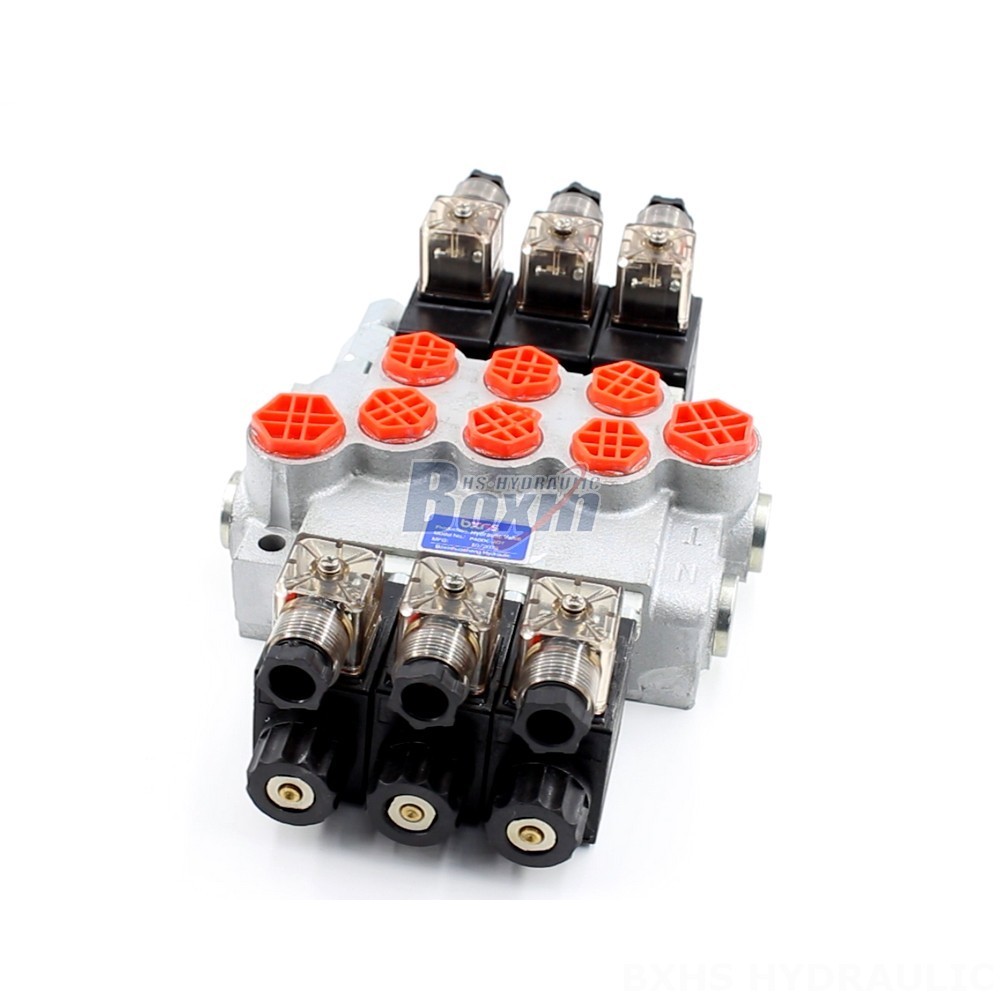

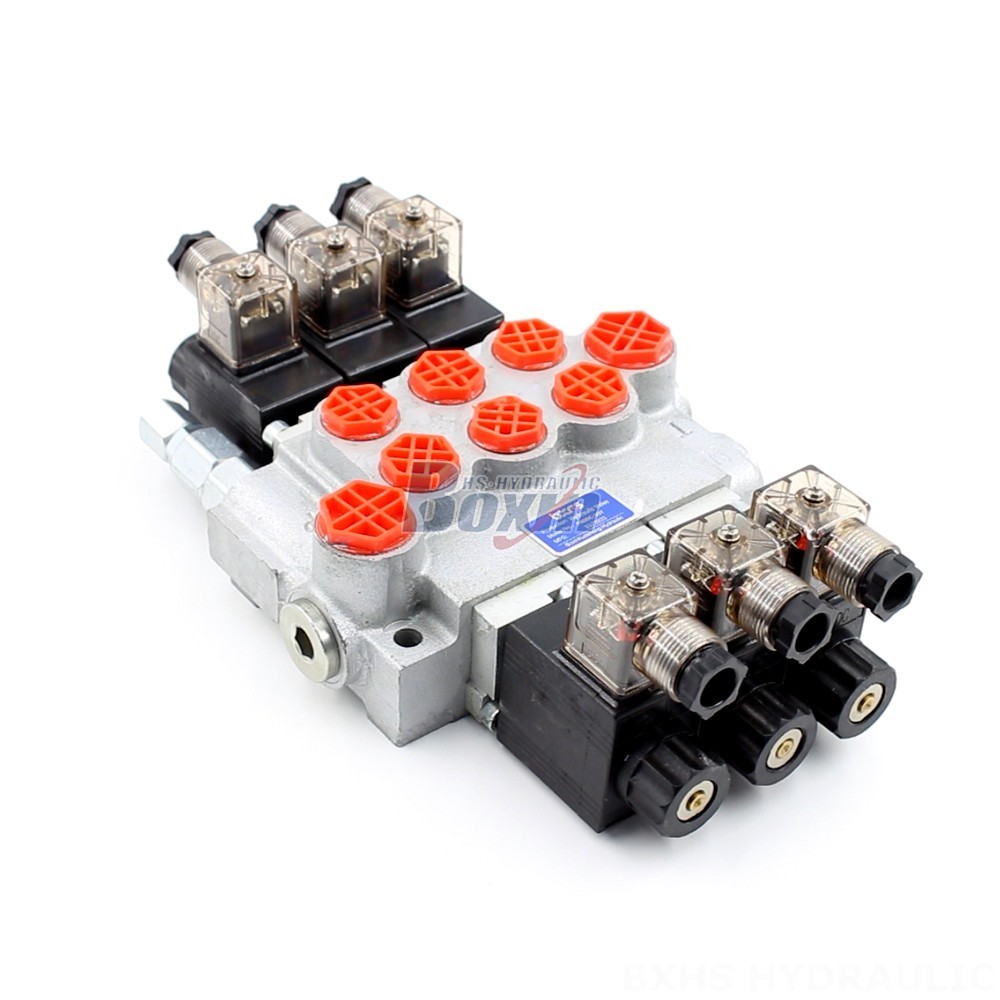

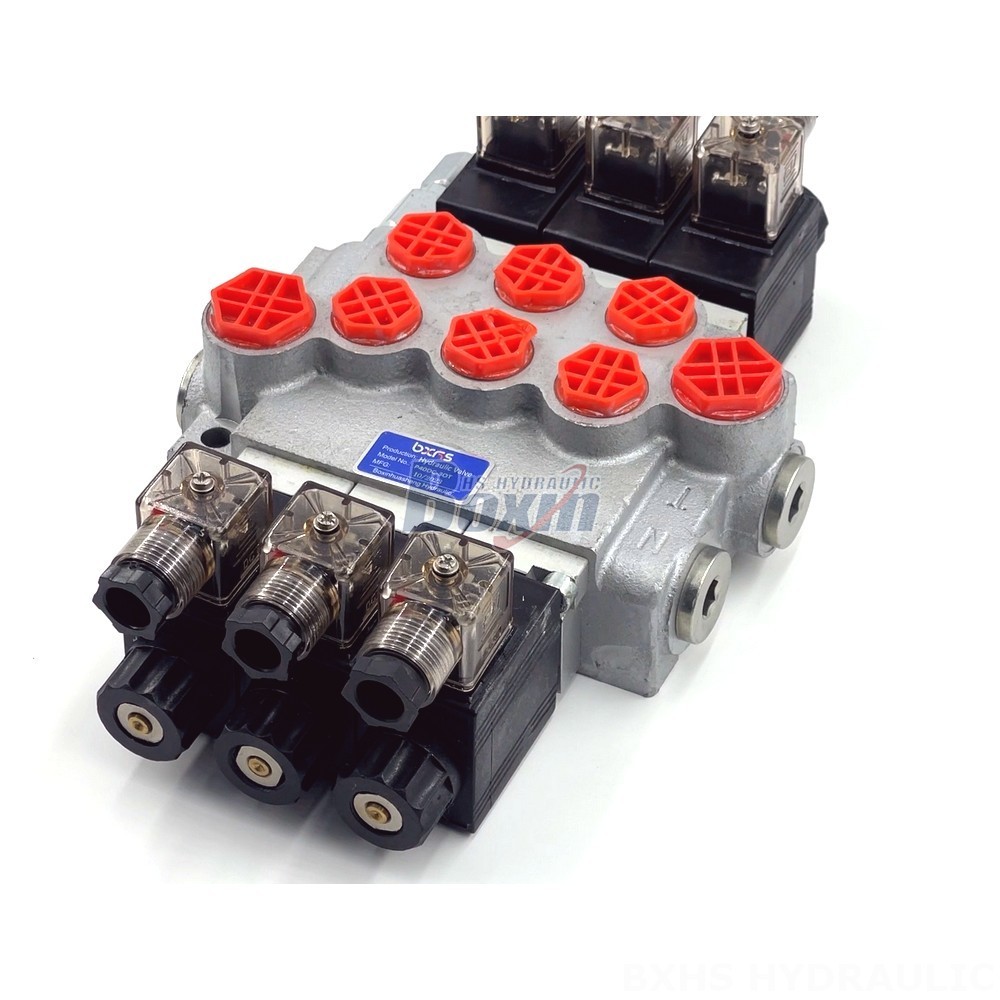

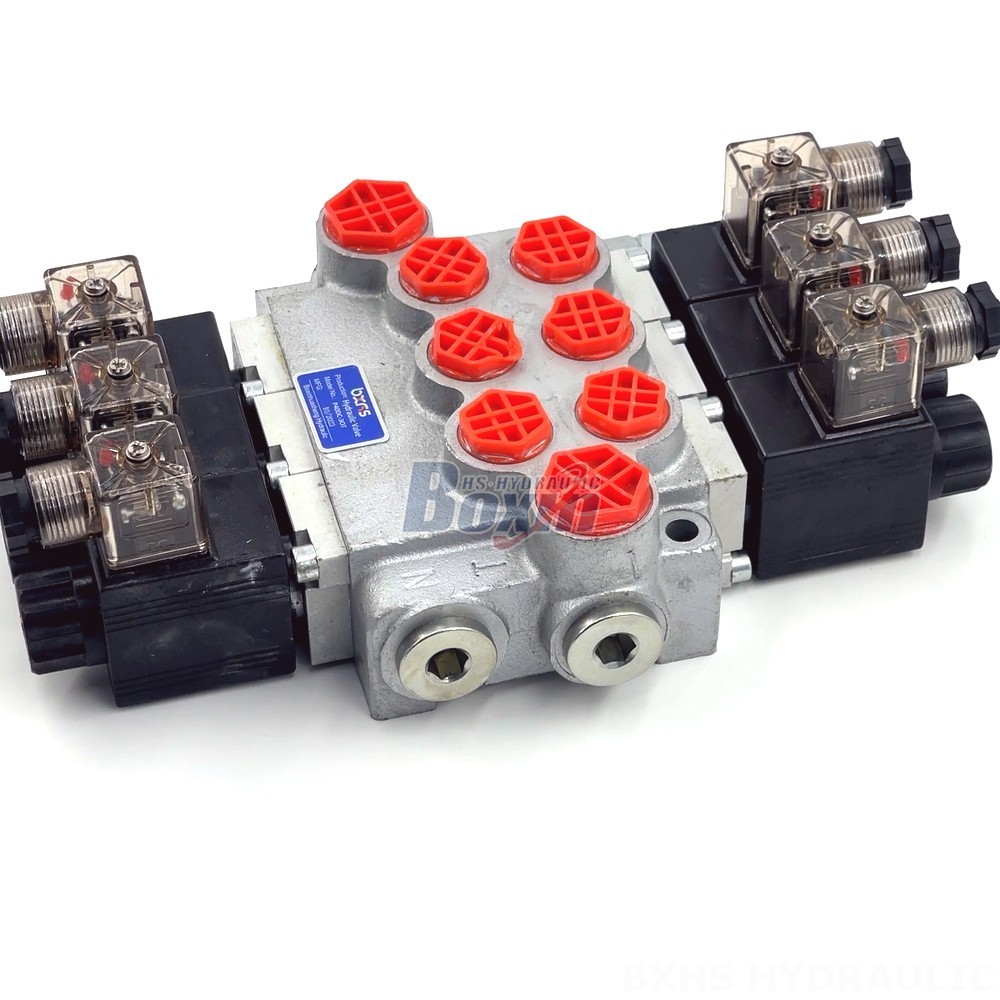

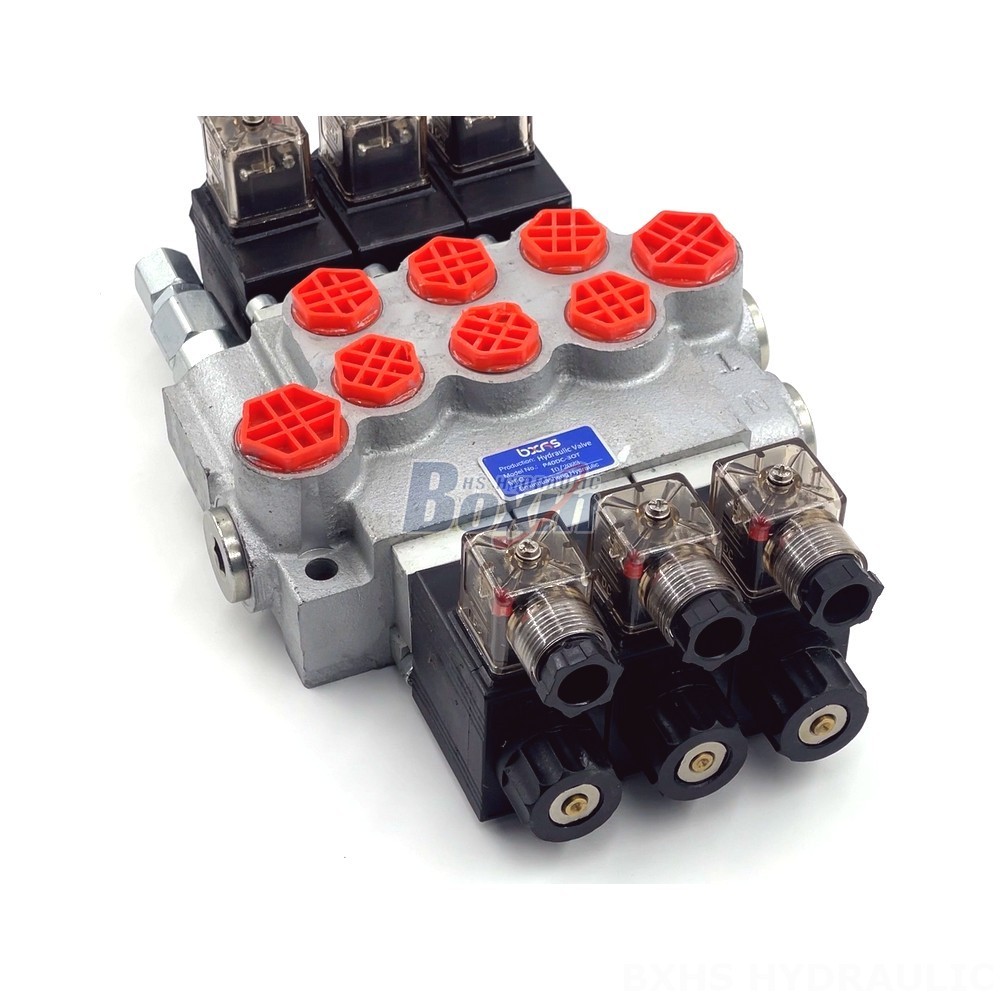

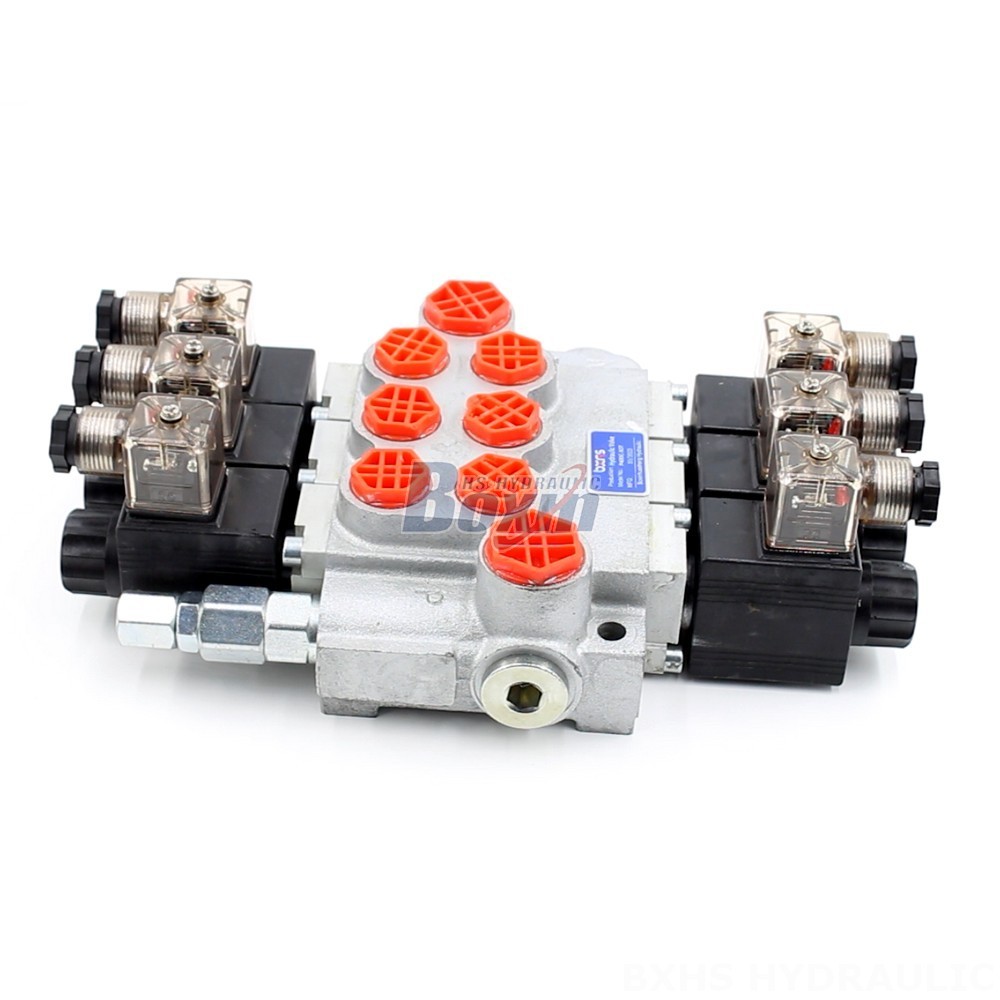

The P40-DKL Series Hydraulic Lever Hydraulic Monoblock Directional Valve is a reliable and high-performance valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This 3-section, solenoid-controlled valve features a rated flow of 40 L/min and a maximum pressure of 250 bar. It is available for wholesale and OEM purposes.
| P40-DKL-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Strukturtyp | Monoblockventil |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
The P40-DKL Series Hydraulic Lever Hydraulic Monoblock Directional Valve is a robust and versatile solution for controlling hydraulic systems. This 3-section valve features a monoblock construction for enhanced durability and compact design. The solenoid control mechanism allows for precise and responsive operation. The valve is rated for a flow rate of 40 L/min and can handle pressures up to 250 bar. The P40-DKL Series is suitable for a wide range of applications including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini-excavators, skid steer loaders, and compact wheel loaders. We offer this valve for wholesale and OEM purposes, enabling you to integrate it into your own machinery or purchase in bulk for your specific needs. Contact us for more information about this product and its availability.
