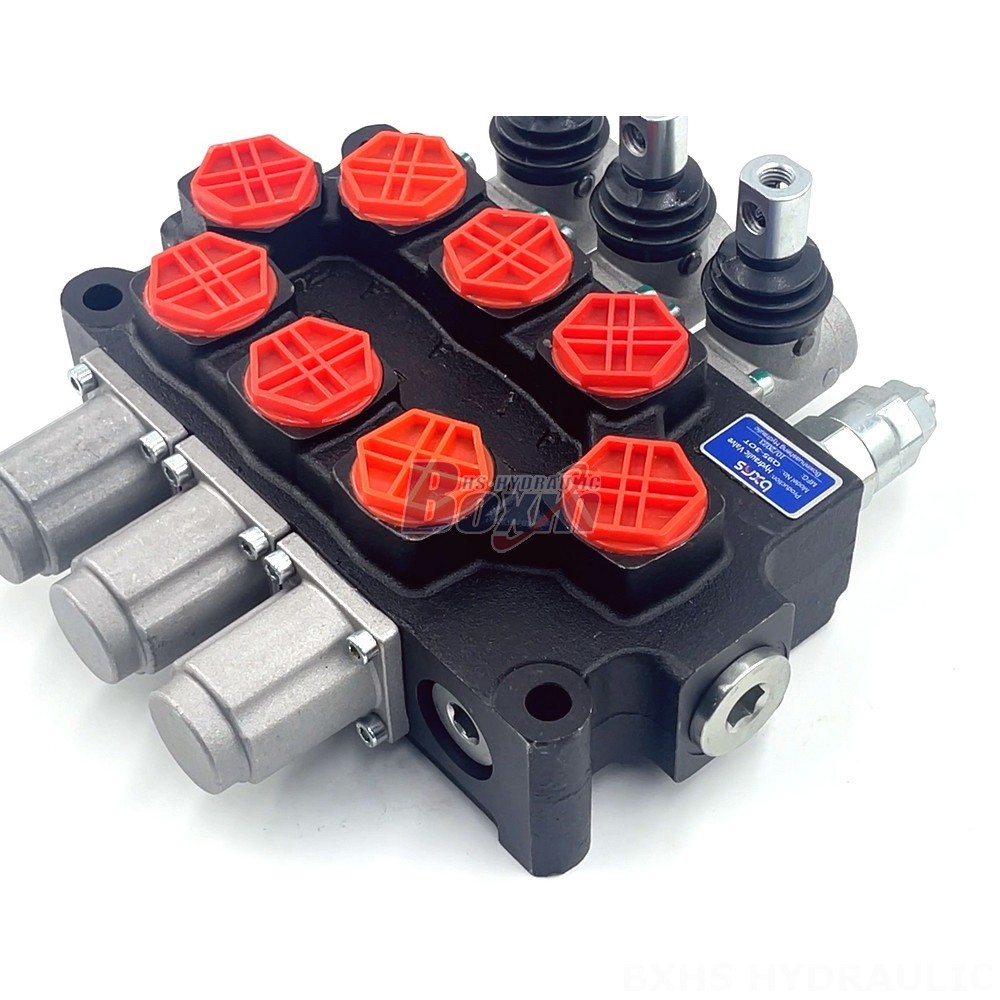

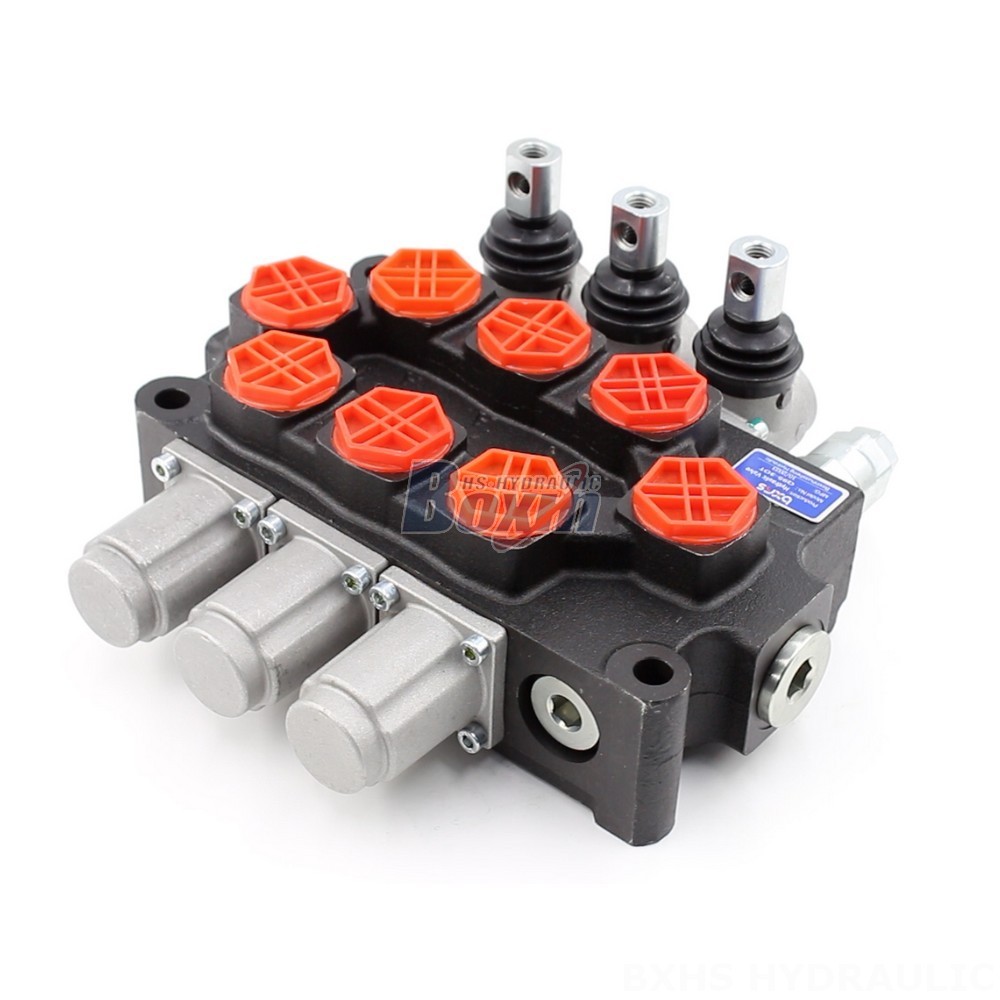

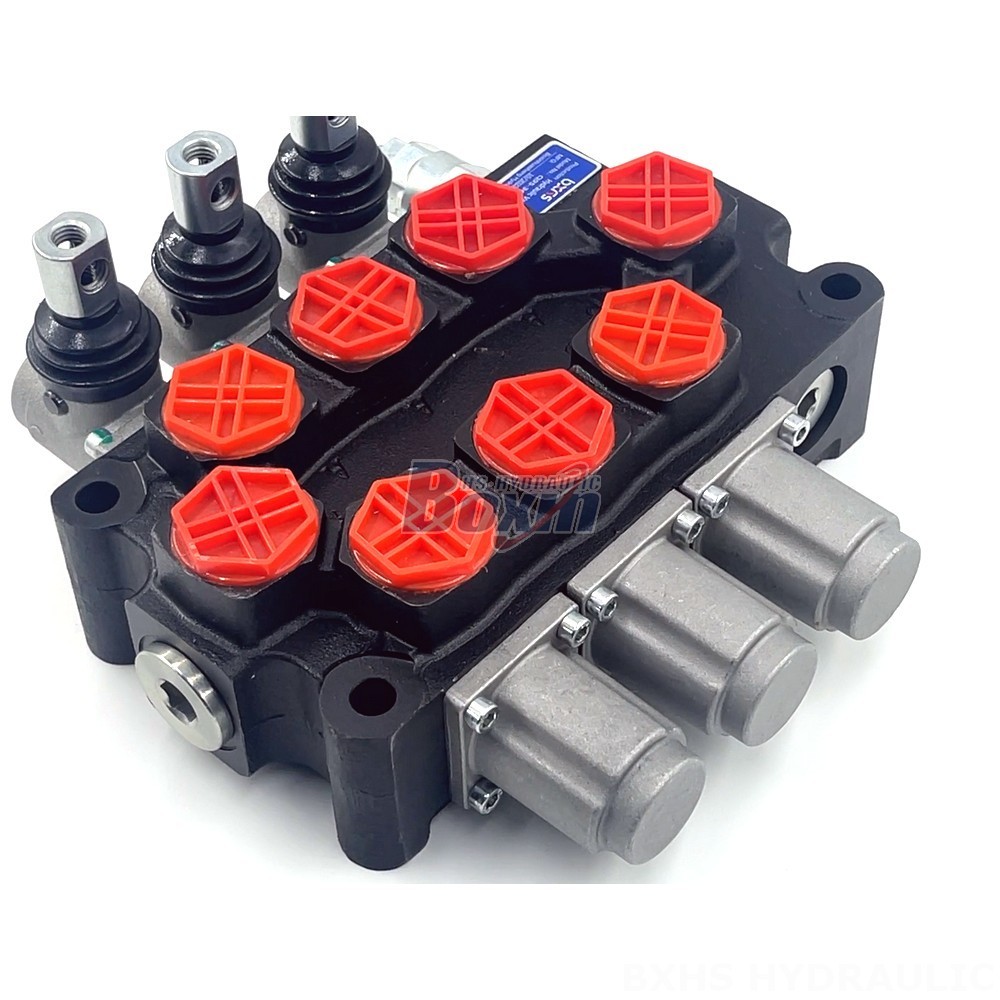

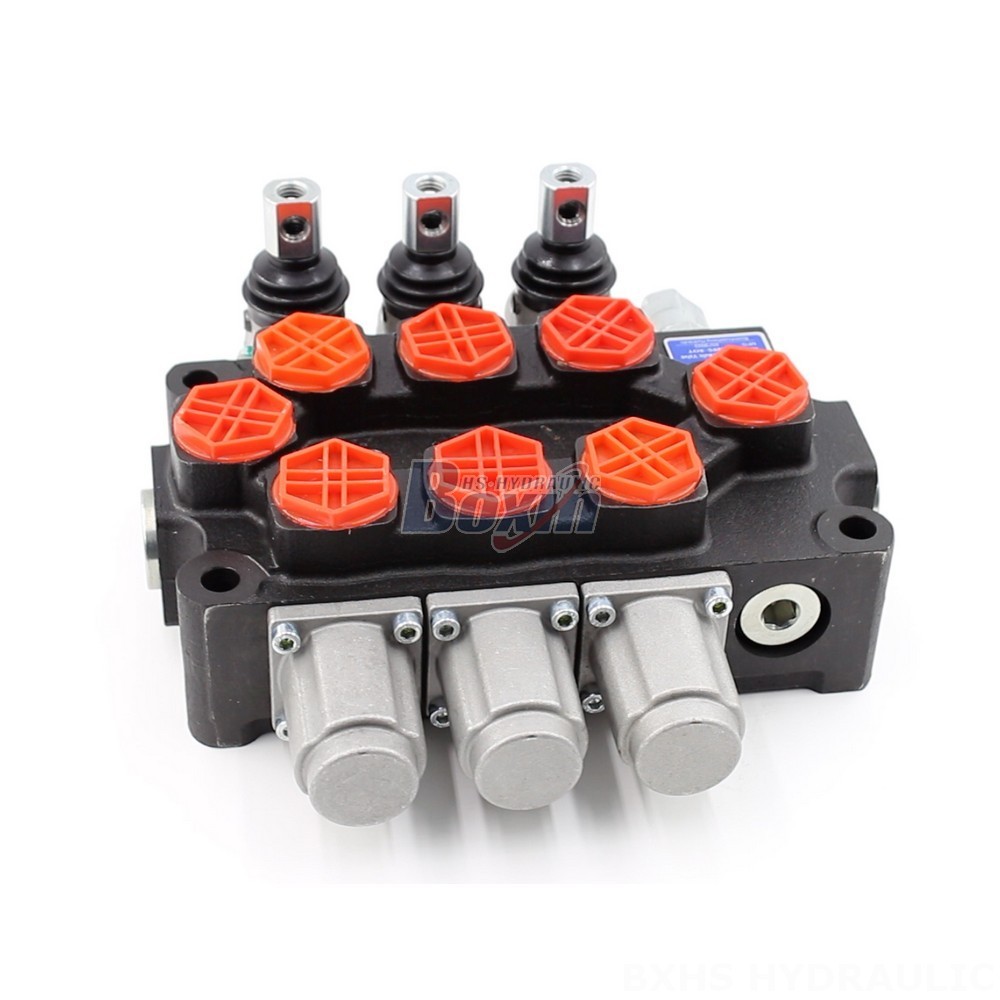

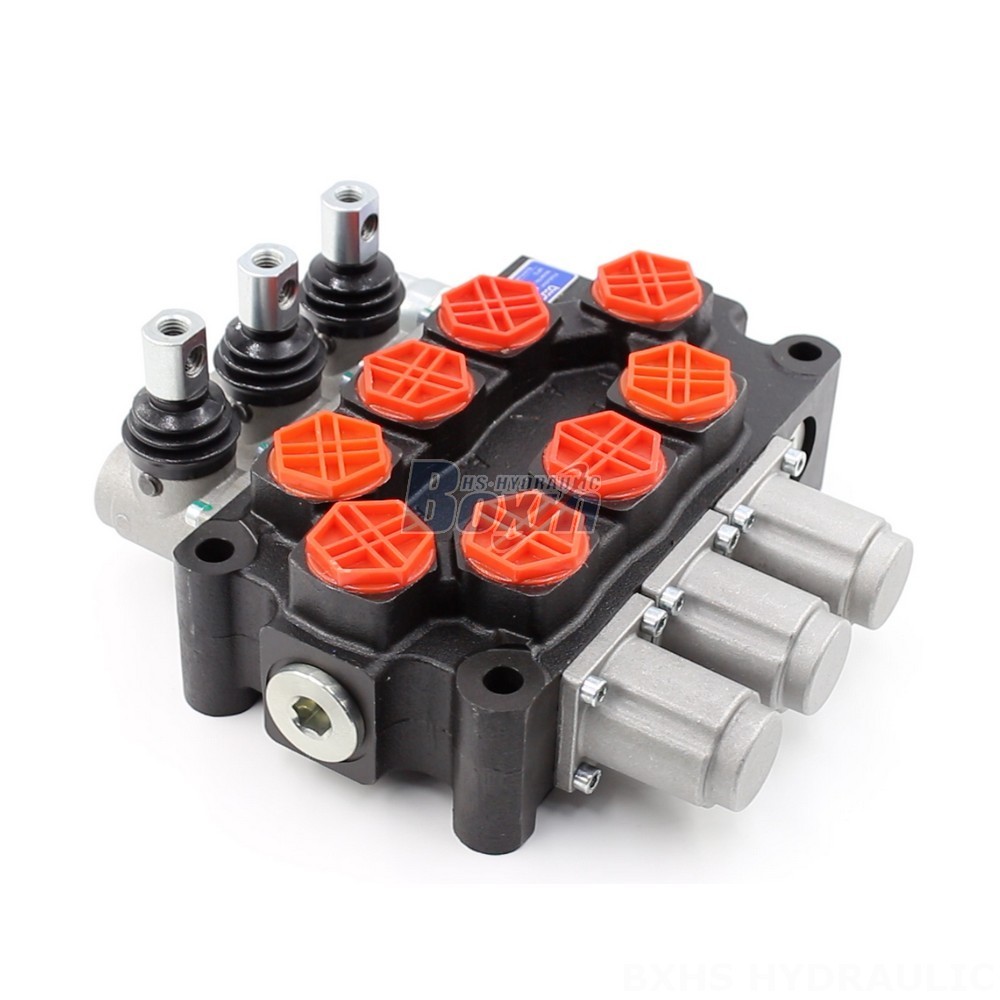

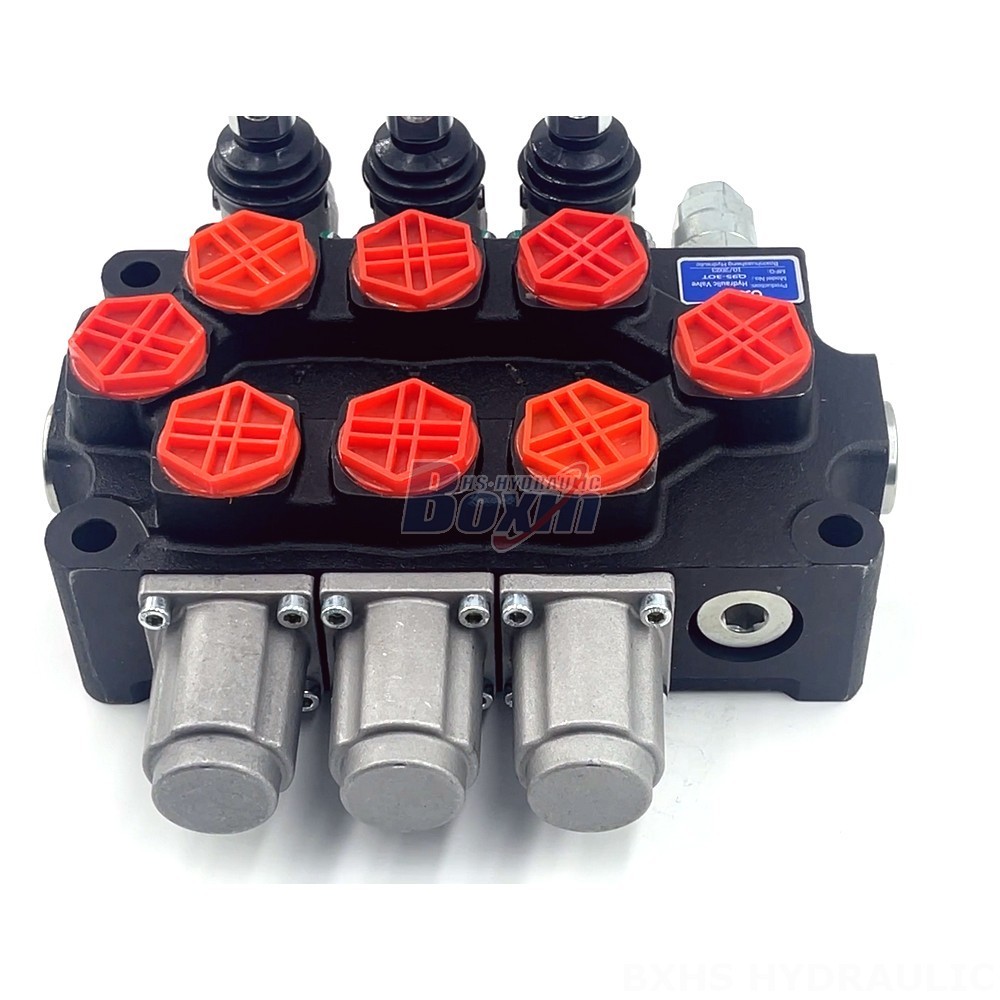

Introducing the Q95 Monoblock Valve, a revolutionary solution for fluid distribution. Engineered for exceptional performance, it boasts a rated flow of 95 L/min, a maximum pressure of 315 bar, and a wide operating viscosity range. Its compact design and versatile applications make it ideal for various industries, including material handling, construction, agriculture, and industrial vehicles.
| Q95 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Nennfluss | 95 l/min (25,1 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G3/4 |
| Auslassanschluss | G3/4 |
| Anschlussgröße | G3/4 |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Strukturtyp | Monoblockventil |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
The Q95 Monoblock Valve is meticulously crafted with a 3-section, monoblock structure, ensuring durability and precision. Its 3-spool design allows for versatile flow control, while the wide operating viscosity range of 15 - 75 mm²/s accommodates diverse fluid types. Engineered to withstand extreme temperatures from -40°C to +80°C, this valve guarantees reliable operation in challenging environments. Its compatibility with various applications, including telehandlers, forklifts, all-terrain cranes, and agricultural machinery, makes it a versatile solution for fluid distribution needs.
