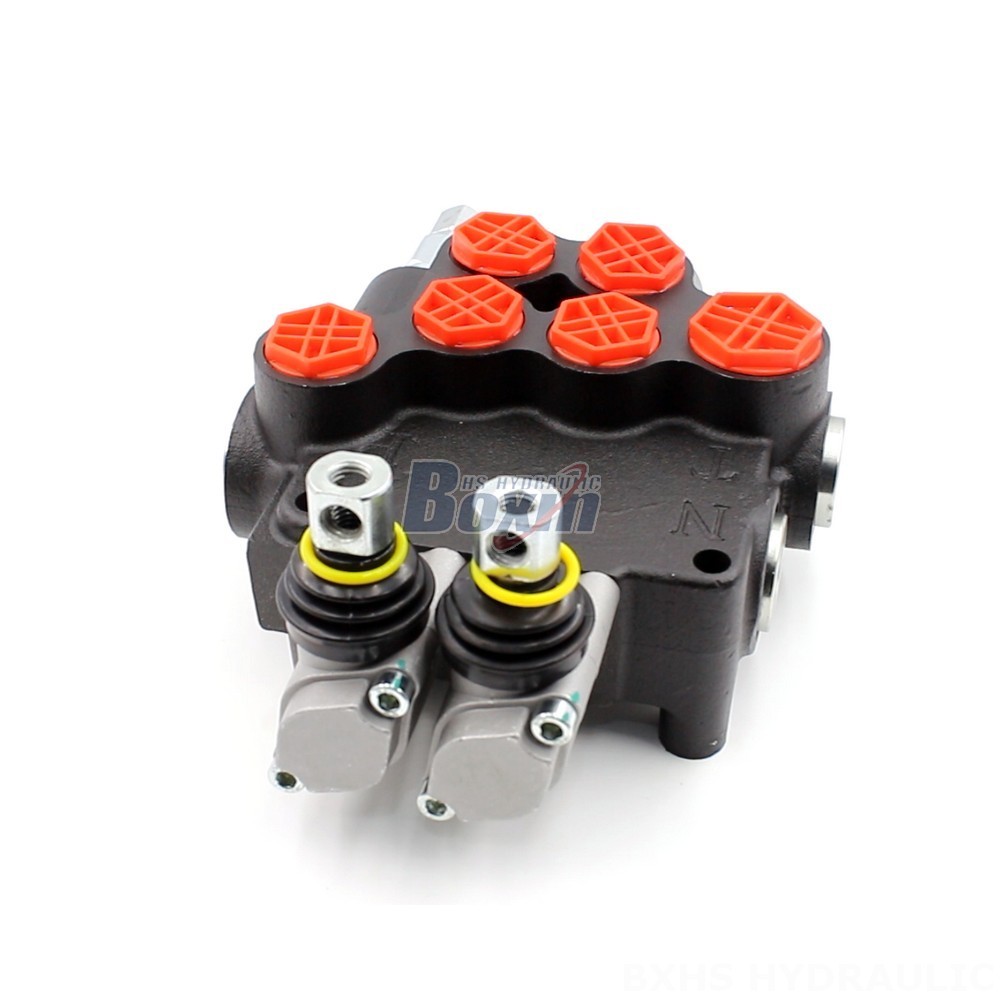

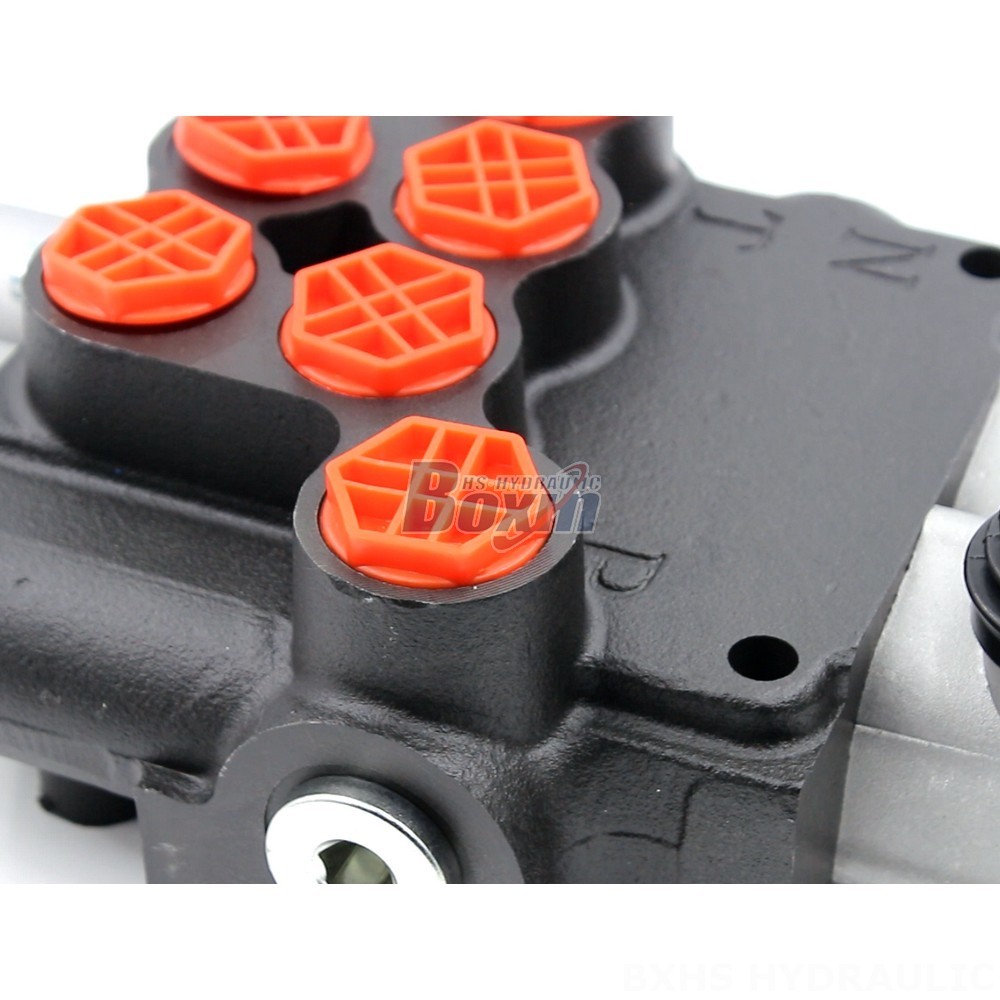

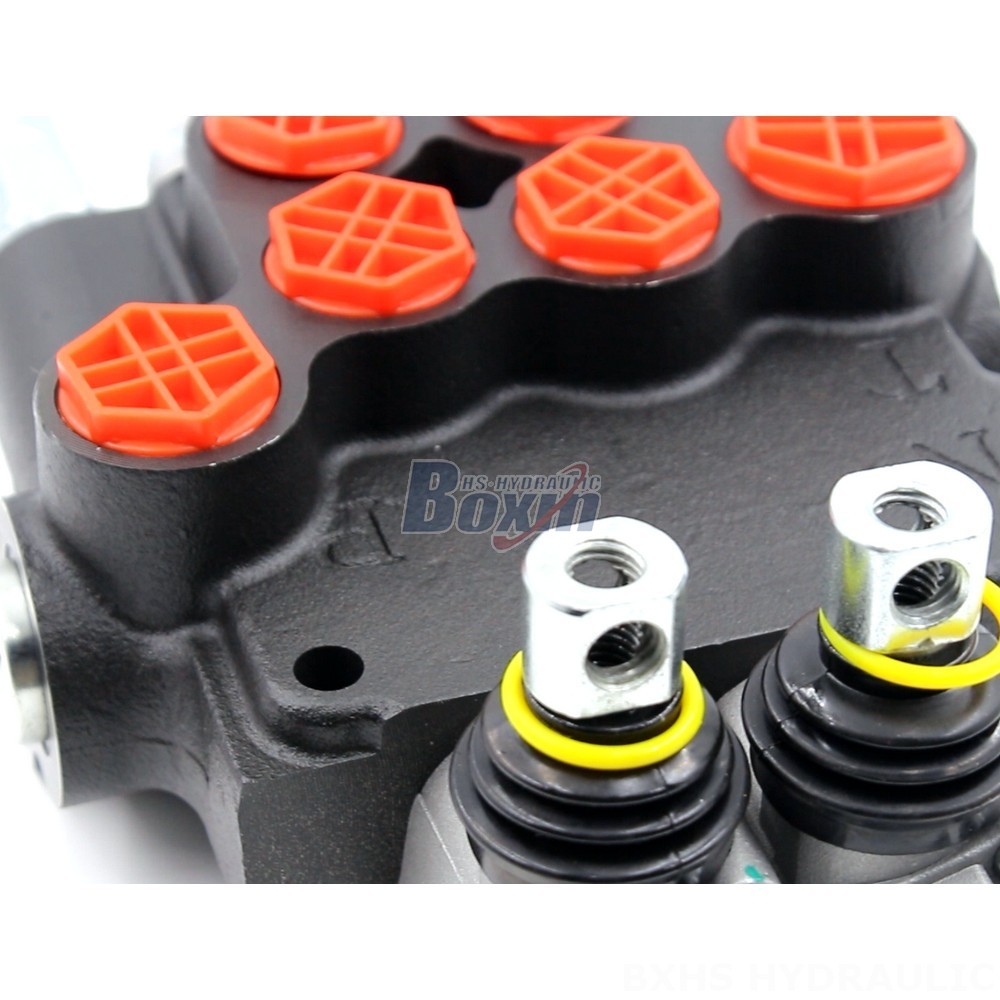

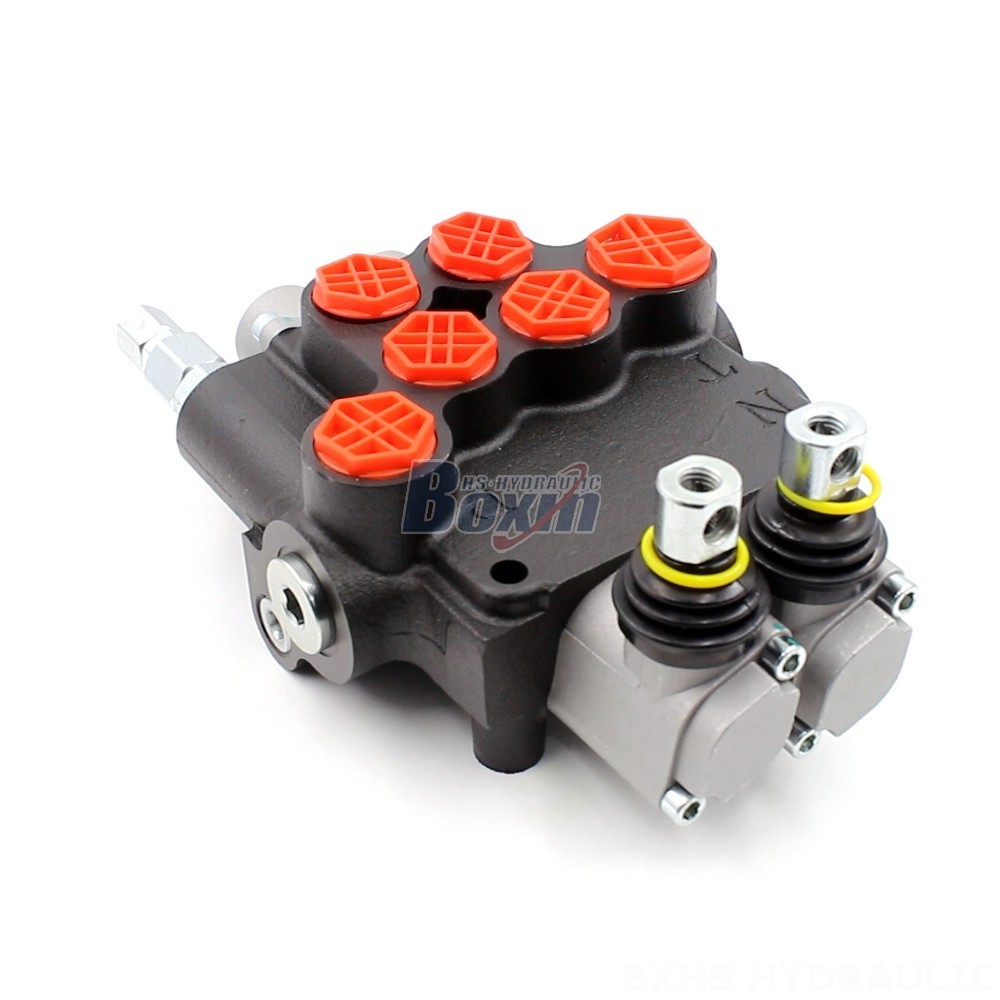

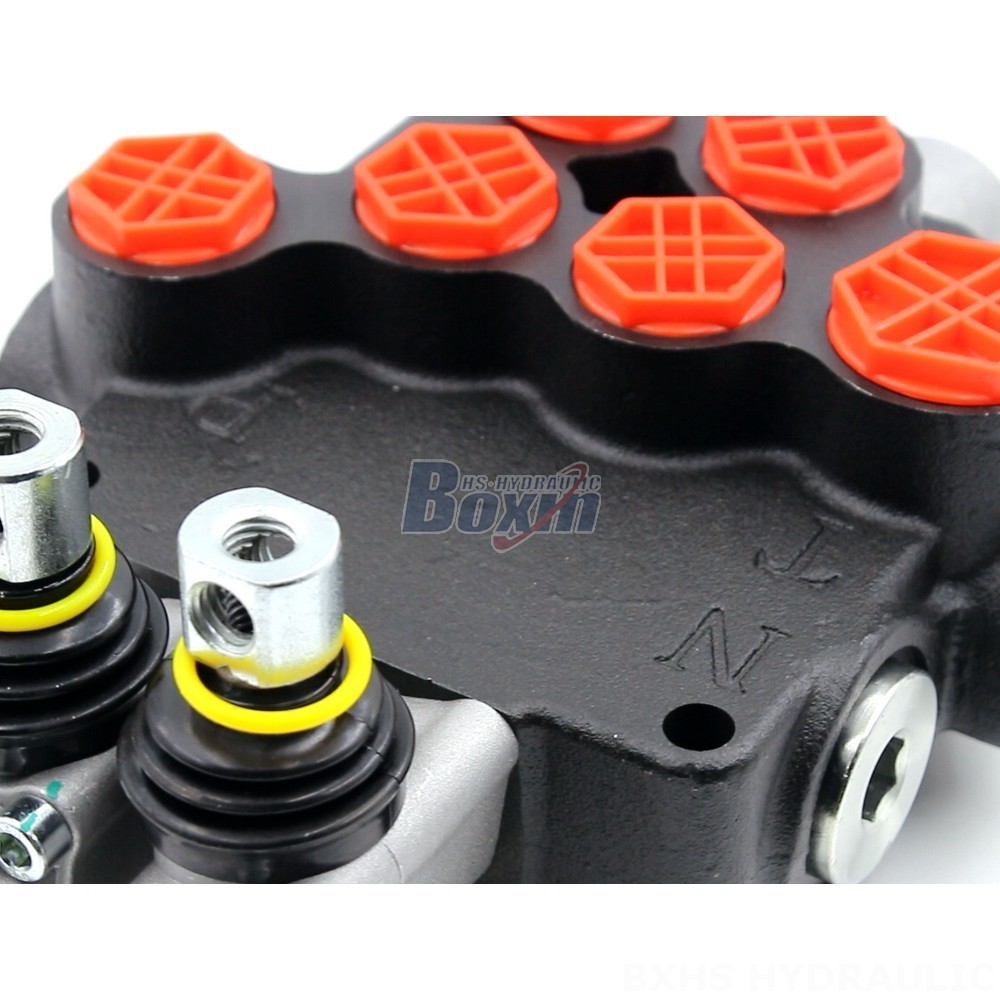

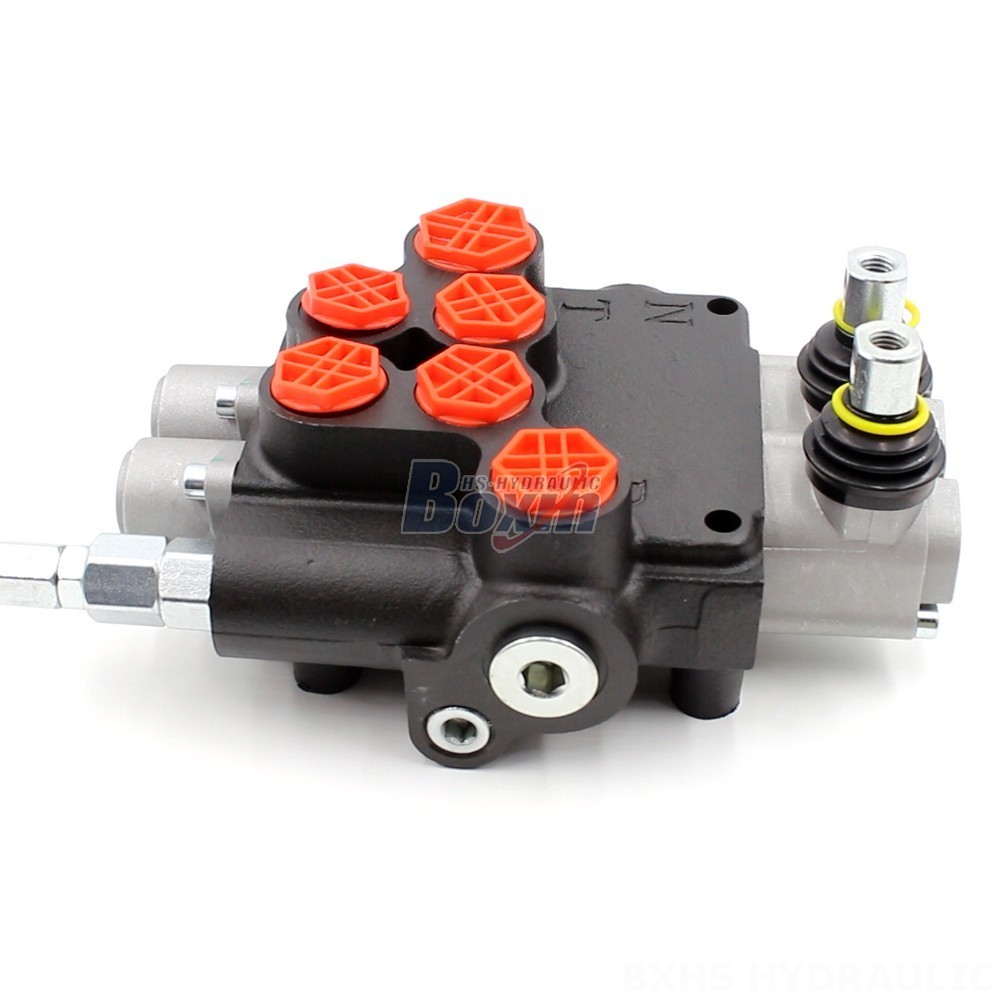

The P80-G12-G34-OW is a high-performance hydraulic directional valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. This manual control, 2-section monoblock valve offers a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for a wide range of mobile equipment.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-G12-G34-OW is a reliable and durable hydraulic directional valve featuring a robust monoblock construction and a 2-spool design. It offers a rated flow of 80 L/min and a maximum pressure of 250 bar, ensuring efficient operation in demanding environments. The valve is suitable for various applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders. The P80-G12-G34-OW is a manual control valve, allowing for precise and intuitive operation. With a wide operating viscosity range (15-75 mm²/s) and an ambient temperature range of -40°C to +80°C, this valve is designed to withstand diverse operating conditions. Its compact size and lightweight design make it easy to install and integrate into various hydraulic systems.
