The Hydraulic Directional Control Valve P80-G12-G38-QW is designed to enhance system efficiency in various applications. It features a manual control method, a monoblock valve structure, and a rated flow of 80 L/min. With a maximum pressure of 250 bar, it is suitable for a wide range of applications in material handling, construction, agriculture, and industrial vehicles.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |

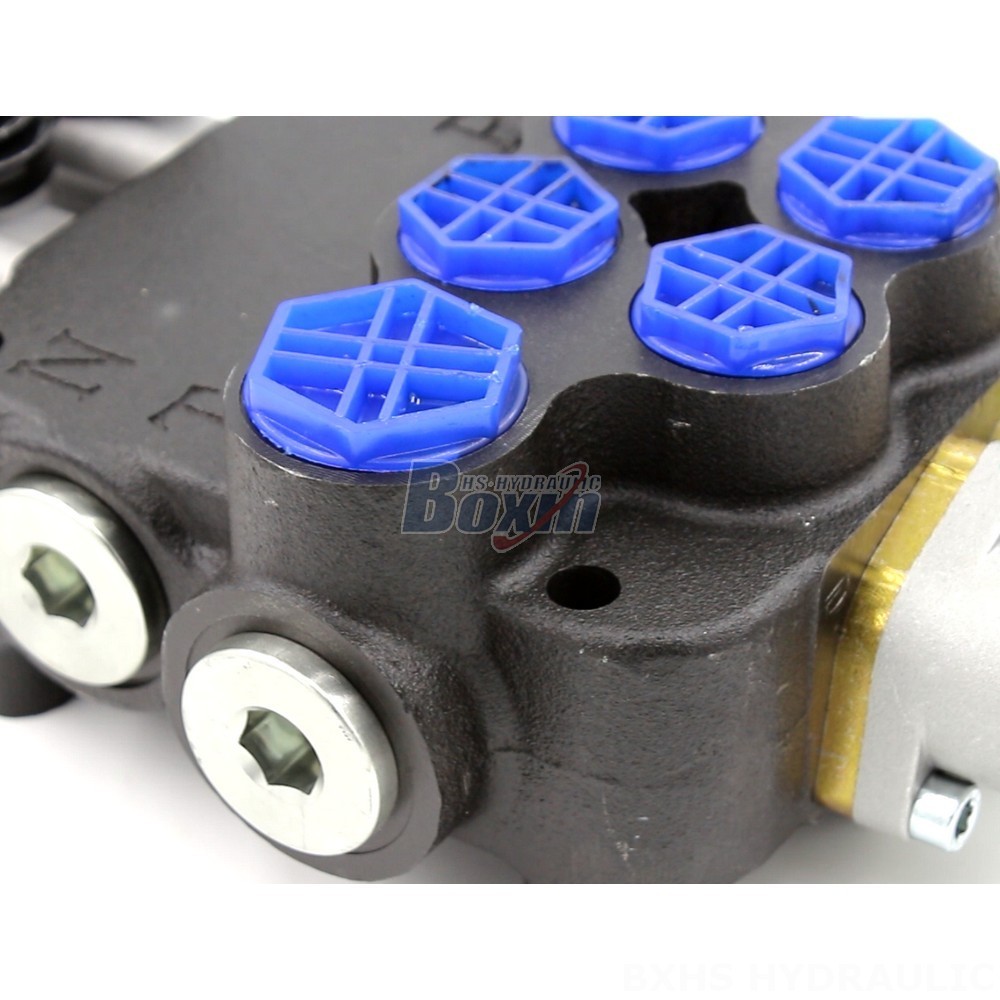

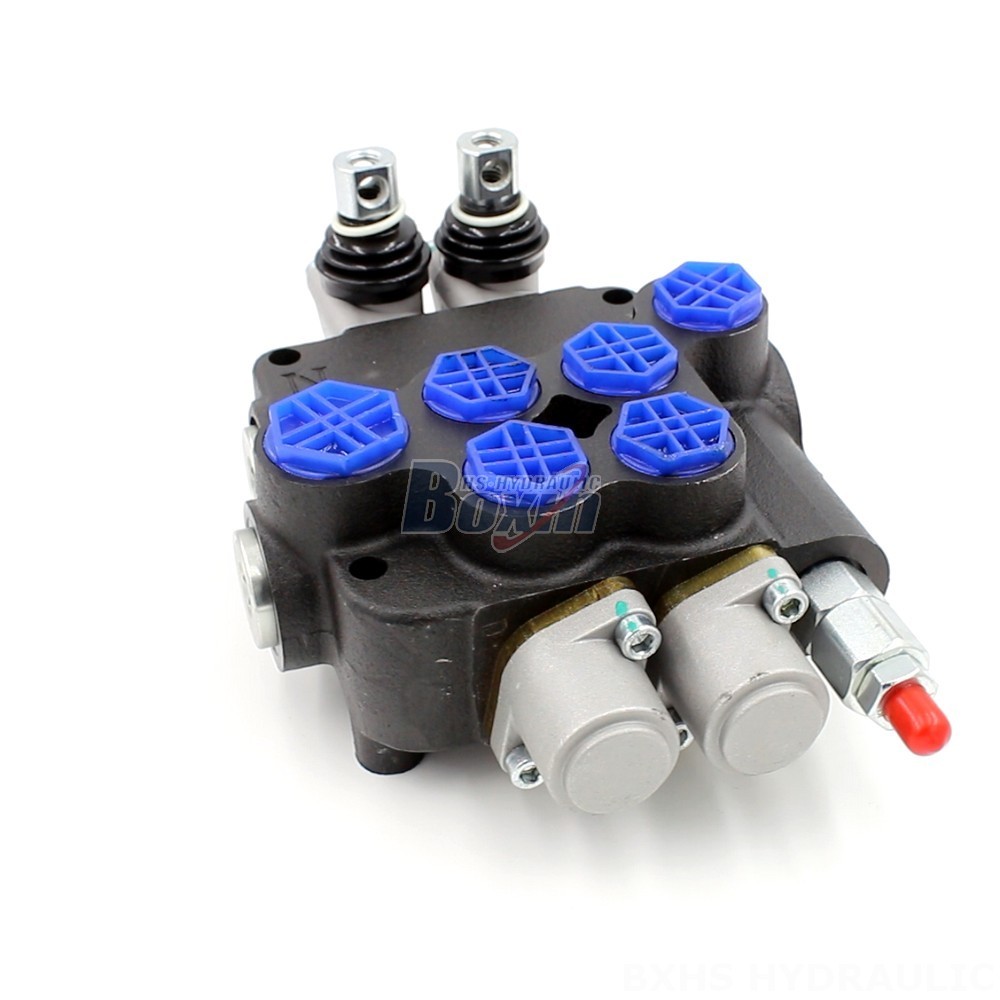

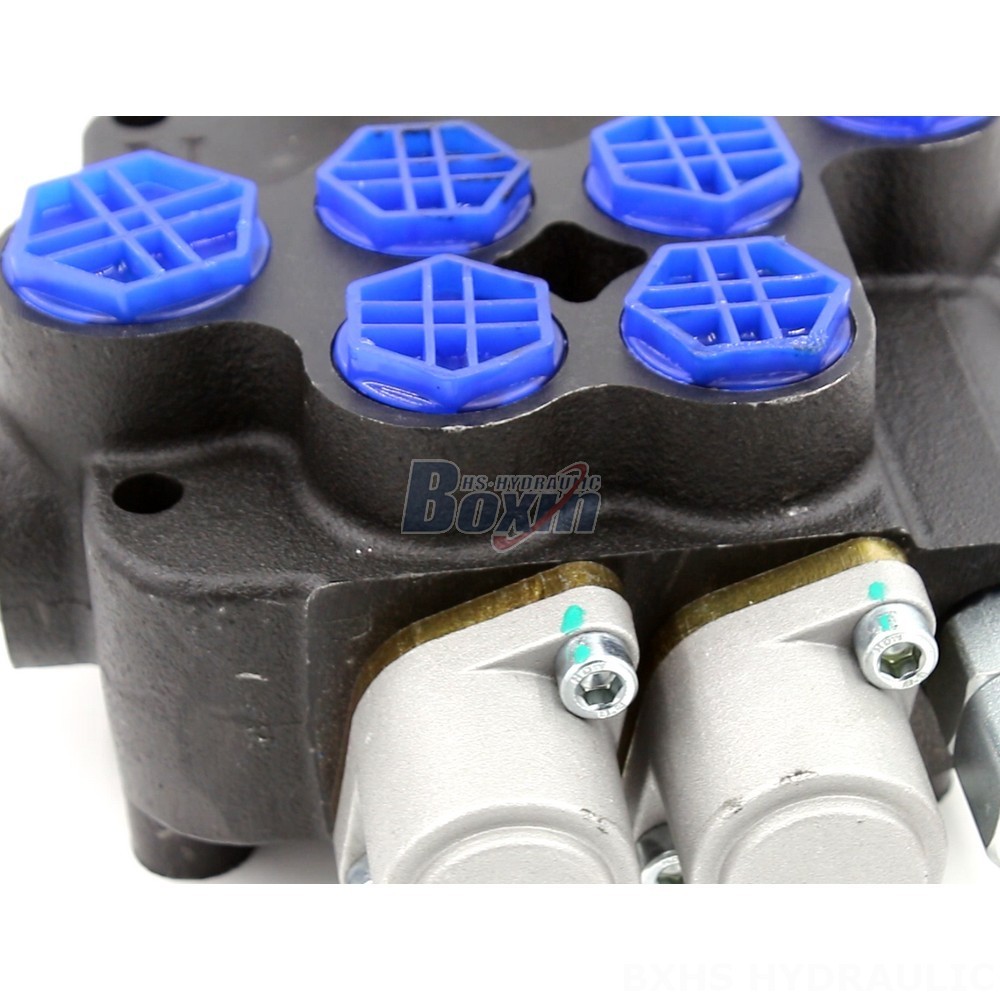

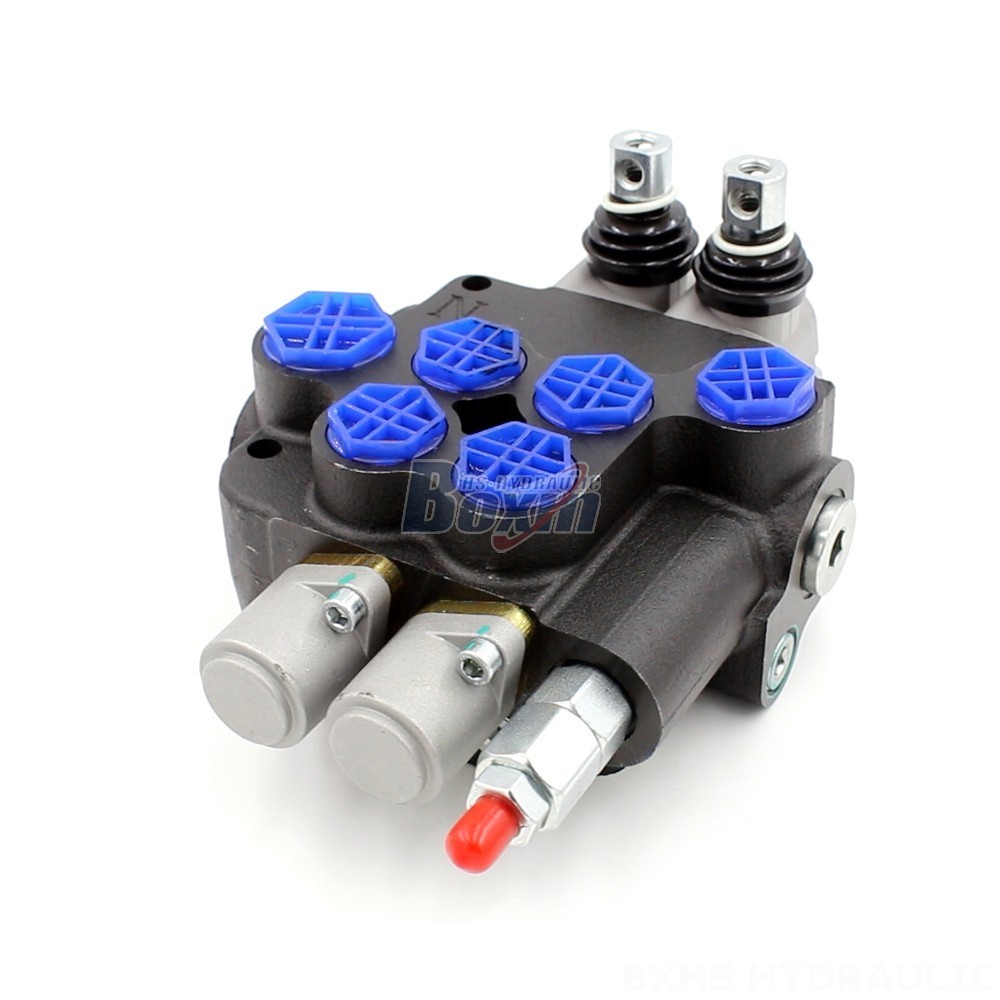

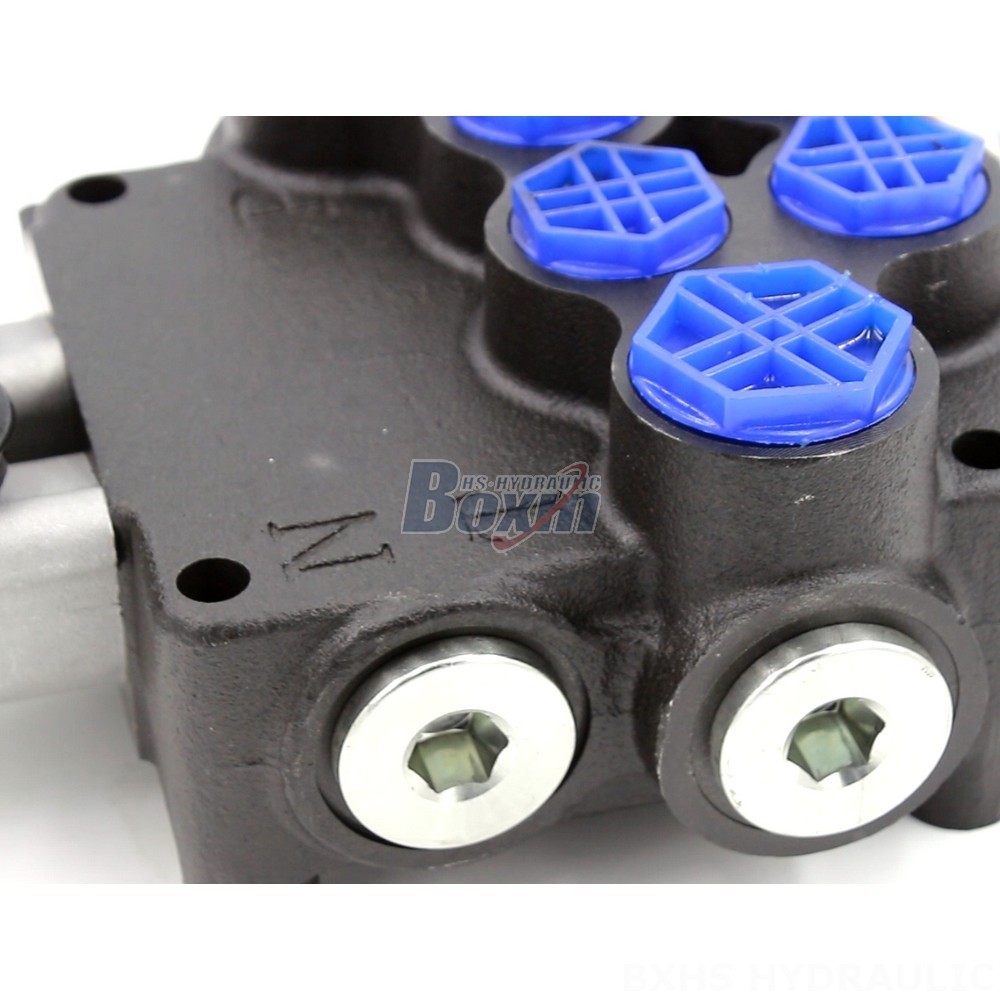

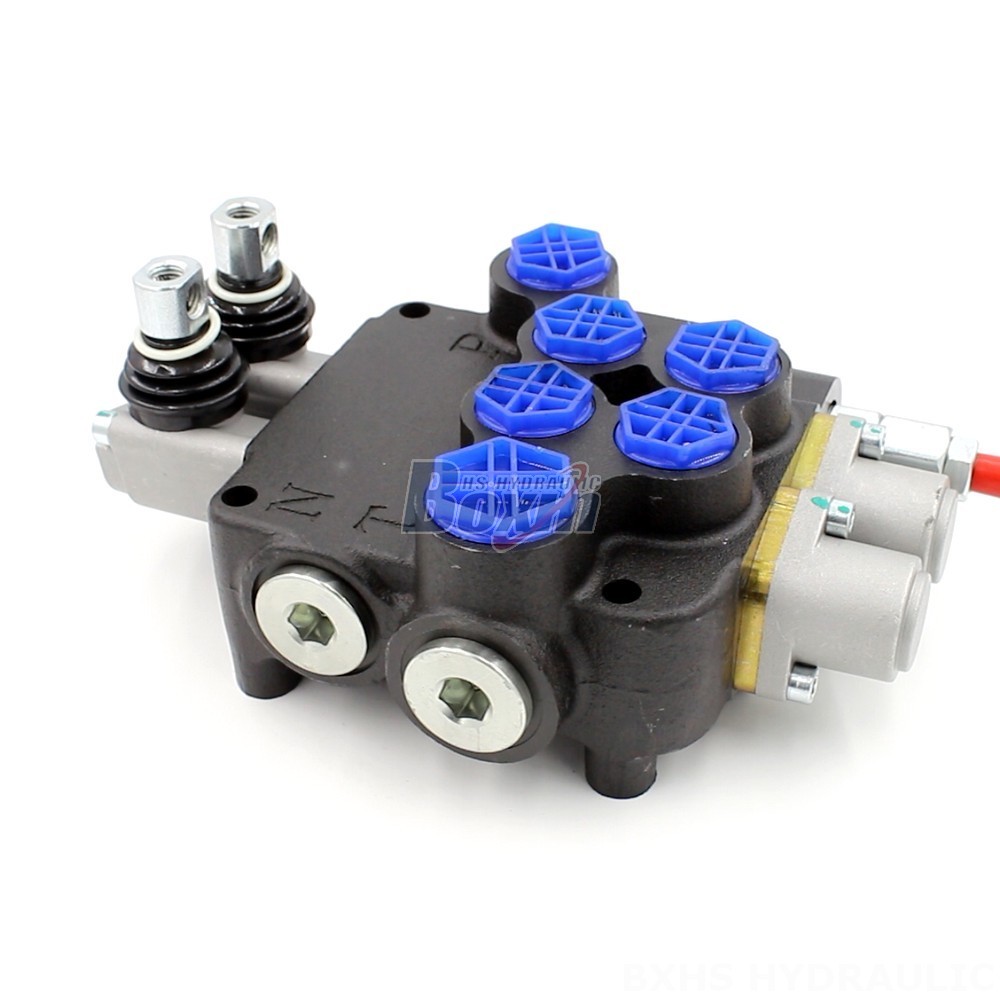

**Hydraulic Directional Control Valve P80-G12-G38-QW**
**Key Features:**
* Manual control method for precise operation
* Monoblock valve structure for compact and reliable design
* Enhanced system efficiency for improved performance
* Rated flow of 80 L/min (21.2 US gpm) for high flow applications
* Maximum pressure of 250 bar (3600 psi) for demanding applications
* Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluids
* Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for use in extreme conditions
* 2 spool design for versatile control options
* P80 Series for compatibility with other P80 valves
* Applications: Material Handling, Construction and Earth Moving, Agriculture, Industrial Vehicles
* Applicable Models: Telehandler, Forklift, All Terrain Crane, Stacker, Aerial Platform, Motor Grader, Midi-Excavator, Mini-Excavator, Backhoe Loader, Skip Loader
