Steuermethode:Manuell

Steuerkolben:5 Spulen

Nennfluss:80 l/min (21,2 US gal/min)

Maximaldruck:250 bar (3600 psi)

Einlassanschluss:G3/4

Auslassanschluss:G3/4

Anschlussgröße:G3/4

Hersteller:BXHS

Produkttyp:Monoblock-Wegeventil

Produktserie:Serie P80F Monoblock-Wegeventil

Verpackungsgröße:26*30*11

Bruttogewicht:16.00 kg

Verfügbarkeit: Auf Lager

1256 Personen sehen sich dieses Produkt an

Hydraulic Directional Control Valve | Manufacturer & Global Supplier

Hydraulic Directional Control Valve | Manufacturer & Global Supplier

Hydraulic Directional Control Valve | Manufacturer & Global Supplier drawing image

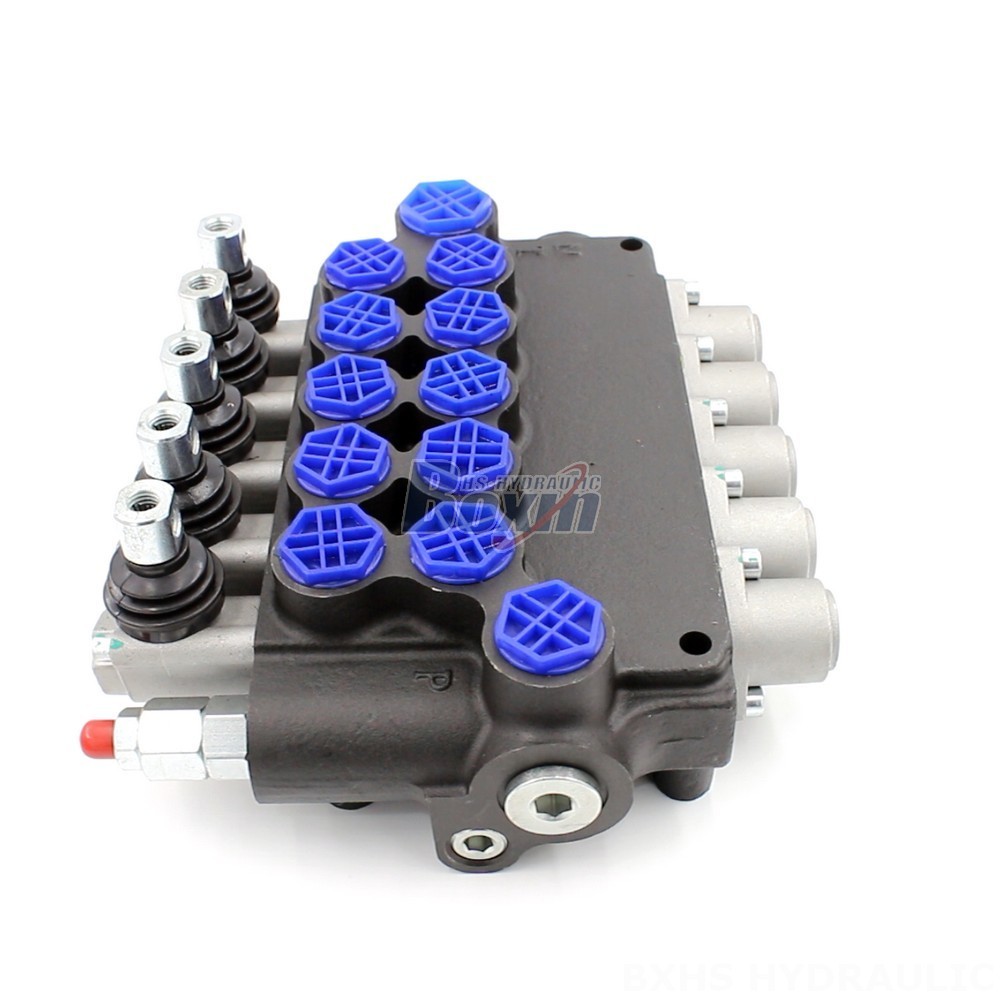

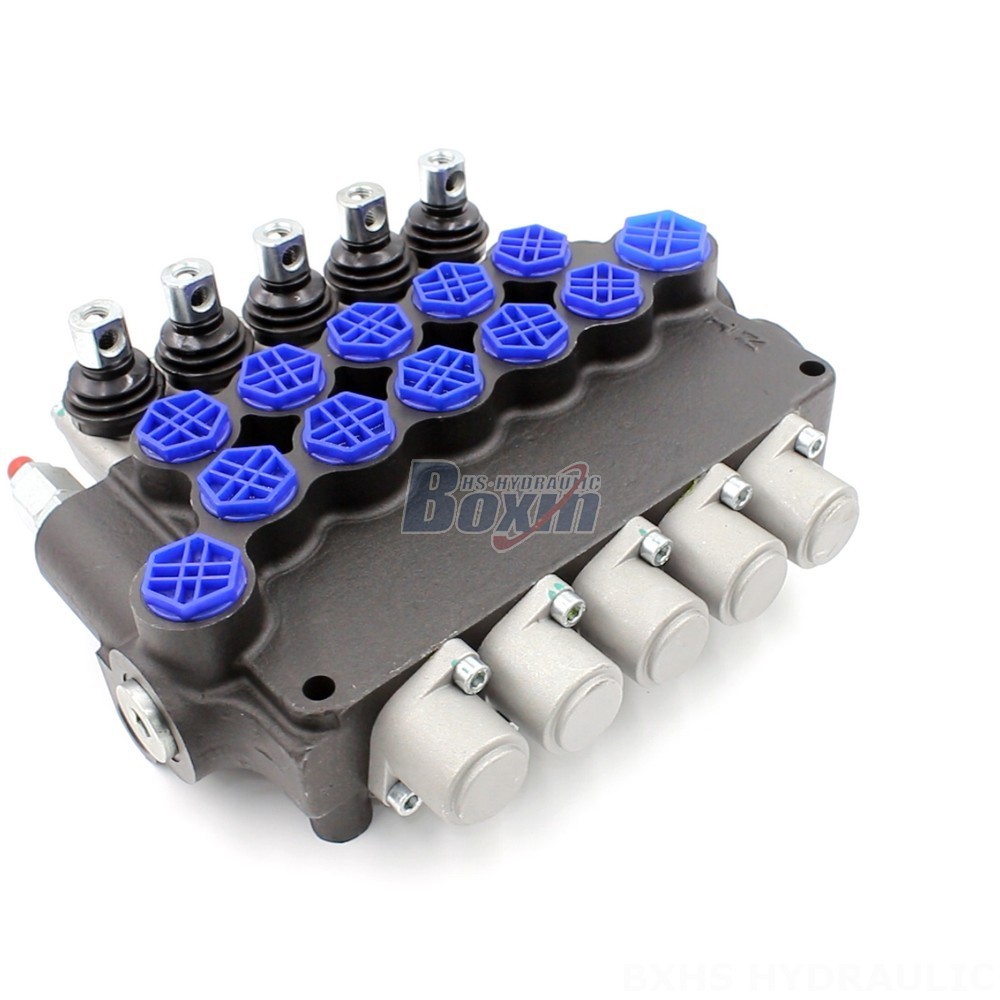

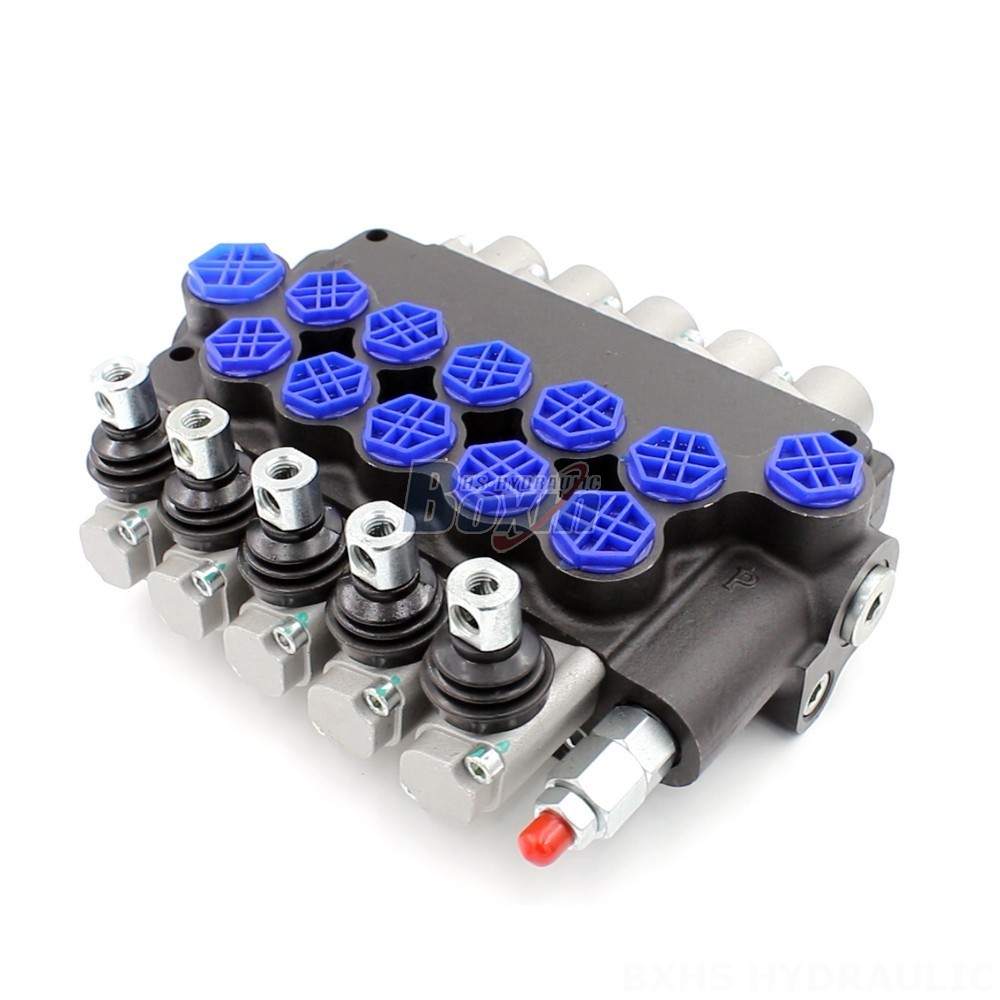

The P80F Series Electric Actuated Hydraulic Directional Control Valve is a reliable and efficient solution for controlling hydraulic systems in a wide range of construction and material handling equipment. This 5-section, monoblock valve features a rated flow of 80 L/min and a maximum pressure of 250 bar, making it ideal for demanding applications.

Serie P80F Monoblock-Wegeventil Parameter
Steuerkolben 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen
Steuermethode Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick
Anschlussgröße G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
Abschnitt 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt
Umgebungstemperaturbereich -40 °C bis +80 °C (-40 °F bis +176 °F)
Bereich der Betriebsviskosität 15 - 75 mm²/s (15 cSt bis 75 cSt)
Auslassanschluss G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT
Maximaldruck 315 bar (4600 psi)
Nennfluss 80 l/min (21,2 US gal/min)
Strukturtyp Monoblockventil
Einlassanschluss G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

This electric actuated hydraulic directional control valve from the P80F series is a robust and versatile solution for controlling hydraulic systems in heavy-duty machinery. It offers a 5-section, monoblock design with a rated flow of 80 L/min and a maximum pressure of 250 bar. Designed for reliability and durability, this valve boasts a wide operating viscosity range of 15 to 75 mm²/s and can withstand ambient temperatures from -40°C to +80°C. With its 5-spool configuration, it provides precise and efficient control for various functions. Its versatility makes it suitable for a wide range of applications including telehandlers, forklifts, all-terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers.
