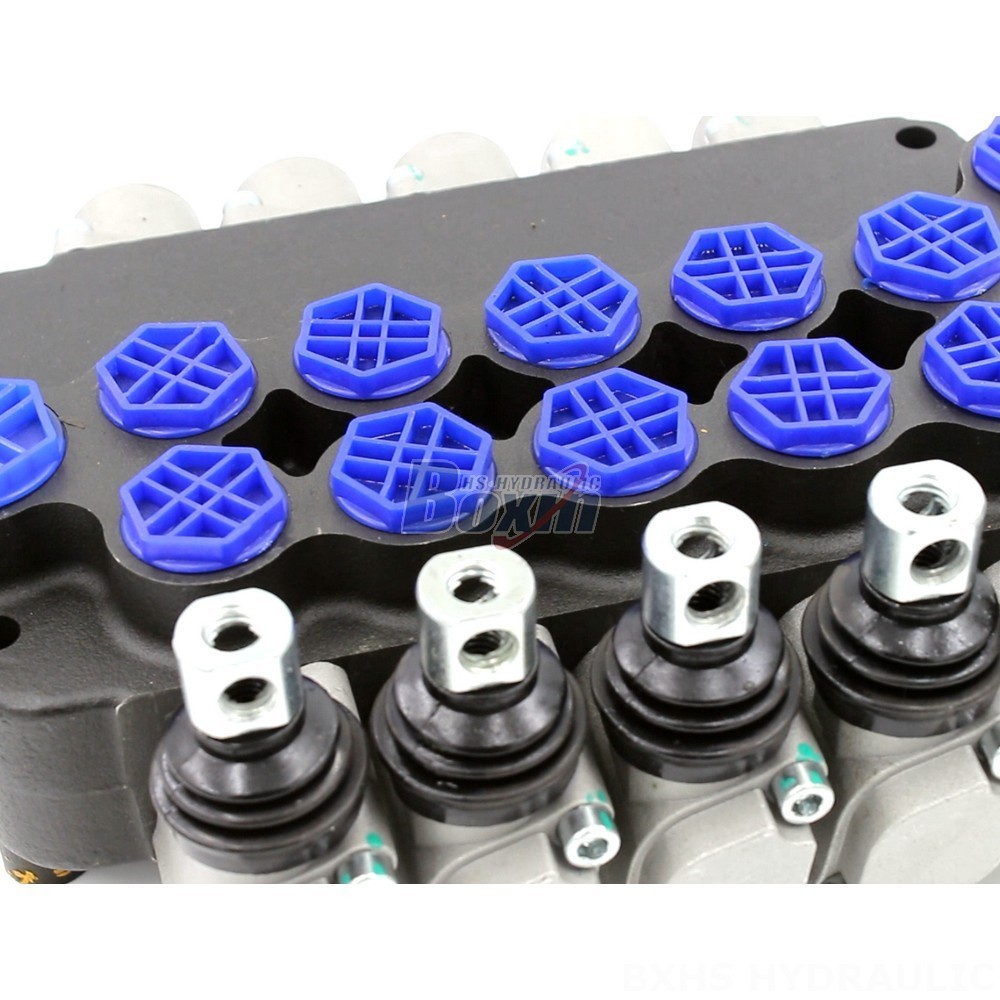

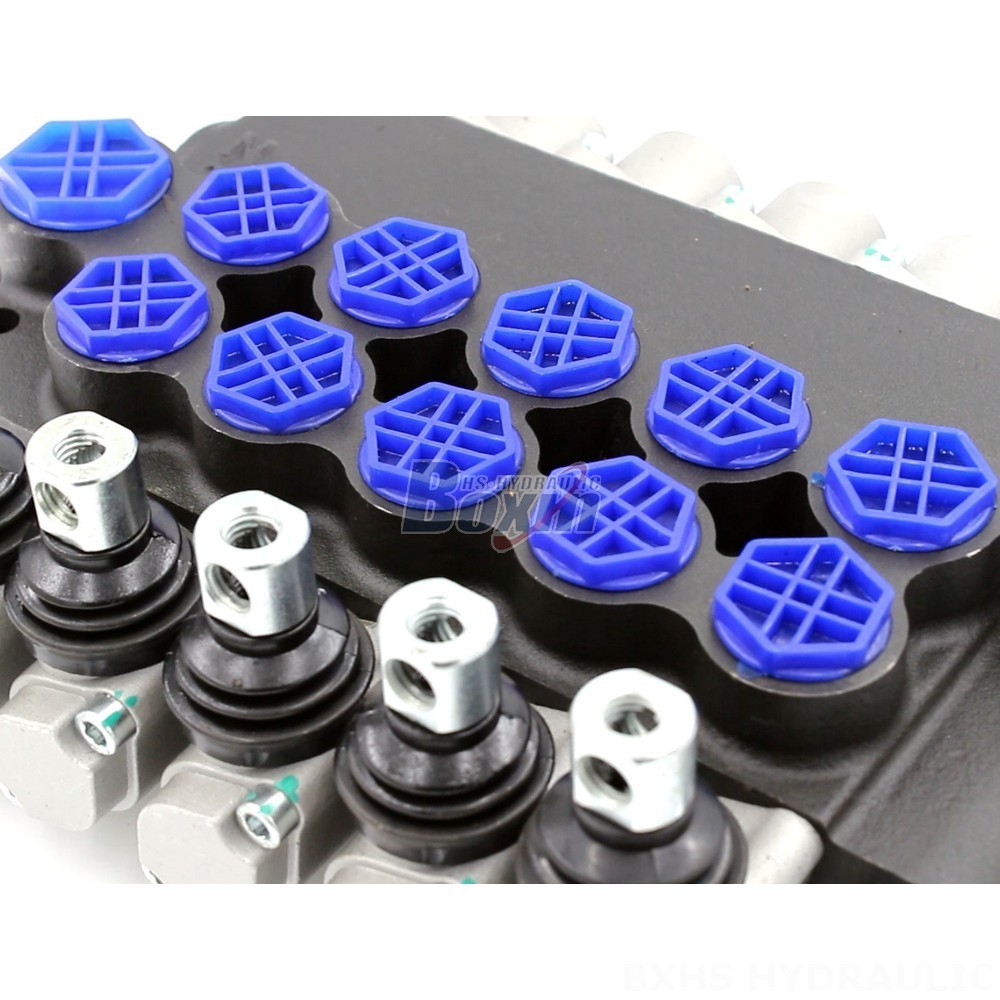

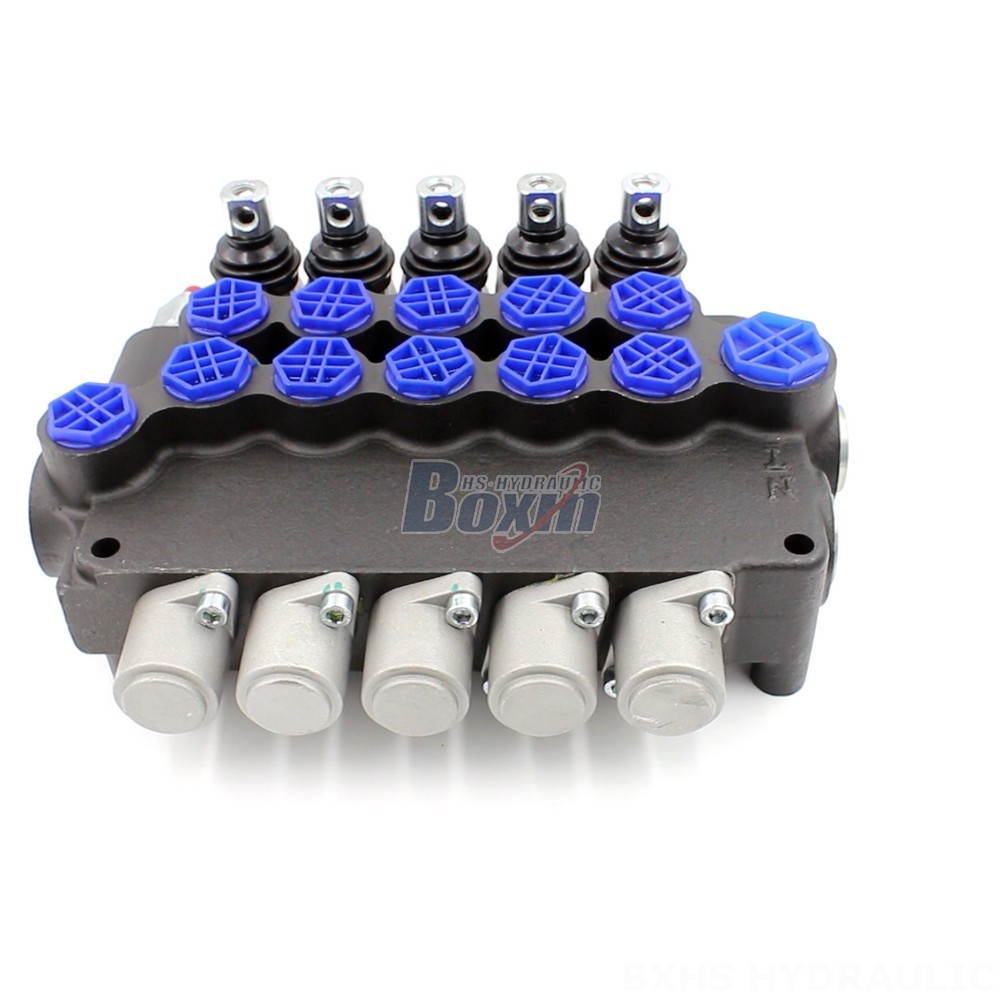

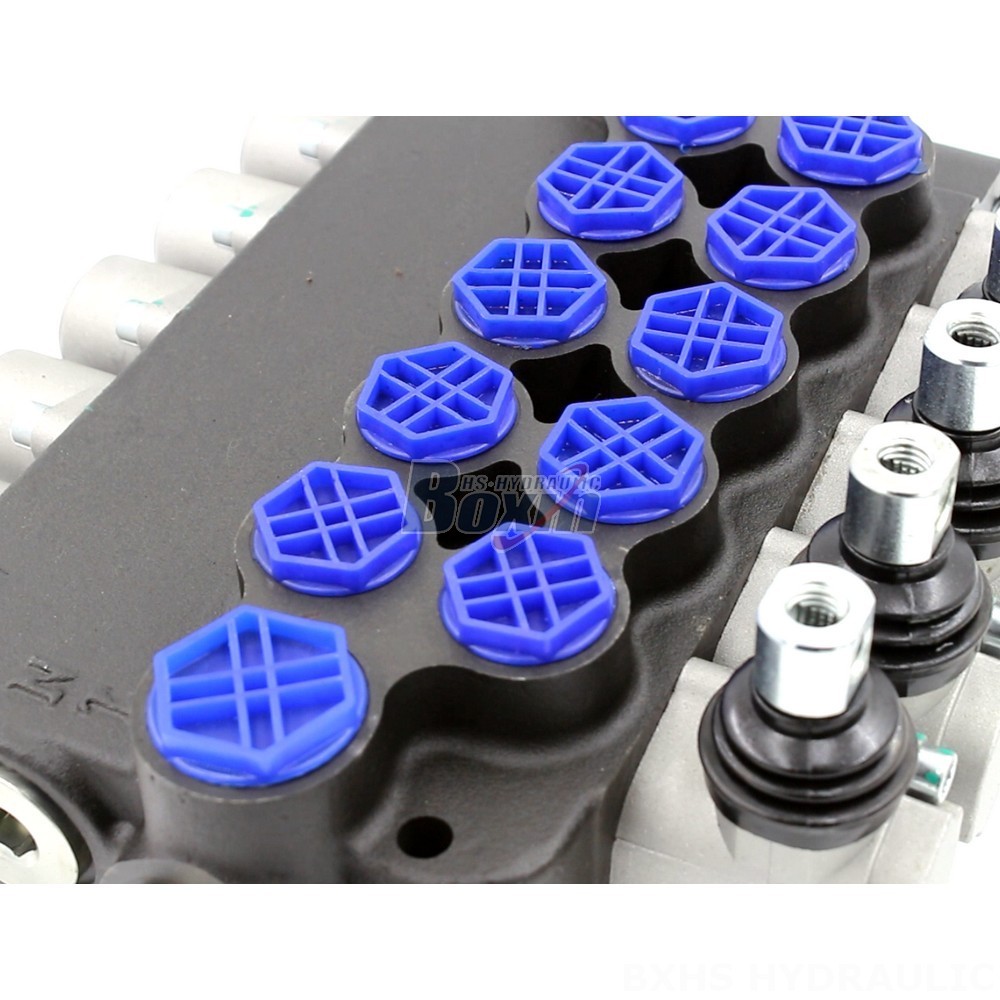

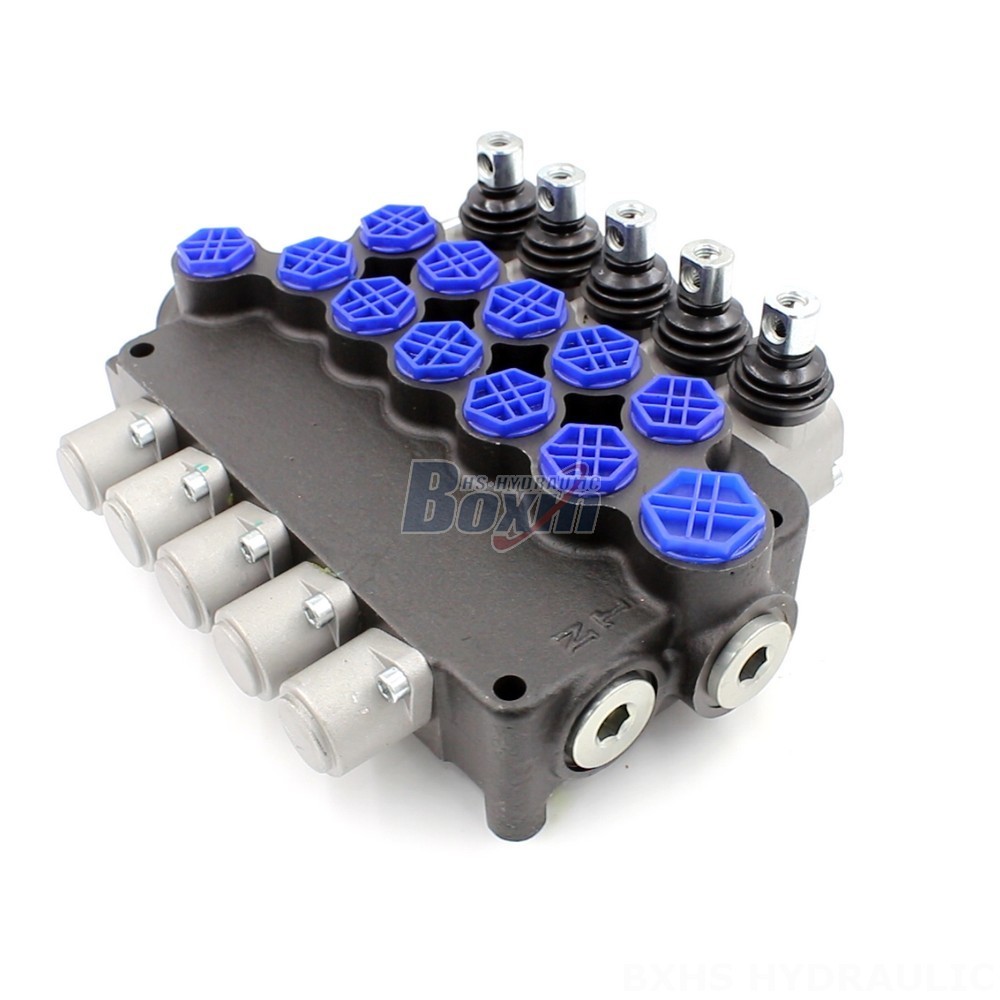

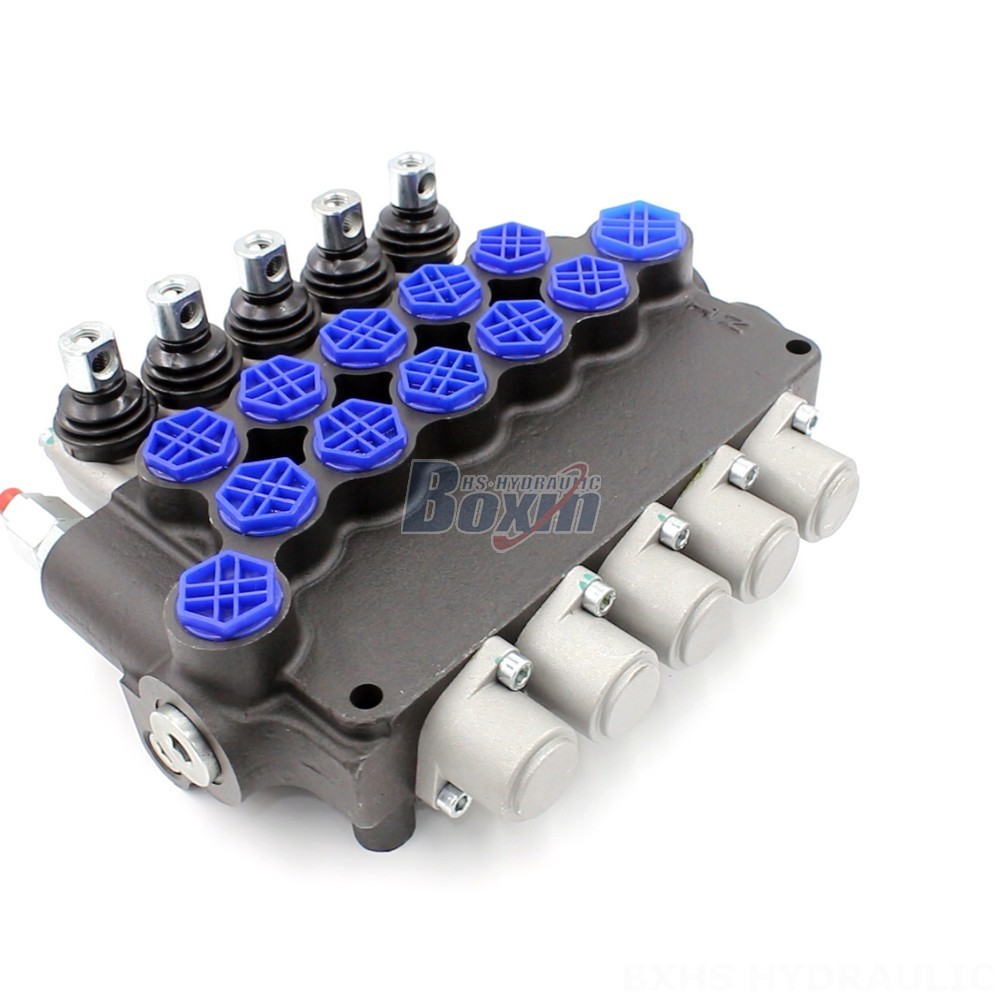

The P80F-G34-OT Series Electro Hydraulic Proportional Valve is a high-performance, 5-section, monoblock valve designed for heavy-duty applications in material handling, construction, and industrial vehicles. This valve features a rated flow of 80 L/min (21.2 US gpm), a maximum pressure of 250 bar (3600 psi), and a wide operating viscosity range. With its manual control and robust design, it provides reliable and precise control for a variety of applications.
| Serie P80F Monoblock-Wegeventil Parameter | |
|---|---|
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick |
| Anschlussgröße | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT |
| Maximaldruck | 315 bar (4600 psi) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Strukturtyp | Monoblockventil |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
The P80F-G34-OT Series Electro Hydraulic Proportional Valve is a high-performance, 5-section, monoblock valve designed for heavy-duty applications in material handling, construction, and industrial vehicles. This valve features a rated flow of 80 L/min (21.2 US gpm), a maximum pressure of 250 bar (3600 psi), and a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Its manual control allows for precise operation, while its robust construction ensures durability and reliability in demanding environments. The P80F Series is suitable for a wide range of applications, including telehandlers, forklifts, all terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers. With its customizable features and high performance, this valve is an ideal choice for manufacturers and users seeking reliable and efficient hydraulic control solutions.
