Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit
Innovation treibt Entwicklung voran Technologie gestaltet die Zukunft
2068 Personen sehen sich dieses Produkt an
This high-performance P40 Series Spool Hydraulic Directional Control Valve is a reliable and durable solution for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a 3-section monoblock design, rated flow of 40 L/min, max pressure of 250 bar, and a wide operating viscosity range.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

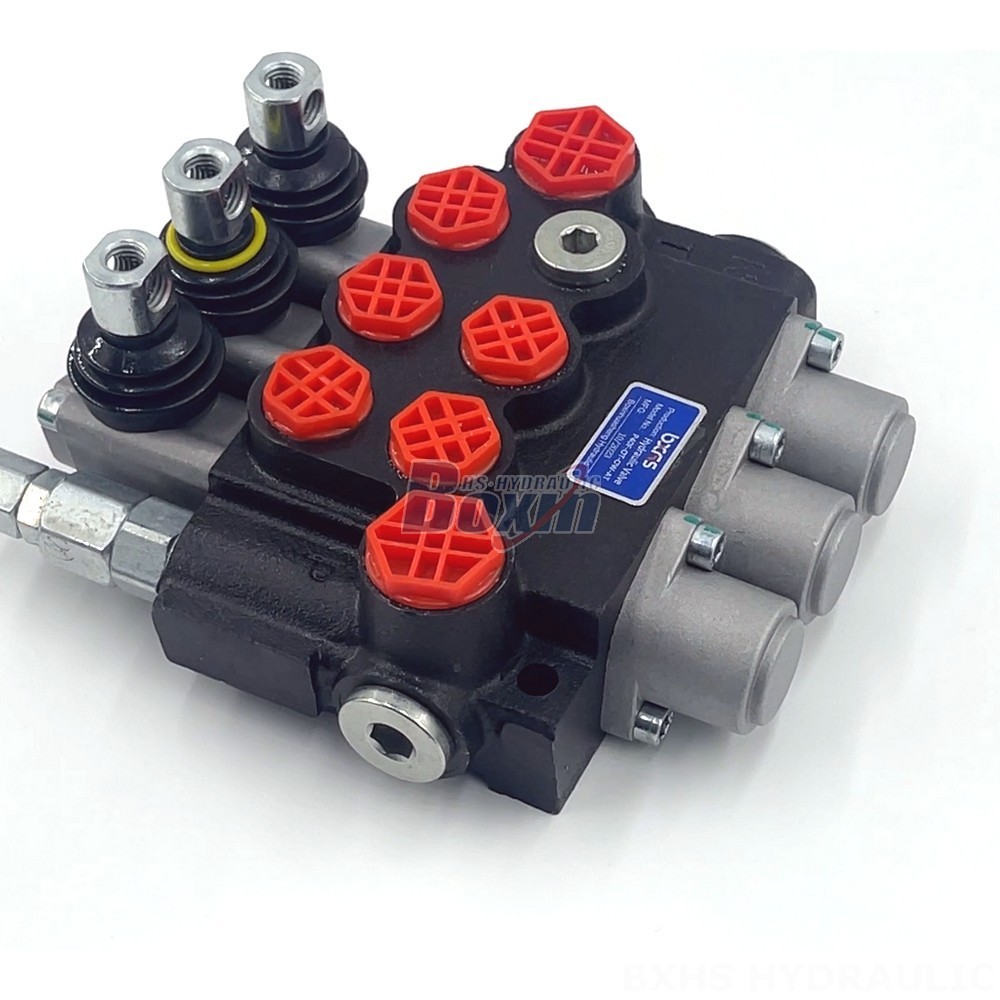

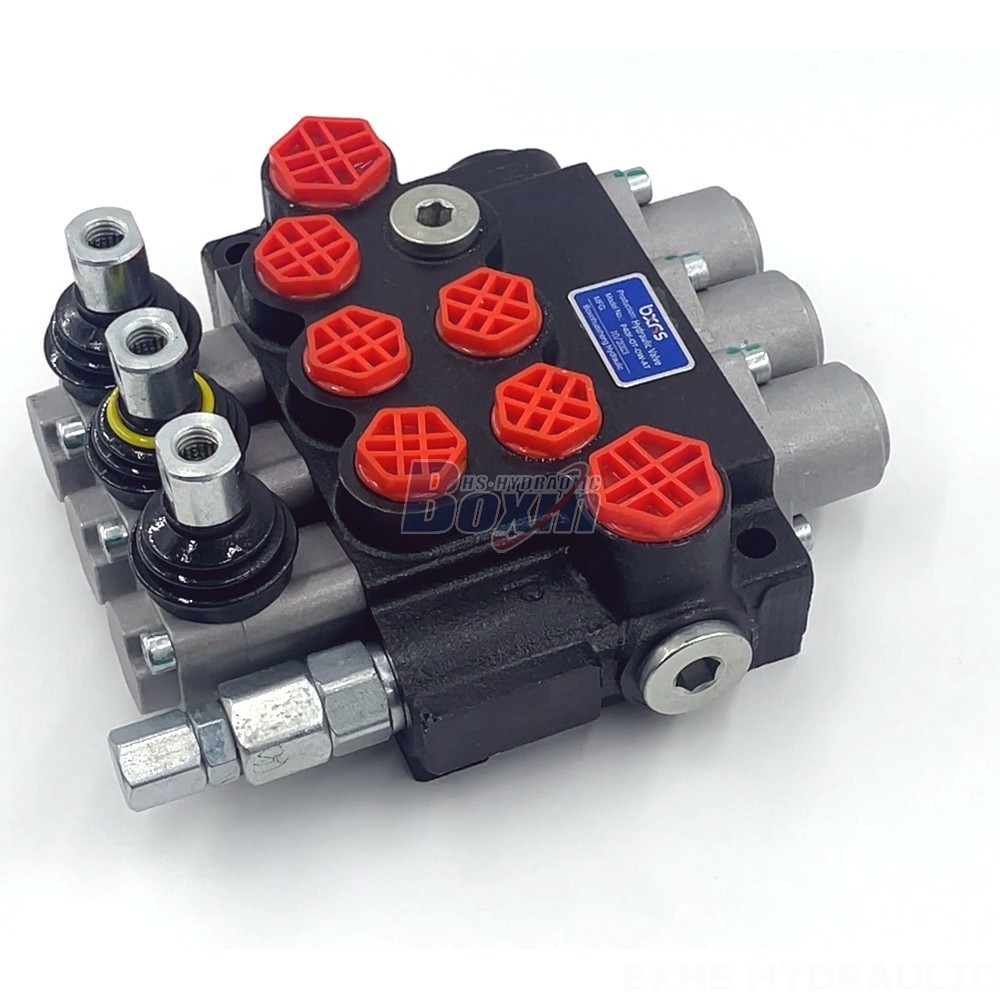

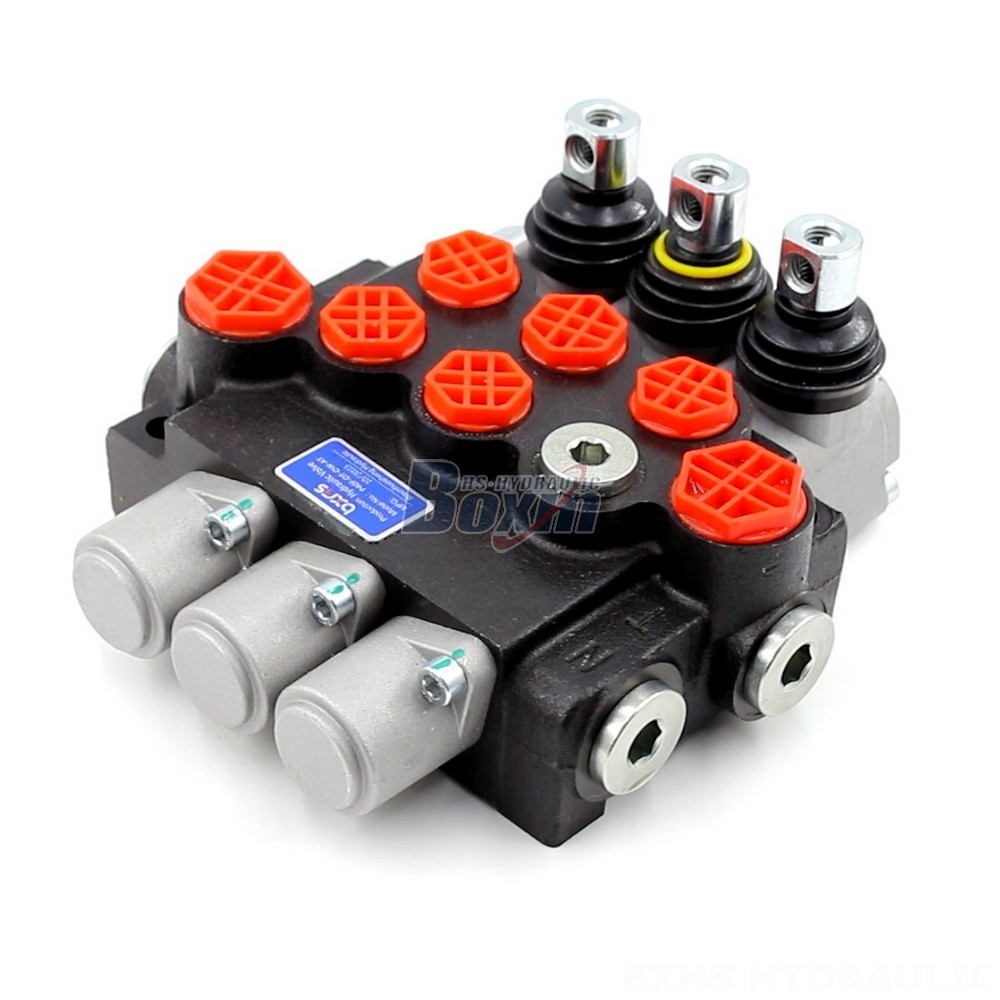

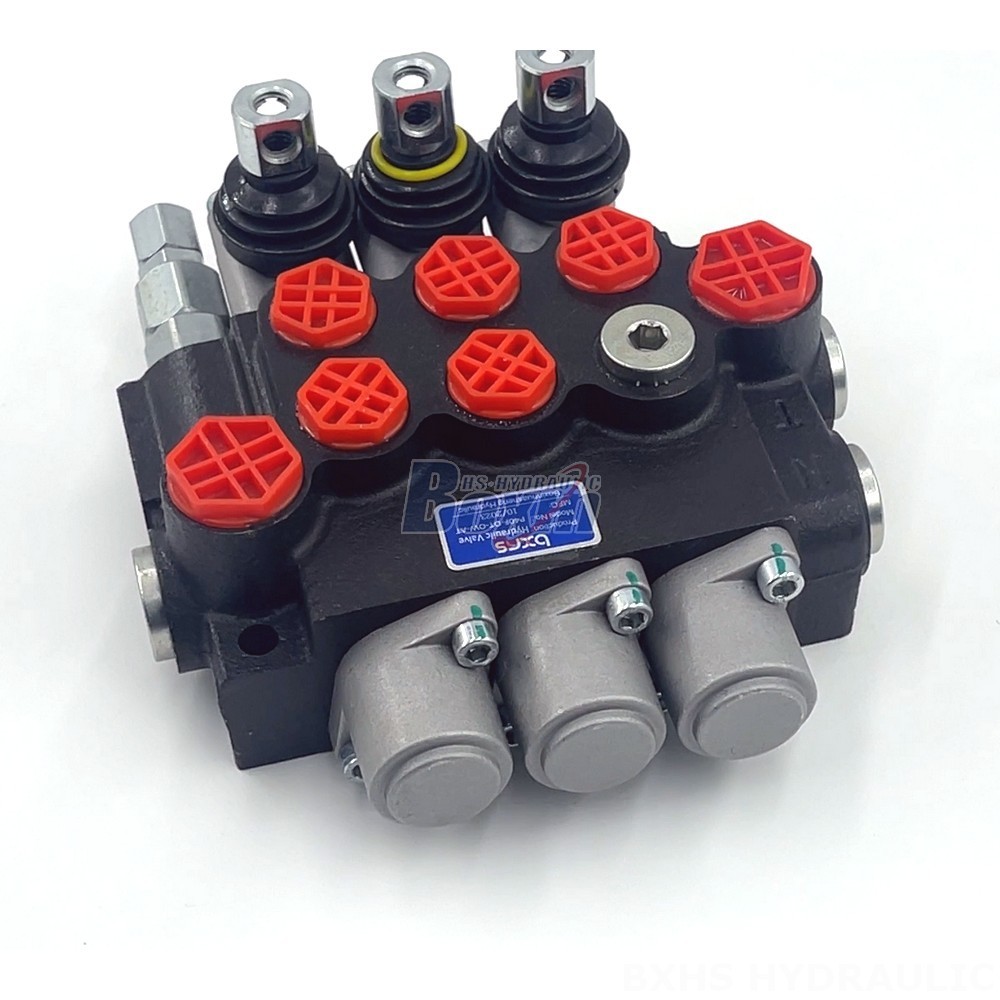

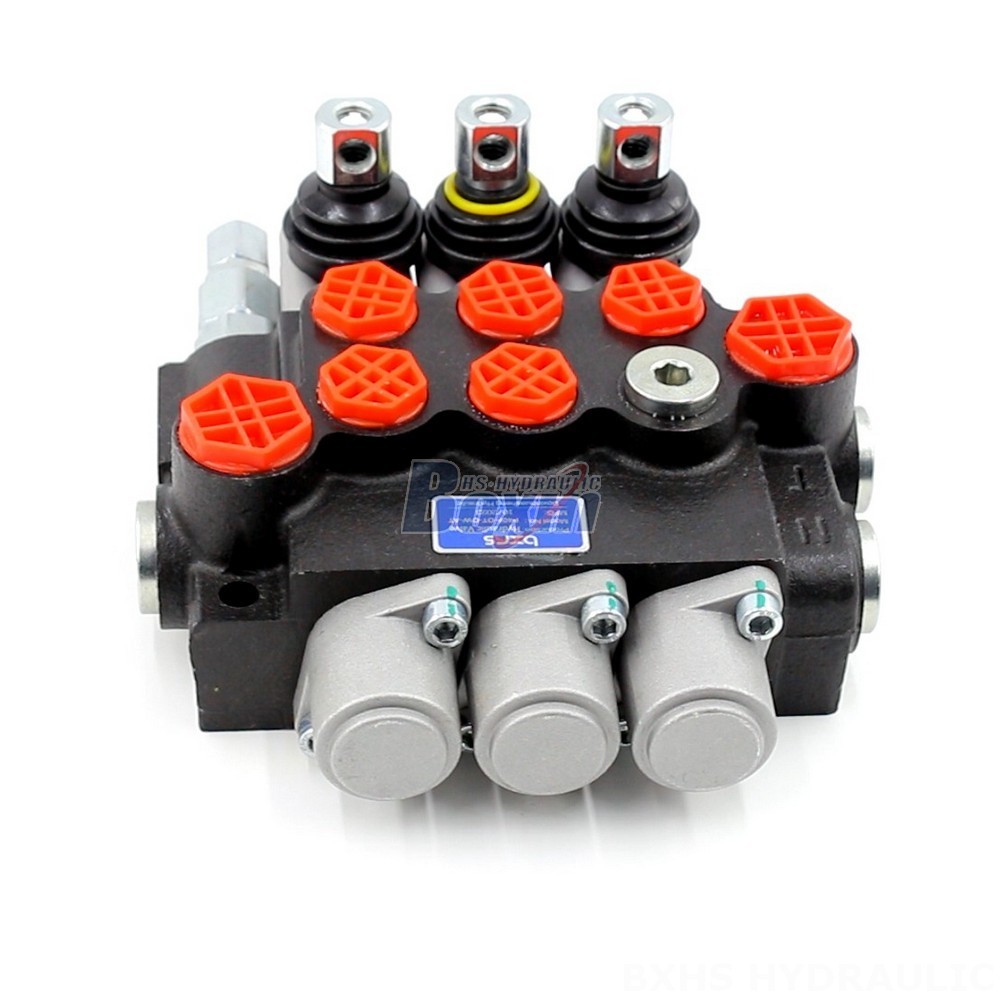

The P40 Series Spool Hydraulic Directional Control Valve is a manual control, 3-section, monoblock valve designed for demanding applications. It offers a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure rating of 250 bar (3600 psi), ensuring efficient and reliable operation. The valve is suitable for a wide range of operating viscosities (15 - 75 mm²/s), making it ideal for various applications and environments. The P40 Series is designed for demanding applications and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). It features a 3-spool configuration, providing versatile control capabilities for different hydraulic systems. The valve is particularly well-suited for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
