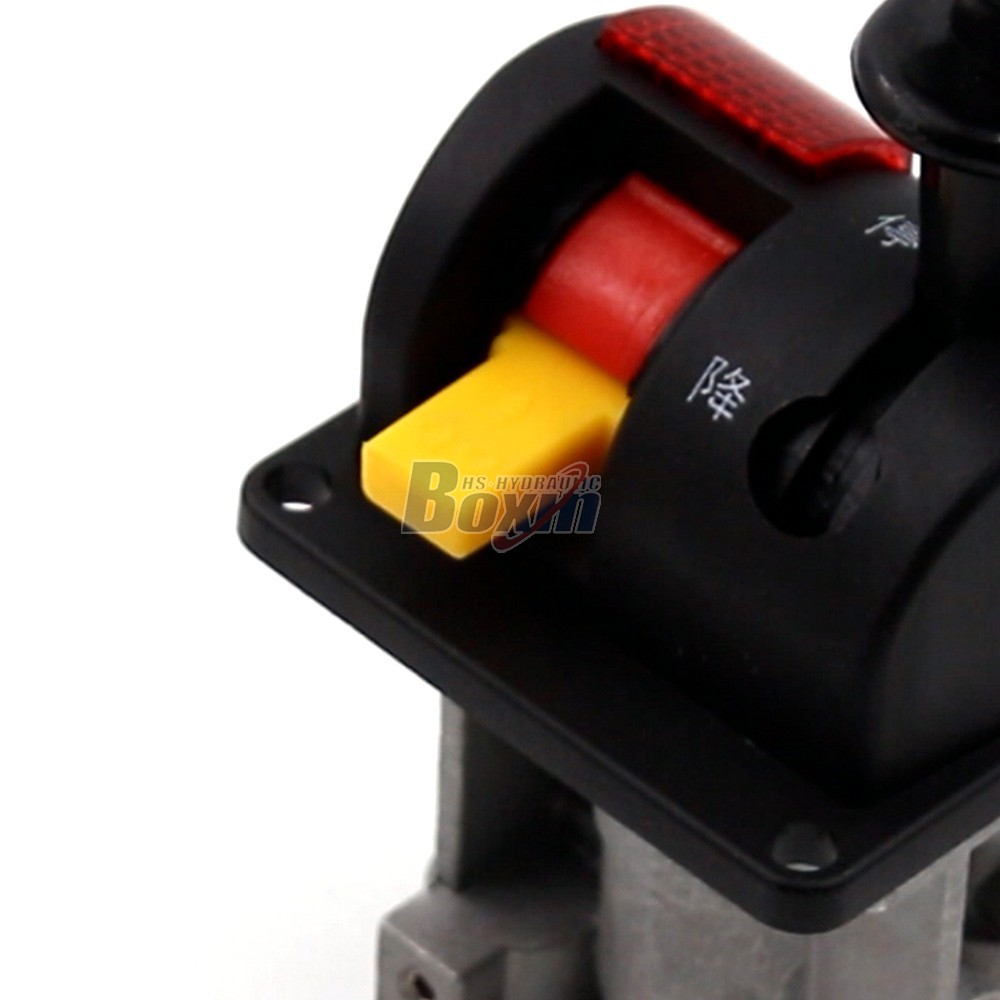

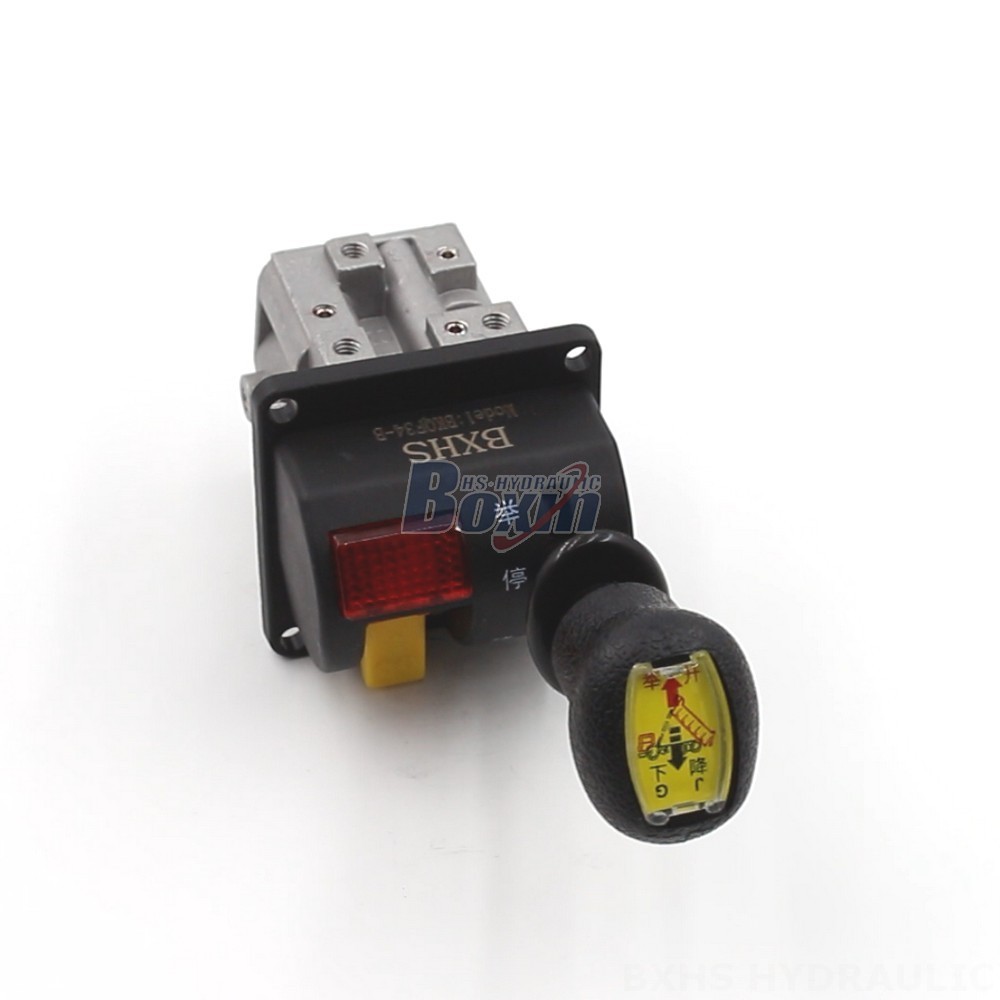

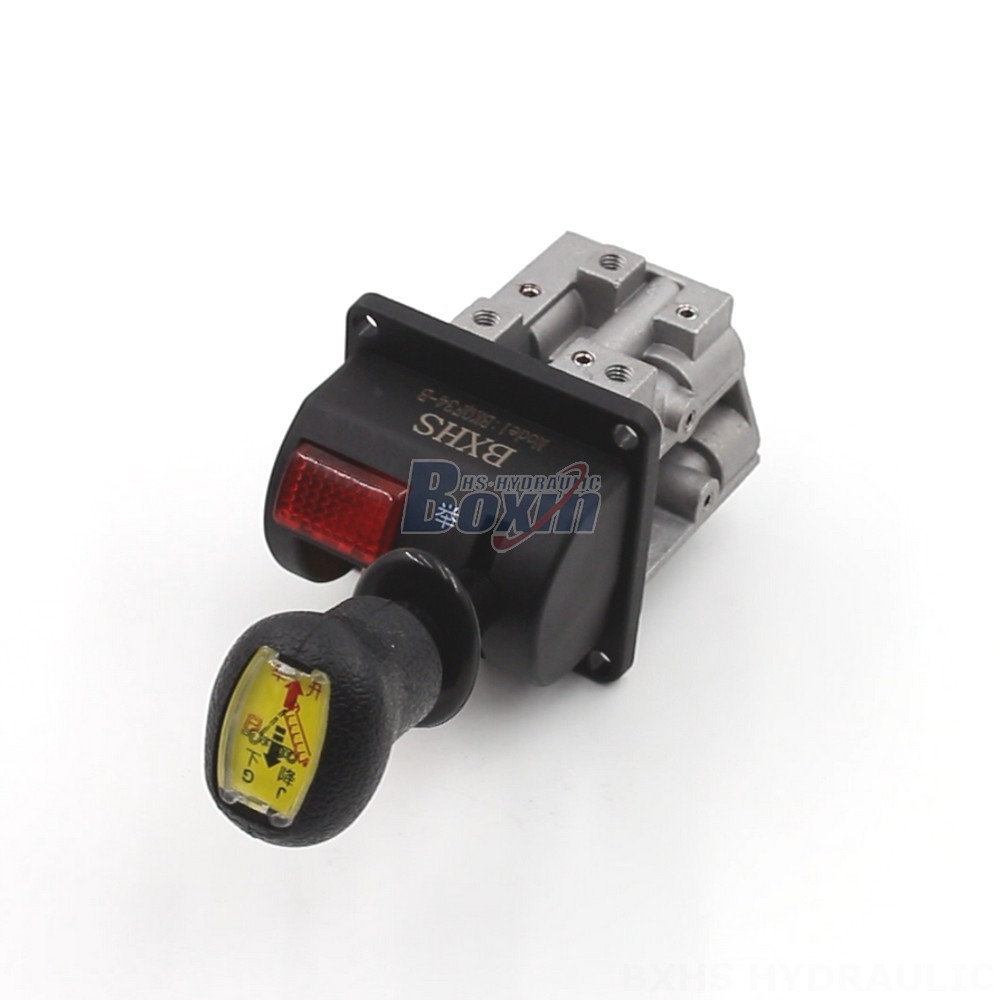

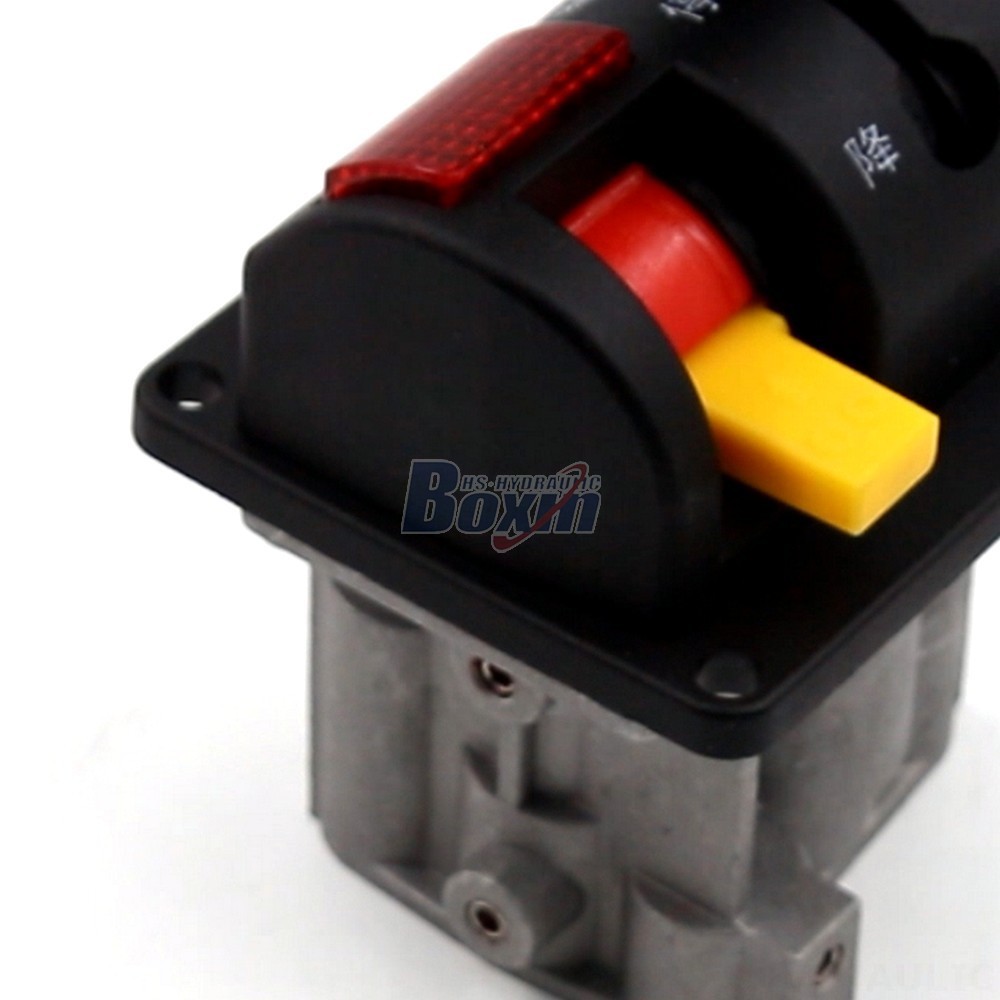

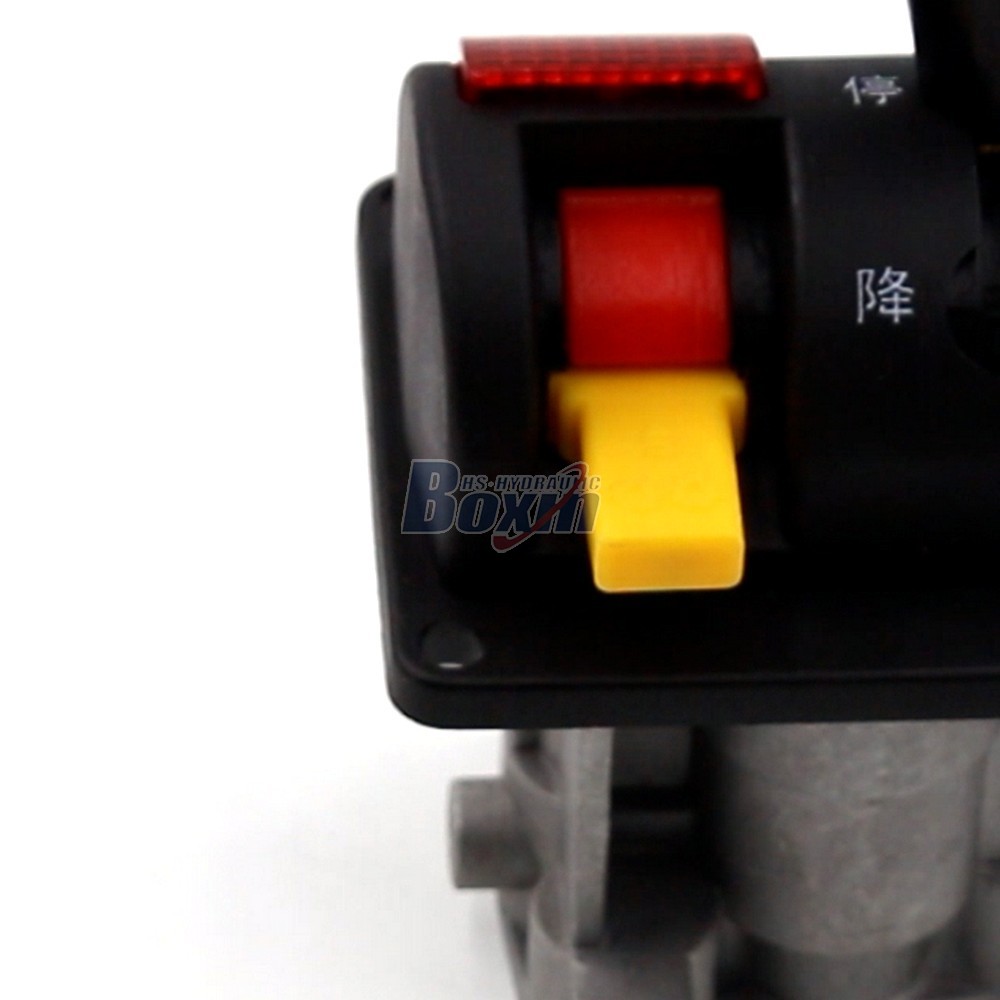

BKQF34-B Manual 1 Spool Monoblock Directional Valve is a high-performance hydraulic component designed for demanding applications in construction, agriculture, and industrial vehicles. With a compact monoblock design, manual control, and a rated flow of 40 L/min, this valve provides precise and reliable flow control.
| BKQF34 Serie Pneumatisches Regelventil Parameter | |
|---|---|
| Steuermethode | Pneumatisch |
| Steuerkolben | 1 Spule |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | Mindestdruck |
| Einlassanschluss | G1/4 |
| Auslassanschluss | G1/4 |
| Anschlussgröße | G1/4 |
**BKQF34-B Manual 1 Spool Monoblock Directional Valve**
**Product Features:**
- Manual control for precise flow adjustment
- Compact monoblock design for space optimization
- Rated flow of 40 L/min (10.5 US gpm) for efficient hydraulic system performance
- Max pressure of 160 bar (2300 psi) for demanding applications
- Operating viscosity range of 12 - 400 mm²/s (12 cSt to 400 cSt) for compatibility with various hydraulic fluids
- Ambient temperature range of -40°C to +80°C (-40°F to +176°F) for reliable operation in harsh environments
- Ideal for applications in construction equipment, agriculture machinery, and industrial vehicles like forklifts, telehandlers, skid steer loaders, and compact wheel loaders.
