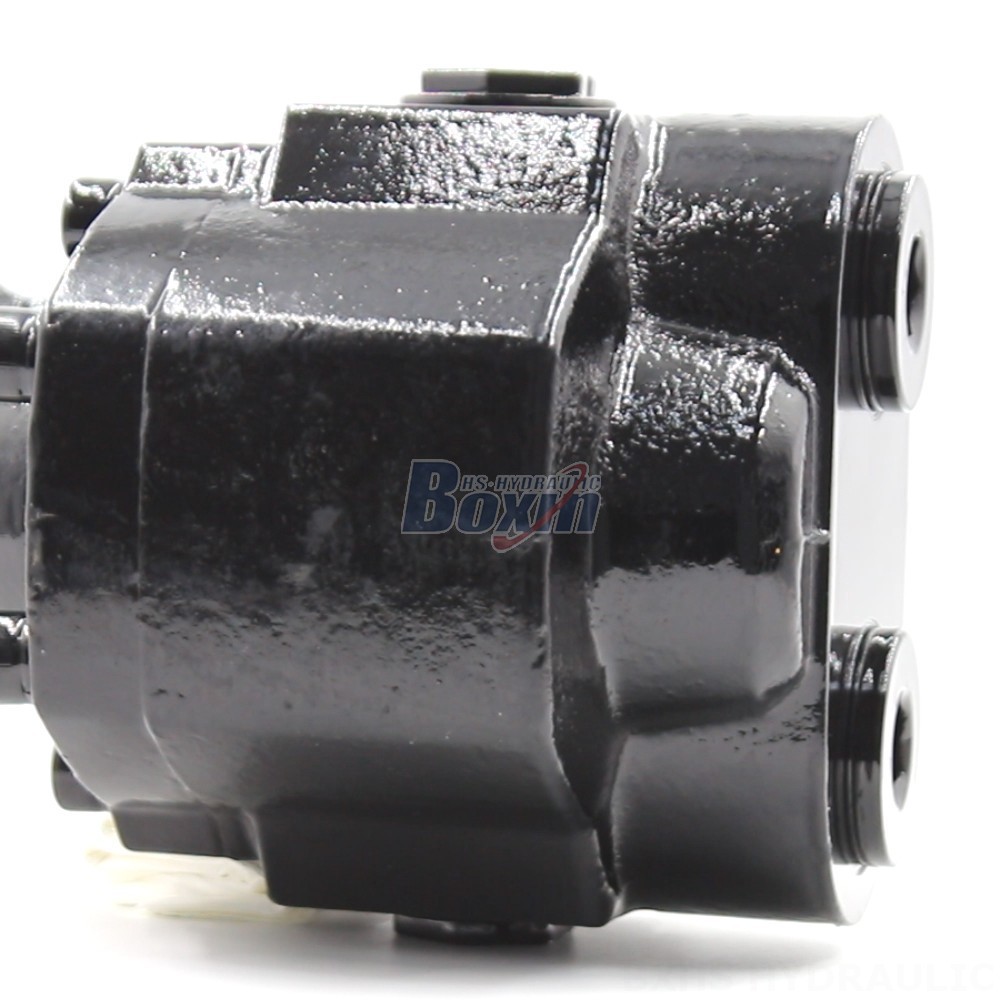

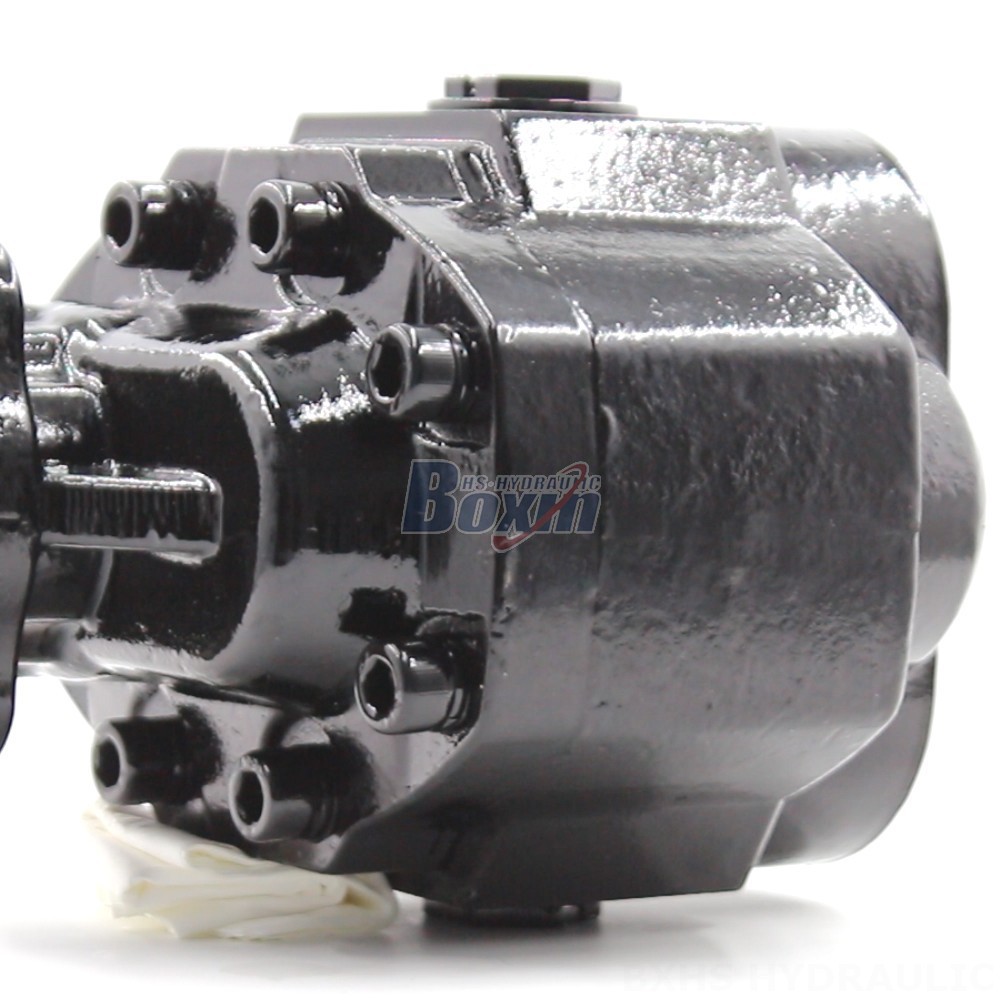

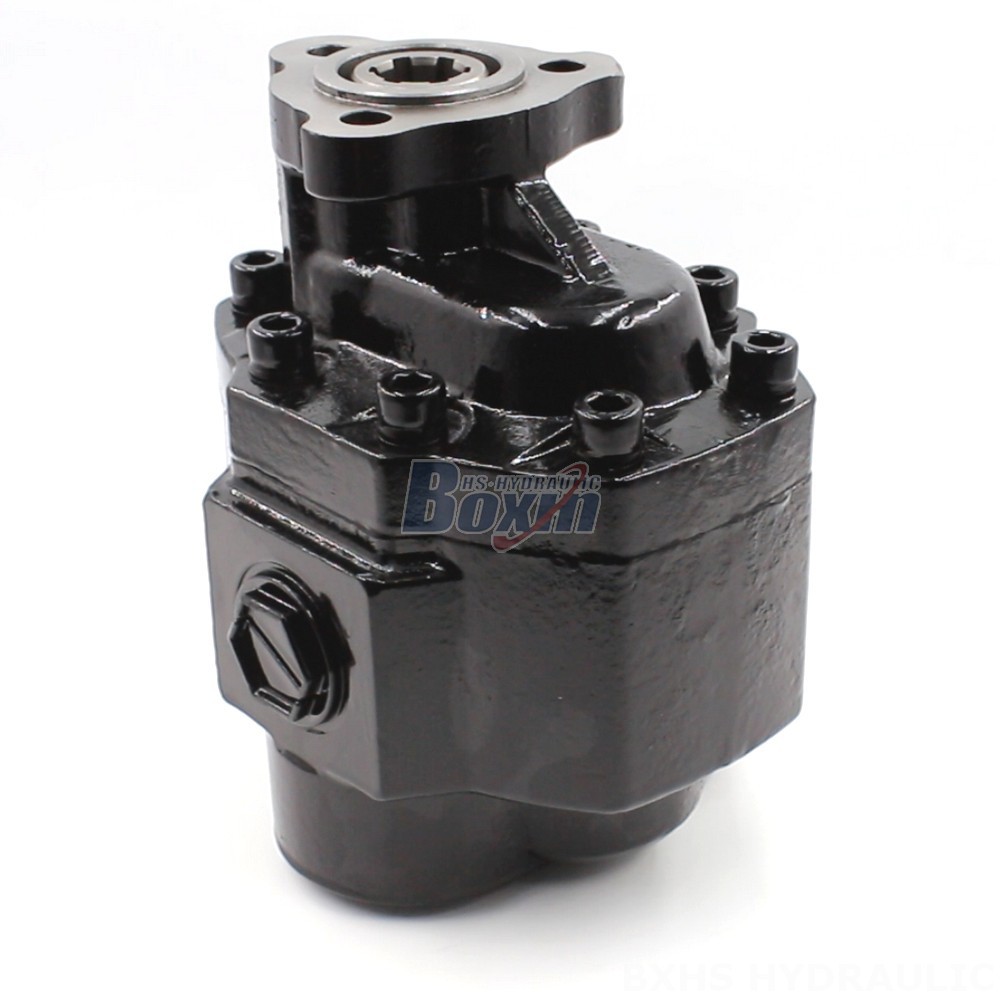

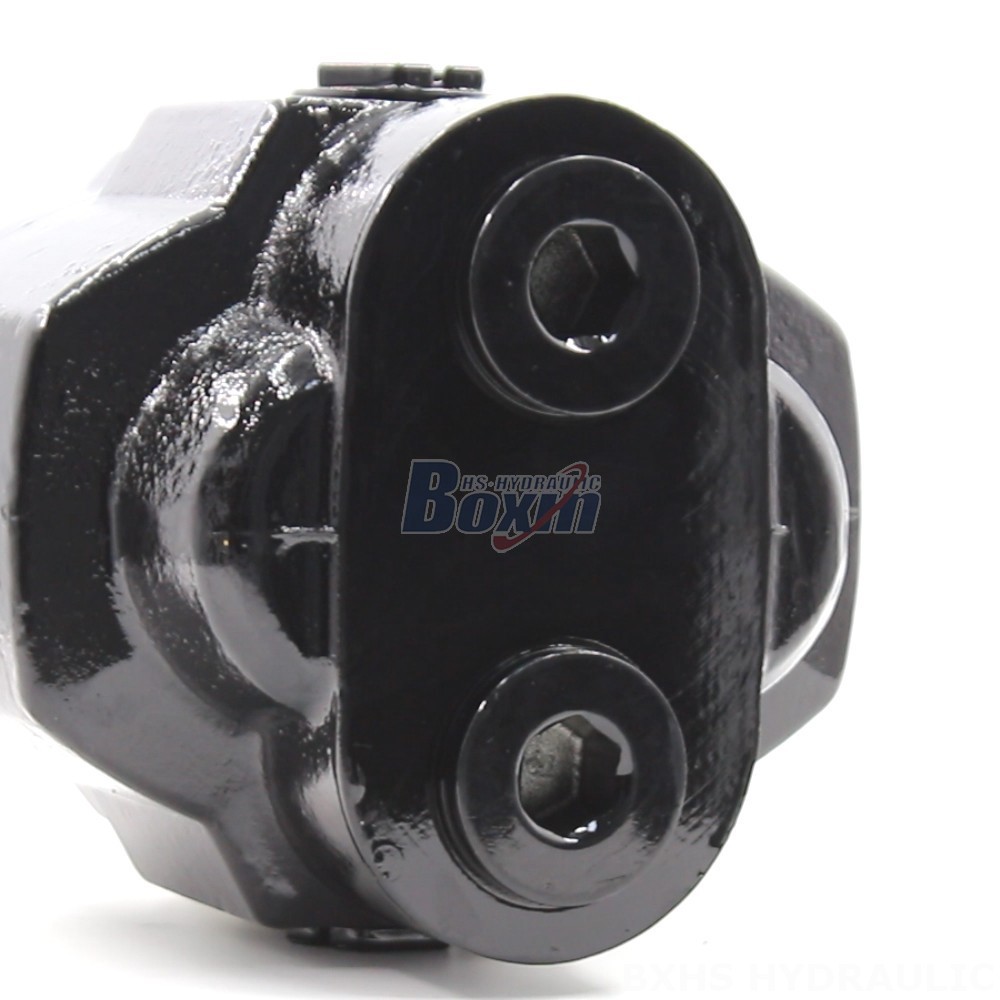

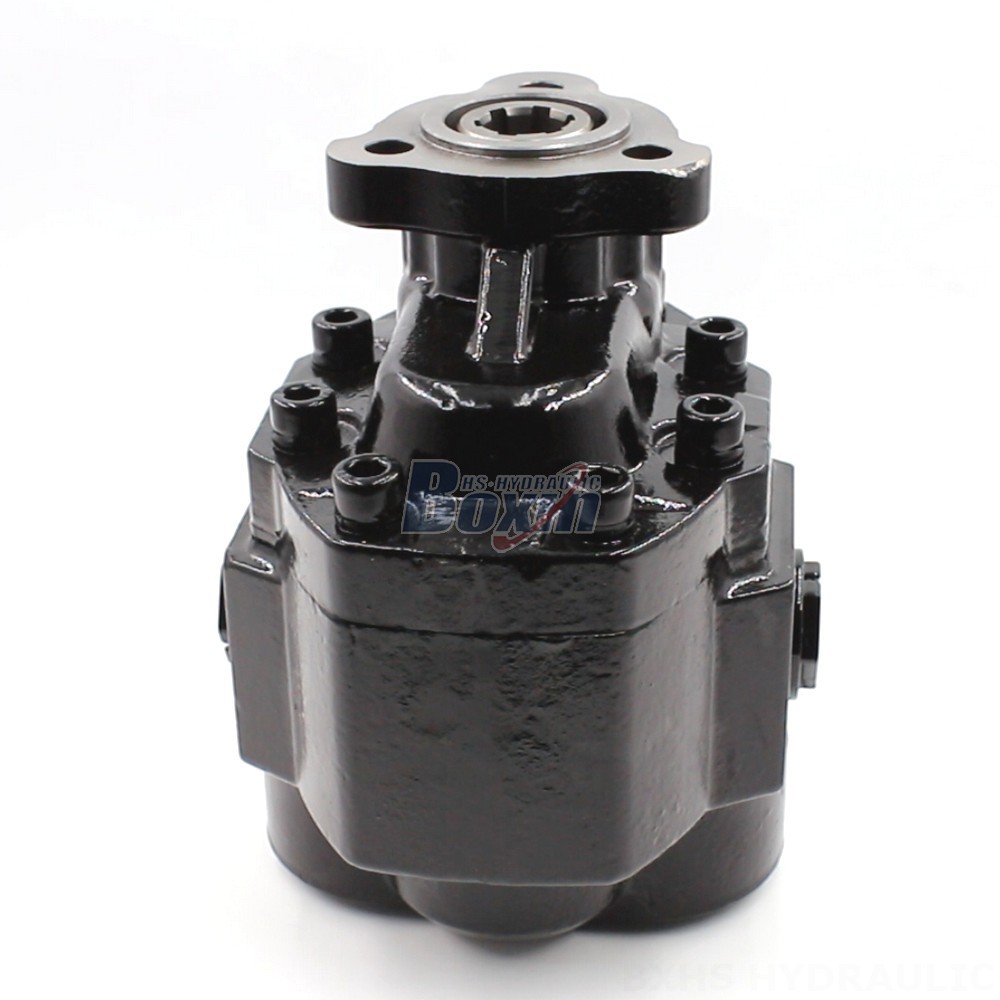

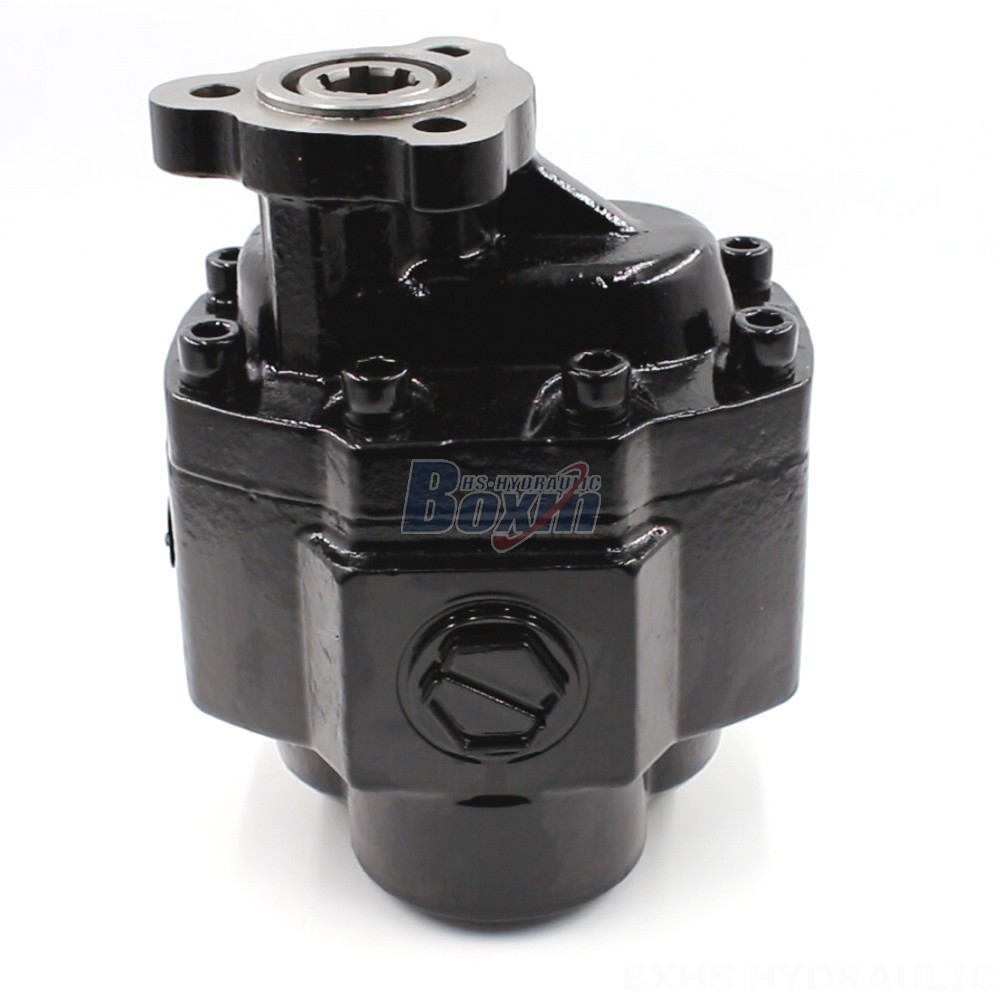

The CBHST1-UNI-63 High-Performance Hydraulic Gear Pump is a reliable and efficient hydraulic component designed for demanding applications. With a displacement range of 32-100 cc/rev and a rated pressure of 23 MPa, it delivers exceptional performance in various industries such as material handling, construction, agriculture, and industrial vehicles.
| CBHST1-UNI Serie Hydraulikzahnradpumpe Parameter | |
|---|---|
| Verdrängung | 32 cc/Umdr, 40 cc/Umdr, 50 cc/Umdr, 63 cc/Umdr, 80 cc/Umdr, 100 cc/Umdr, 34 cc/Umdr, 43 cc/Umdr |
| Nenndruck | 23 MPa (3335 psi) |
| Maximaldruck | 25 MPa (3625 psi) |
| Nenndrehzahl | 2000 U/min |
| Maximaldrehzahl | 2500 U/min |
| Drehrichtung | Bidirektional |
| Struktur | Außenverzahnte Pumpe |
| Material | Gusseisen |
| Wellentyp | H: Rechteckige Keilwelle, X: Evolventenverzahnte Keilwelle |
| Flanschversion | UNI-3-Befestigungslöcher |
**CBHST1-UNI-63 High-Performance Hydraulic Gear Pump**
**Key Features:**
* Displacement: 32 cc/rev, 40 cc/rev, 50 cc/rev, 63 cc/rev, 80 cc/rev, 100 cc/rev
* Rated Pressure: 23 MPa (3335 psi)
* Max Speed: 2500 r/min, 2000 r/min
* Rotation: Bidirectional
* Structure: Swashplate
* Material: Cast Iron
* Flange Version: UNI-3 Mounting Holes
* Shaft Type: H: Rectangle Spline, X: Involute Spline
* Series: CBHST1-UNI Series
* Application Area: Material Handling, Construction and Earth Moving, Agriculture, Industrial Vehicles
* Applicable Model: Telehandler, Forklift, All Terrain Crane, Stacker, Aerial Platform, Motor Grader, Midi-Excavator, Mini-Excavator, Skid Steer Loader, Compact Wheel Loader
The CBHST1-UNI-63 Hydraulic Gear Pump is meticulously crafted from cast iron, ensuring exceptional durability and longevity. Its swashplate structure enables smooth and efficient operation, while the UNI-3 mounting holes provide easy installation and compatibility with various systems. The pump's bidirectional rotation capability allows for versatility in application design.
With its wide displacement range and high-performance capabilities, the CBHST1-UNI-63 Hydraulic Gear Pump is an ideal choice for a diverse range of applications demanding reliable and efficient hydraulic power.
