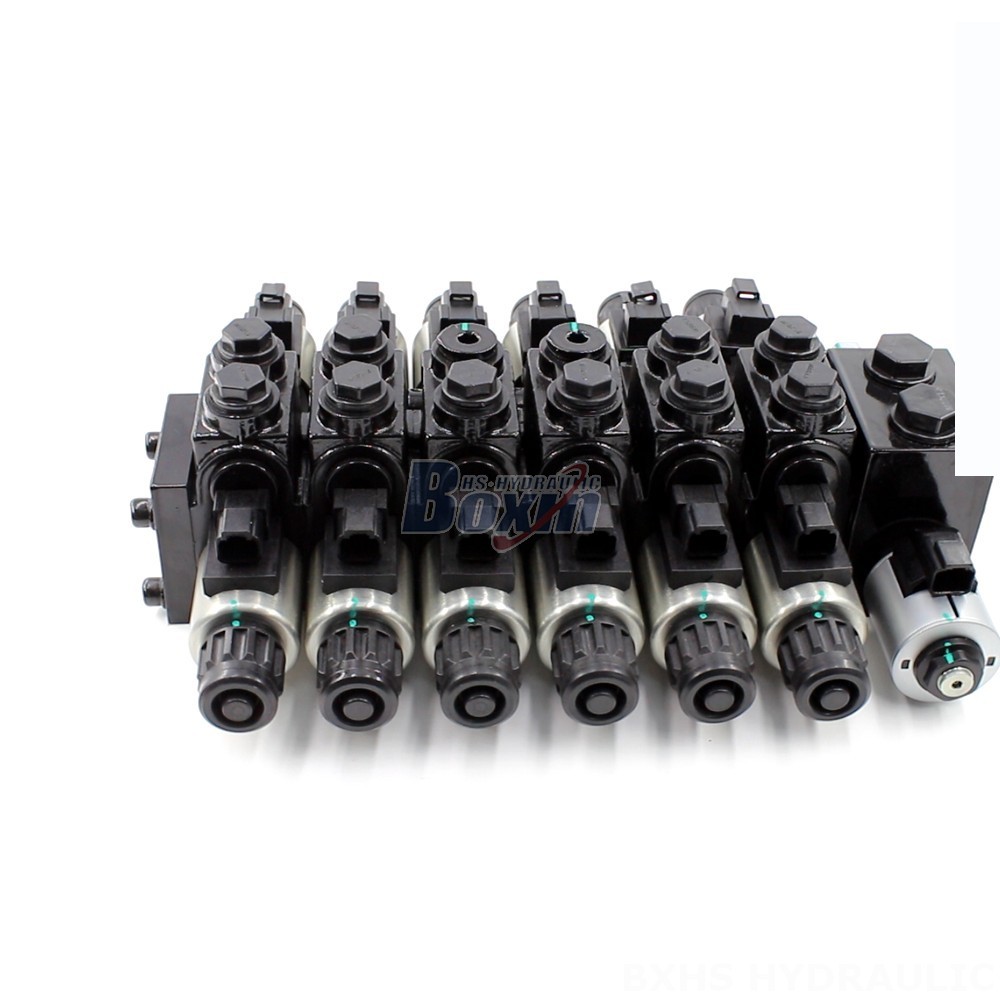

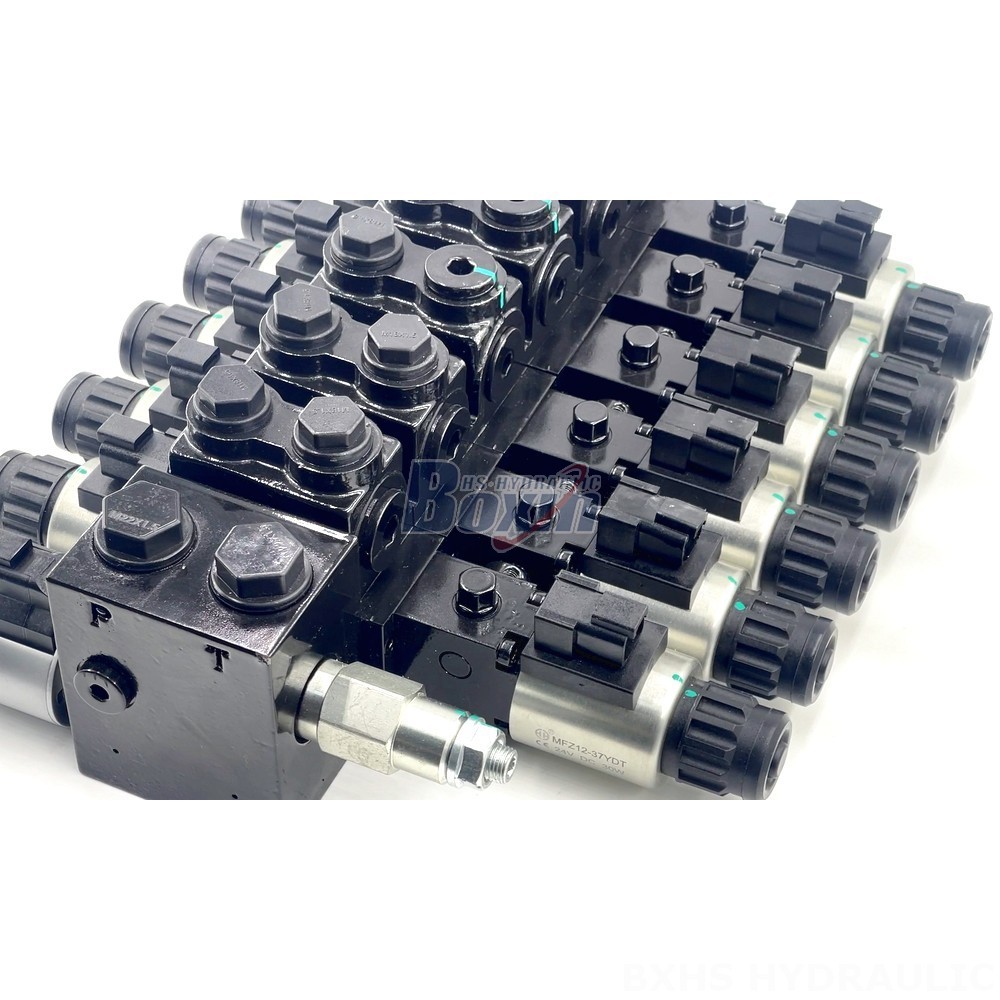

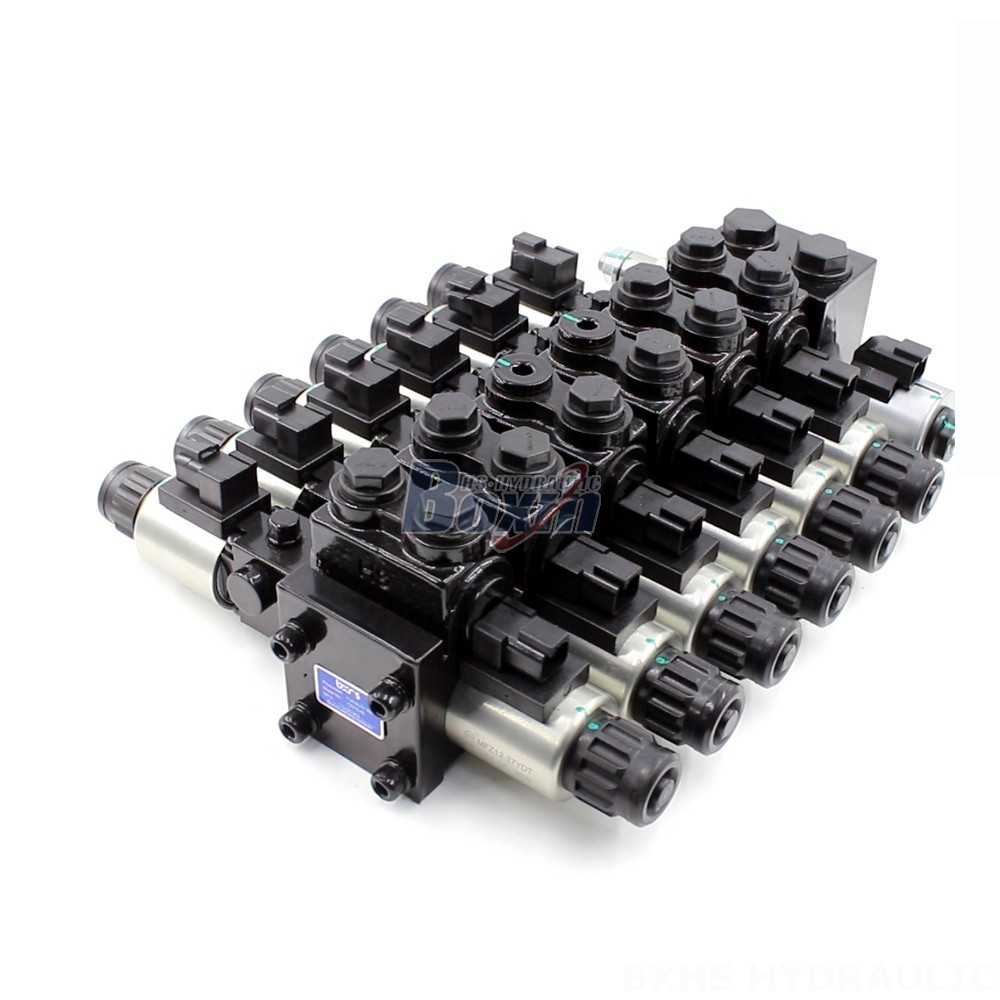

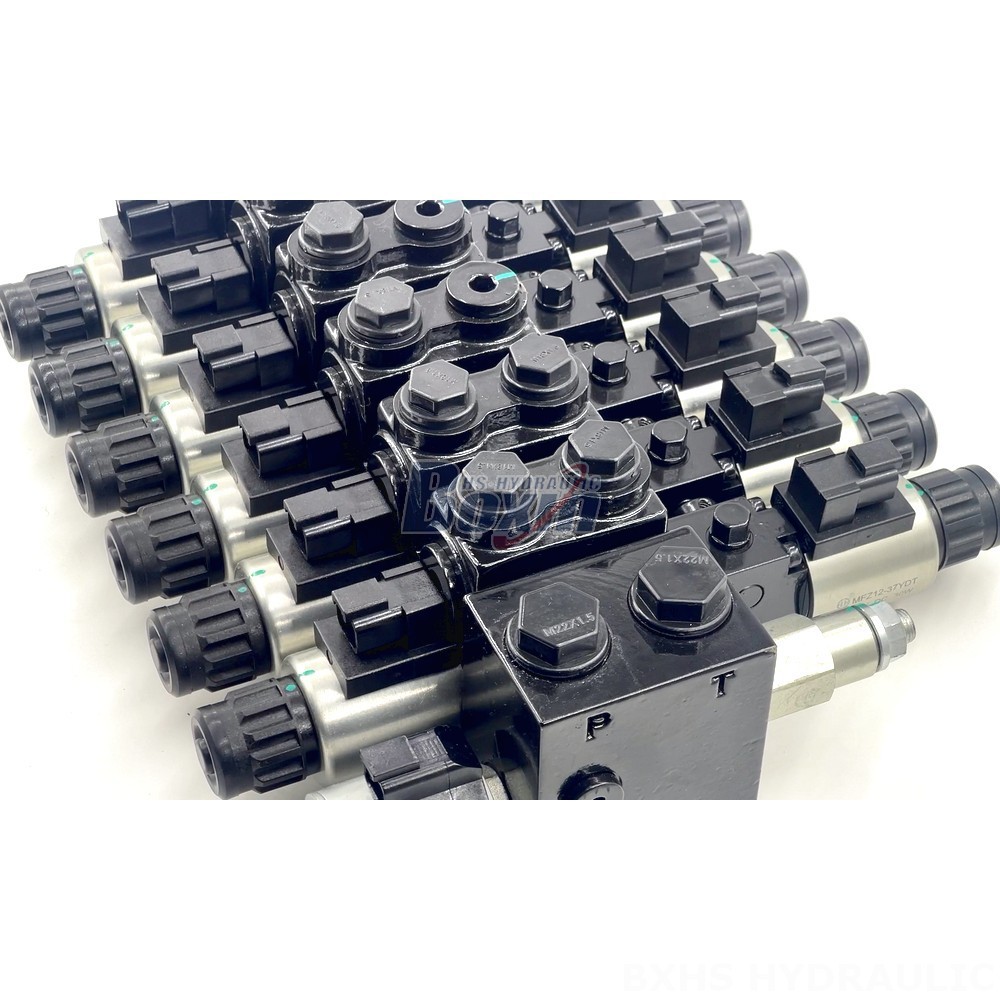

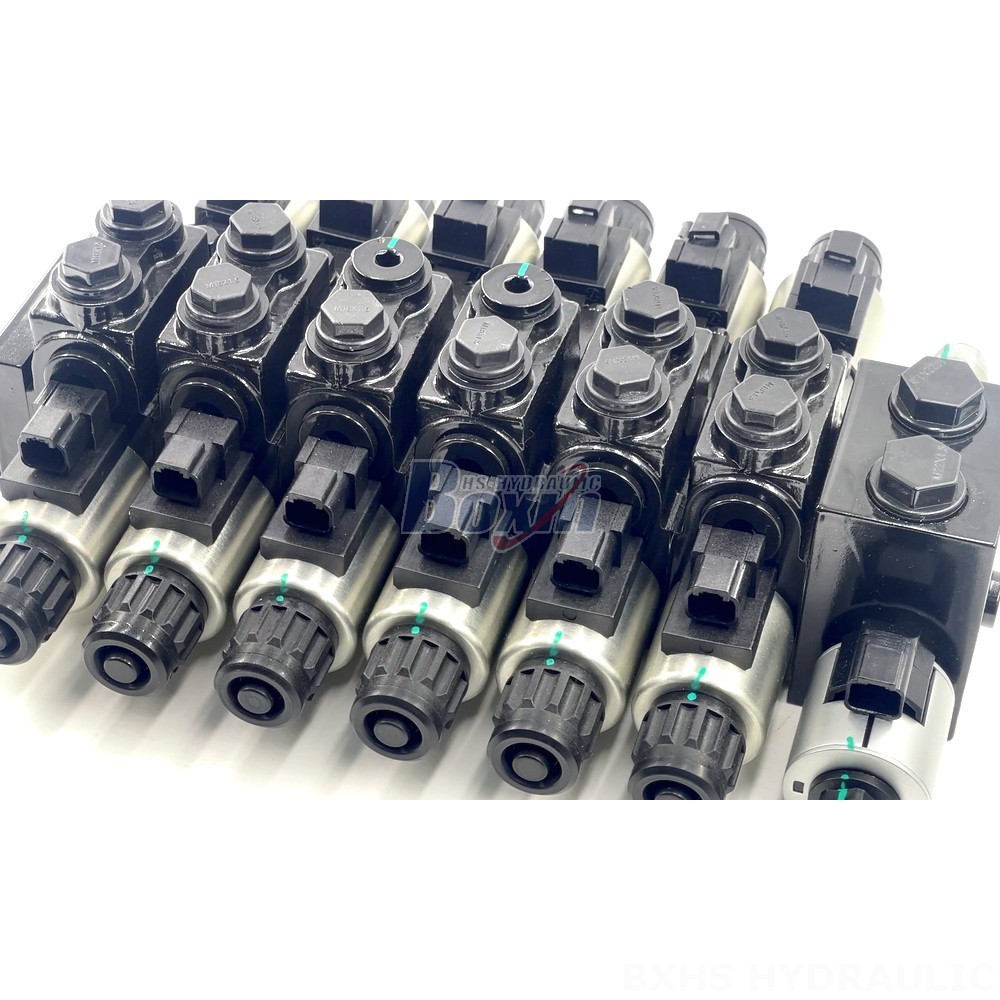

The HDCF50 Series Double Acting Hydraulic Solenoid Valve is a high-performance, reliable valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. This sectional valve features a 6-spool design, offering precise control and efficient operation. With a rated flow of 50 L/min (13.2 US gpm) and a maximum pressure of 160 bar (2300 psi), the HDCF50 valve is ideal for demanding environments.
| HDCF50-Serie Magnetventil Parameter | |
|---|---|
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen |
| Steuermethode | Magnet |
| Anschlussgröße | M22×1.5, SAE 8 |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt |
| Umgebungstemperaturbereich | -20°C bis +80°C (-4°F bis +176°F) |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Auslassanschluss | M18×1.5, M22×1.5, SAE 8 |
| Maximaldruck | 160 bar (2300 psi) |
| Nennfluss | 50 l/min (13,2 US gal/min) |
| Strukturtyp | Schieberventil |
| Einlassanschluss | M18×1.5, M22×1.5, SAE 8 |
The HDCF50 Series Double Acting Hydraulic Solenoid Valve is a robust and versatile solution for controlling hydraulic systems. Its sectional valve design allows for easy assembly and maintenance. The valve features a 6-spool configuration, providing precise control of hydraulic functions. With a rated flow of 50 L/min (13.2 US gpm) and a maximum pressure of 160 bar (2300 psi), the HDCF50 valve is capable of handling high flow rates and demanding applications. Its operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) ensures reliable performance across a variety of hydraulic fluids. Designed for durability, the valve operates within an ambient temperature range of -20°C to +80°C (-4°F to +176°F). Available in 12V and 24V configurations, the HDCF50 valve is compatible with various electrical systems. The valve is ideal for use in a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini excavators, skid steer loaders, compact wheel loaders, and backhoe loaders.
