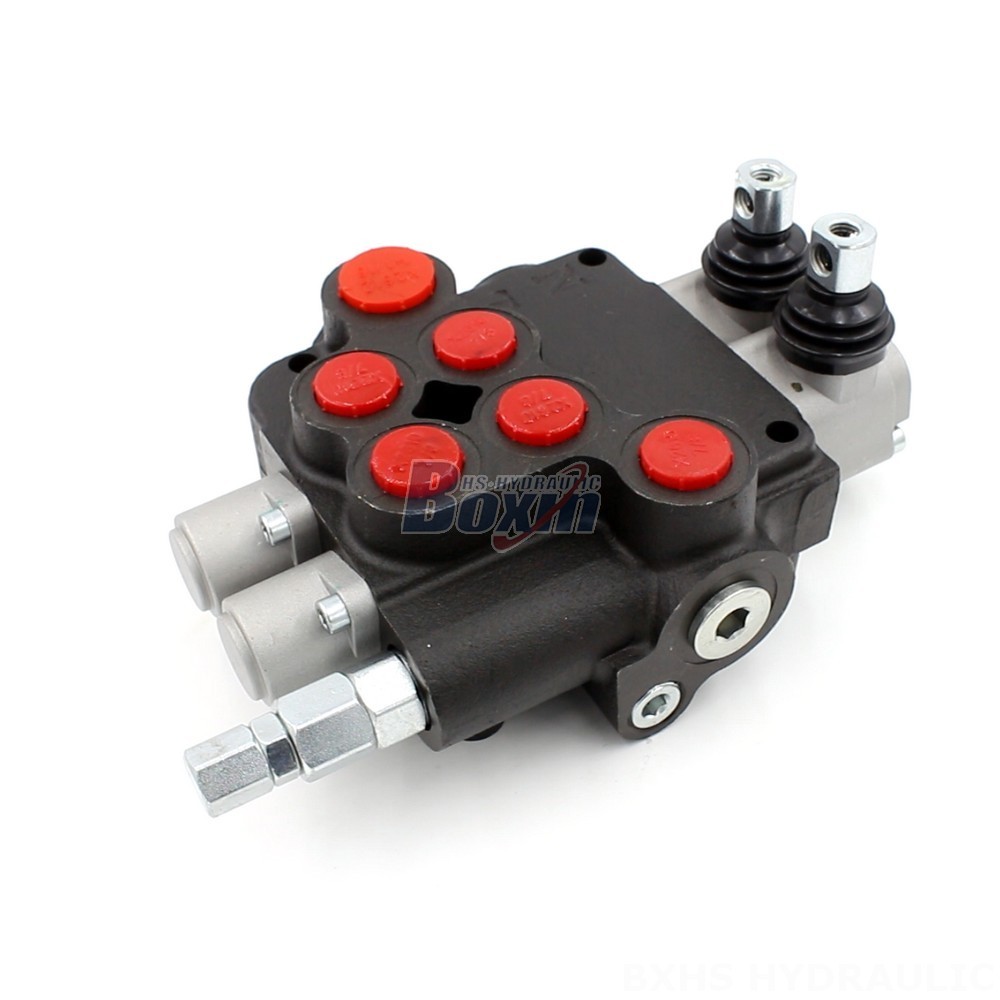

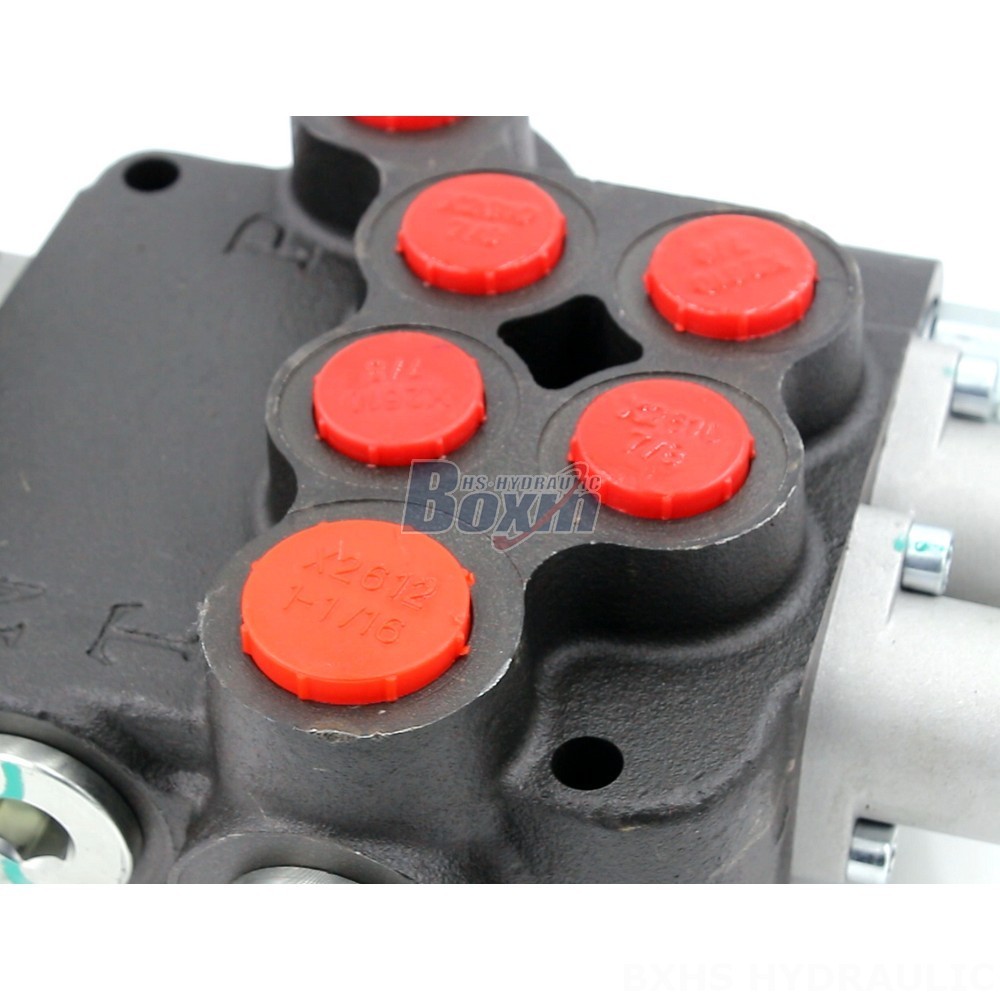

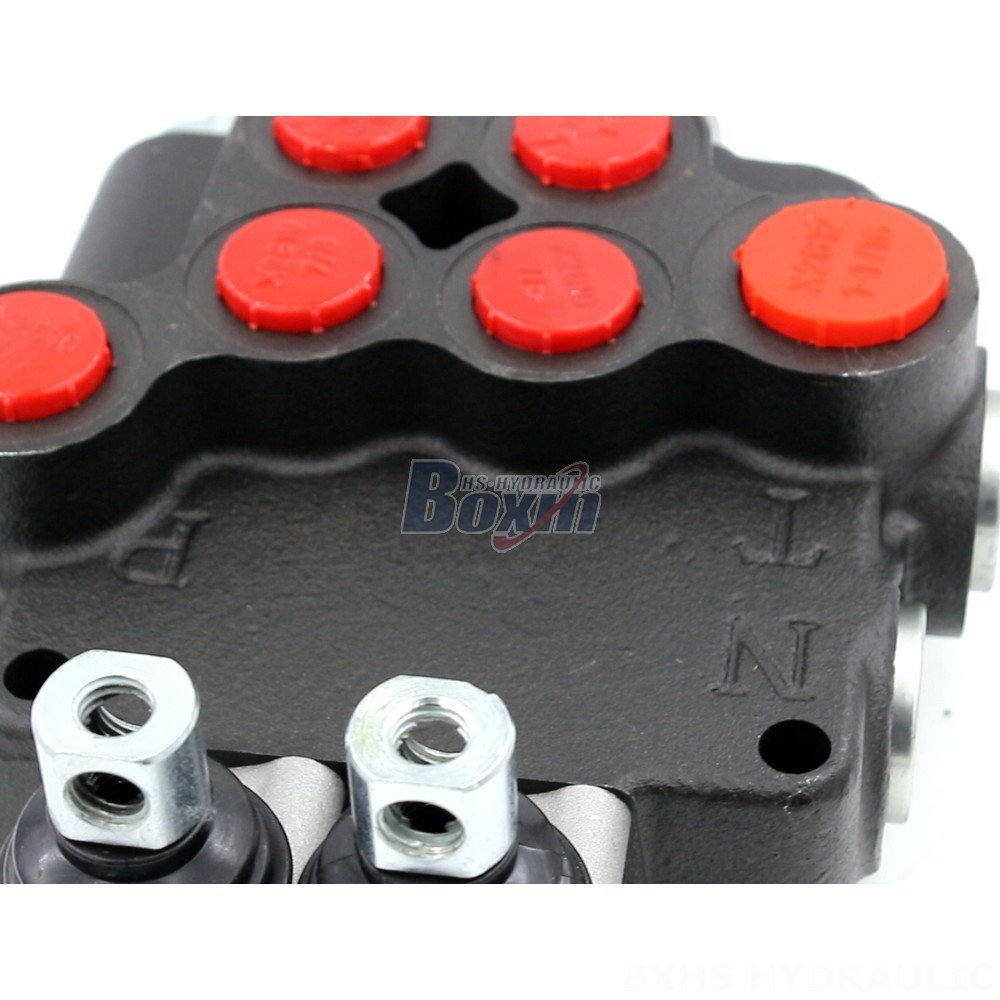

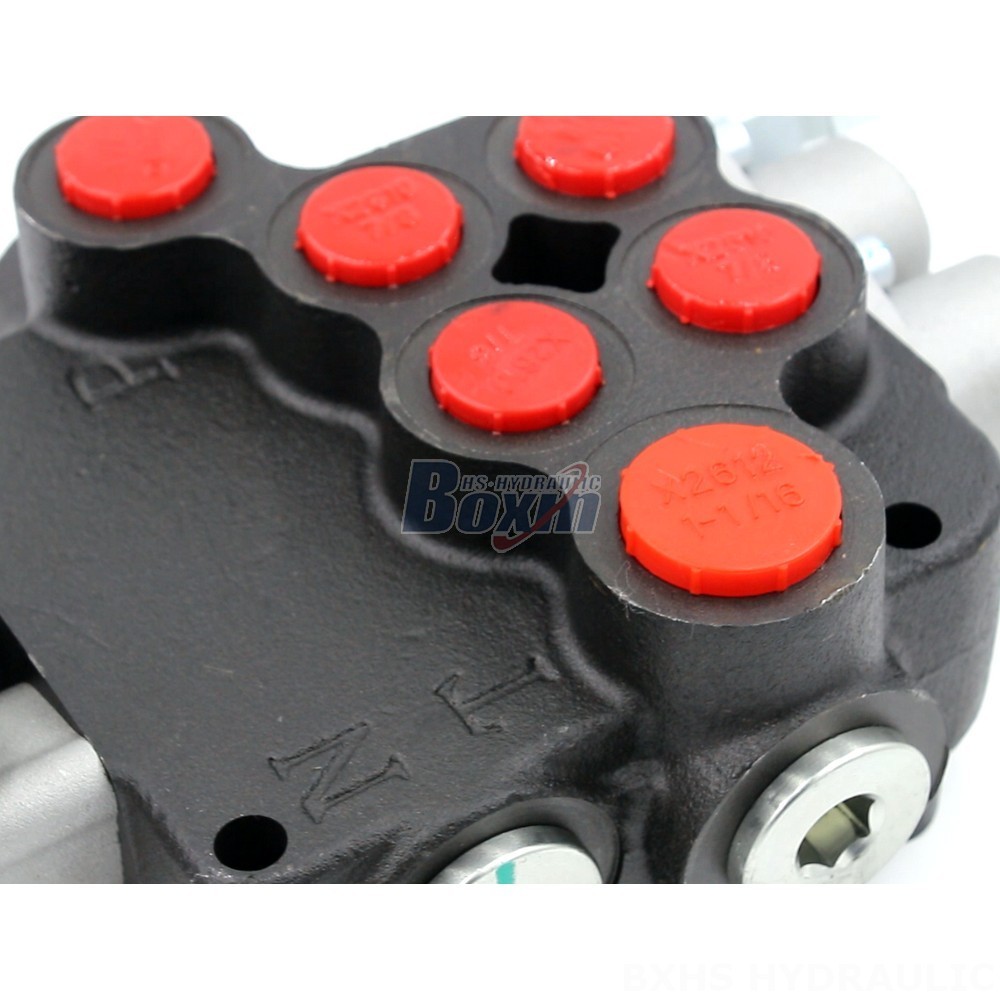

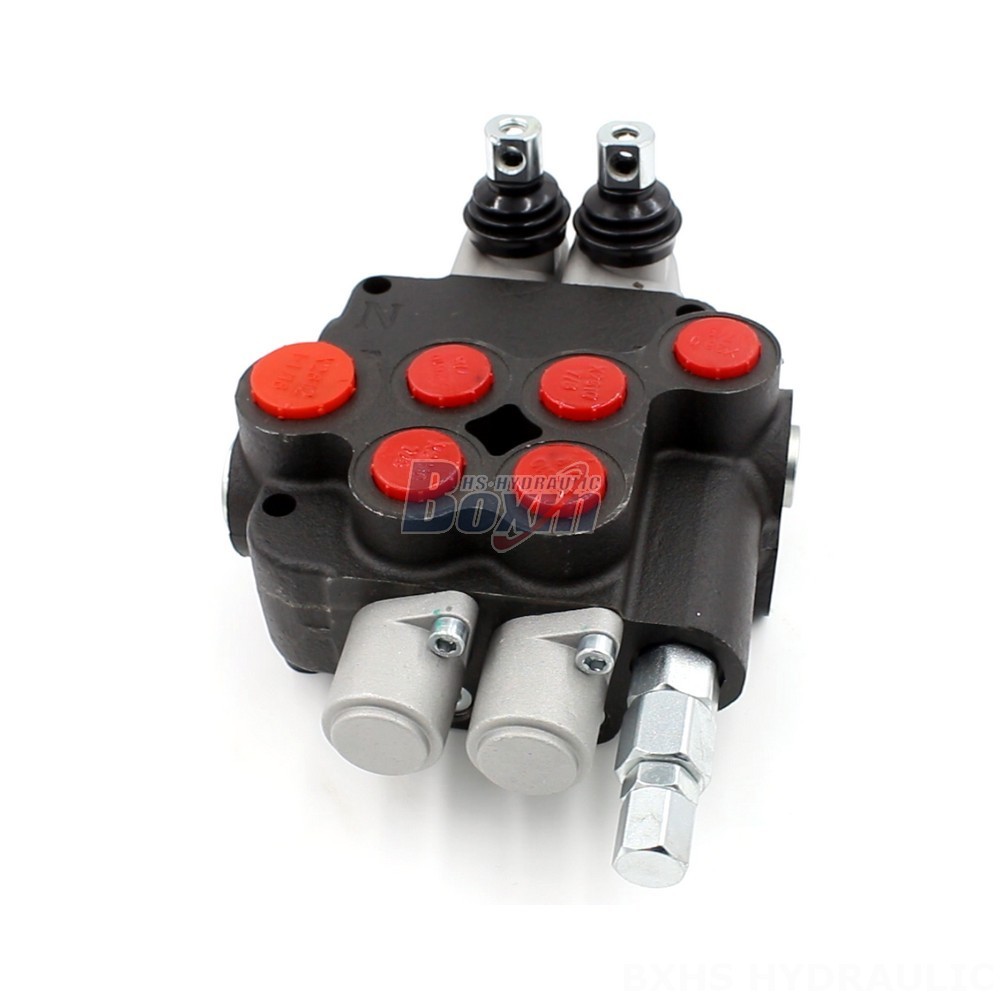

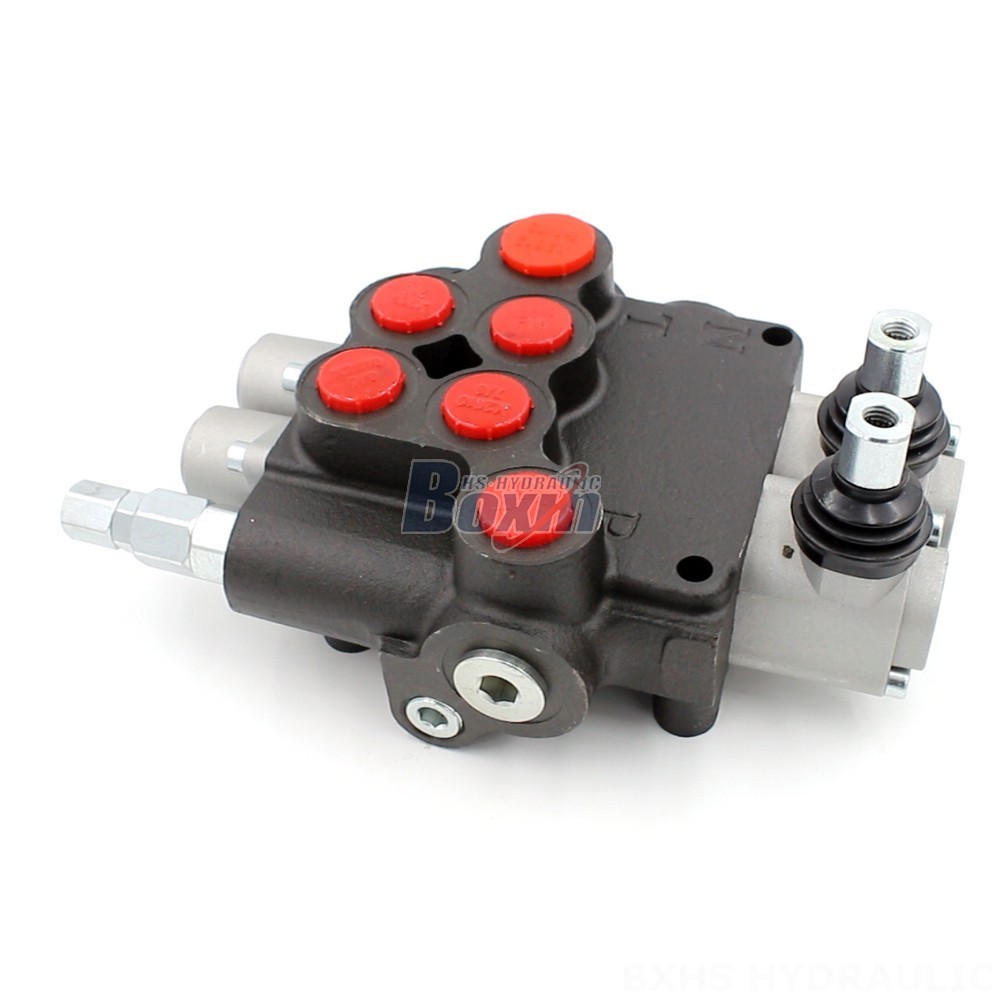

The Factory Wholesale Supply: P80-U116-U78 Hydraulic Valves from the Manufacturer are designed for use in a variety of applications including material handling, construction, agriculture, and industrial vehicles. These valves are manufactured to the highest standards and are available at competitive prices.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-U116-U78 Hydraulic Valve is a monoblock valve with a manual control. It has a rated flow of 80 L/min and a maximum pressure of 250 bar. The valve is suitable for use with a wide range of fluids, including hydraulic oil, and has an operating viscosity range of 15 - 75 mm²/s. The valve is also suitable for use in a wide range of ambient temperatures, from -40°C to +80°C. The P80-U116-U78 Hydraulic Valve is available from the manufacturer at competitive prices. The valve is also available with a variety of options, including different spool types and port configurations.
