Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

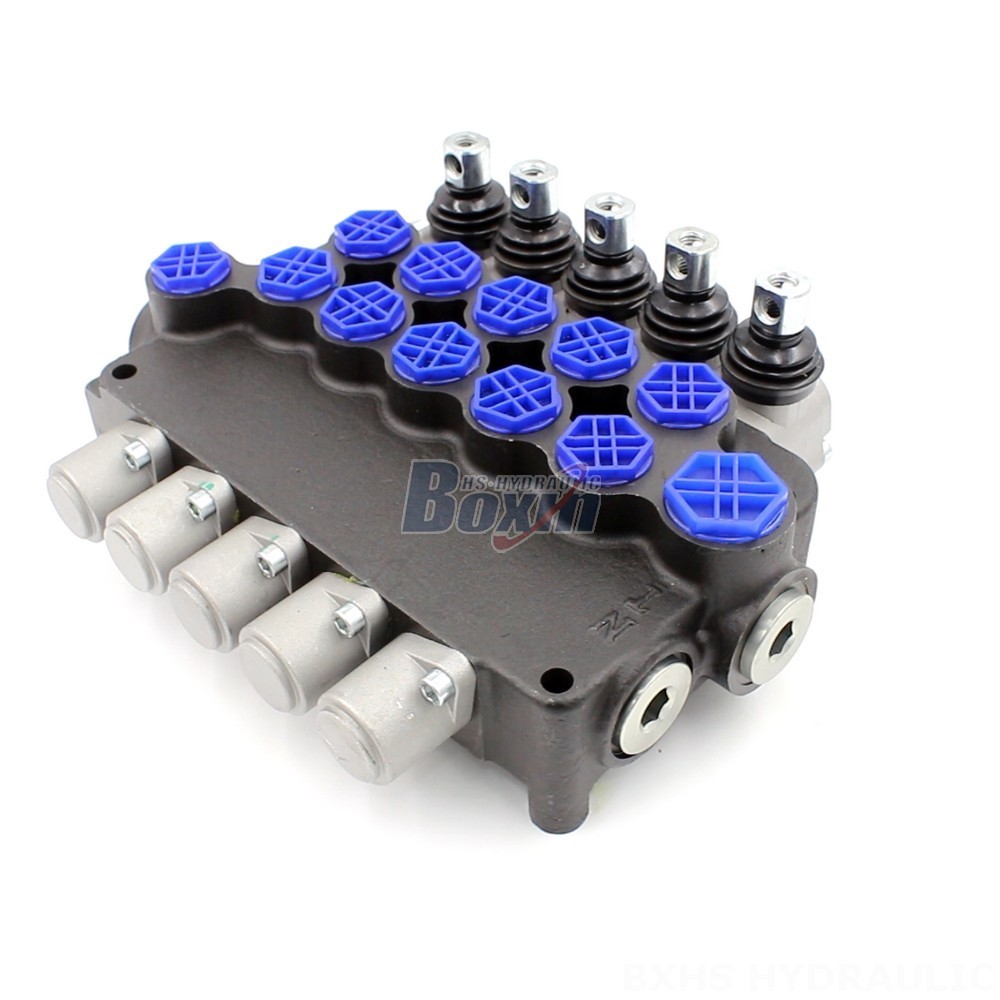

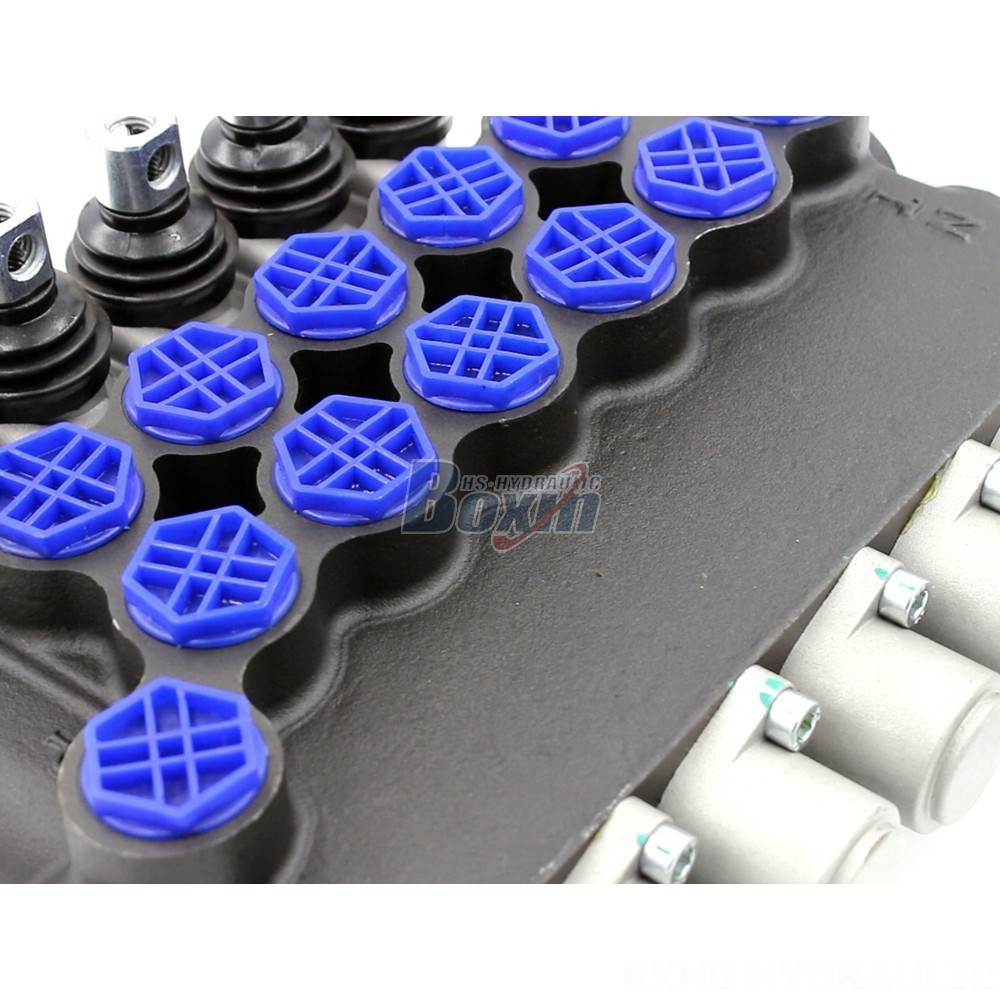

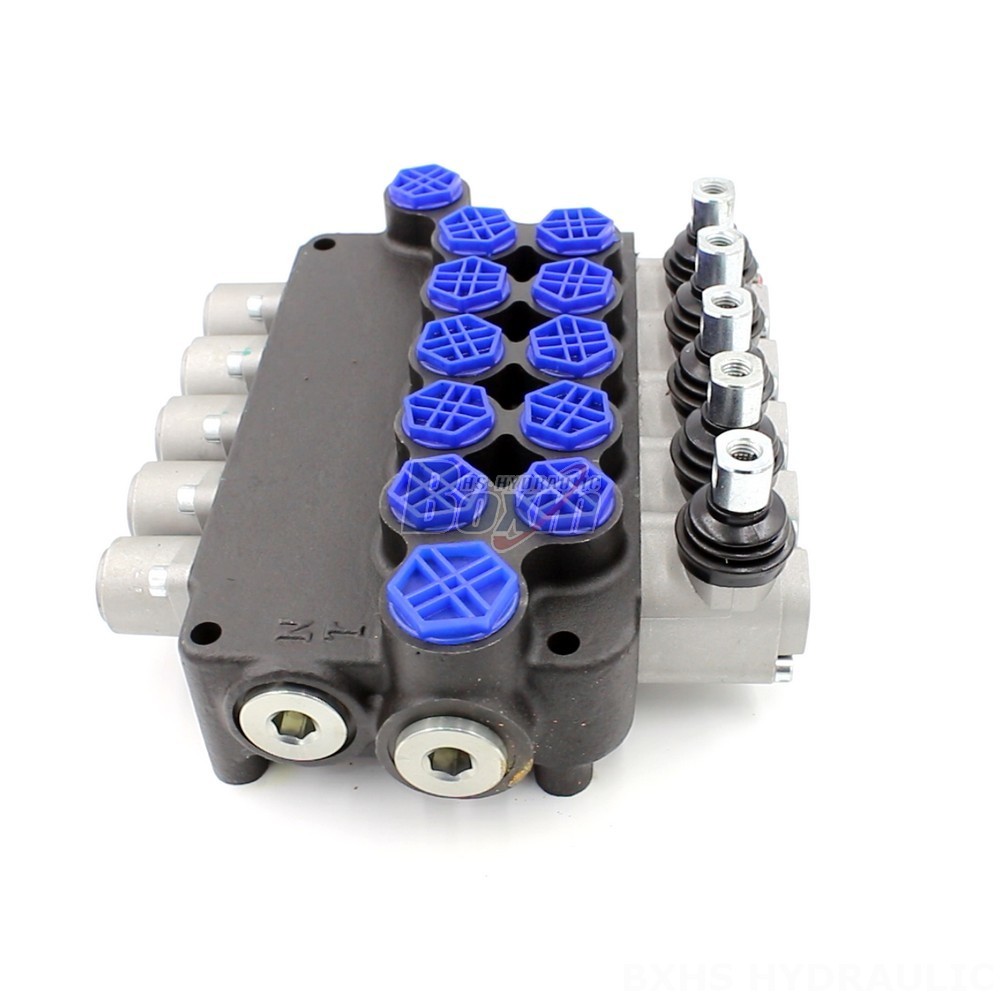

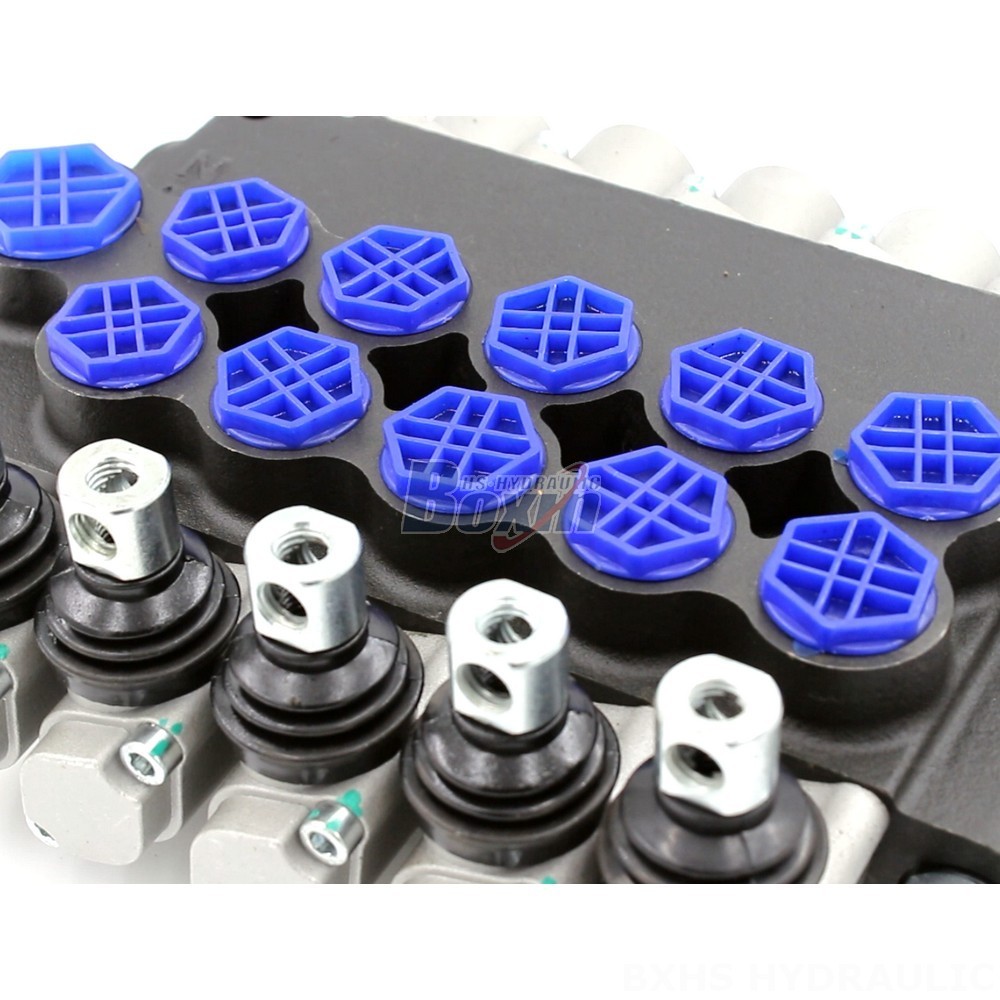

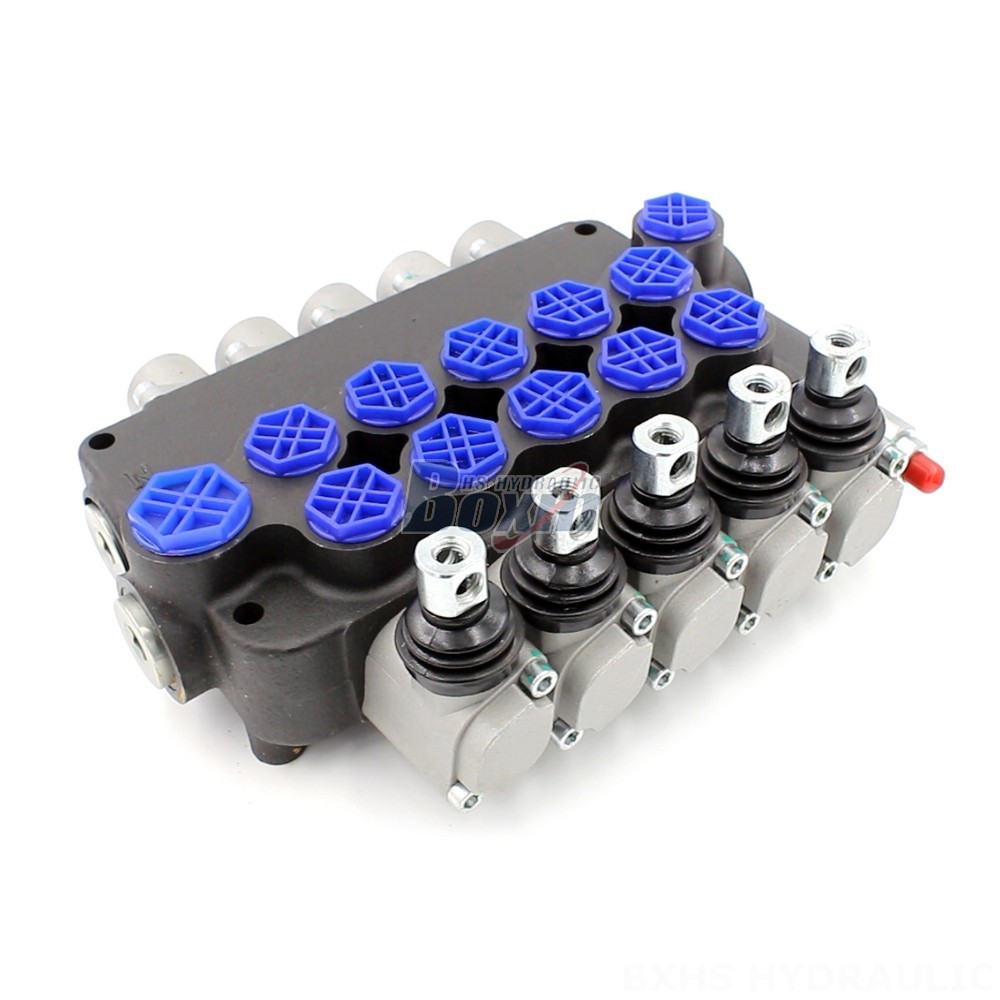

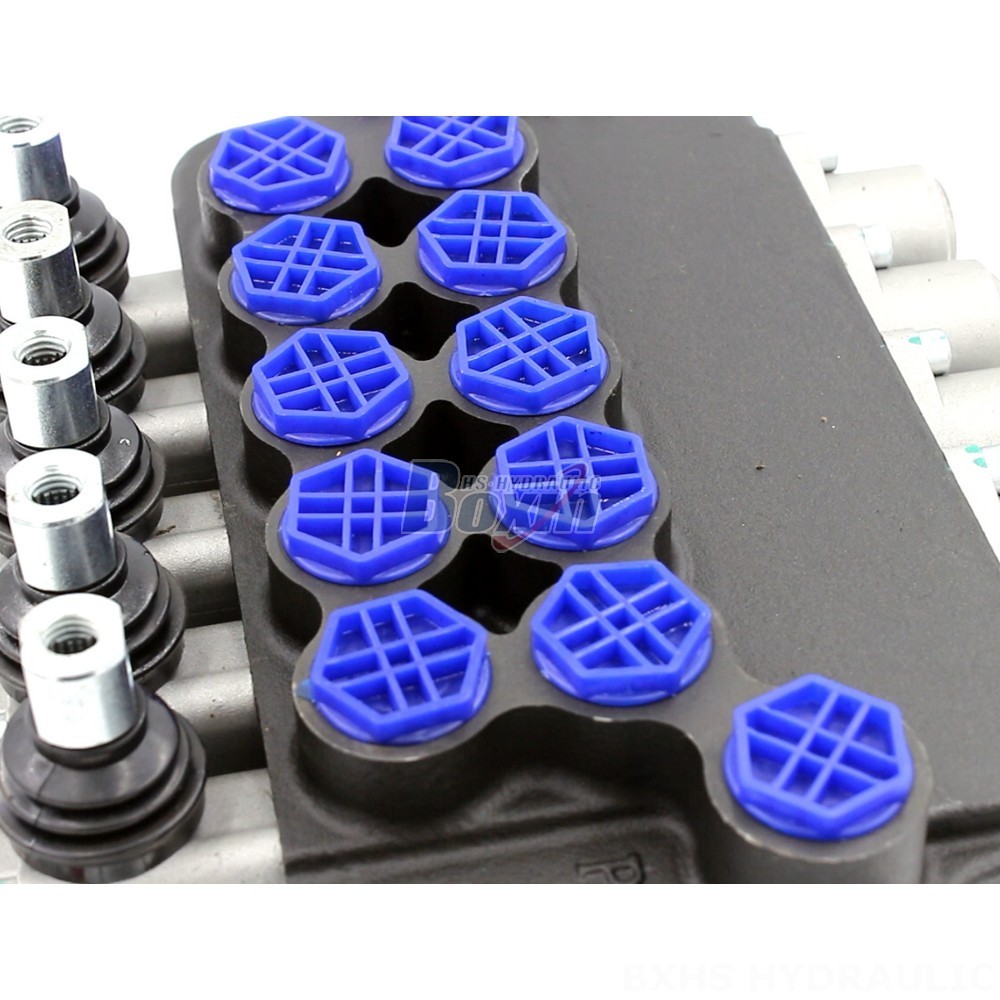

Our factory manufactures high-quality 4 Way Valve P80F-G34-OT hydraulic directional control valves. These manual control, 5 section, monoblock valves are designed for heavy-duty applications and offer a rated flow of 80 L/min and a maximum pressure of 250 bar. We offer competitive factory prices and direct supply options for bulk orders.
| Serie P80F Monoblock-Wegeventil Parameter | |
|---|---|
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick |
| Anschlussgröße | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT |
| Maximaldruck | 315 bar (4600 psi) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Strukturtyp | Monoblockventil |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
This P80F-G34-OT 4 Way Valve is a high-performance hydraulic directional control valve manufactured in our factory. It features manual control, a 5 section design, and a monoblock structure. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is ideal for heavy-duty applications in various industries. The valve operates within a viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). It is equipped with a 5 spool design and falls under the P80F series. This valve is specifically suitable for material handling, construction and earth moving, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, backhoe loaders, harvesters, and bale wrappers. As a manufacturer, we offer competitive factory prices and direct supply options for bulk orders. We welcome inquiries from distributors, wholesalers, agents, and traders worldwide.
