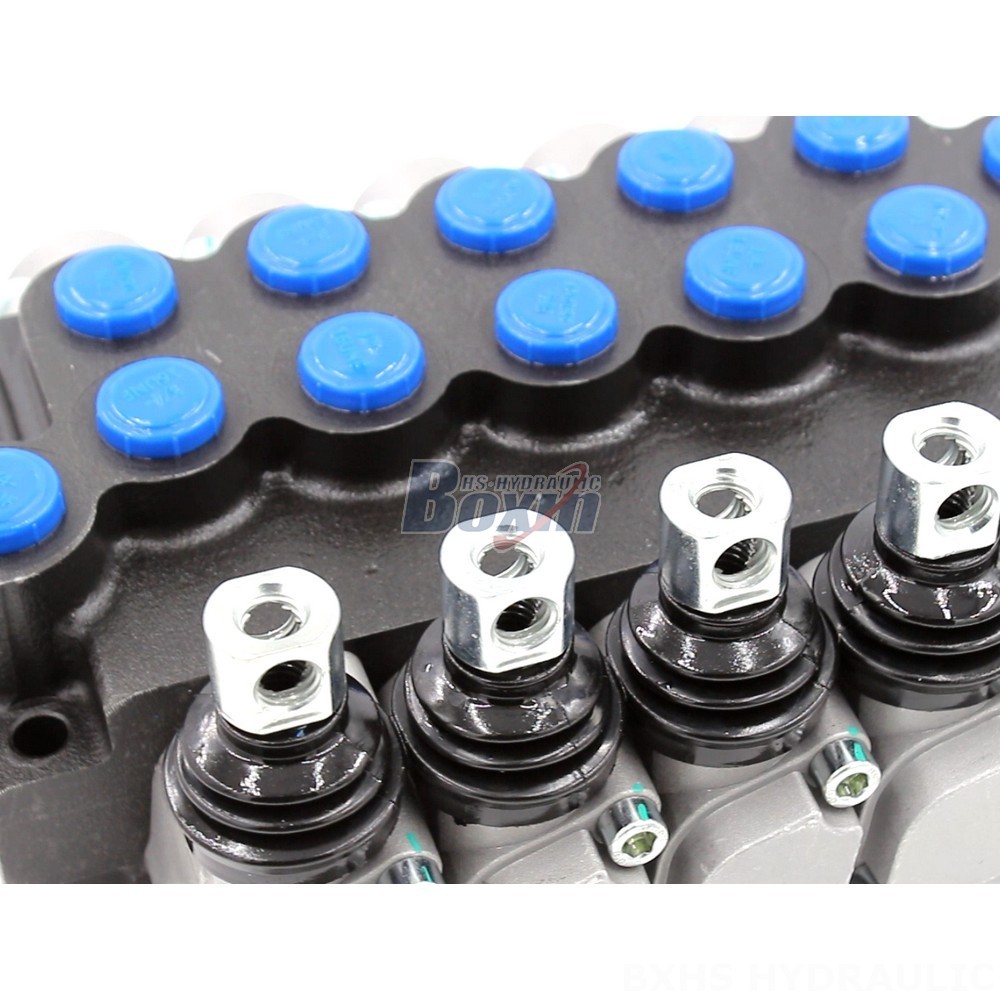

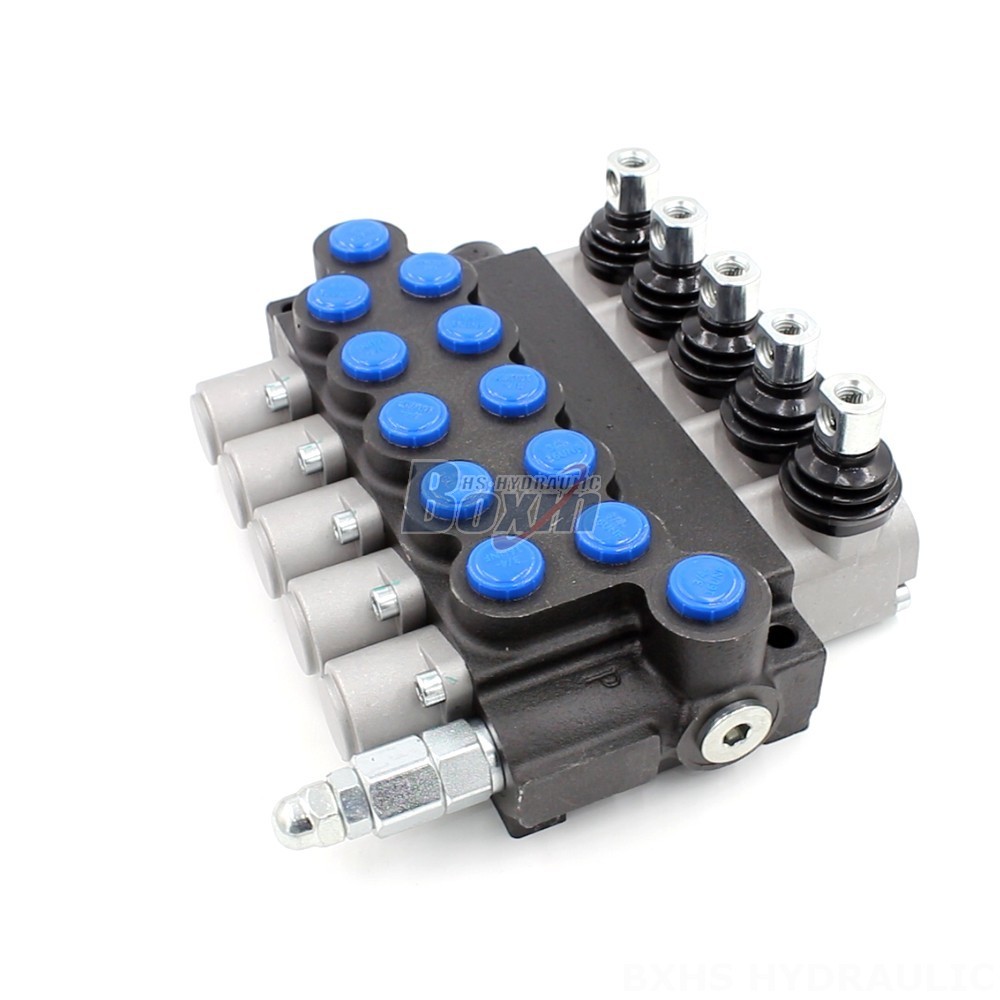

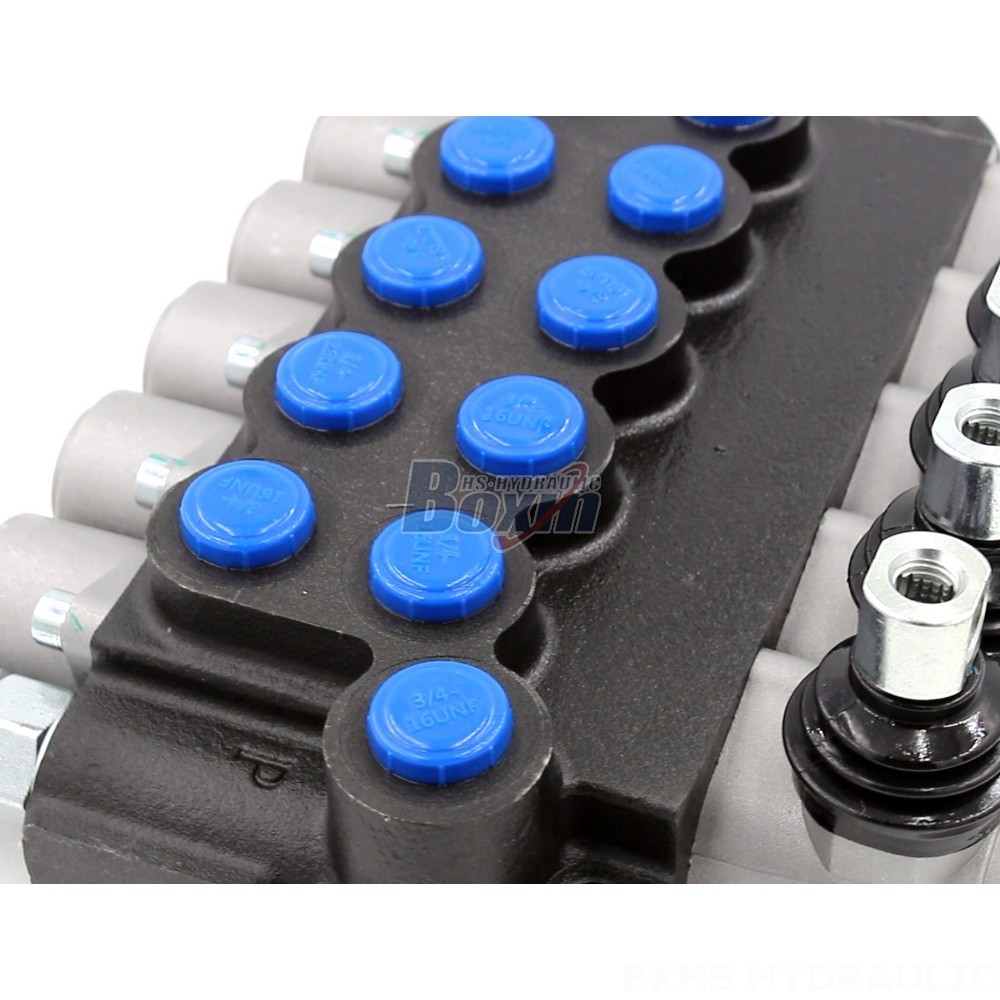

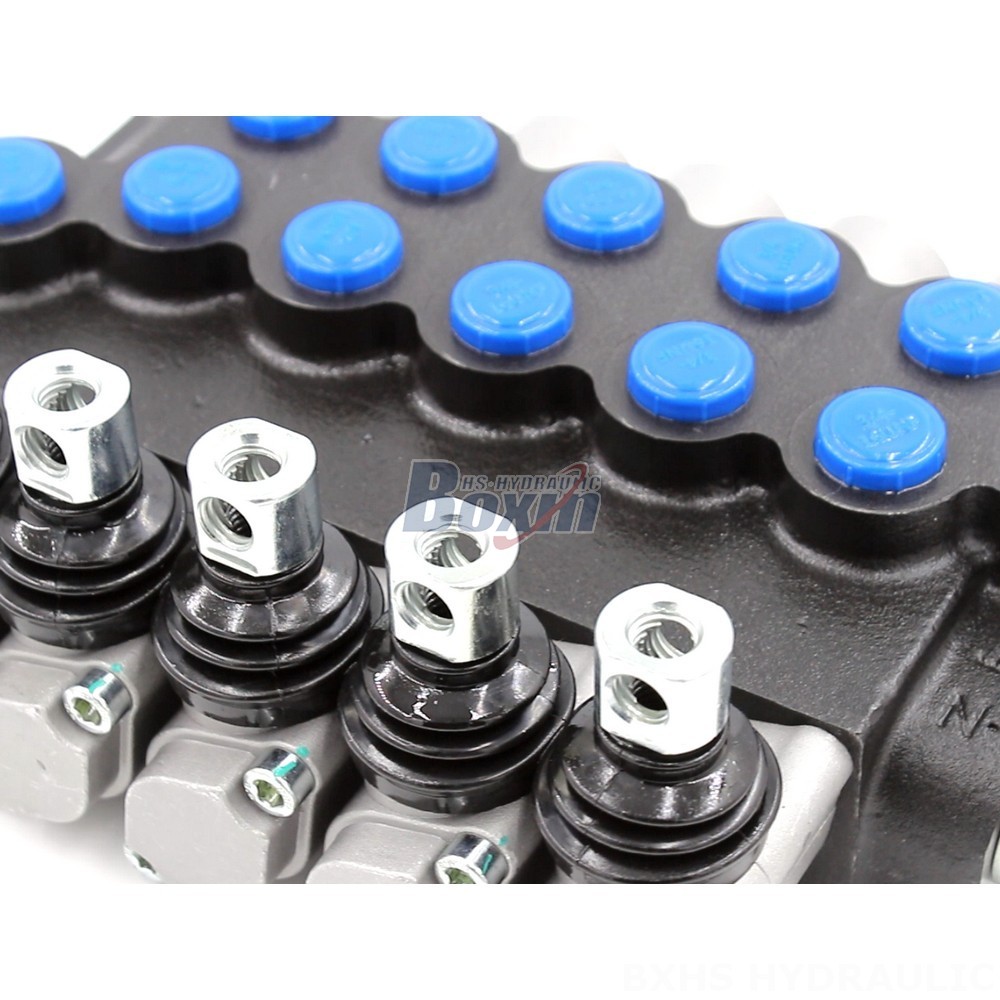

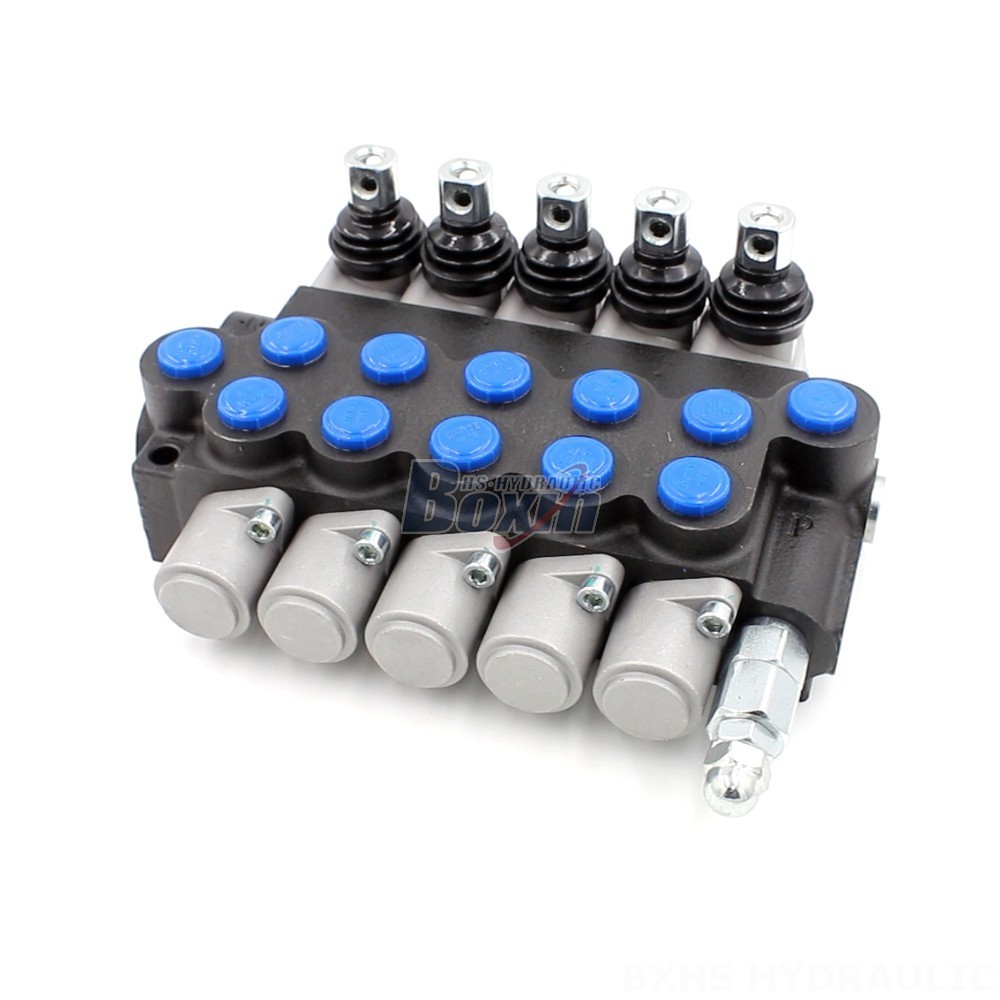

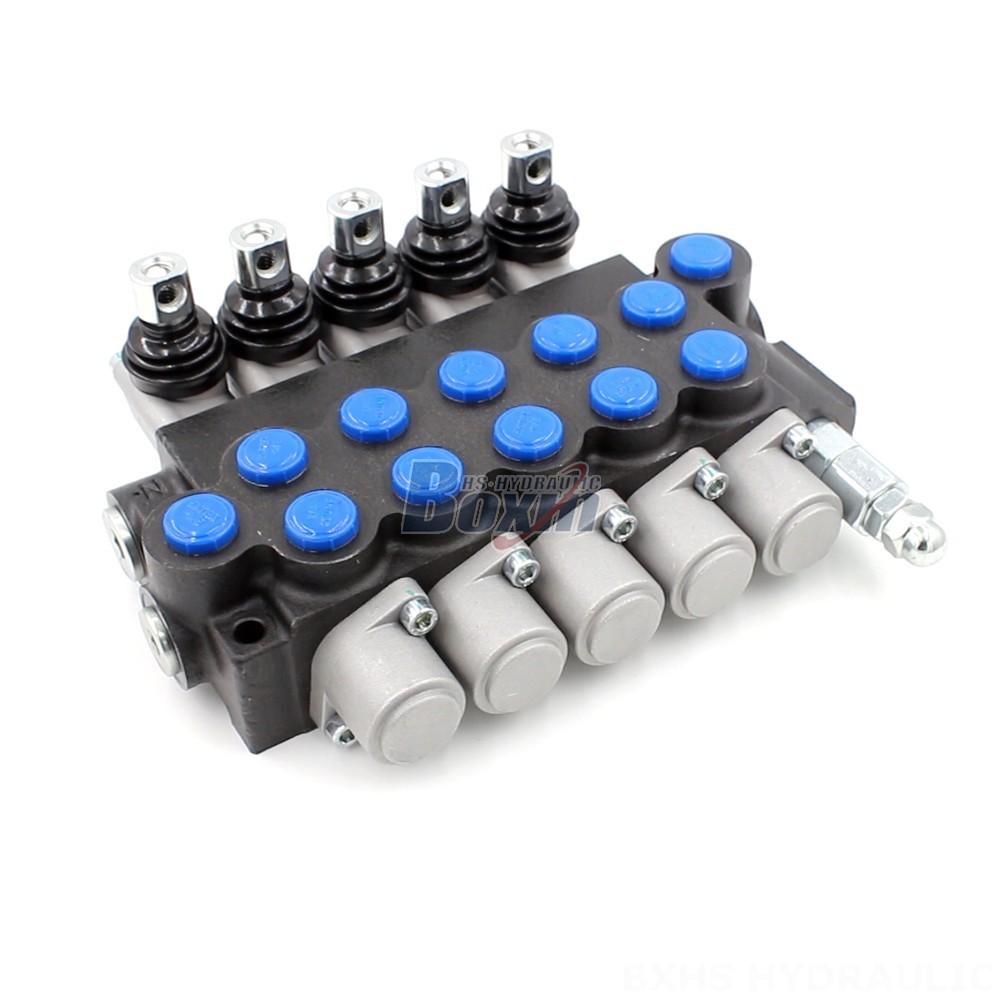

The P40-U78 hydraulic directional valve is a high-quality, 5-section, monoblock valve designed for heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. It offers reliable performance with a rated flow of 40 L/min and a maximum pressure of 250 bar. This valve is available directly from the manufacturer, providing competitive prices and factory wholesale options.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This P40-U78 hydraulic directional valve is a robust and efficient solution for controlling hydraulic systems in a variety of applications. It features manual control for easy operation, a 5-section design for versatility, and a compact monoblock structure for durability. The valve is rated for a flow of 40 L/min and a maximum pressure of 250 bar, making it suitable for demanding tasks. Manufactured with high-quality materials and precision engineering, this valve ensures reliability and long-lasting performance. As a manufacturer, we offer factory direct prices and wholesale options to distributors, wholesalers, and dealers. Contact us today to learn more about this high-performance hydraulic directional valve.
