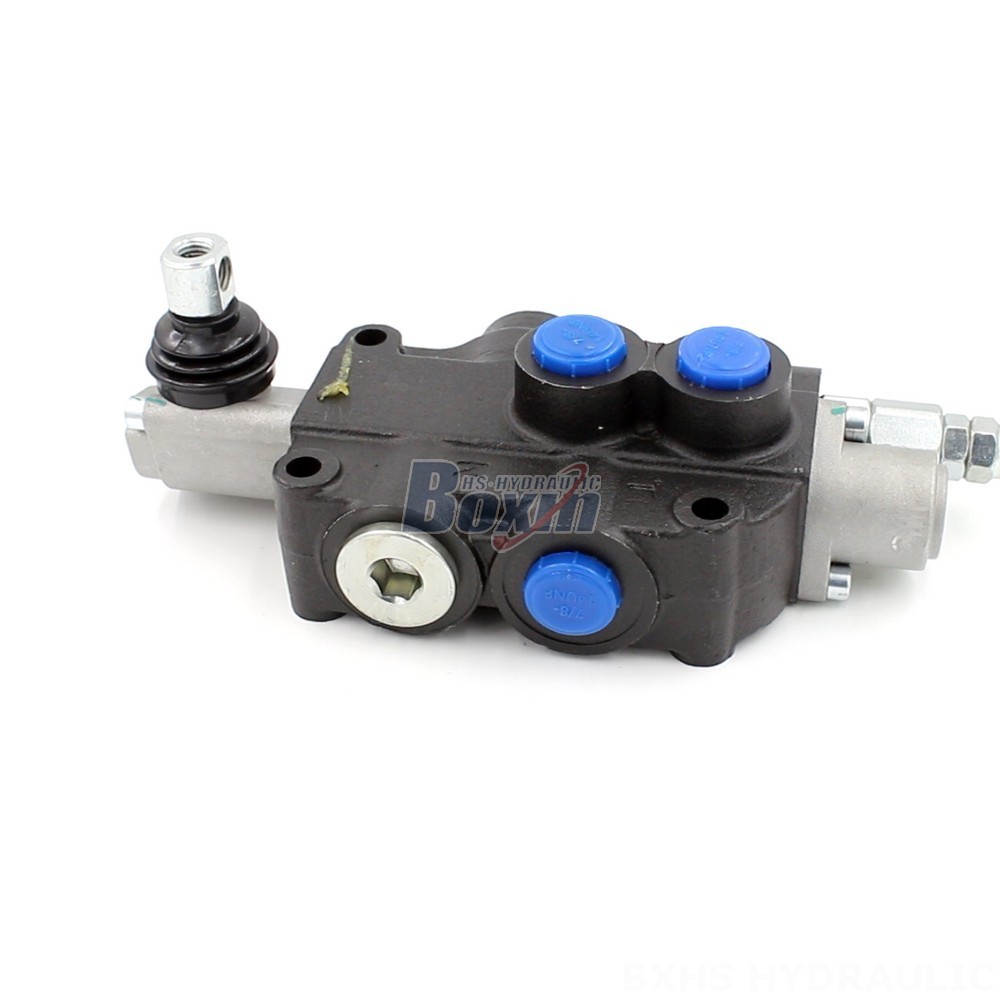

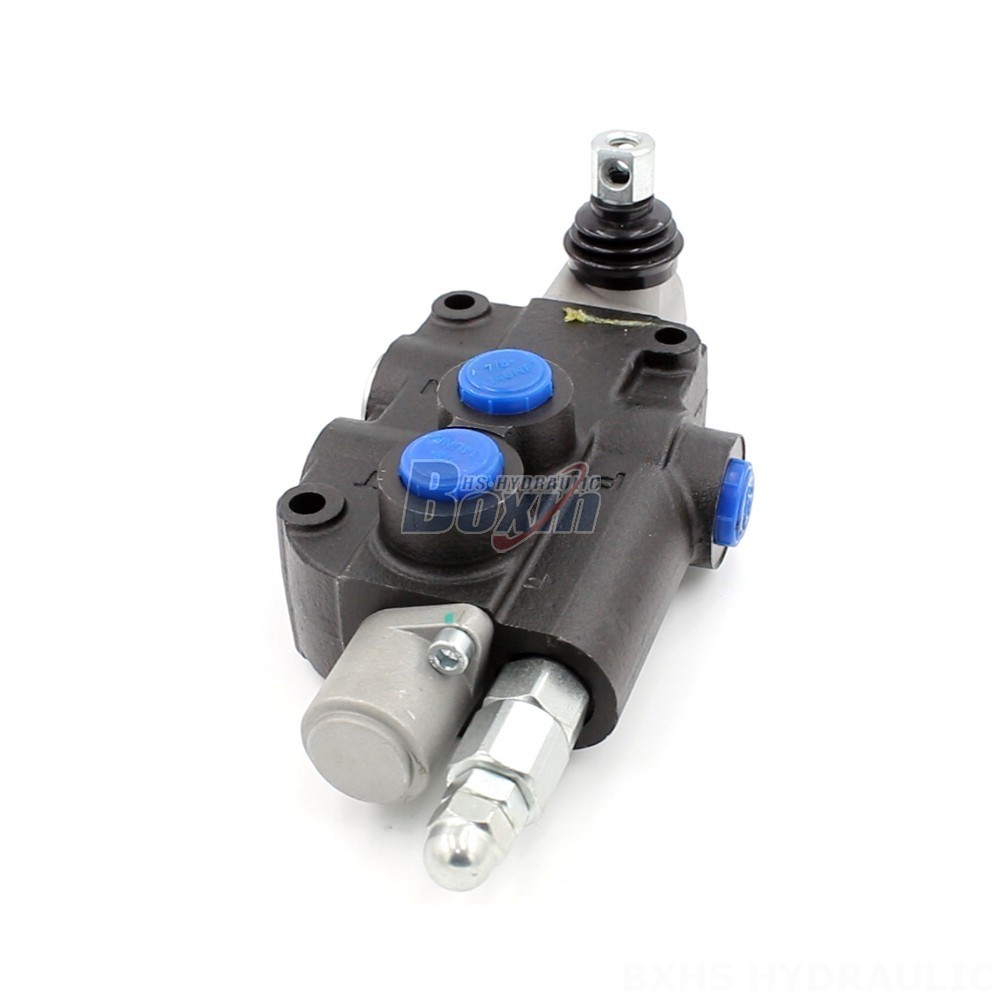

Introducing our exclusive factory-priced P80-U78-1OT Hydraulic Directional Valve, the ultimate solution for your hydraulic system needs. Manufactured with the highest standards of precision and reliability, this valve features a robust monoblock design, manual control, and exceptional performance capabilities.
| P80 Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 80 l/min (21,2 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
Our P80-U78-1OT Hydraulic Directional Valve is meticulously engineered to deliver exceptional performance in demanding applications. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), it ensures efficient and reliable operation in a wide range of hydraulic systems. The valve's operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and ambient temperature range of -40°C to +80°C (-40°F to +176°F) make it suitable for diverse operating conditions.
As a leading hydraulic products manufacturer, we offer exclusive factory pricing on our P80-U78-1OT Hydraulic Directional Valve. By sourcing directly from our state-of-the-art production facilities, you can enjoy significant cost savings while ensuring the highest quality standards. Our commitment to excellence extends beyond manufacturing; we also provide comprehensive support, including technical assistance and after-sales services, to ensure your complete satisfaction.
