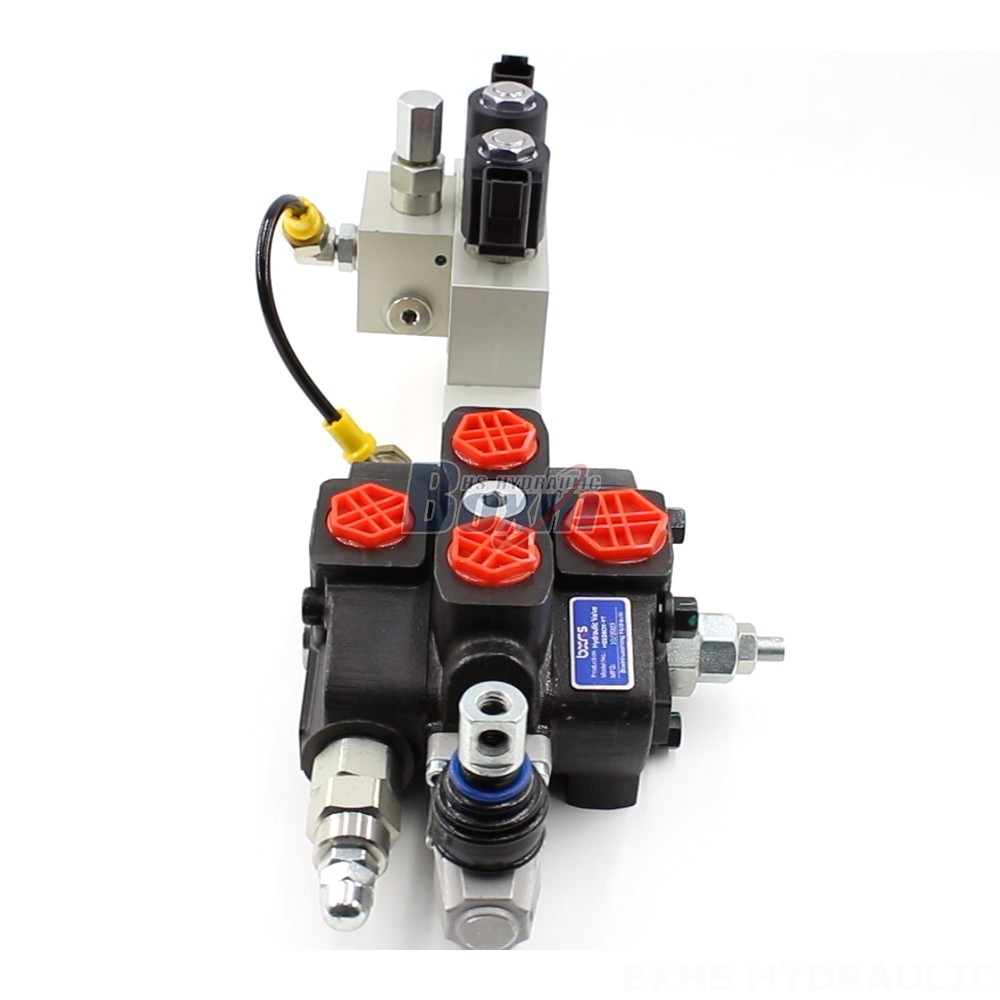

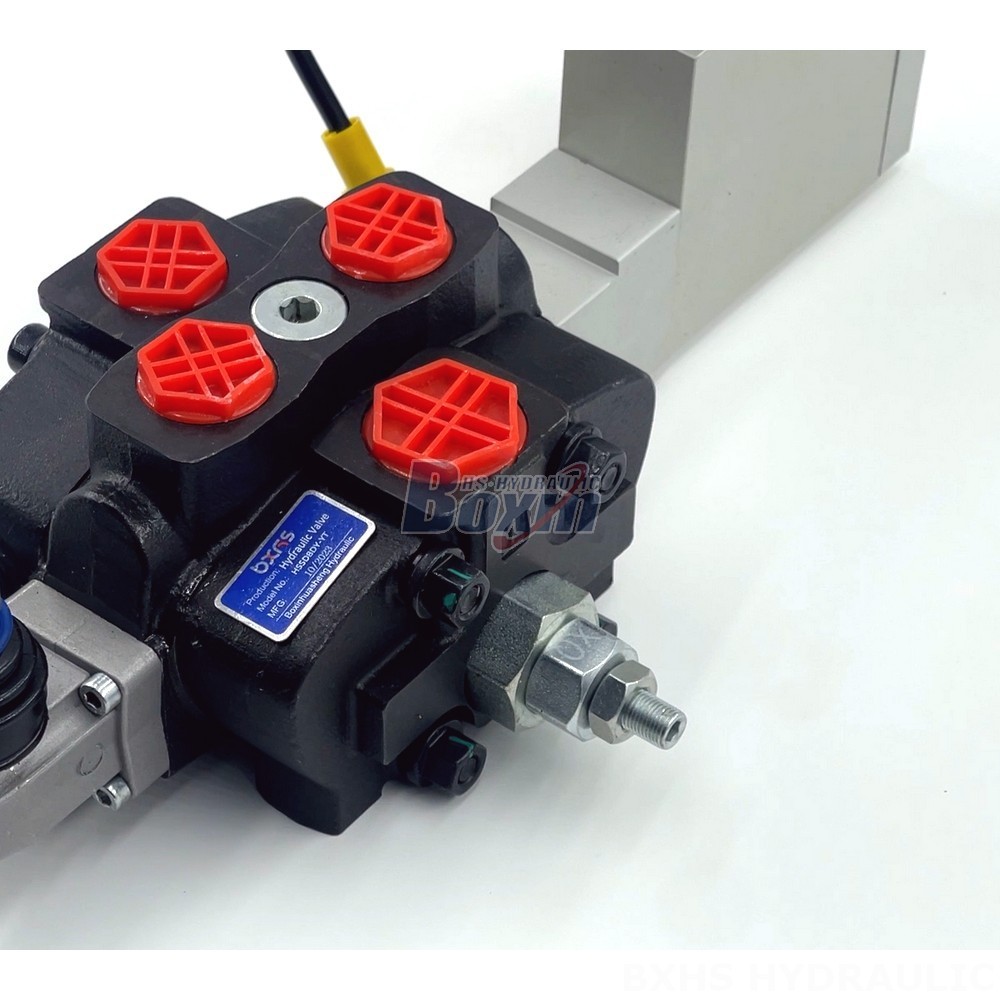

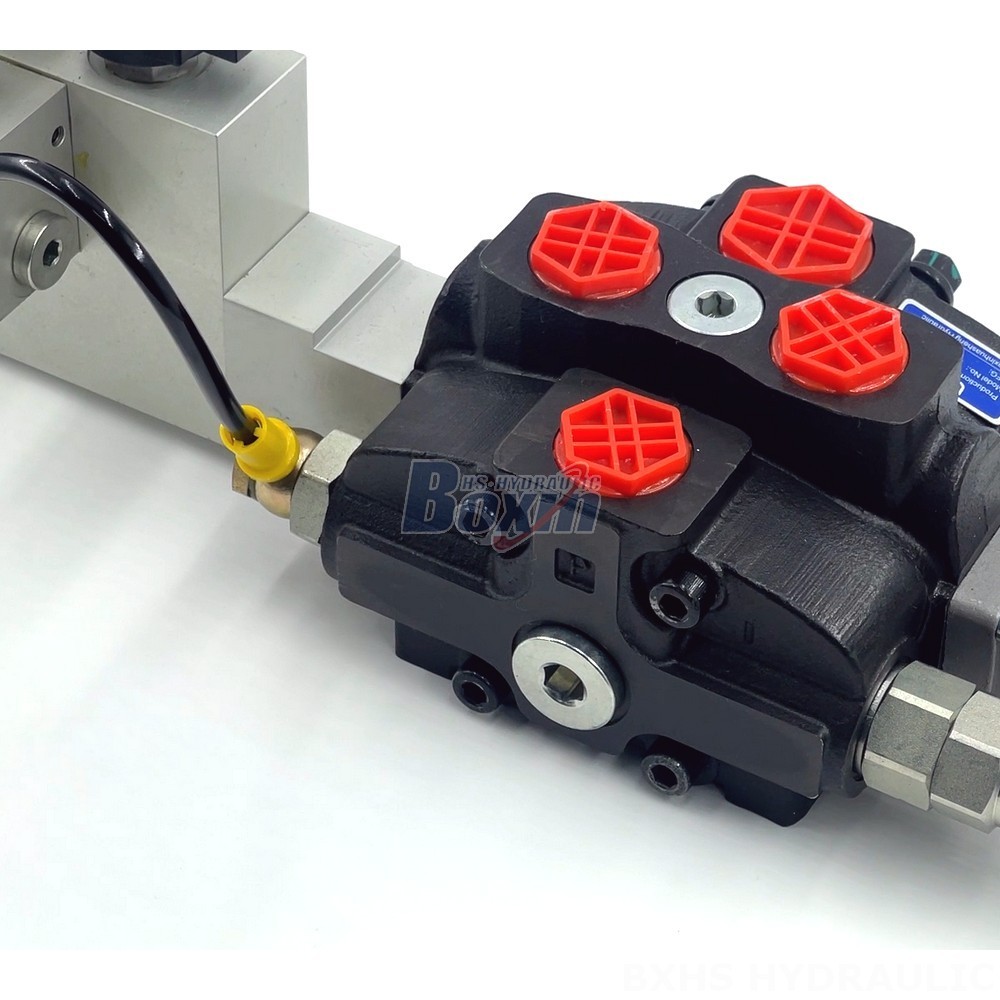

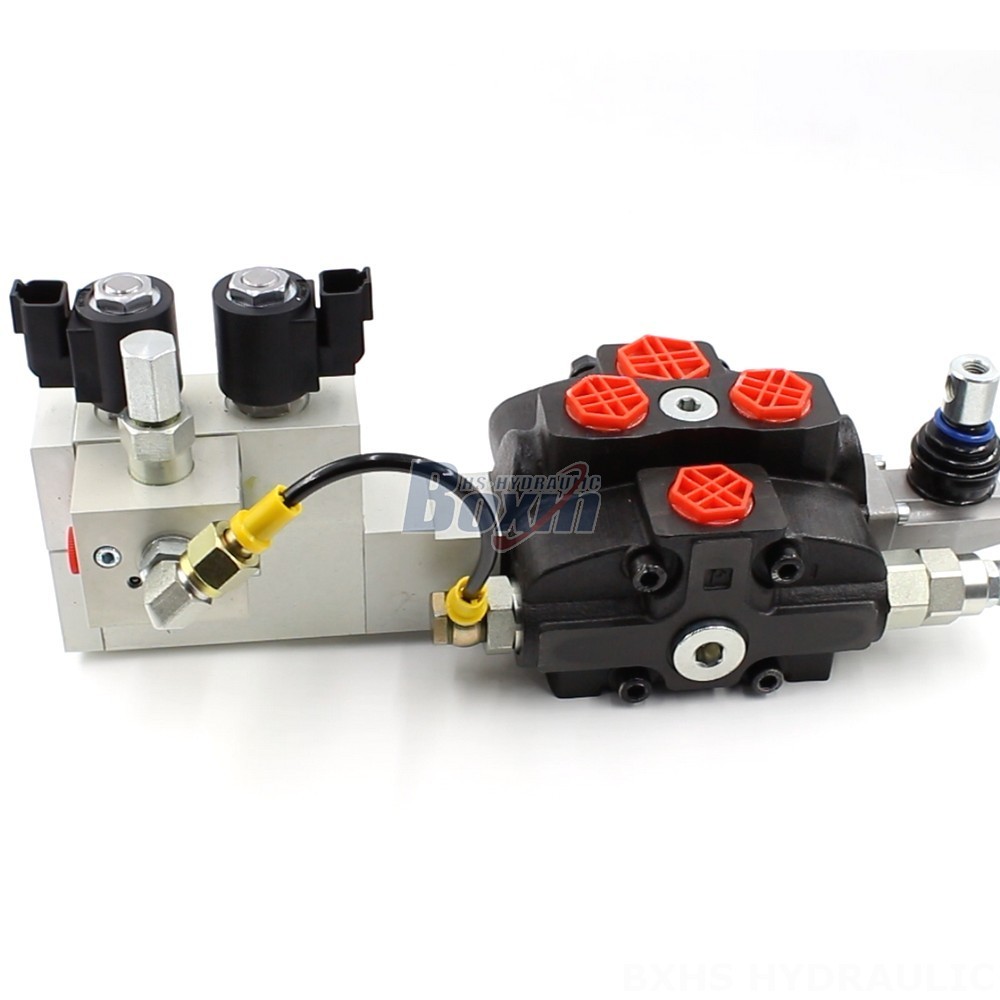

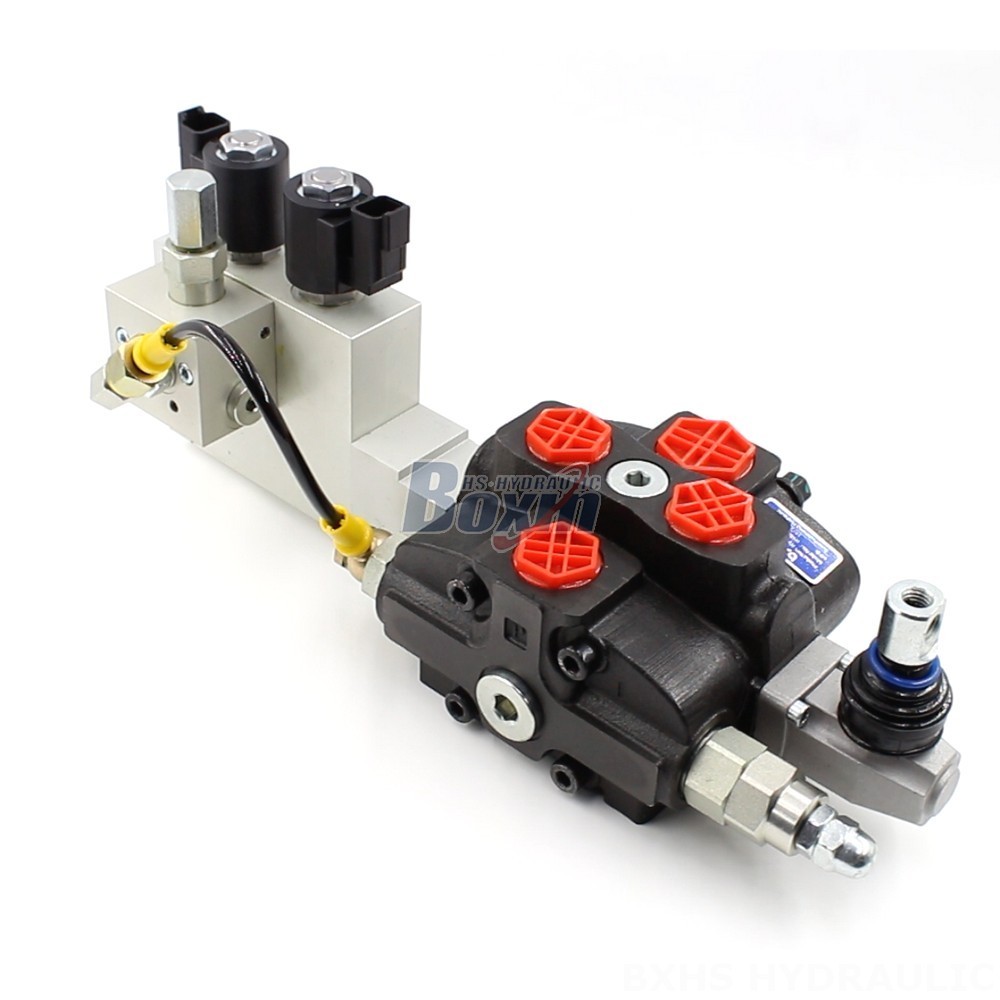

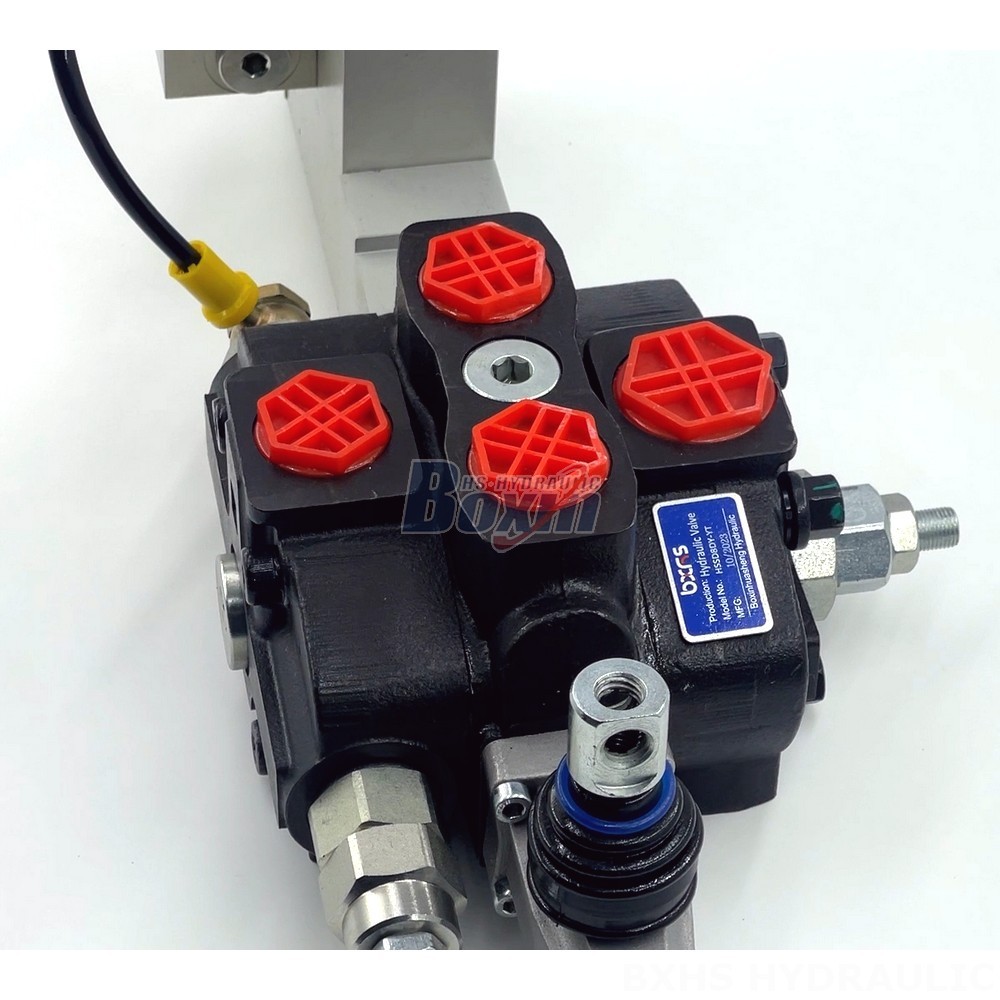

Introducing our Electro-hydraulic Sectional Directional Valve, the ultimate solution for precision control in your hydraulic applications. With its 1 section, sectional valve design, and exceptional performance parameters, this valve delivers unmatched precision and reliability.
| SD8-Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt |
| Bereich der Betriebsviskosität | 12 - 400 mm²/s (12 cSt bis 400 cSt) |
| Nennfluss | 90 l/min (23,8 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G1/2, G3/4, SAE 10 |
| Auslassanschluss | G1/2, G3/4, SAE 10, 3/4 NPT |
| Anschlussgröße | G1/2, SAE 10 |
**Key Features and Benefits:**
- **Electro-hydraulic control:** Ensures precise and responsive operation.
- **1 Section:** Allows for independent control of fluid flow in a single circuit.
- **Sectional valve:** Modular design enables easy configuration and customization.
- **High Rated Flow (90 L/min):** Handles demanding flow requirements effortlessly.
- **Max Pressure (350 bar):** Withstands high system pressures.
- **Wide Operating Viscosity Range (12 - 400 mm²/s):** Accommodates various fluid viscosities.
- **1 Spool:** Provides precise flow control with minimal leakage.
- **SD8 Series:** Part of our premium valve range, known for durability and performance.
**Applications:**
- Material Handling: Forklifts, telehandlers, stackers
- Construction and Earth Moving: Motor graders, excavators, skid steer loaders
- Agriculture: Tractors, harvesters
- Industrial Vehicles: Aerial platforms, compact wheel loaders
