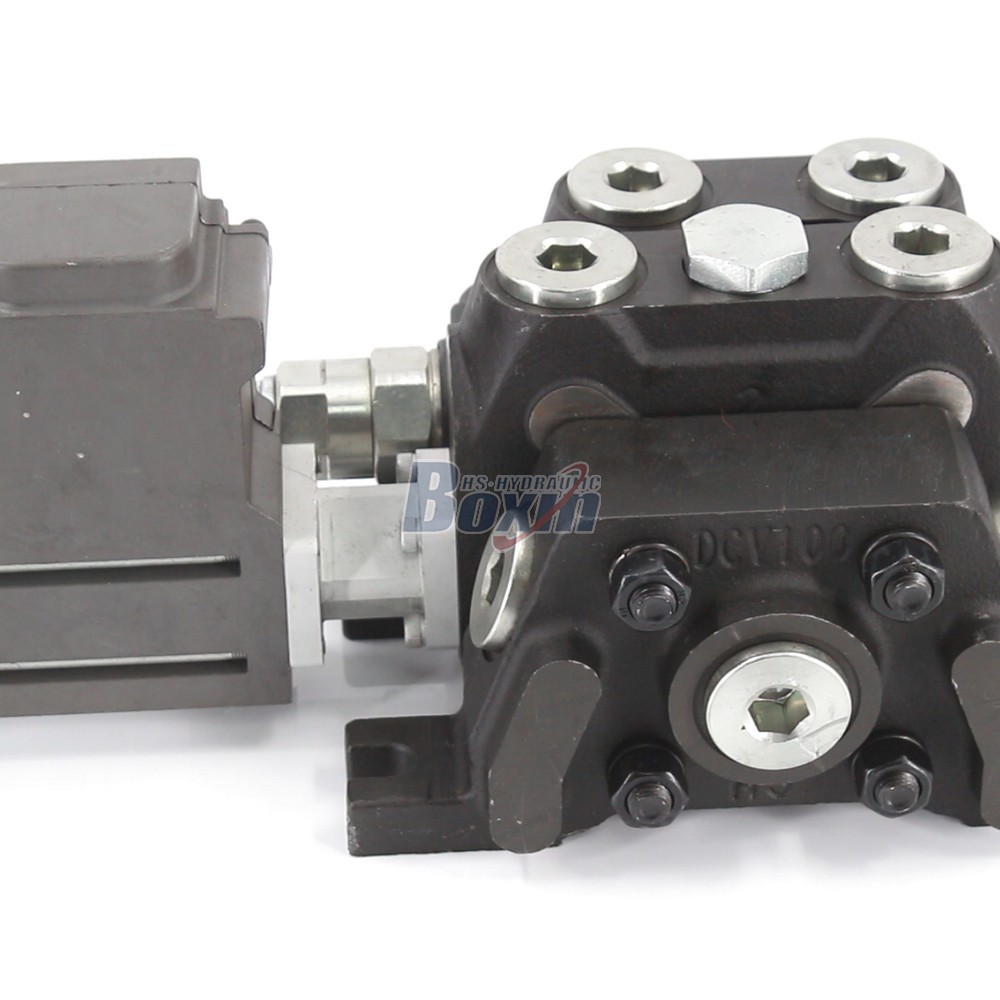

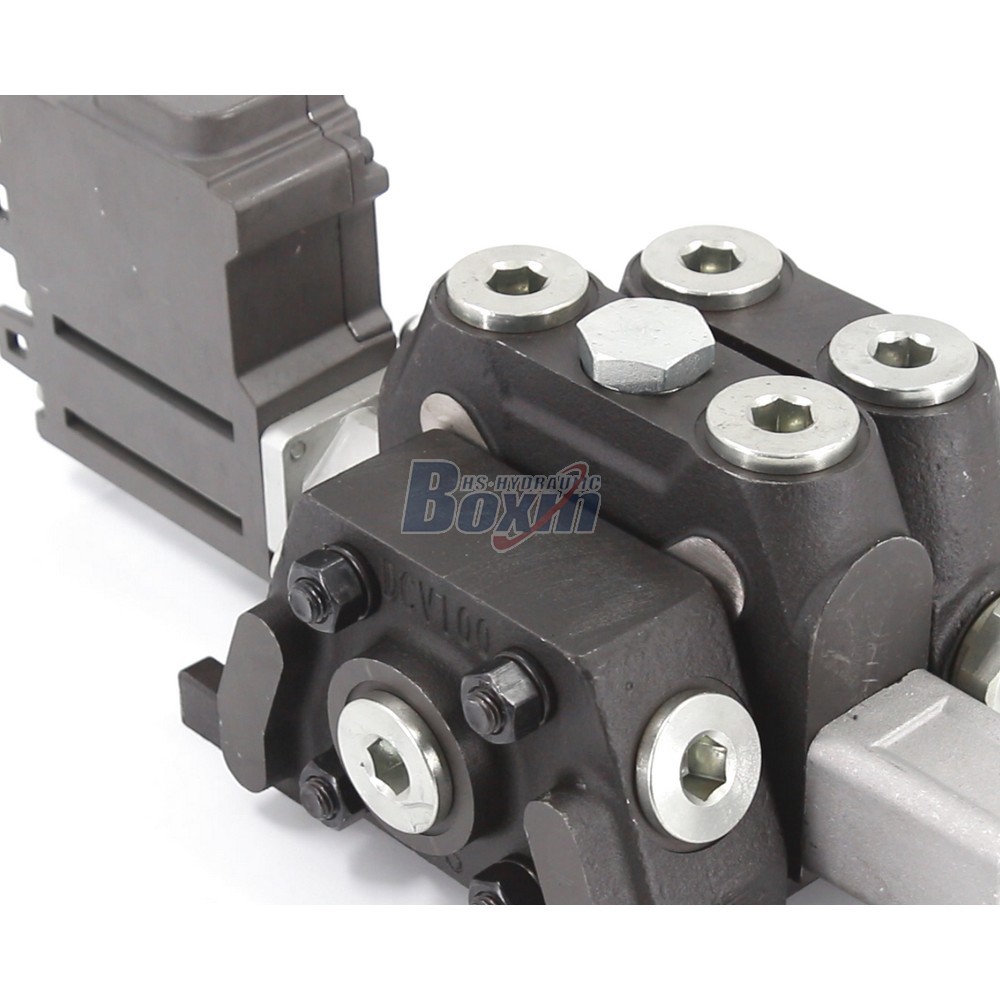

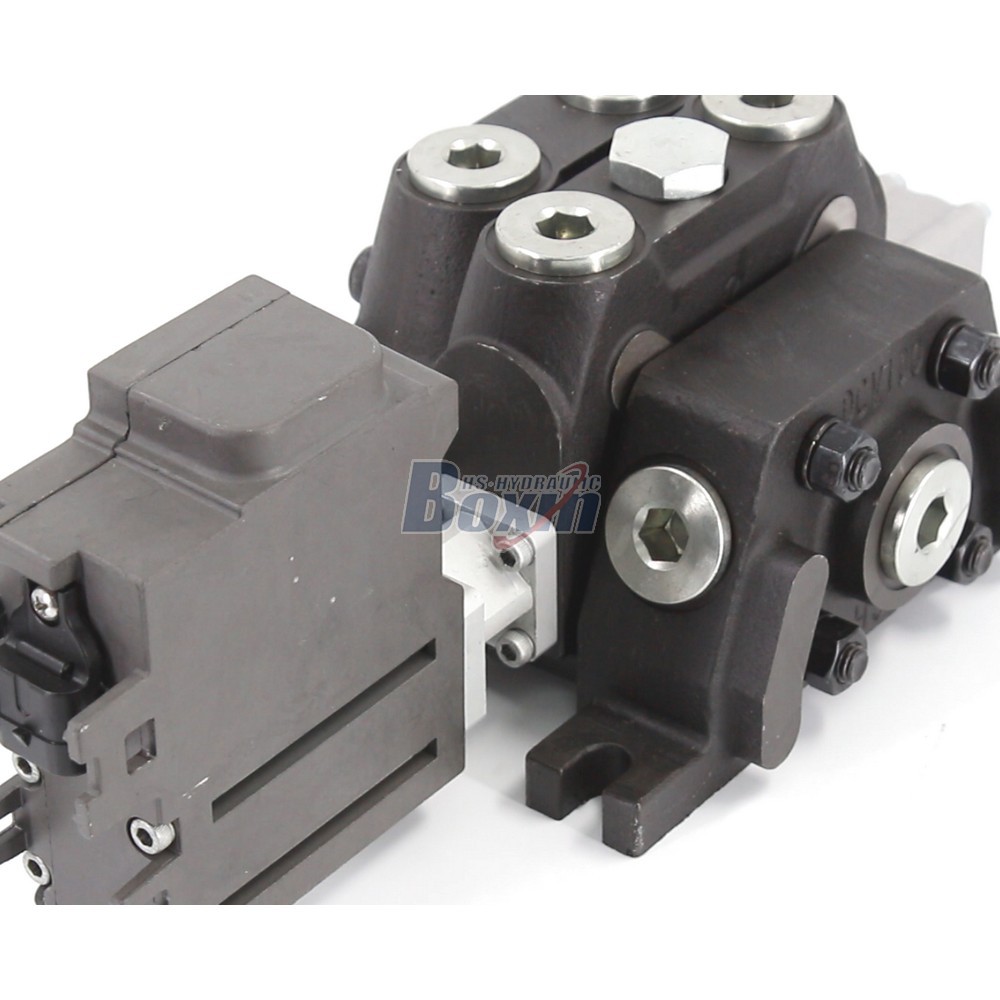

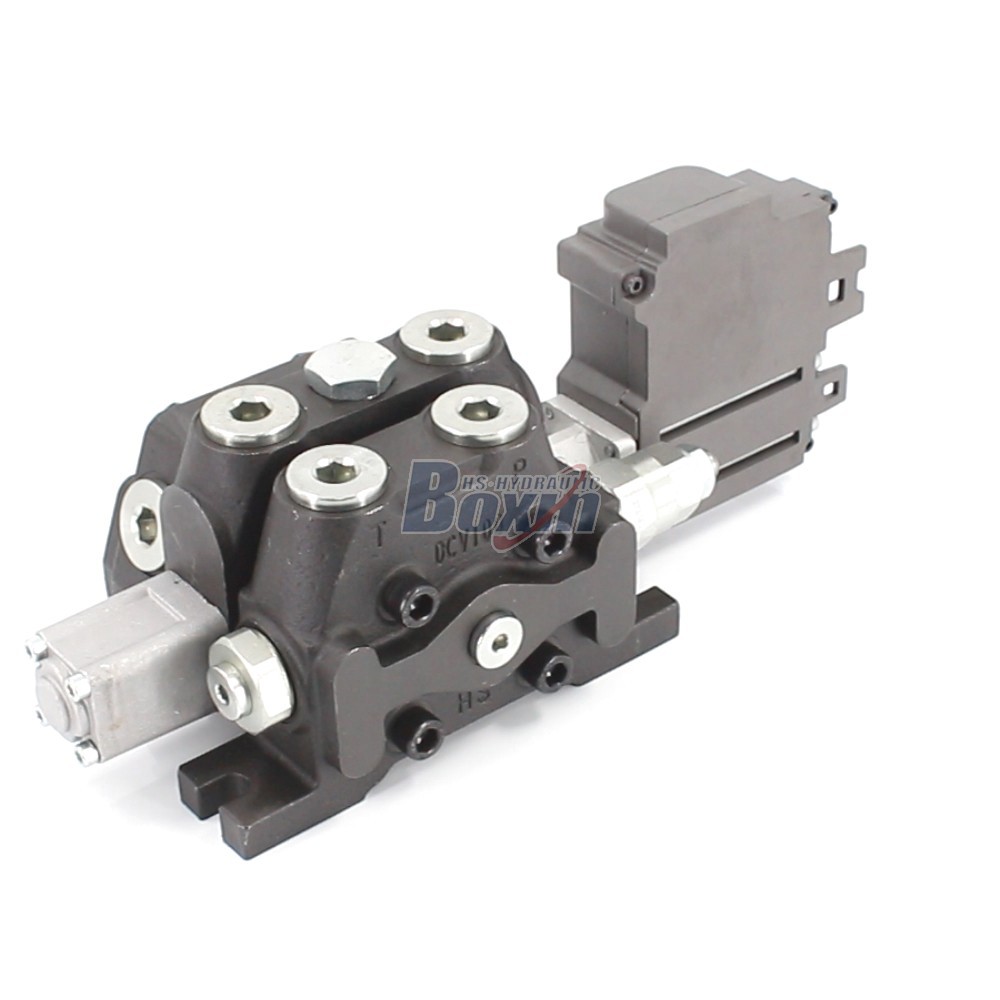

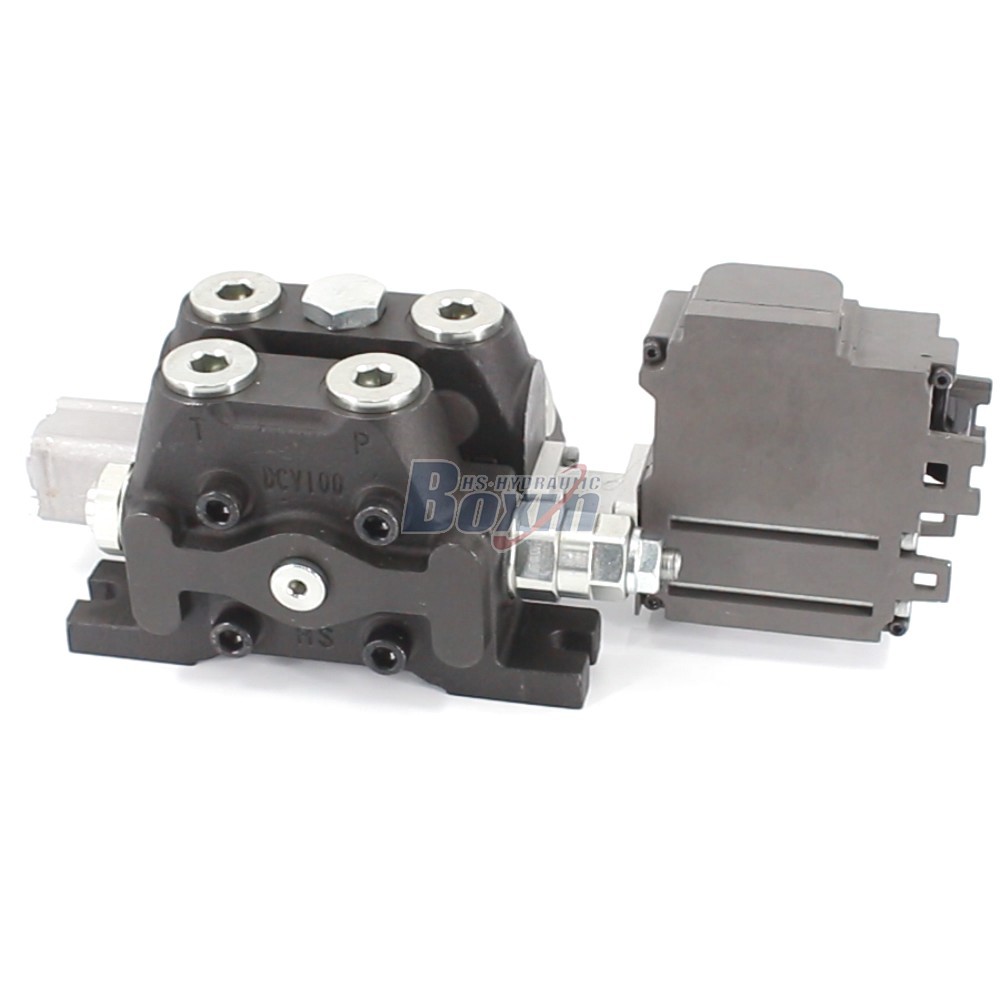

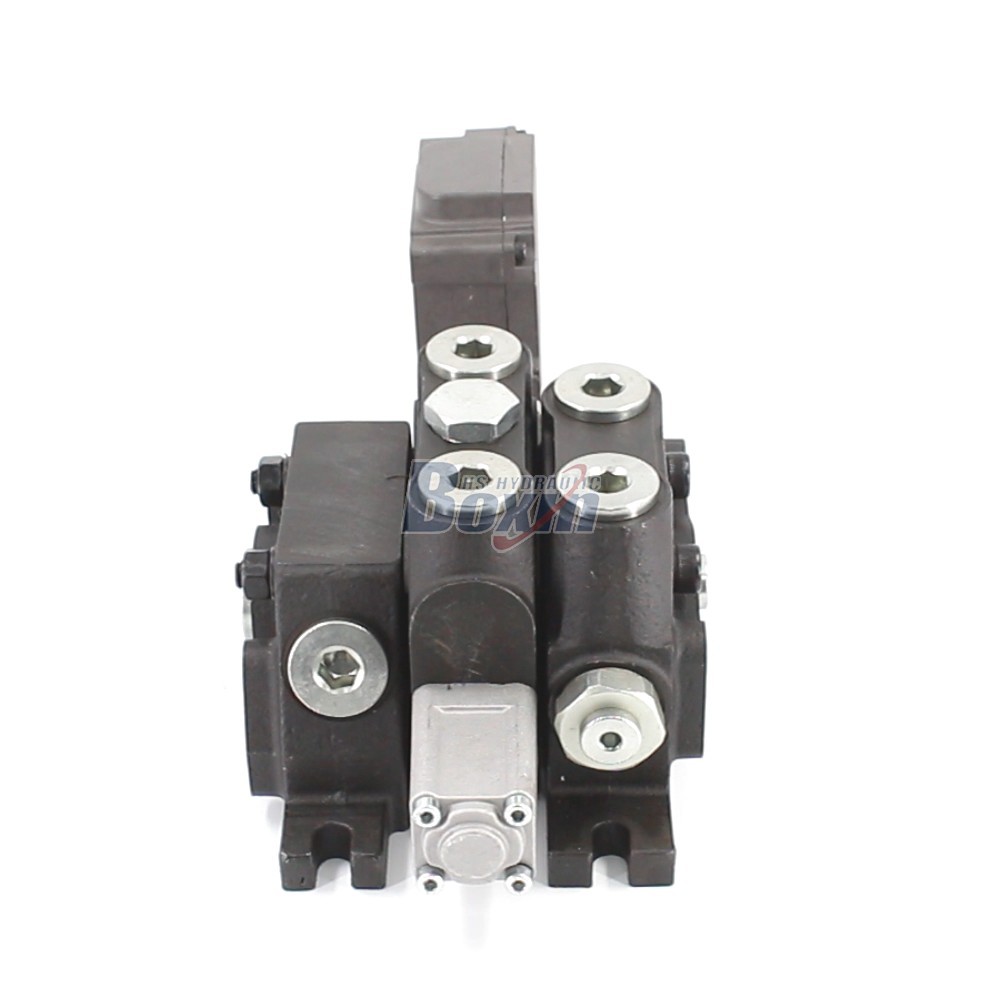

This DCV100EMA-OT 1 Spool Sectional Directional Valve features an integrated electric motor, delivering 100 L/min flow at 315 bar max pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable hydraulic control for telehandlers, forklifts, and mini-excavators with full OEM/ODM support.
| DCV100 Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Kabel, Joystick, Manuell und Joystick, Manuell und elektrohydraulisch, Elektromotor, Elektrohydraulisch und Magnetgesteuert |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen, 11 Spulen, 12 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt, 11 Abschnitt, 12 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 100 l/min (26,5 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Auslassanschluss | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Anschlussgröße | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
**1. High-Efficiency Sectional Directional Valve Design**
- Engineered with a compact 1 spool configuration and G3/4 inlet/outlet ports, this valve optimizes space in tight hydraulic circuits.
- Rated for 100 L/min (26.5 US gpm) flow, it ensures smooth operation for material handling and industrial vehicles without pressure drop issues.
**2. Reliable Electric Hydraulic Control Valve Operation**
- Integrated electric motor control method allows for precise, remote-operated switching, reducing manual labor in aerial platforms and waste compactors.
- Designed to withstand max pressure of 315 bar (4600 psi), providing consistent performance in high-load construction and earth-moving applications.
**3. Versatile 1 Spool Directional Valve Applications**
- Perfectly compatible with telehandlers, skid steer loaders, and wood splitters, offering a direct replacement for international mainstream brands.
- The DCV100 series architecture ensures easy integration into existing systems for agriculture machinery and compact wheel loaders.
**4. Factory Direct Sales Quality Assurance**
- Produced in our 68,000 sqm facility with 260+ CNC machines, every unit undergoes 100% bench testing for pressure, flow, and sealing integrity.
- Backed by IATF 16949 certification and CE compliance, our 25+ years of expertise guarantee zero-defect delivery for wholesale buyers.
**5. Custom OEM/ODM Available Solutions**
- Our team of 35+ senior engineers supports private label services, including custom logos, casting modifications, and tailored port configurations.
- With an annual capacity of 1.5 million pieces, we offer rapid lead times and heavy-duty export packaging for global distributors and OEM partners.
