Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves

Steuermethode:Elektrohydraulisch

Steuerkolben:2 Spulen

Nennfluss:160 l/min (42,2 US gal/min)

Maximaldruck:315 bar (4600 psi)

Einlassanschluss:G1

Auslassanschluss:G1

Anschlussgröße:G1

Hersteller:BXHS

Produkttyp:Monoblock-Wegeventil

Produktserie:SD18-Serie Monoblock-Wegeventil

Verpackungsgröße:21*47*32

Bruttogewicht:22.50 kg

Verfügbarkeit: Auf Lager

499 Personen sehen sich dieses Produkt an

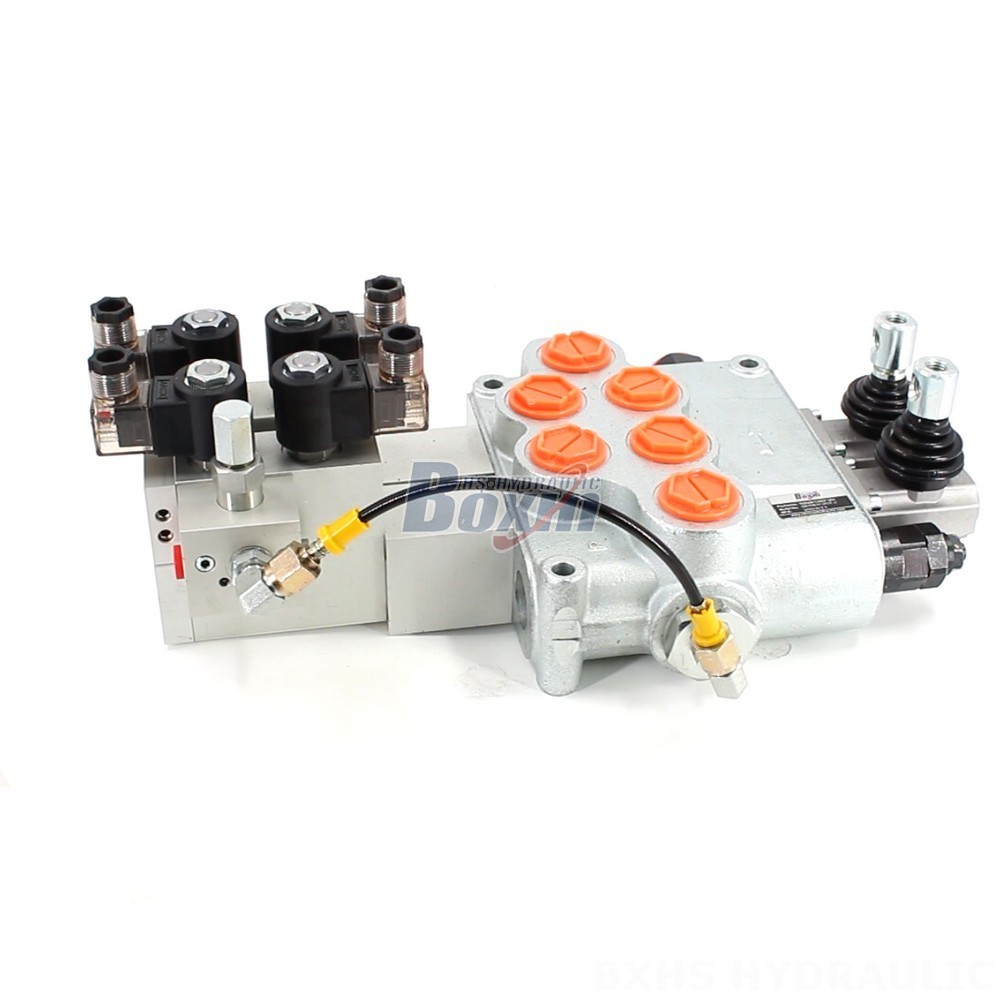

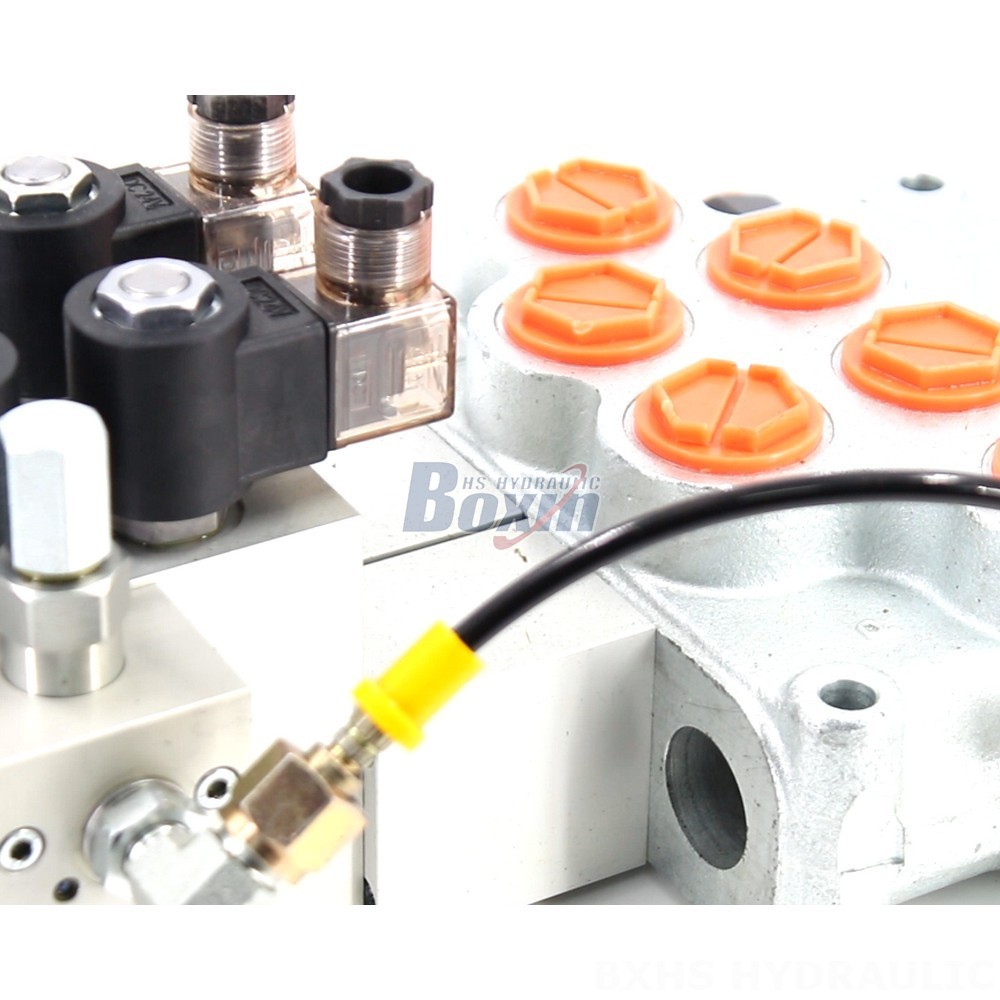

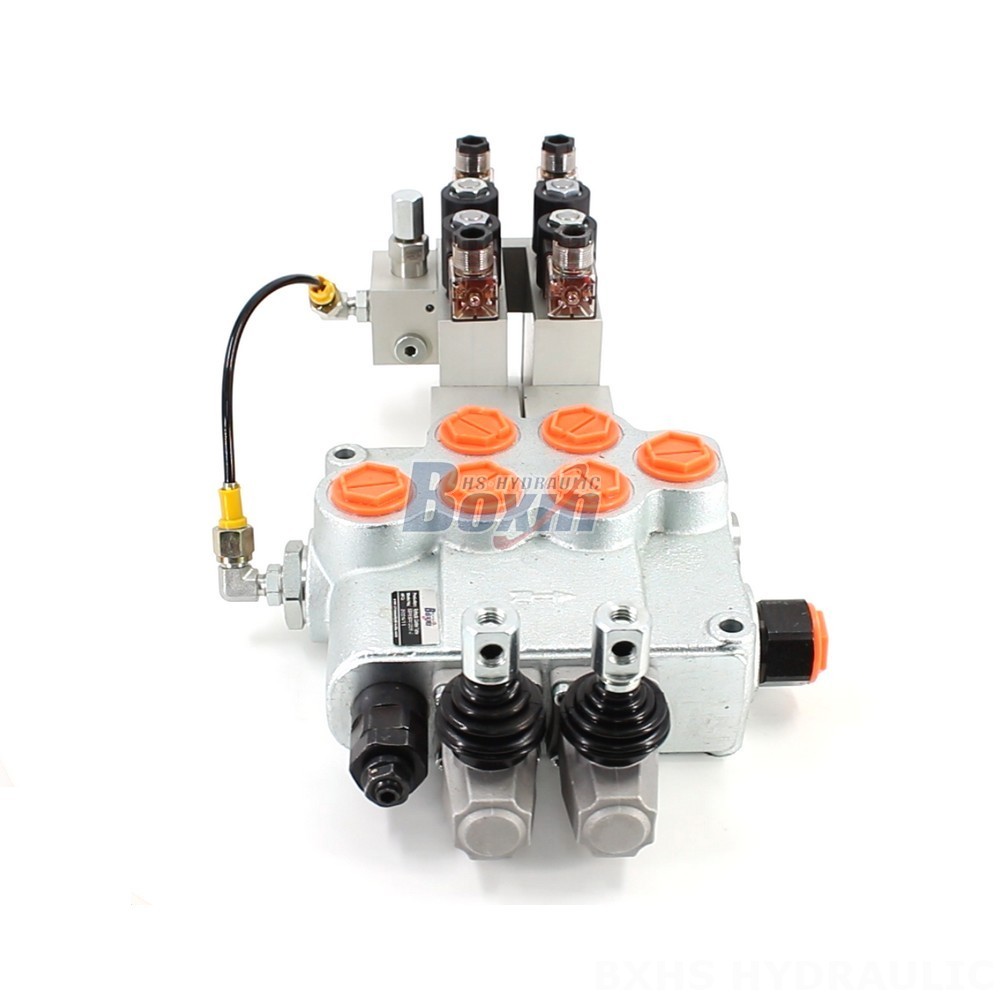

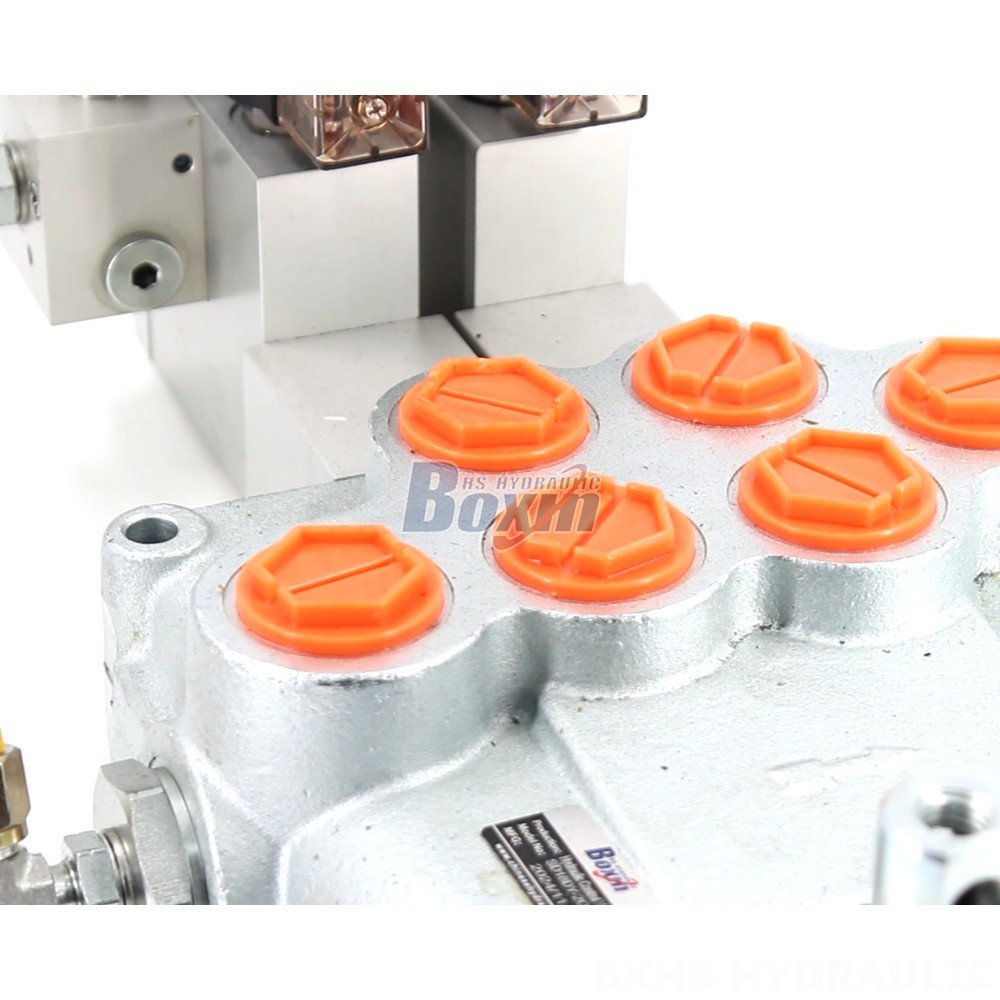

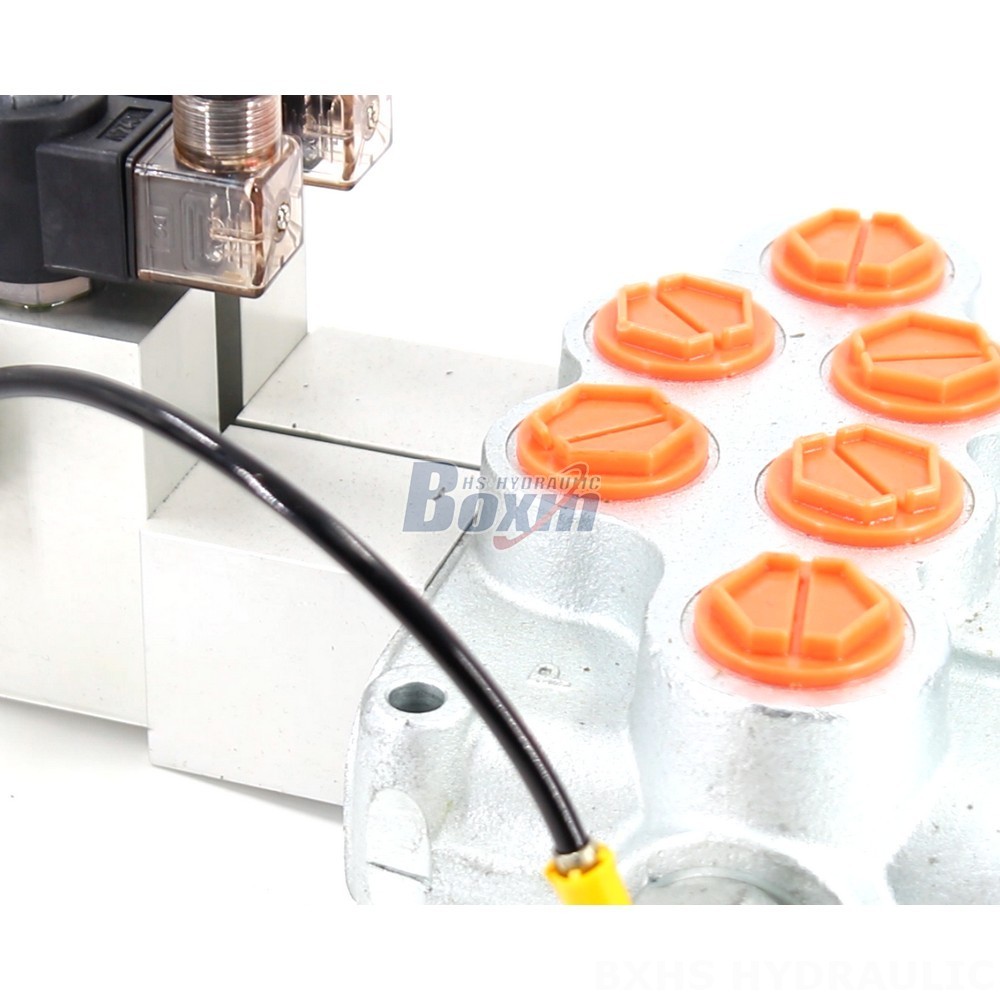

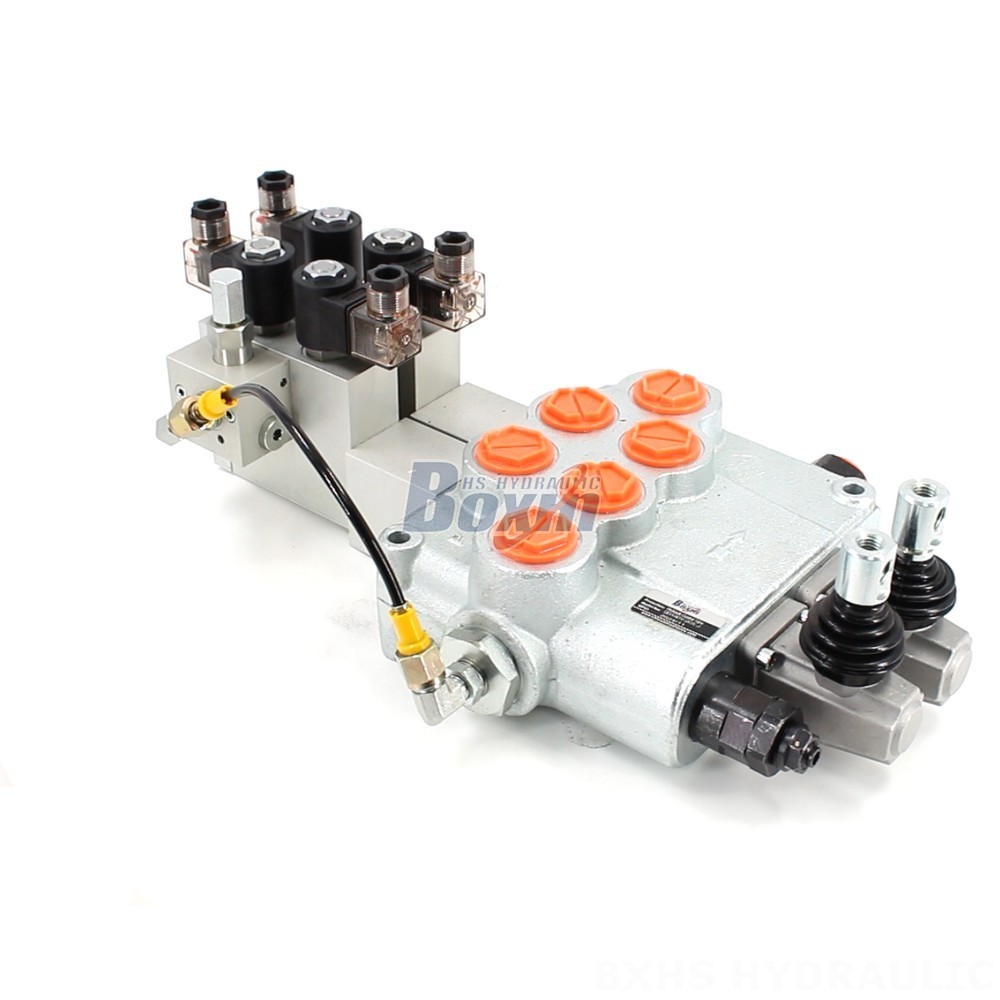

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves

Direct from Factory: SD18 Electric 2 Spool Monoblock Directional Valves drawing image

Direct from factory, the SD18 electric 2-spool monoblock directional valve offers high performance (160 L/min, 315 bar) and wide operating temperature range (-40°C to +80°C). Ideal for construction, industrial vehicles, and agriculture applications.

SD18-Serie Monoblock-Wegeventil Parameter
Steuermethode Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick
Steuerkolben 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen
Nennfluss 160 l/min (42,2 US gal/min)
Maximaldruck 305 bar (4400 psi)
Einlassanschluss G1/2, G1, SAE 16
Auslassanschluss G1, SAE 16
Anschlussgröße G1, SAE 16
Abschnitt 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt
Strukturtyp Monoblockventil
Umgebungstemperaturbereich -40 °C bis +80 °C (-40 °F bis +176 °F)
Bereich der Betriebsviskosität 12 - 400 mm²/s (12 cSt bis 400 cSt)

We are a leading manufacturer of high-quality hydraulic products, supplying globally. Our SD18 Series Electric 2-Spool Monoblock Directional Valves are designed for demanding applications in construction and earthmoving, industrial vehicles, and agriculture. These robust valves boast a rated flow of 160 L/min (42.2 US gpm) and a maximum pressure of 315 bar (4600 psi), ensuring reliable performance even under extreme conditions.

**Key Features:**
* **Electric Control:** Precise and efficient operation.
* **Monoblock Structure:** Compact design and high durability.
* **High Flow Rate:** 160 L/min (42.2 US gpm).
* **High Pressure Capability:** 315 bar (4600 psi).
* **Wide Operating Temperature Range:** -40°C to +80°C (-40°F to +176°F).
* **Suitable for:** Mini-Excavators, Skid Steer Loaders, Compact Wheel Loaders, Wheel Loaders, Backhoe Loaders, Tractors, Front-End Loaders, Harvesters, and Telehandlers.

**Our Services:**
We offer comprehensive services including manufacturing, OEM (Original Equipment Manufacturing), private labeling, customization, and wholesale. We are actively seeking distributors, wholesalers, agents, and trading companies worldwide to partner with us and expand our global reach. As a **manufacturer**, we provide **factory direct** pricing and superior quality. Benefit from our **factory wholesale** options and competitive pricing. Contact us today to explore collaboration opportunities and discuss your specific needs. Experience the advantage of working directly with the **factory supplier**.
