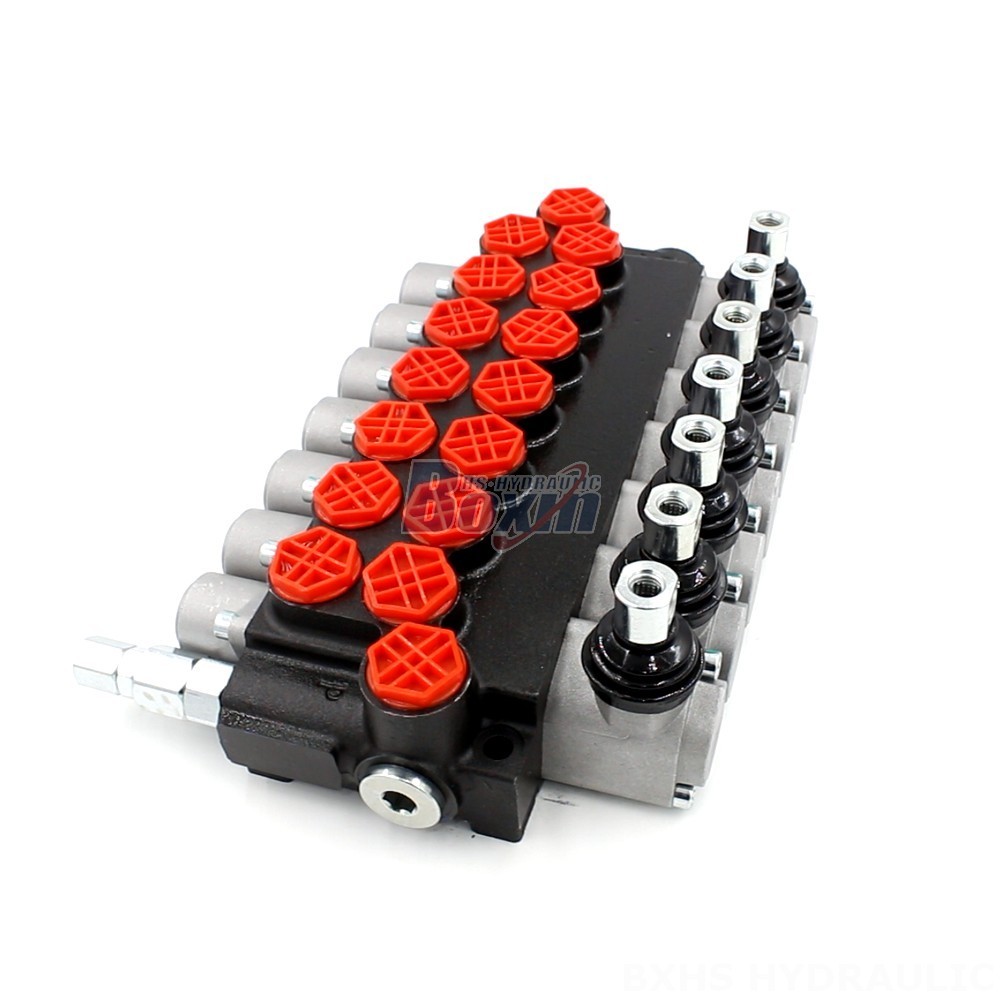

This 7-spool hydraulic valve is a robust and reliable control solution for material handling, construction, agriculture, and industrial vehicles. Featuring a compact monoblock design, it offers high flow rates and pressure capabilities, making it ideal for a wide range of applications.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
Our 7-spool hydraulic valve is part of the P40 Series, offering a compact and efficient solution for controlling hydraulic systems in various applications. It features a monoblock structure for enhanced durability and performance. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for demanding environments. Its wide operating viscosity range and ambient temperature range ensure reliable operation in diverse conditions. As a manufacturer, we offer direct access to hydraulic expertise, providing factory supply and factory wholesale options for our customers. We also offer OEM, ODM, and customization services to meet specific needs. Partner with us to find the perfect solution for your hydraulic system.
