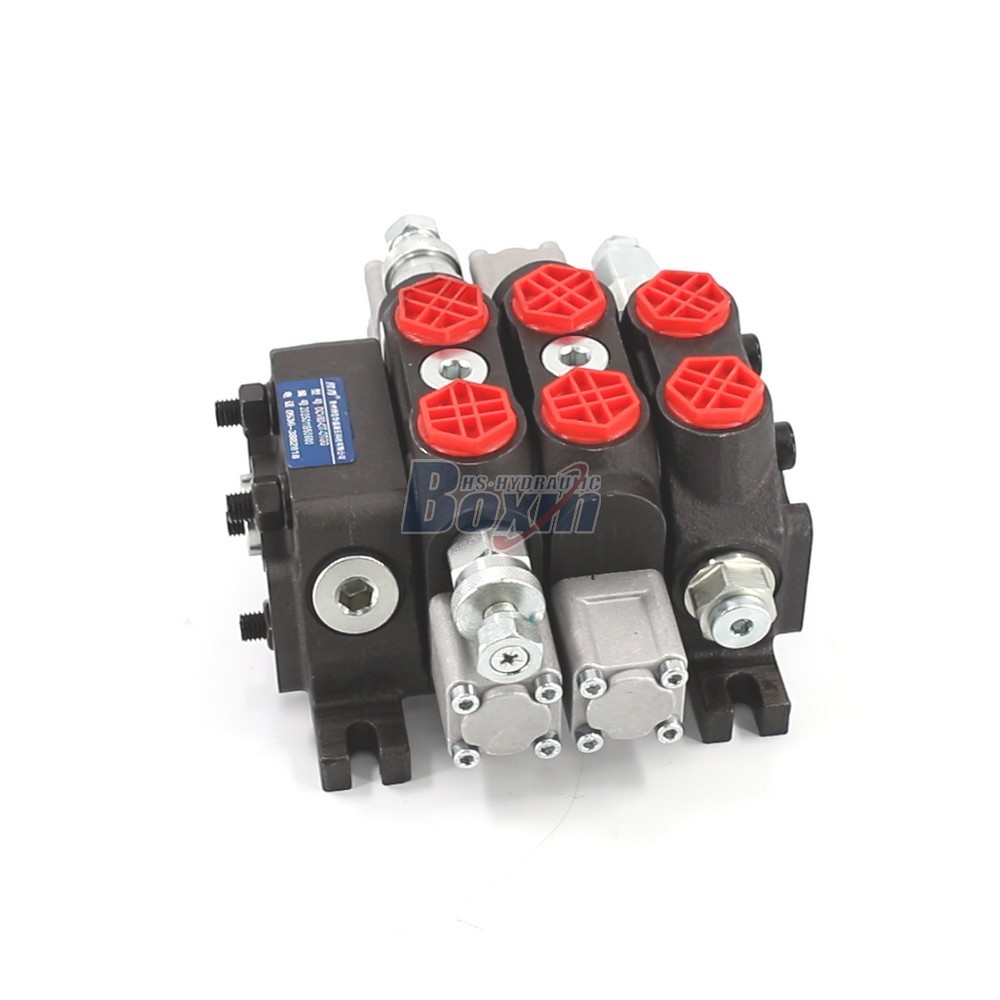

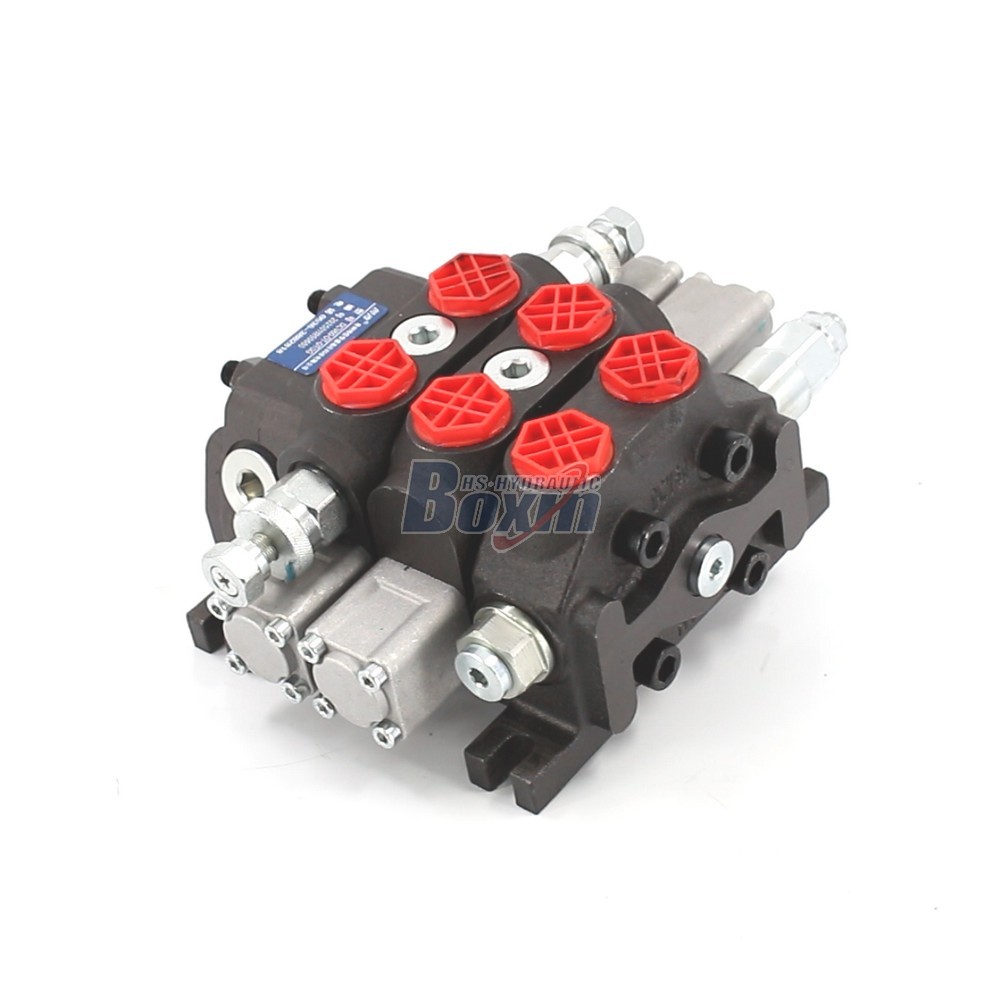

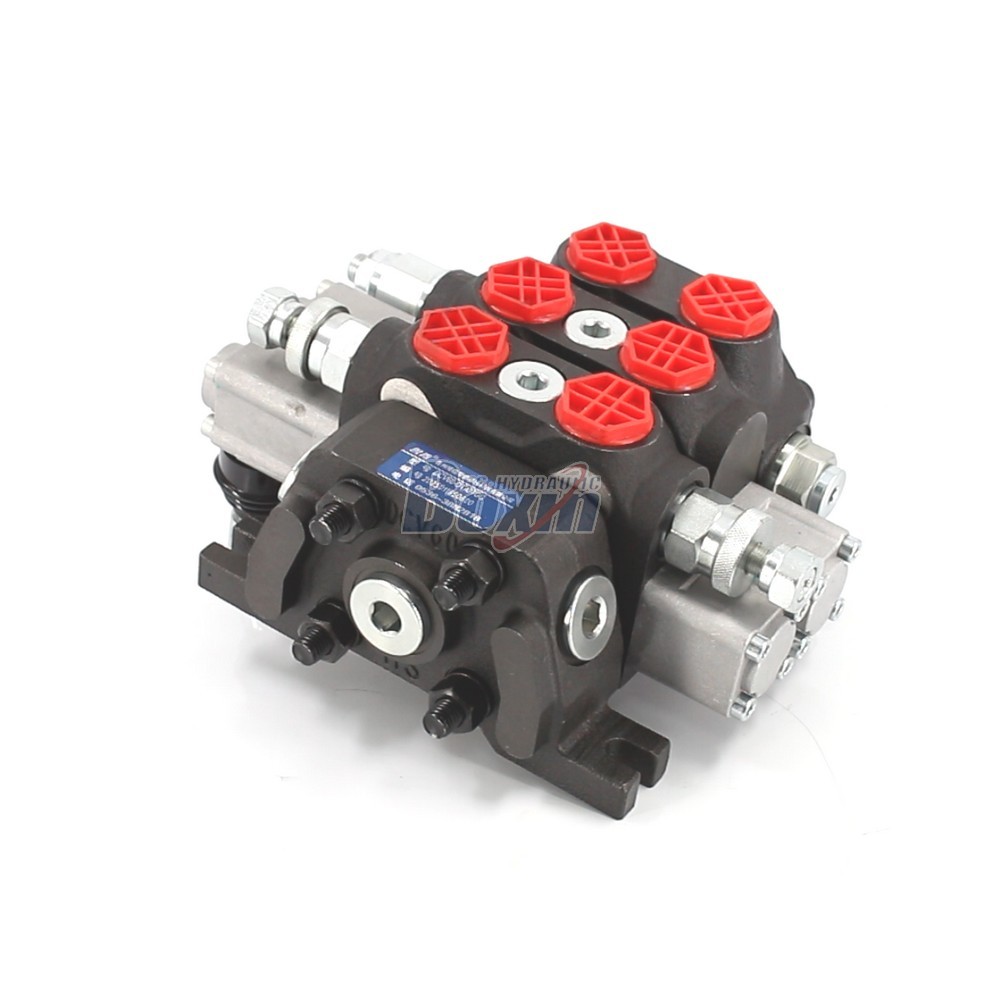

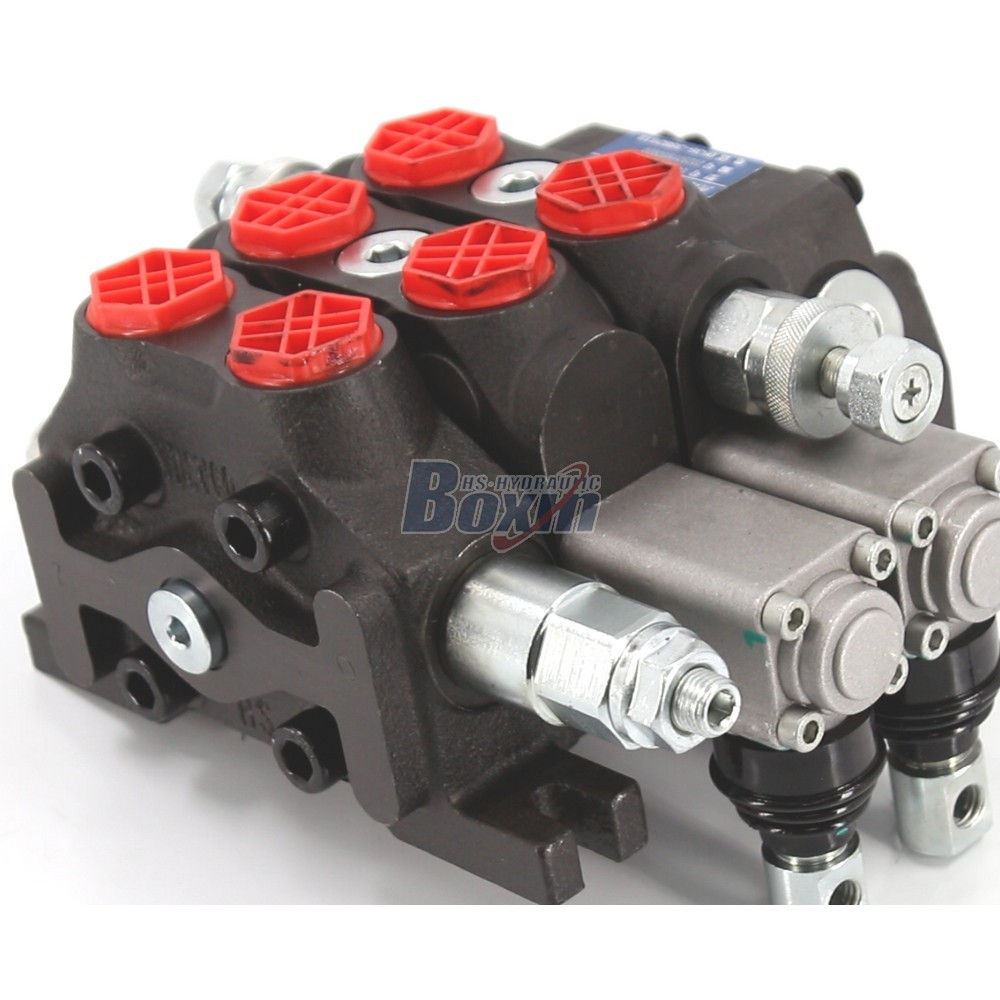

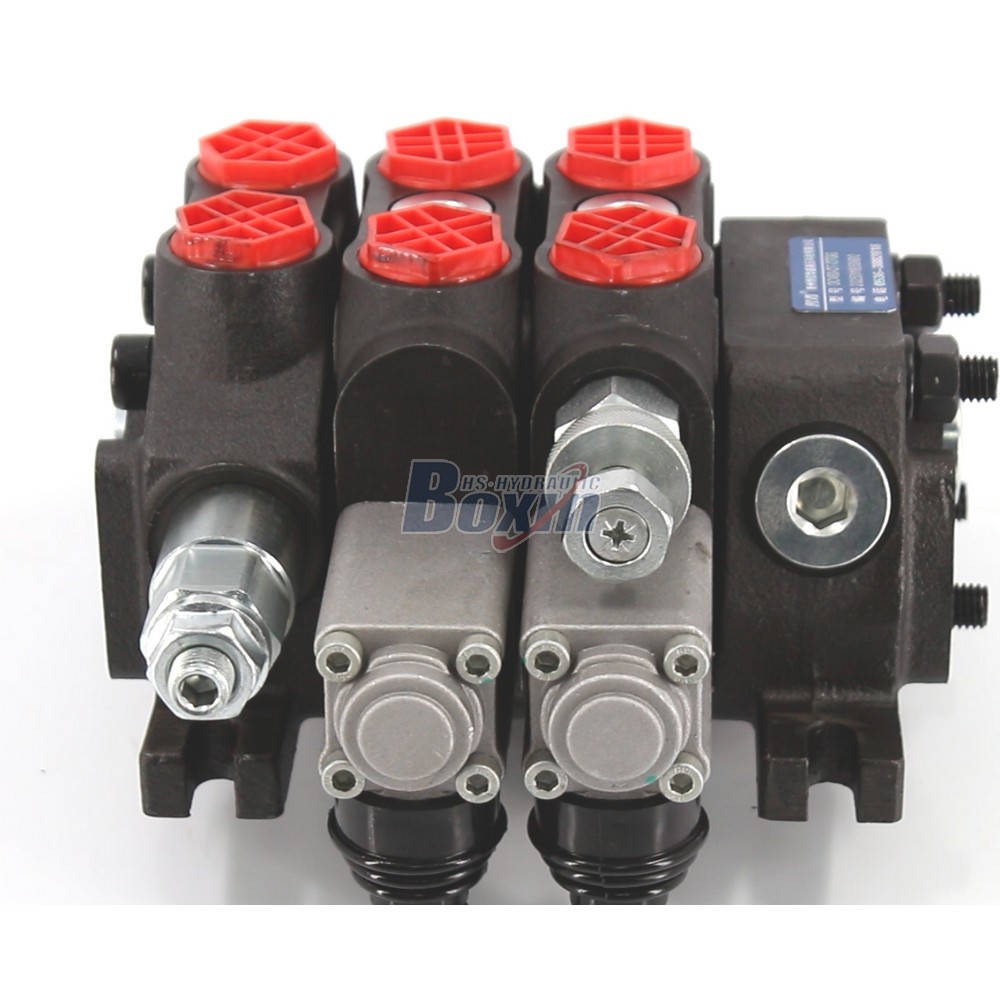

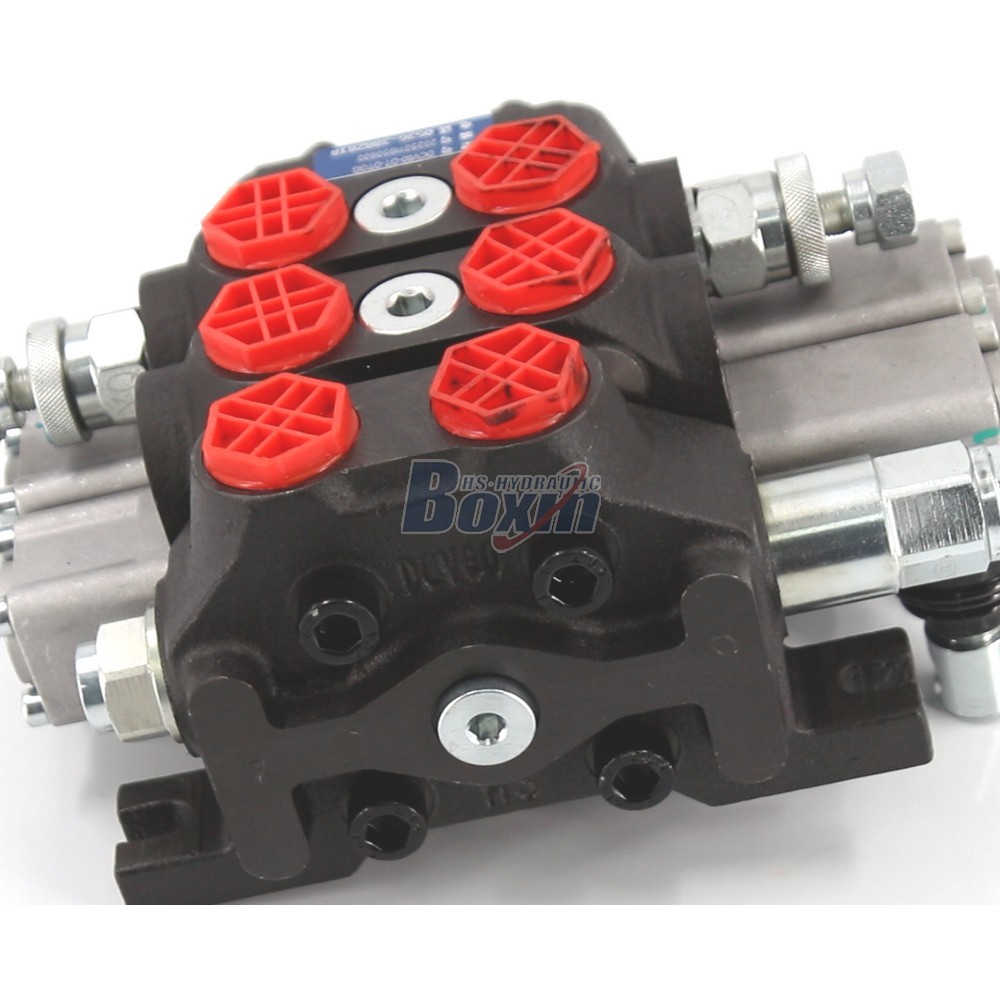

The DCV60-FZJ Series is a high-performance 2-spool sectional hydraulic directional control valve designed for precise manual operation. It offers a rated flow of 60 L/min and can withstand pressures up to 350 bar, making it ideal for demanding construction, agricultural, and material handling applications.
| DCV60-Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnetisch und manuell, Magnet und Joystick, Manuell und Joystick, Elektromotor |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen, 11 Spulen, 12 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt, 11 Abschnitt, 12 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 60 l/min (15,8 US gal/min) |
| Maximaldruck | 315 bar (4600 psi), 350 bar (5100 psi) |
| Einlassanschluss | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Auslassanschluss | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| Anschlussgröße | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
As a prominent hydraulic manufacturer, we provide the DCV60-FZJ Series 2 Spool Sectional Valve, engineered for professional-grade performance and reliability. Featuring a robust manual control system and G3/4 porting, this valve is optimized for compact machinery such as mini-excavators, skid steer loaders, and tractors. We offer comprehensive solutions including manufacturing, OEM, and private labeling services to meet your specific technical requirements. Our factory supply ensures competitive wholesale pricing and consistent quality for high-volume orders. We are actively seeking global partners, including distributors, wholesalers, agents, and traders, to expand our market reach. Whether you need customized configurations or bulk supply, our factory-direct support provides the technical expertise and inventory stability required for industrial vehicle and earth-moving equipment applications.
