848 Personen sehen sich dieses Produkt an

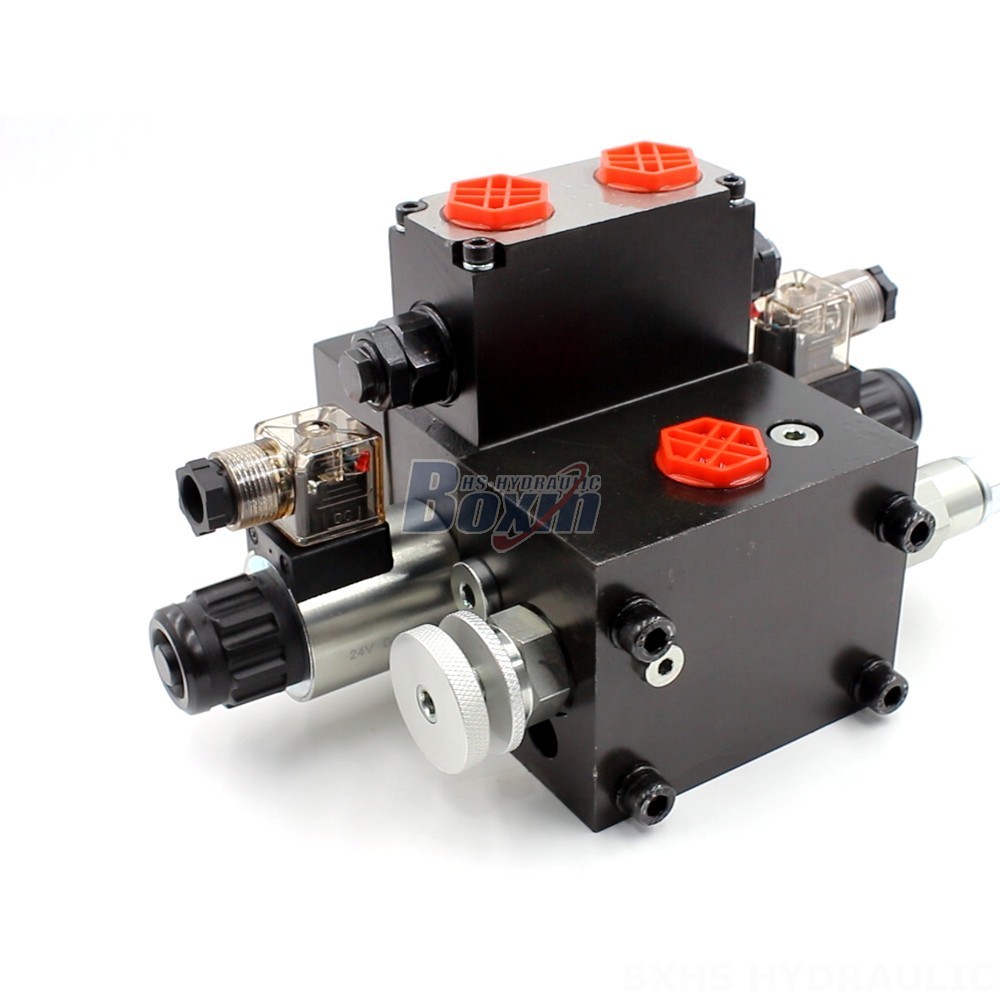

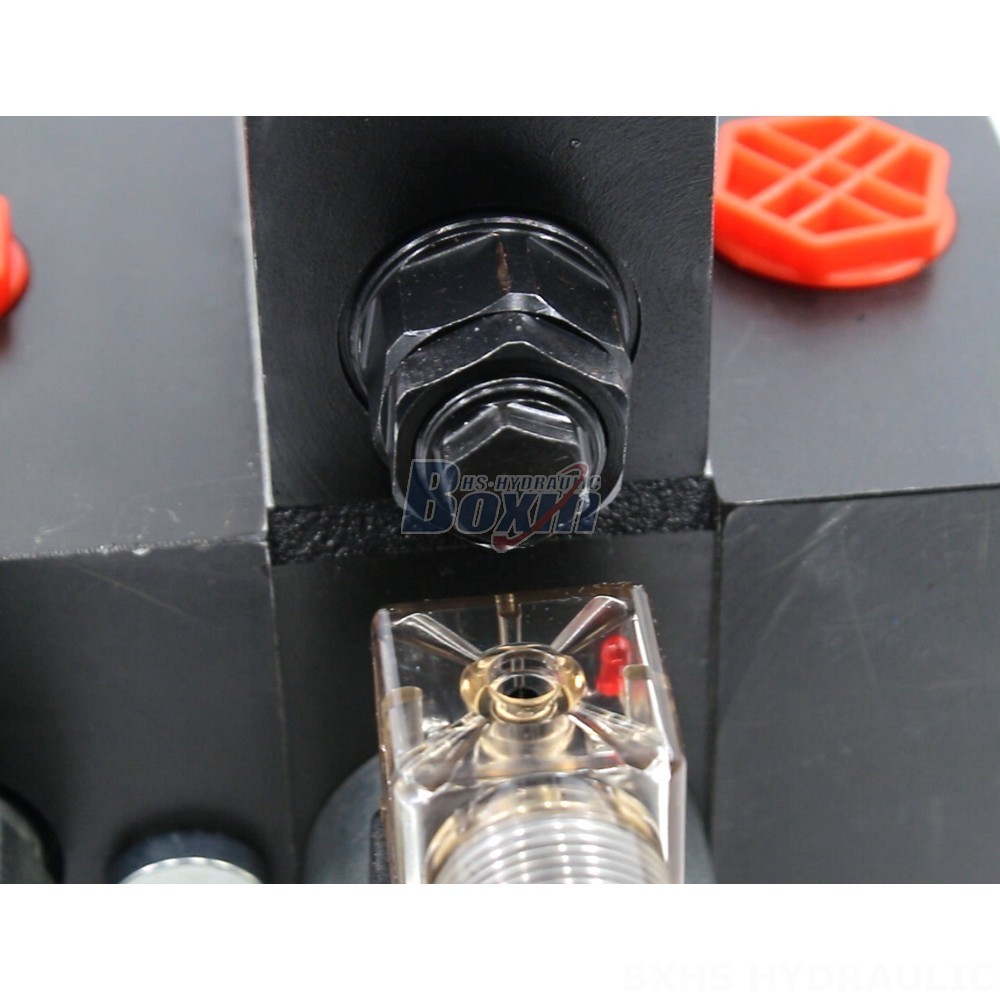

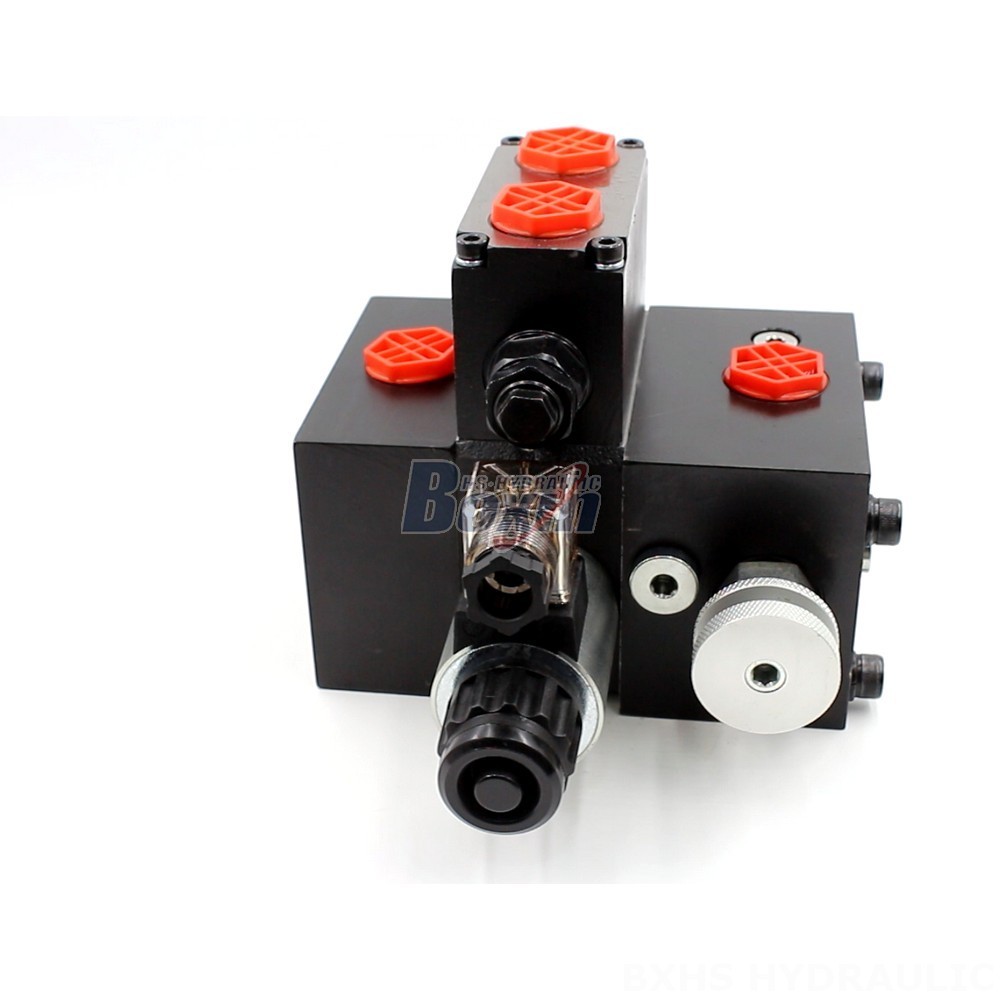

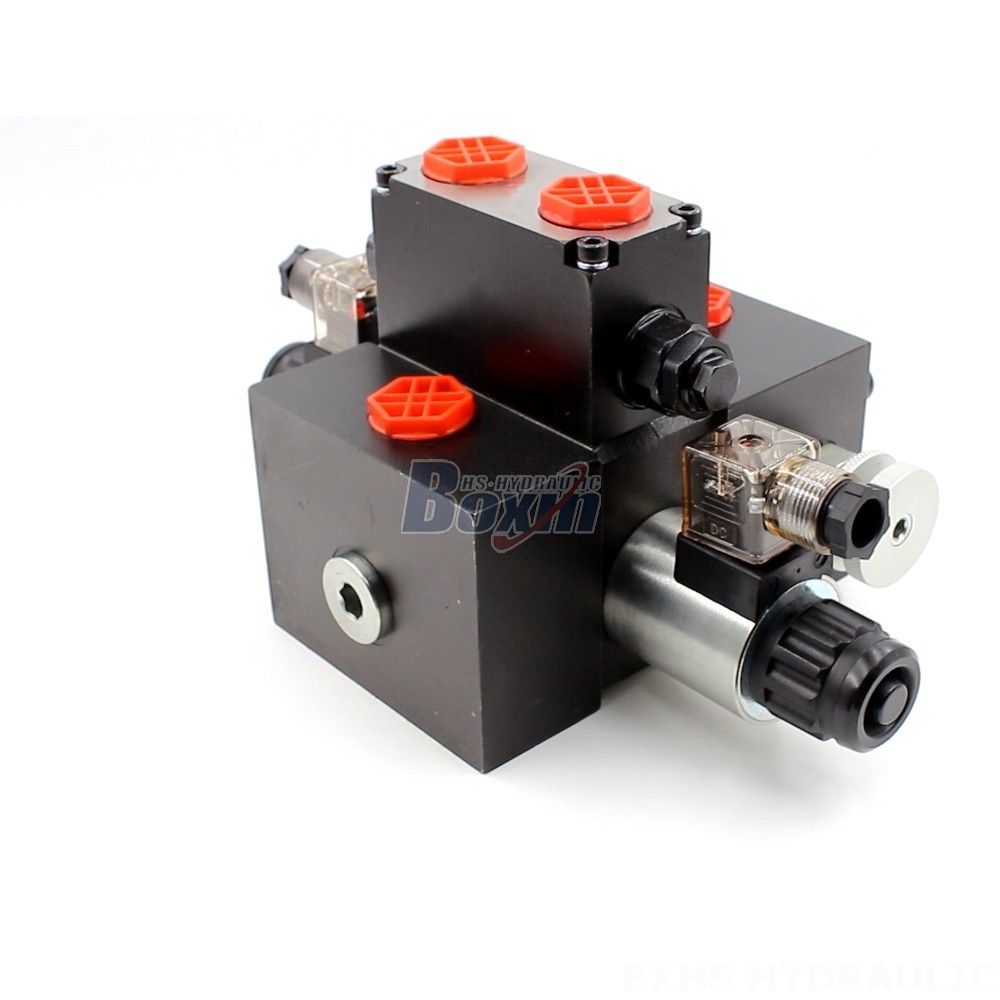

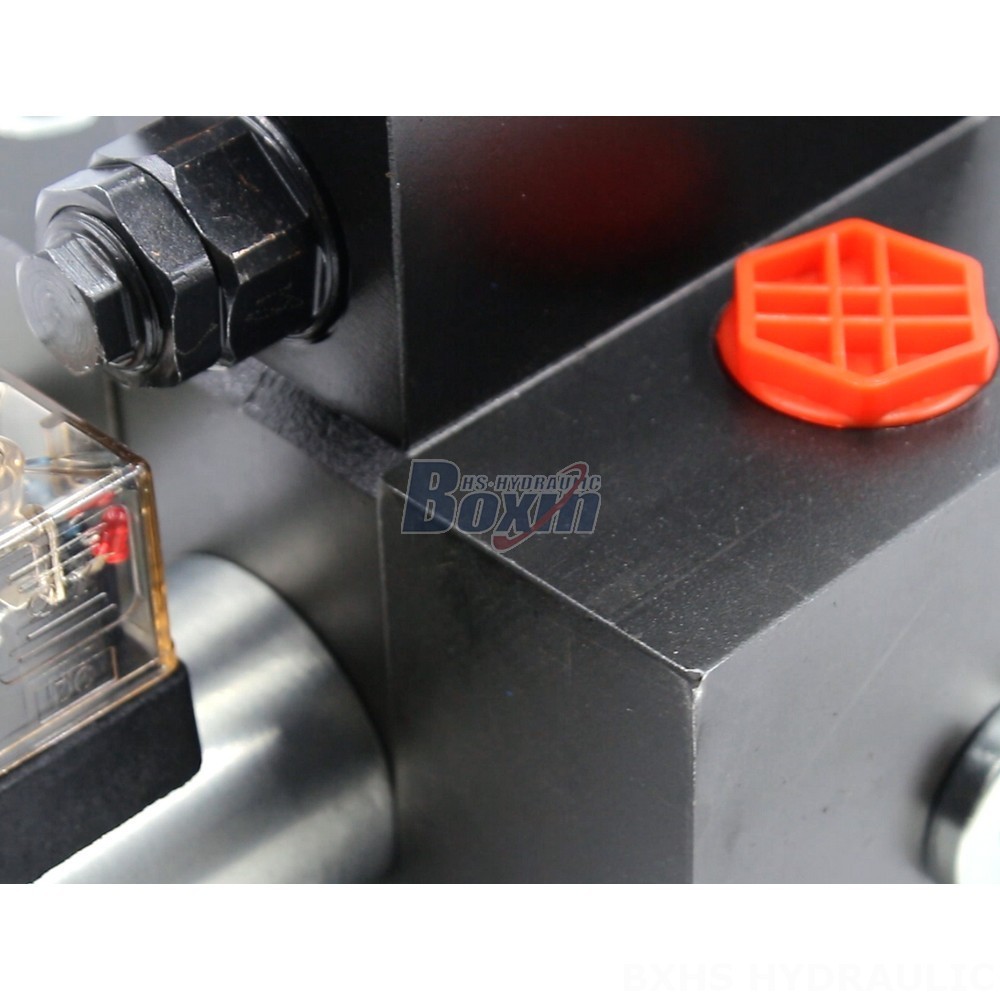

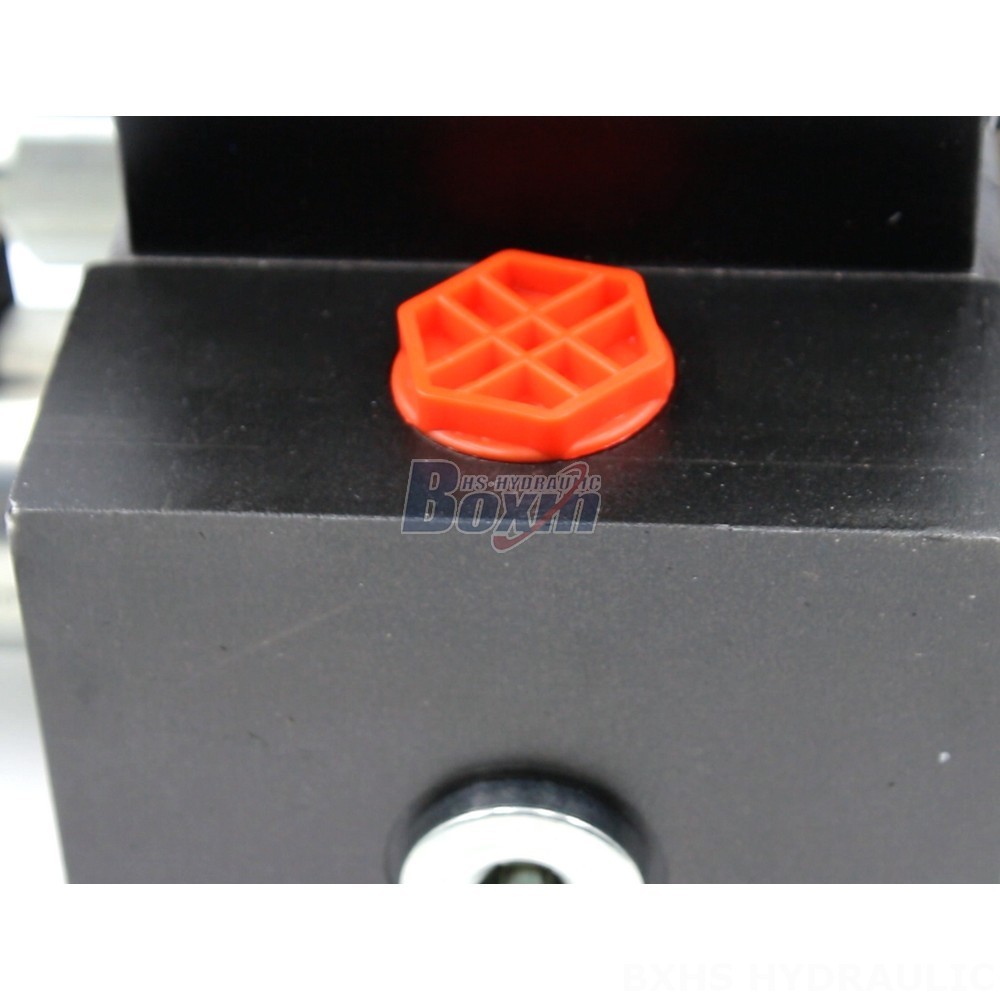

DCV58F 1-Spool Solenoid Directional Valve is a sectional valve with solenoid control, featuring a rated flow of 60 L/min and a maximum pressure of 350 bar. It operates within a viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. The valve is widely applicable in material handling, construction, agriculture, and industrial vehicles.
| DCV58F Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Magnet, Magnetisch und manuell |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen, 11 Spulen, 12 Spulen |
| Nennfluss | 60 l/min (15,8 US gal/min) |
| Maximaldruck | 350 bar (5100 psi) |
| Einlassanschluss | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Auslassanschluss | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Anschlussgröße | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt, 11 Abschnitt, 12 Abschnitt |
| Strukturtyp | Schieberventil |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
The DCV58F 1-Spool Solenoid Directional Valve is a highly versatile and reliable valve designed to meet the demands of various hydraulic systems. Its key features include:
- **Solenoid Control:** The valve is operated using a solenoid, providing precise and responsive control.
- **Sectional Design:** As a sectional valve, it offers flexibility in customizing the valve configuration to specific application requirements.
- **High Flow Capacity:** With a rated flow of 60 L/min, the valve is capable of handling high flow rates, ensuring efficient operation of hydraulic systems.
- **Robust Construction:** Built to withstand pressures up to 350 bar, the valve is suitable for demanding applications.
- **Wide Operating Range:** The valve operates effectively within a wide viscosity range (15 - 75 mm²/s) and ambient temperature range (-40°C to +80°C), making it suitable for various operating conditions.
This valve finds applications in a wide range of industries, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is commonly used in equipment such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, and dumpers.
