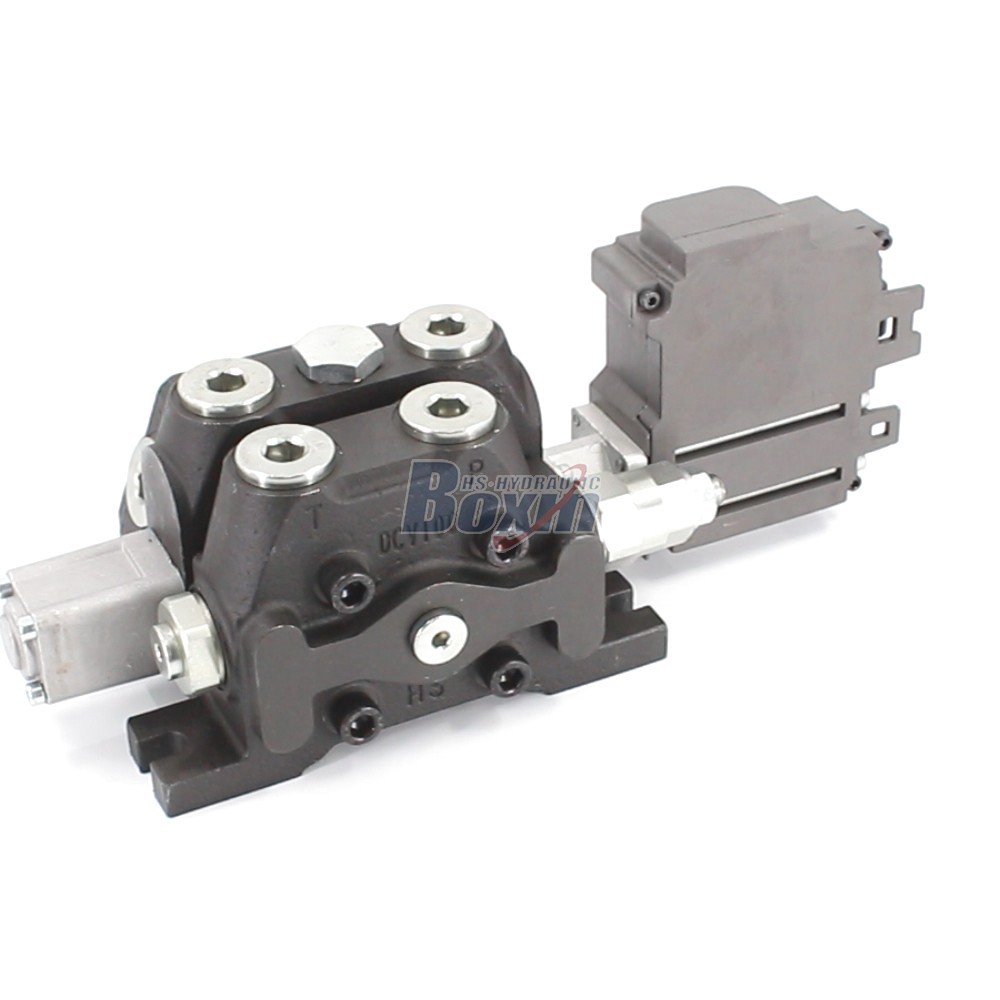

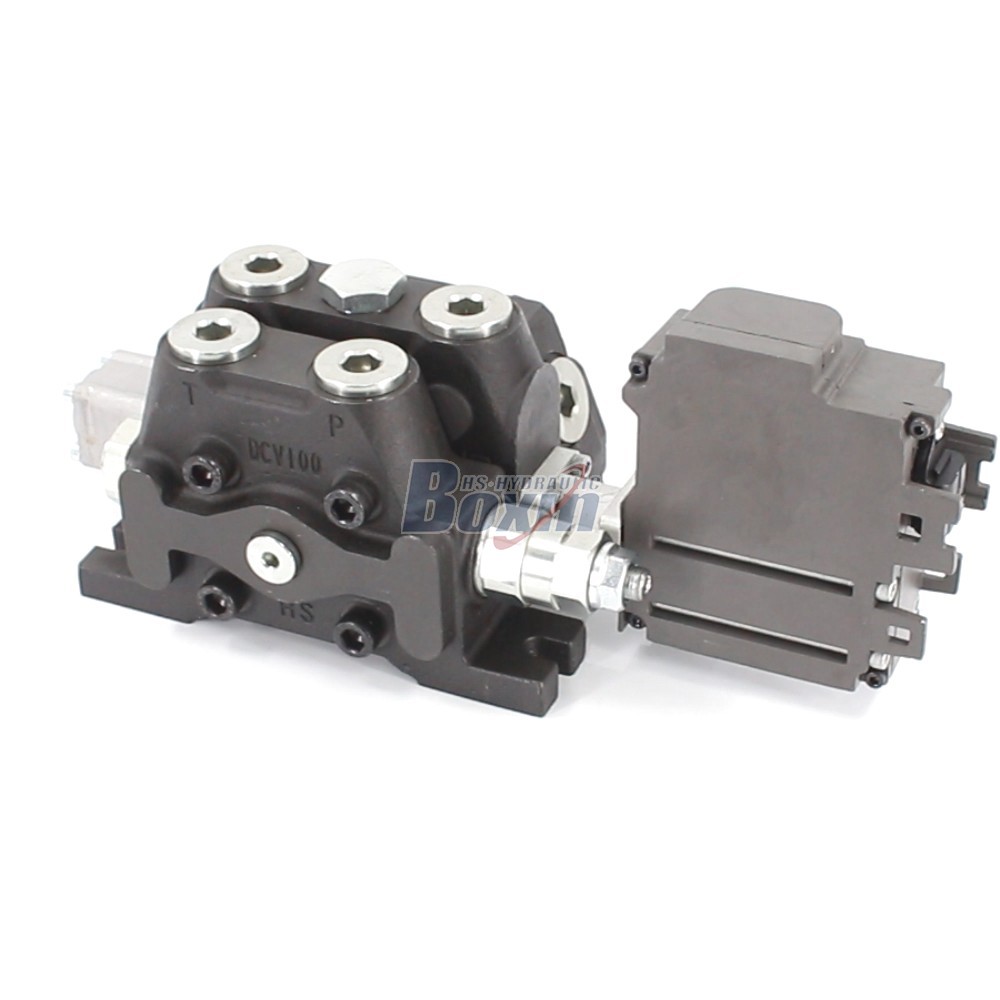

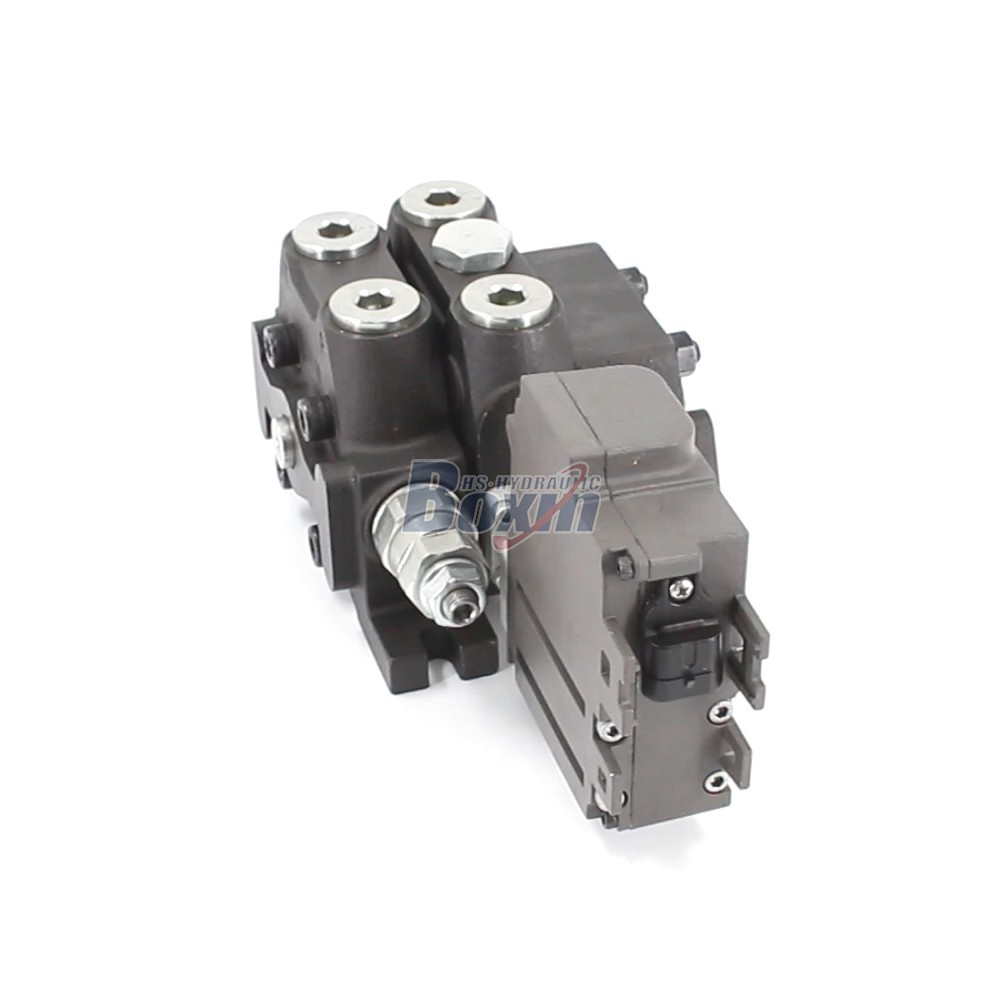

This DCV100EMA-OT is a 1 Spool Sectional Directional Valve driven by an electric motor, designed for hydraulic systems requiring up to 100 L/min flow and 315 bar pressure. Manufactured by a 25-year IATF 16949 certified factory, it ensures reliable performance for telehandlers, forklifts, and agricultural machinery with full OEM/ODM support.

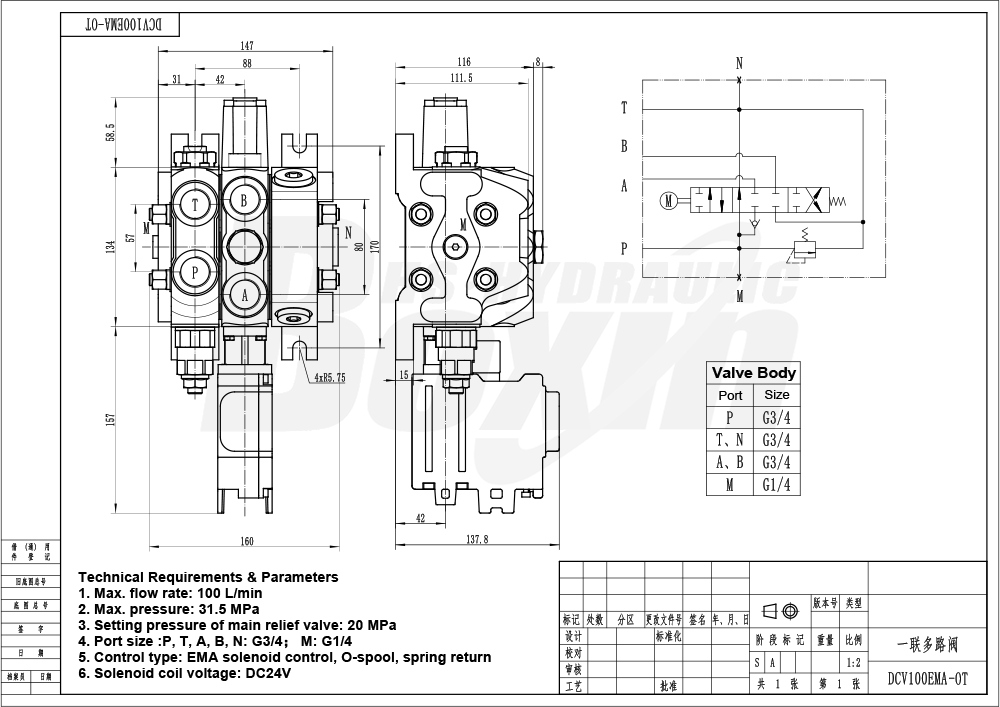

| DCV100 Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Kabel, Joystick, Manuell und Joystick, Manuell und elektrohydraulisch, Elektromotor, Elektrohydraulisch und Magnetgesteuert |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen, 11 Spulen, 12 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt, 11 Abschnitt, 12 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 100 l/min (26,5 US gal/min) |
| Maximaldruck | 315 bar (4600 psi) |
| Einlassanschluss | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Auslassanschluss | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
| Anschlussgröße | G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 3/4 NPT |
**1. High-Flow Sectional Directional Valve Specs**
- Rated for 100 L/min (26.5 US gpm) flow with G3/4 inlet/outlet ports, ensuring efficient fluid dynamics.
- Operates safely at max pressure of 315 bar (4600 psi), ideal for demanding material handling tasks.
**2. Reliable Electric Hydraulic Control Valve Design**
- Features integrated electric motor control for precise spool actuation and automated system integration.
- Compact 1 spool configuration simplifies installation in space-constrained industrial vehicle applications.
**3. Durable 1 Spool Directional Valve Construction**
- Built with high-grade castings and finished with anti-rust treatment for extended service life.
- Undergoes 100% bench testing for pressure, flow, and sealing before shipment to guarantee zero defects.
**4. Versatile DCV100 Series Valve Applications**
- Perfectly compatible with telehandlers, mini-excavators, skid steer loaders, and wood splitters.
- Serves as a direct replacement for major international brands, reducing maintenance costs for wholesalers.
**5. Factory Direct Sales & Customization Power**
- Backed by a Professional Manufacturer with 25+ years experience, 68,000 sqm facility, and IATF 16949 certification.
- Supports OEM/ODM services including laser logo marking and custom packaging for China Wholesale buyers.
