Produktion & Lieferung
15–30 Tage Produktionsvorlaufzeit

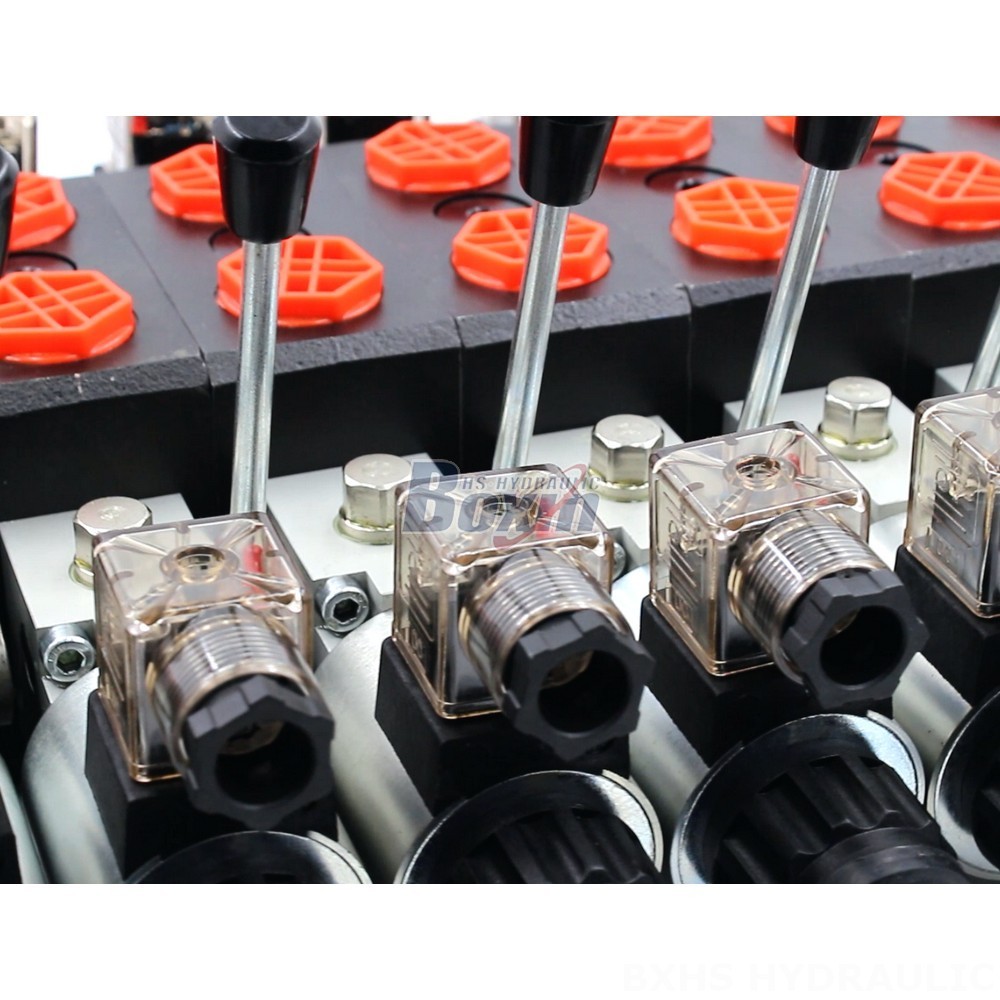

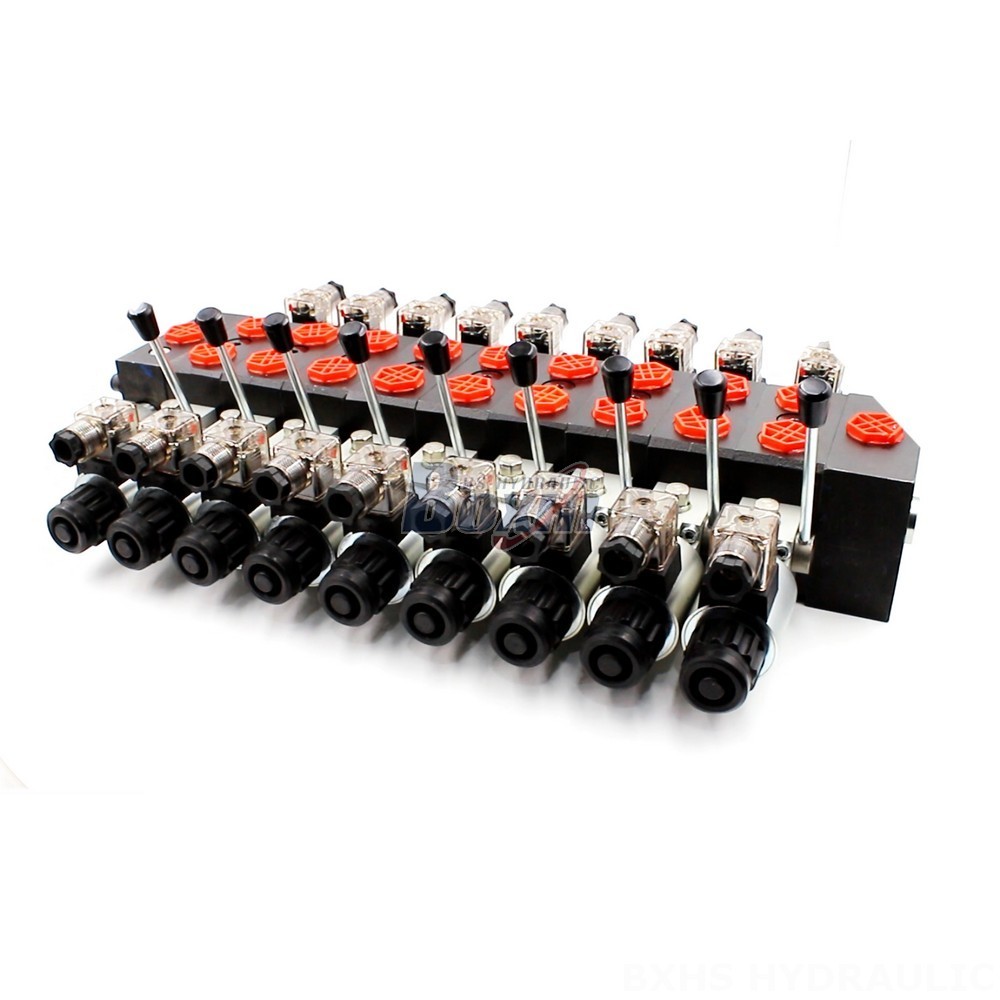

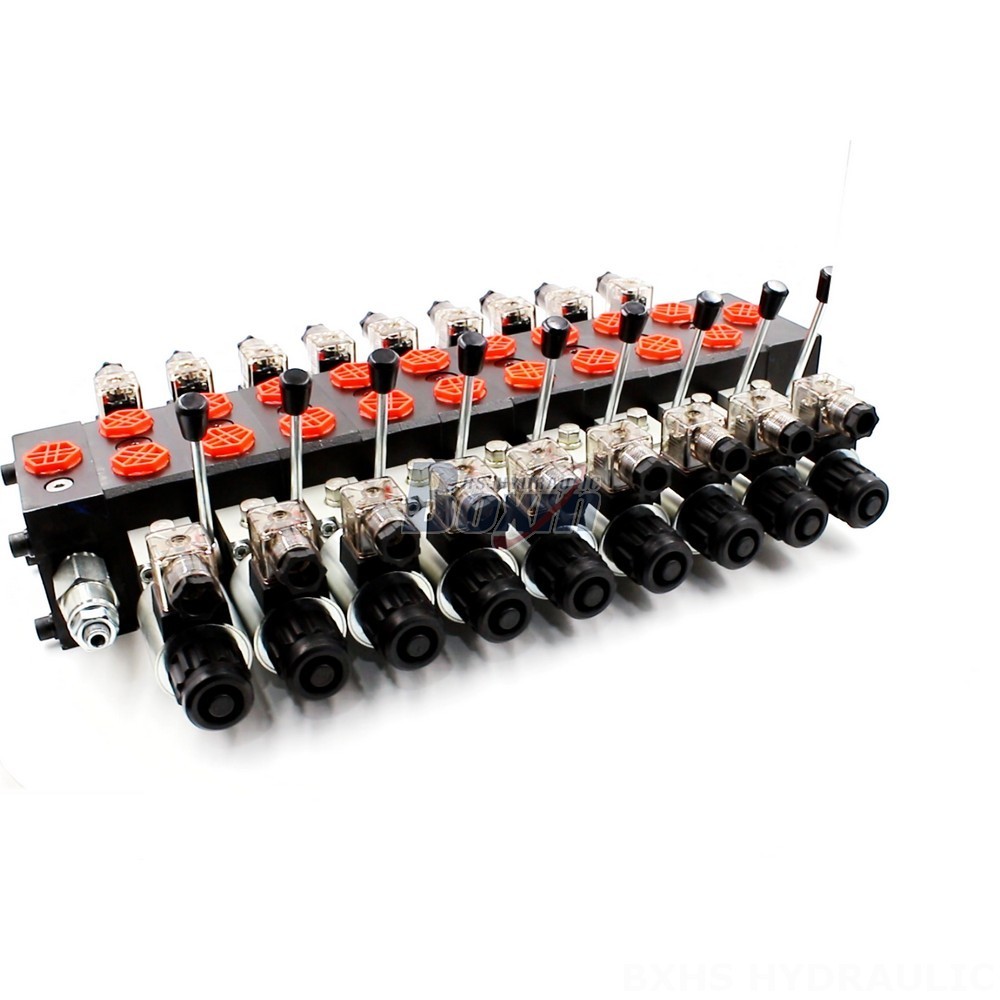

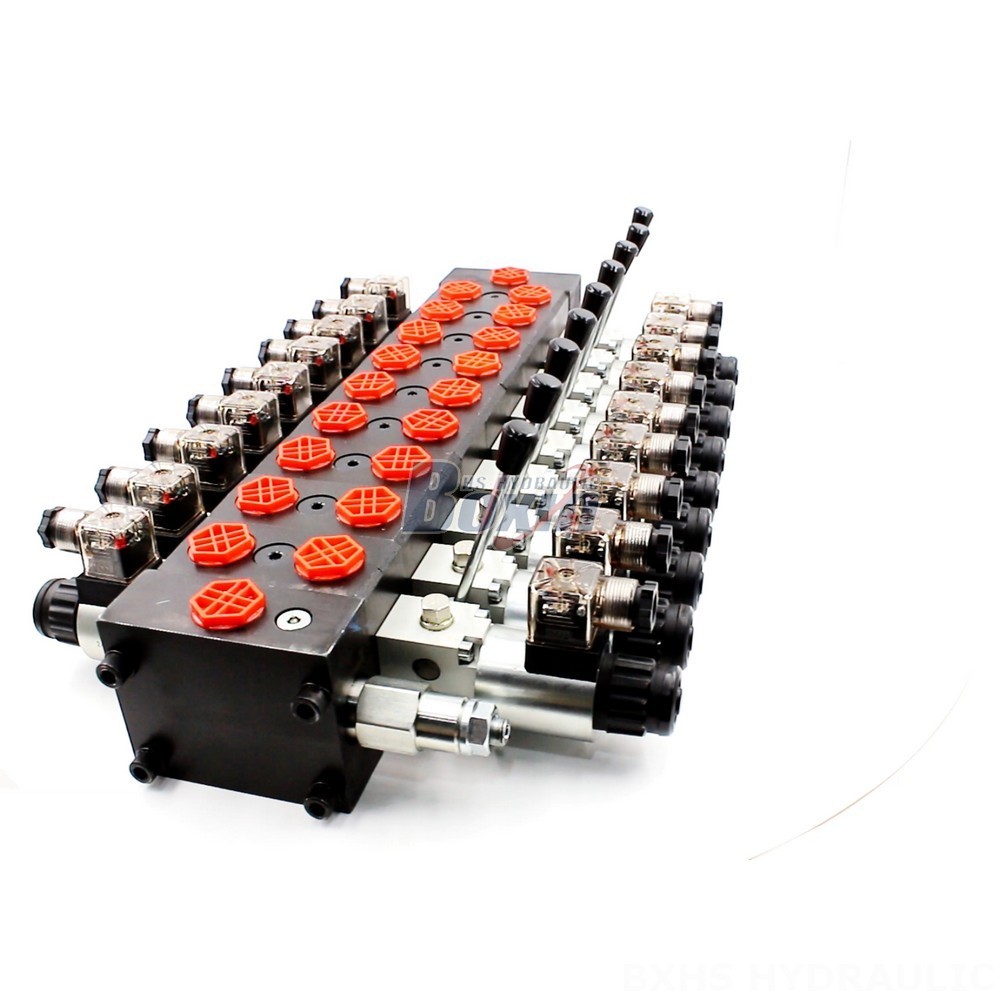

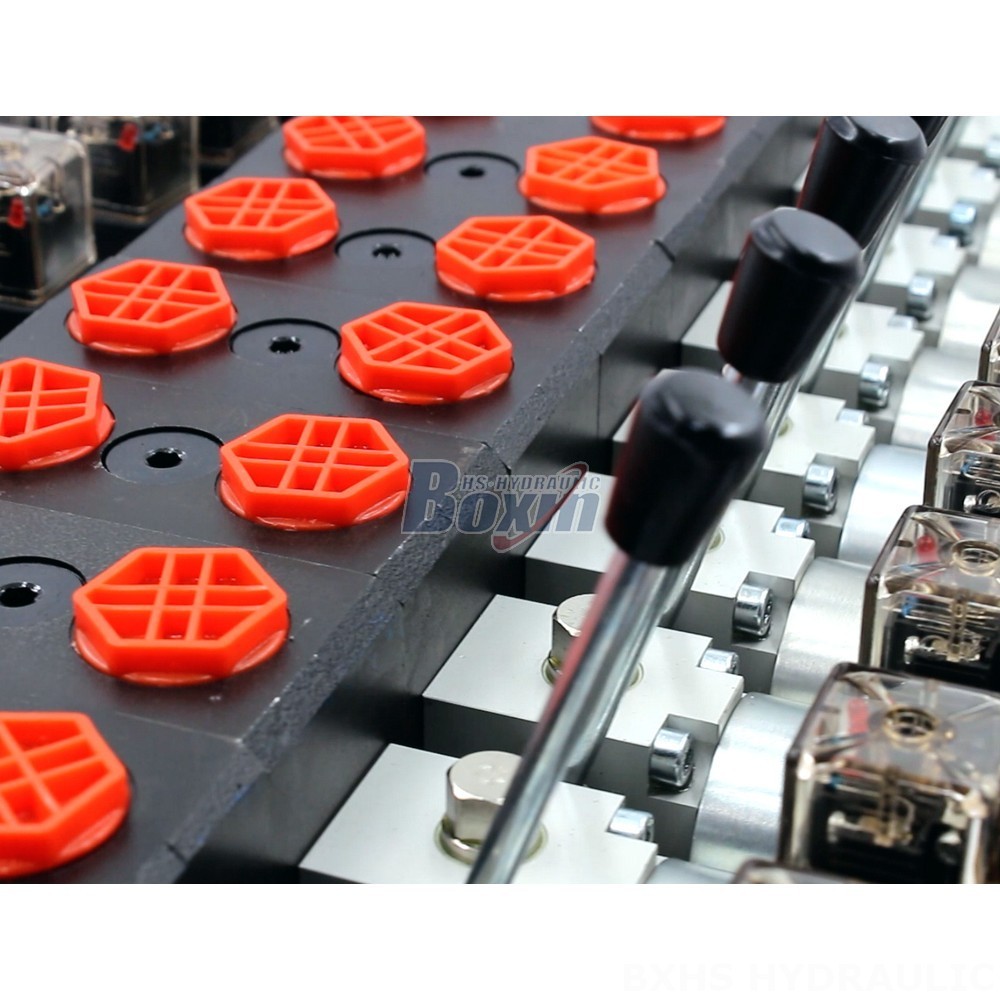

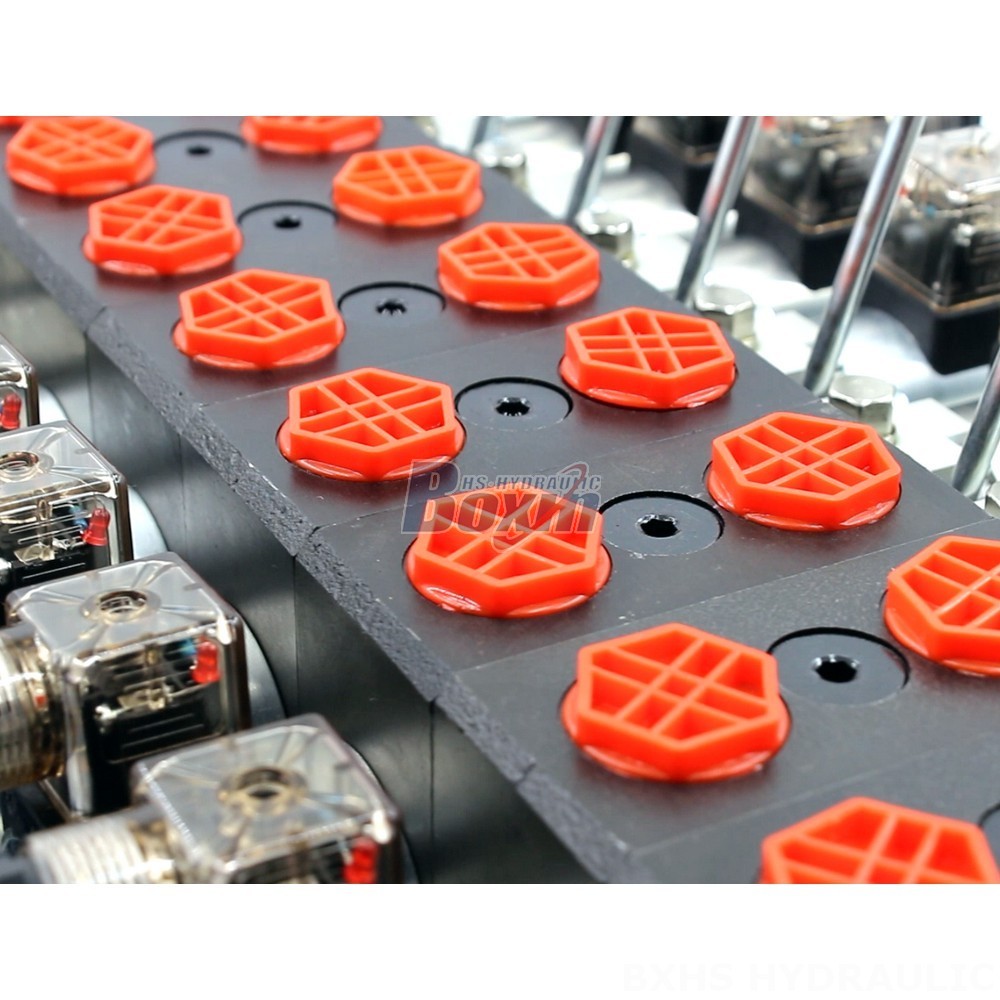

This is a high-performance, customizable hydraulic motor valve designed for demanding industrial applications. It features a 9-section, solenoid-controlled design, high flow rate (60 L/min), and high pressure rating (350 bar). Ideal for material handling, construction, agriculture, and industrial vehicles.
| DCV58-Serie Sektionalwegeventil Parameter | |
|---|---|
| Steuermethode | Magnet, Magnetisch und manuell |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen, 8 Spulen, 9 Spulen, 10 Spulen, 11 Spulen, 12 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Schieberventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt, 8 Abschnitt, 9 Abschnitt, 10 Abschnitt, 11 Abschnitt, 12 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 350 bar (5100 psi) |
| Einlassanschluss | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Auslassanschluss | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| Anschlussgröße | G1/2, M22×1.5, SAE 10, 1/2 NPT |
This versatile **hydraulic motor valve** is a **customizable, high-performance** solution for your industrial needs. The **9-section, solenoid-controlled** design provides precise and reliable operation in a wide range of applications. With a **rated flow of 60 L/min** and a **maximum pressure of 350 bar**, this valve is capable of handling demanding workloads. The **sectional valve** construction allows for easy maintenance and repair. Designed for **heavy-duty operation**, it operates within a broad temperature range (-40°C to +80°C). Suitable for use in **material handling**, **construction and earth moving**, **agriculture**, and **industrial vehicles** such as **telehandlers**, **forklifts**, **all terrain cranes**, **stackers**, **aerial platforms**, **motor graders**, **midi-excavators**, **mini-excavators**, **skid steer loaders**, and **compact wheel loaders**. Part of the **DCV58 Series**, this valve is built to meet the highest industry standards.
