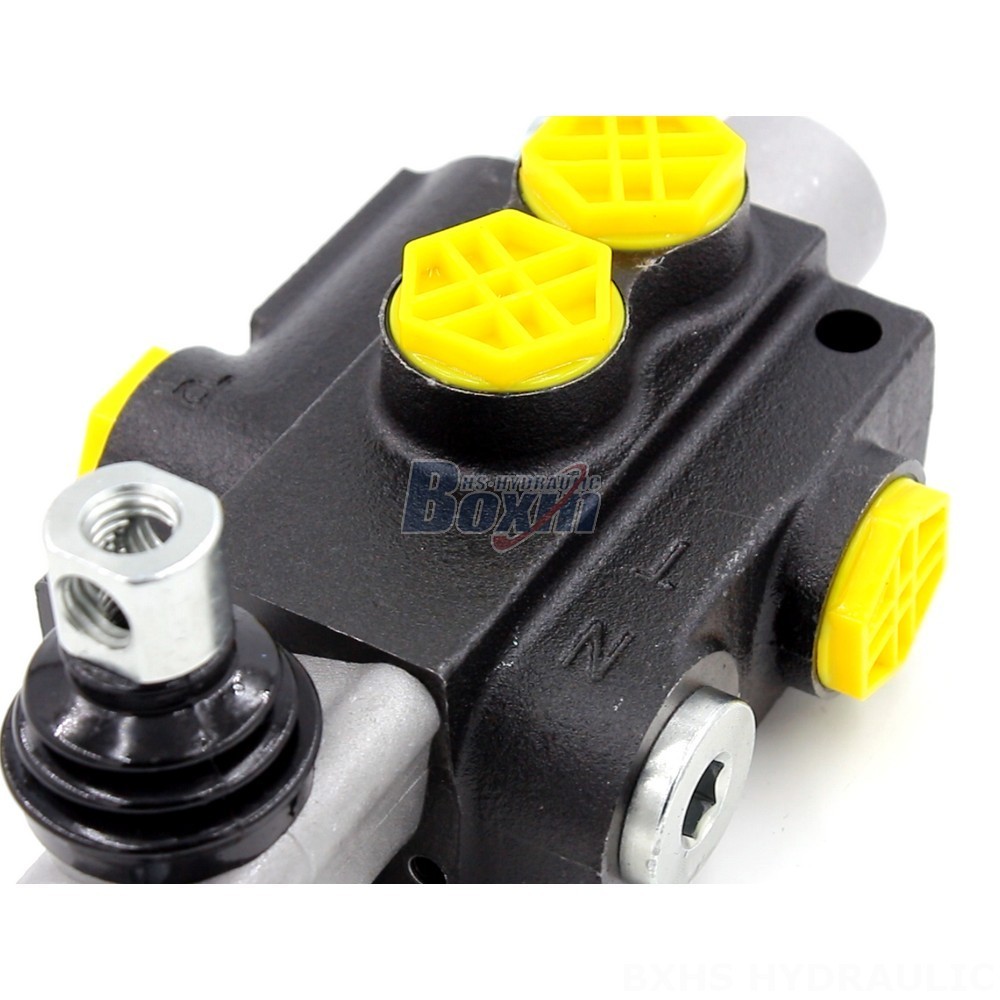

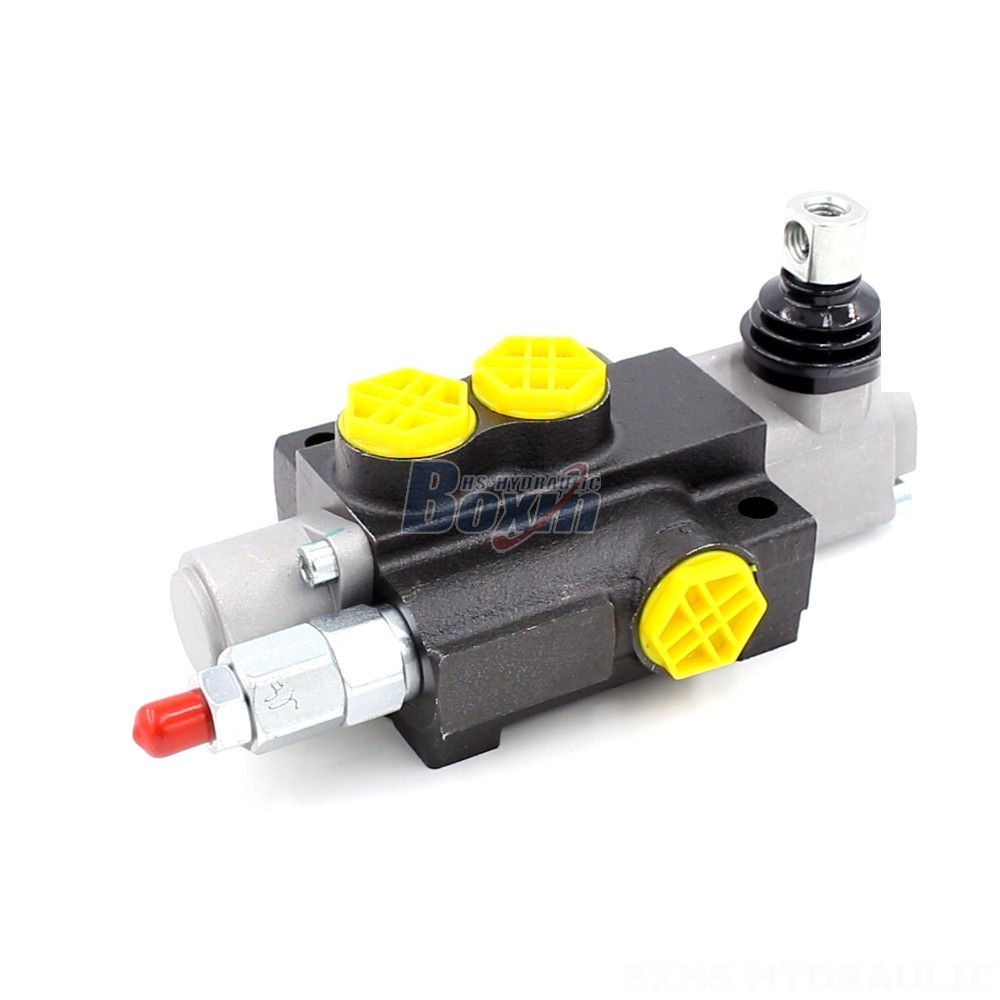

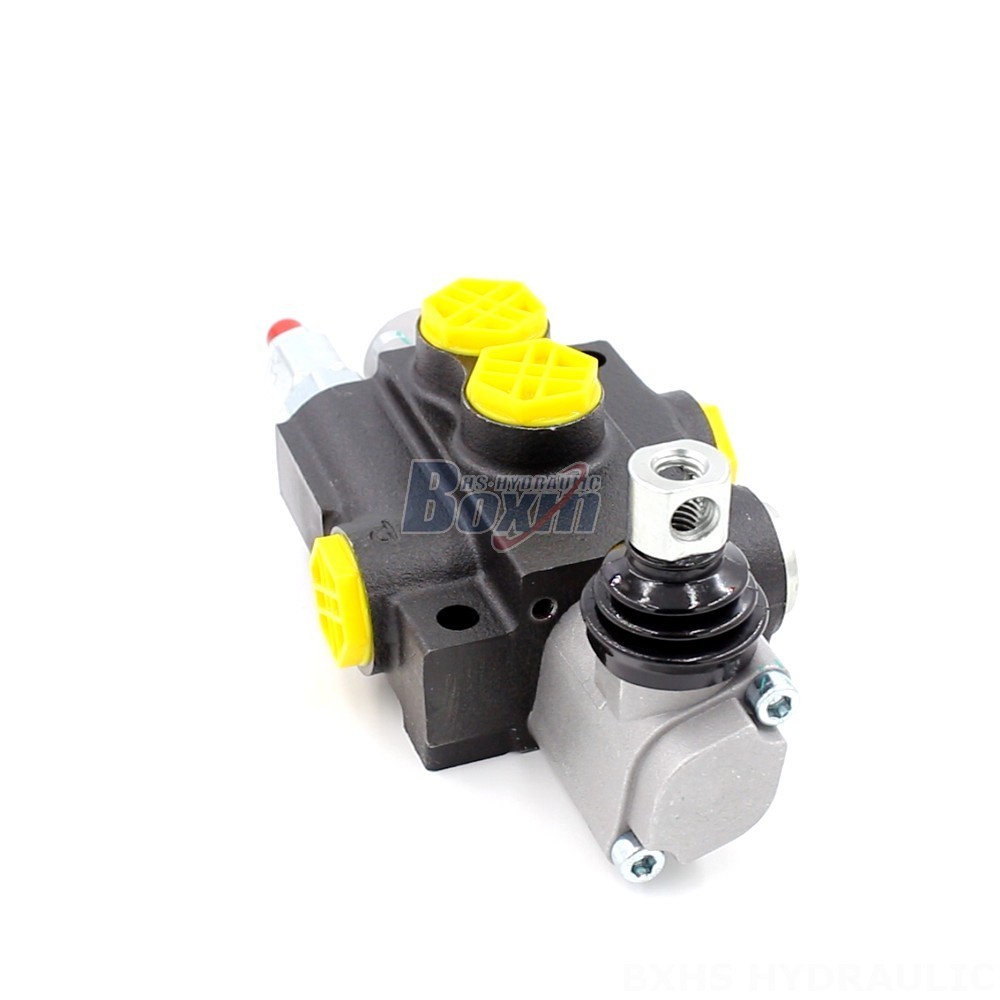

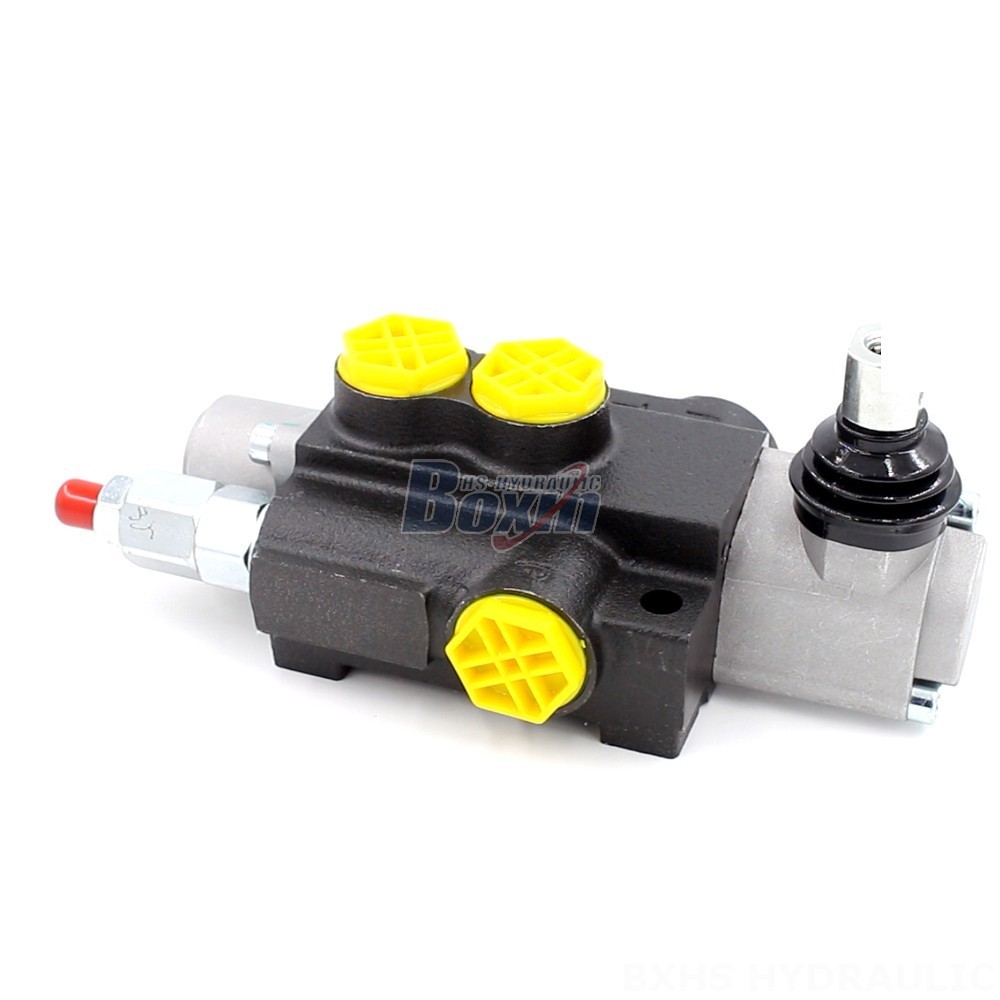

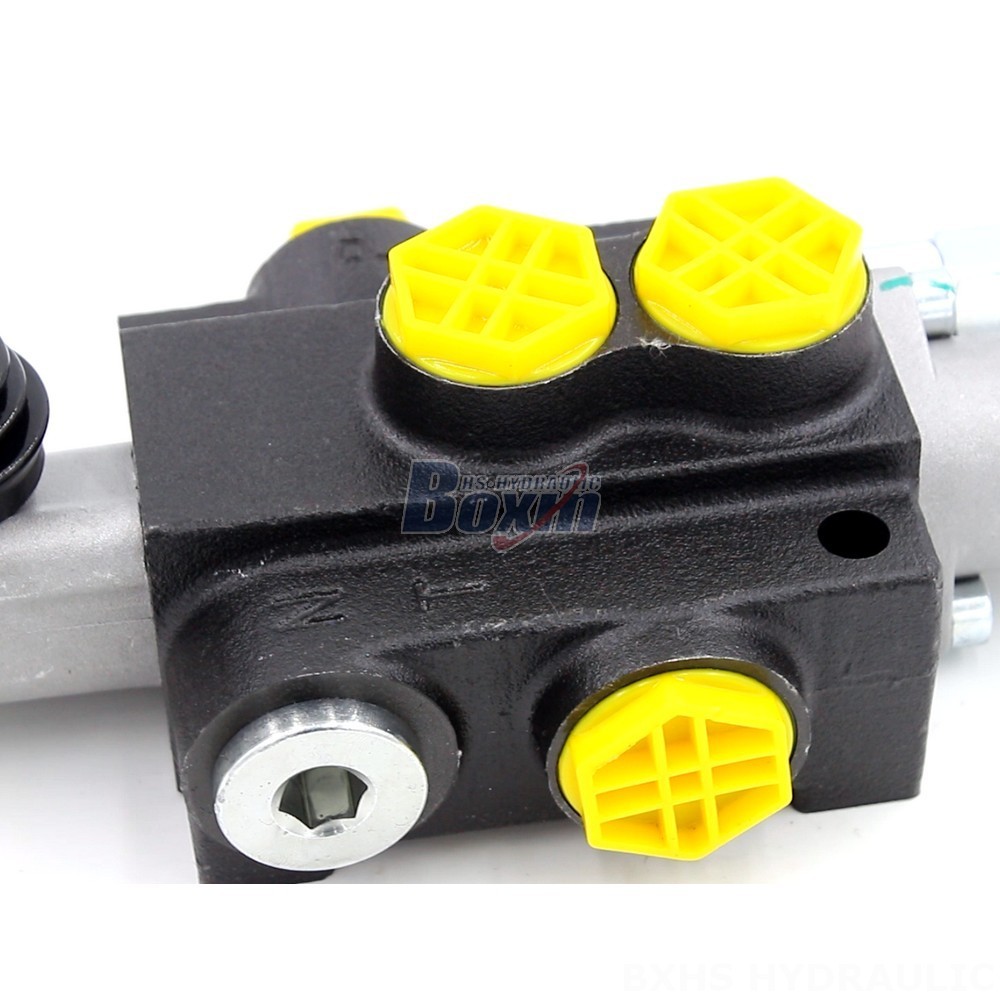

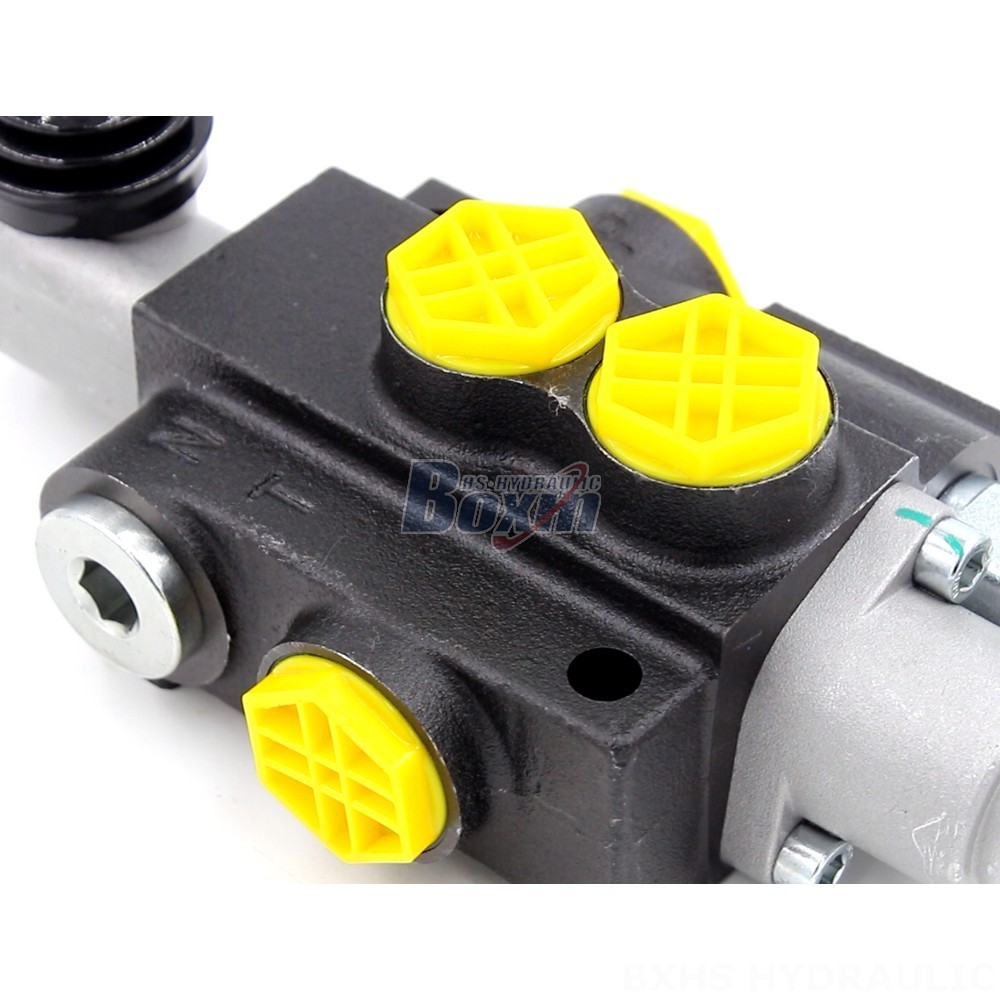

The P40-G12-1OT 1-Spool Monoblock Hydraulic Valve is a high-performance, customizable valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. This manual, monoblock valve offers reliable directional control with a rated flow of 40 L/min and a maximum pressure of 250 bar. It is suitable for a wide range of equipment, including telehandlers, forklifts, excavators, loaders, and more.
| P40-Serie Monoblock-Wegeventil Parameter | |
|---|---|
| Steuermethode | Manuell, Pneumatisch, Elektropneumatisch, Elektrohydraulisch, Magnet, Hydraulisch, Hydraulisch und Manuell, Kabel, Joystick, Magnet und Joystick, Manuell und Joystick, Magnetgesteuert und Seilzug |
| Steuerkolben | 1 Spule, 2 Spulen, 3 Spulen, 4 Spulen, 5 Spulen, 6 Spulen, 7 Spulen |
| Umgebungstemperaturbereich | -40 °C bis +80 °C (-40 °F bis +176 °F) |
| Strukturtyp | Monoblockventil |
| Abschnitt | 1 Abschnitt, 2 Abschnitt, 3 Abschnitt, 4 Abschnitt, 5 Abschnitt, 6 Abschnitt, 7 Abschnitt |
| Bereich der Betriebsviskosität | 15 - 75 mm²/s (15 cSt bis 75 cSt) |
| Nennfluss | 40 l/min (10,5 US gal/min) |
| Maximaldruck | 250 bar (3600 psi) |
| Einlassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Auslassanschluss | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| Anschlussgröße | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
The P40-G12-1OT 1-Spool Monoblock Hydraulic Valve is a high-quality, robust component that delivers precise and efficient fluid control. Featuring a compact monoblock design, this valve is suitable for a variety of applications, including construction equipment, material handling systems, agricultural machinery, and industrial vehicles. Its customizable nature allows for tailored solutions to meet specific requirements. The valve has a rated flow of 40 L/min and a maximum pressure of 250 bar, making it capable of handling high-demanding hydraulic systems. It is compatible with a wide range of operating temperatures and viscosity ranges. With its reliable performance, durability, and versatility, the P40-G12-1OT 1-Spool Monoblock Hydraulic Valve is an ideal choice for demanding applications requiring precise hydraulic control.
